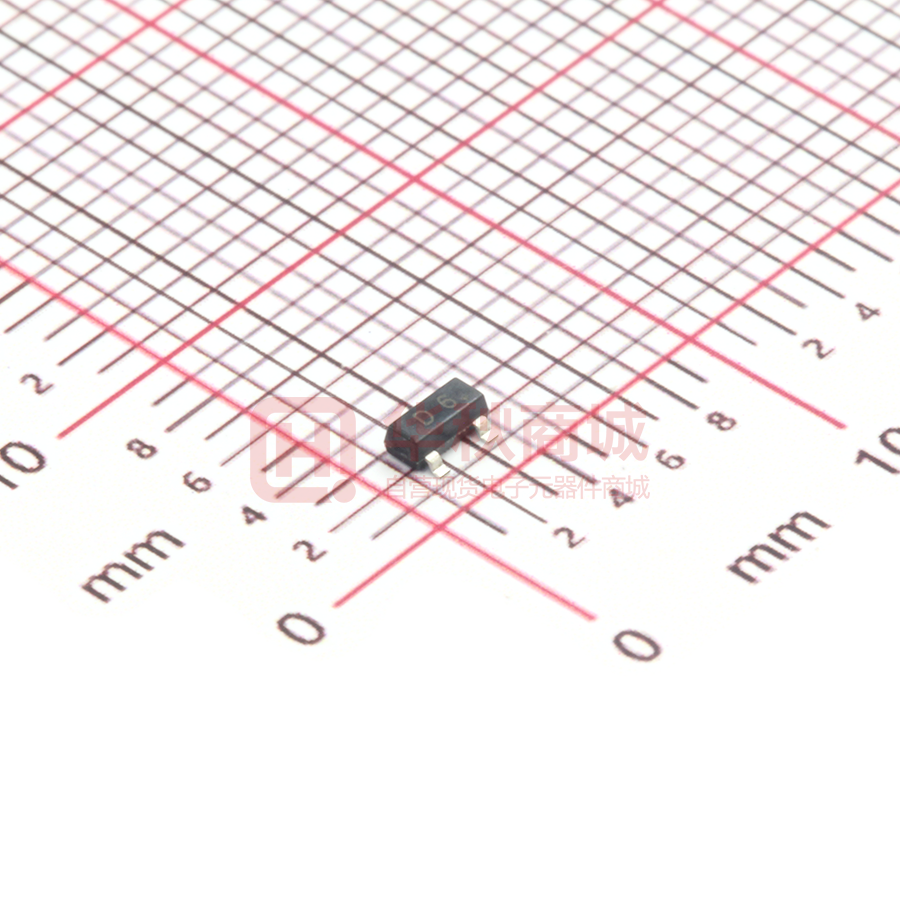

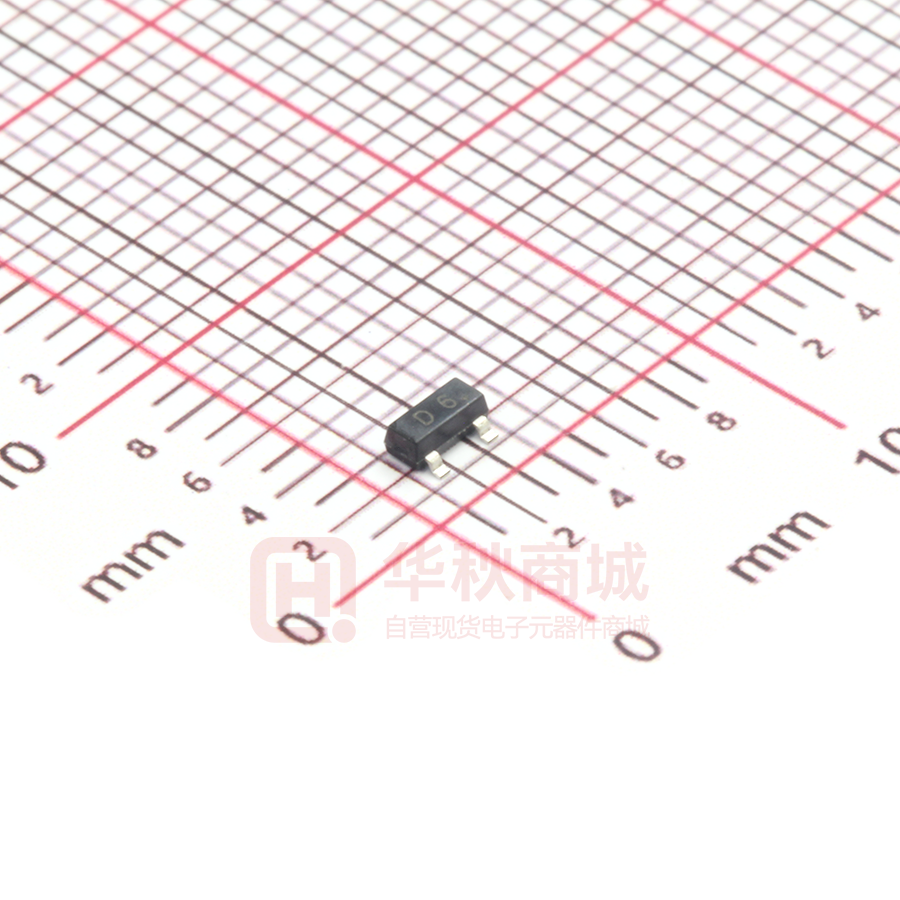

MMBD4148CA

Plastic-Encapsulate Diodes SCHOTTKY DIODES MMBD4148A/CA/CC/SE FEATURES Fast Switching Speed For General Purpose Switching Applications High Conductance MARKING SOT-23 MMBD4148A:5H MMBD4148CA:D6 MAXIMUM RATINGS (TA=25 MMBD4148CC:D5 MMBD4148SE:D4 unless otherwise noted) Paramet er voltage Non-Repetitive Peak reverse Symbol Limits Unit VRM 100 V Peak Repetitive Peak reverse voltage VRRM Working Peak Reverse Voltage VRWM 100 V VR VR(RMS) 53 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 200 mA DC Blocking Voltage RMS Reverse Voltage Peak forward surge current @=1.0μs 2.0 I A 1.0 @=1.0 PD 350 mW RθJA 357 /W Junction temperature Tj 150 Storage temperature TSTG -65~+150 Power Dissipation s Thermal Resistance Junction to Ambient Electrical Ratings @TA=25 Parameter Reverse Breakdown Voltage Symbol Min. Typ. Max. Unit Conditions V (BR) R1 100 V IR=100μA V (BR) R2 75 V IR=5μA VF 1 V IF=10mA IR1 5 μA VR=75V IR2 25 nA VR=25V Capacitance between terminals CT 4 pF VR=0V,f=1MHz Reverse Recovery Time trr 4 ns Forward voltage Reverse current IF=IR=10mA, GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. VR=6V,Irr=0.1XIR,RL=100Ω Page:P2-P1 Plastic-Encapsulate Diodes MMBD4148A/CA/CC/SE Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. Page:P2-P2
