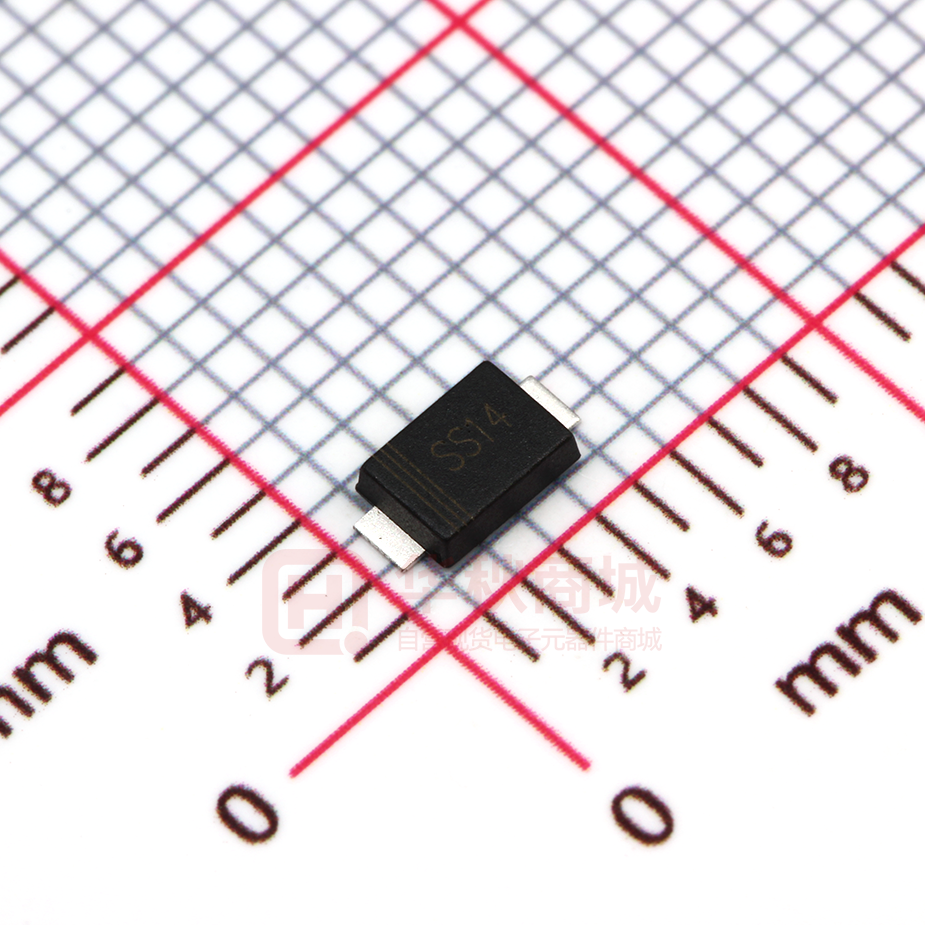

SS14F

SS12F-SS120F SCHOTTKY BARRIER RECTIFIER FEATURES  For surface mounted applications  Metal silicon junction, majority carrier conduction  Built-in strain relief, ideal for automated placement  Low power loss, high efficiency.  High forward surge current capability SMAF  Plastic package has Underwriters Laboratory Flammability Classification 94V-0 10 MECHANICAL DATA Cathode  Case: SMAF Molded plastic  Terminals: Pure tin plated, lead free  Polarity: Indicated by cathode band  Weight: 27mg (approx.) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.For capacitive load, derate current by 20% Parameter Symbol SS 12F SS 13F SS 14F SS 15F SS 16F SS 18F SS 110F SS 115F SS 120F Unit Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 150 200 V Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V Maximum Average Forward Rectified Current IF(AV) 1.0 A Peak Forward Surge Current 8.3 ms Half Sine-wave Superimposed on Rated Load (JEDEC method) IFSM 30.0 A Maximum Instantaneous Forward Voltage at 1A VF Maximum DC Reverse Current Cat Rated DC Blocking Voltage IR @ TA =25°C @ TA =100°C 0.45 0.55 0.70 0.85 0.5 Typical Junction Capacitance(Note1) Cj Typical Thermal Resistance (Note2) RθJA Operating Temperature Range Storage Temperature Range 10.0 5.0 110 90 0.95 V 0.2 mA 2.0 mA pF 88 °C/w TJ -50 to +150 °C TSTG -50 to +150 °C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1/3 SS12F-SS120F SCHOTTKY BARRIER RECTIFIER FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 SS12F-SS16F SS18F-SS120F 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Typical Characteristics FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 24 18 12 6 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 TJ=25 C 10.0 1 SS12F-SS14F SS15F-SS16F SS18F-SS115F SS120F 0.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0.01 100 NUMBER OF CYCLES AT 60 Hz INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES AMBIENT TEMPERATURE, C 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 FIG. 5-TYPICAL JUNCTION CAPACITANCE 400 200 TJ=25 C 20 SS12F-SS14F SS15F-SS120F TRANSIENT THERMAL IMPEDANCE, C/W JUNCTION CAPACITANCE, pF INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 2 0.1 1.0 10 REVERSE VOLTAGE,VOLTS ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 100 t,PULSE DURATION,sec. E-mail:hkt@heketai.com 2/3 SS12F-SS120F SCHOTTKY BARRIER RECTIFIER SMAF Package Outline Dimensions ∠ALL ROUND C A ∠ALL ROUND HE E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 3.7 2.7 1.6 1.2 4.9 min 0.9 0.12 3.3 2.4 1.3 0.8 4.4 max 43 7.9 146 106 63 47 193 min 35 4.7 130 94 51 31 173 UNIT mm g pad E e A pad D V M ∠ 7° ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/3
