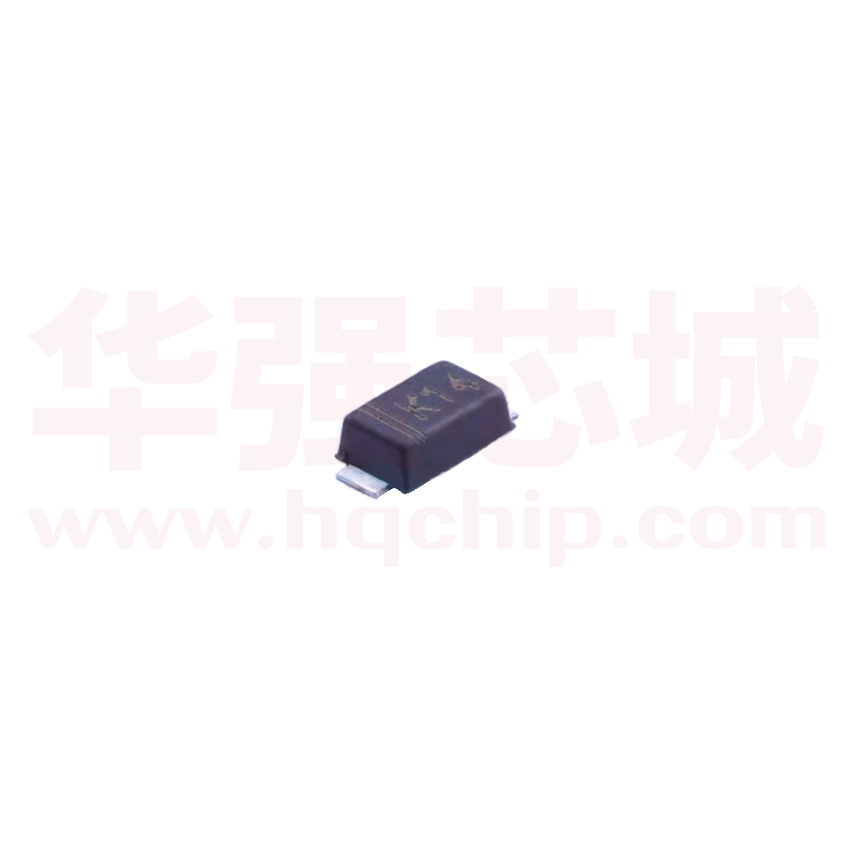

SK14L

SK12L-SK120L SCHOTTKY BARRIER RECTIFIER FEATURES  For surface mounted applications  Metal silicon junction, majority carrier conduction  Built-in strain relief, ideal for automated placement  Low power loss, high efficiency.  High forward surge current capability SOD-123FL  Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA 10  Case: SOD-123FL Molded plastic Cathode  Terminals: Pure tin plated, lead free  Polarity: Indicated by cathode band  Weight: 11.5 mg (approx.) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.For capacitive load, derate current by 20% Parameter Symbol SK 12L SK 13L SK 14L SK 15L SK 16L SK 18L SK SK 110L 115L SK 120L Unit Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 150 200 V Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V Maximum Average Forward Rectified Current IF(AV) 1.0 A Peak Forward Surge Current 8.3 ms Half Sine-wave Superimposed on Rated Load (JEDEC method) IFSM 30.0 A Maximum Instantaneous Forward Voltage at 1A VF Maximum DC Reverse Current Cat Rated DC Blocking Voltage IR @ TA =25°C @ TA =100°C 0.45 0.55 0.70 0.85 0.5 Typical Junction Capacitance(Note1) Cj Typical Thermal Resistance (Note2) RθJA Operating Temperature Range Storage Temperature Range 10.0 5.0 110 90 0.95 V 0.2 mA 2.0 mA pF 88 °C/w TJ -50 to +150 °C TSTG -50 to +150 °C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1/3 SK12L-SK120L SCHOTTKY BARRIER RECTIFIER 1 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 SK12L-SK16L SK17L-SK120L 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 25 20 15 10 5.0 175 0 1 AMBIENT TEMPERATURE, C FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE SK12L-SK14L SK15L-SK16L SK17L-SK115L SK120L 0.1 0.01 0.2 0.4 0.6 0.8 1.0 10 100 NUMBER OF CYCLES AT 60 Hz 1.1 INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Typical Characteristics FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 TJ=100 C 1 TJ=75 C 0.1 0.001 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 0.01 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 1000 SK12L-SK14L SK15L-SK120L 100 TJ=25 C 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 2/3 SK12L-SK120L SCHOTTKY BARRIER RECTIFIER SOD-123FL Package Outline Dimensions ∠ALL ROUND C A ∠ALL ROUND HE V M g g pad e E A pad D E A Top View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm mil Bottom View ∠ 7° ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/3
