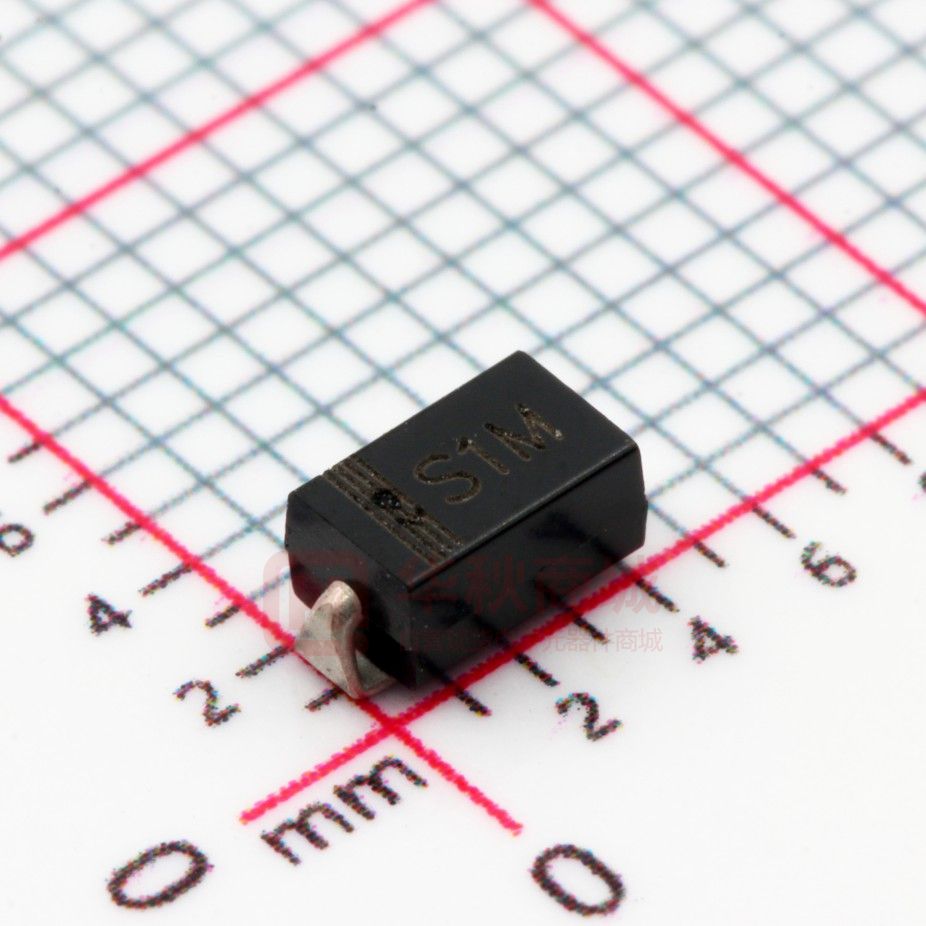

S1A- S1M SURFACE MOUNT GENERAL RECTIFIER FEATURES  For surface mounted application  Low forward voltage drop  High current capability  Easy pick and place  High surge current capability DO-214AC (SMA)  Plastic material used carries Underwriters Laboratory Classification 94V-0 MECHANICAL DATA 10  Case: DO-214AC (SMA)Molded plastic  Terminals: Pure tin plated, lead free Cathode  Polarity: Indicated by cathode band  Weight: 0.064 gram(approx.) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. S1A S1B S1D S1G S1J S1K S1M Unit VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at TL =100 °C I(AV) 1 A Peak Forward Surge Current 8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC) IFSM 30 A Maximum Instantaneous Forward Voltage at 1 A VF 1.1 V Maximum DC Reverse Current at Rated DC Blocking Voltage IR 5 200 µA Typical Junction Capacitance 1) CJ 15 pF Maximum Thermal Resistance 2) RθJA 75 °C/W Operating and Storage Temperature Range TJ, TS - 50 to + 150 °C Parameter Symbol Maximum Repetitive Peak Reverse Voltage TA = 25 °C TA =125 °C Note 1. Measured at 1 MHz and Applied Vr=4.0 volts 2. P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1/3 S1A- S1M SURFACE MOUNT GENERAL RECTIFIER Typical Characteristics 1.0 25 50 75 100 125 150175 LEAD TEMPERATURE .o C 25 15 10 5 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES Fig. 1-FORWARD CURRENT DERATING CURVE 10 Tj =125o C Tj =75o C 0.1 Tj =25o C 0.01 0.001 0 20 40 60 1 2 5 10 20 50 100 NUMBER OF CYCLES AT 60 Hz Fig. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 1 8.3ms Single Half Sine Wave (JEDEC Method) 20 80 100 120 140 PERCENT OF PEAK REVERSE VOLTAGE, % INSTANTANEOUS FORWARD CURRENT, MICROAMPERES 2.0 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD CURRENT, AMPERES 30 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.315x0.315"(8.0x8.0mm) COPPER PAD AREAS 100 50 20 10 5 2 1 0.5 0.2 0.1 0.05 0.02 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS FORWARD VOLTAGE , VOLTS Fig. 4-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS Fig. 3-TYPICAL REVERSE CHARACTERISTICS 500 200 100 50 Units Mounted On 20in2 (5.4mm 2 )+0.5mil inches(0.013mm) Thick Copper Land Areas CAPACITANCE. pF THERMAL IMPEDANCE (oC/W) 1000 20 10 5 2 1 0.01 0.1 1 10 Tj =25 oC f=1.0MHz Vsig=50mVp-p 50 20 10 5 2 1 0 1.0 10 100 1000 100 REVERSE VOLTAGE VOLTS Fig. 5-TRANSIENT THERMAL IMPEDANCE ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 100 REVERSE VOLTAGE VOLTS Fig. 6-TYPICAL JUNCTION CAPACITANCE E-mail:hkt@heketai.com 2/3 S1A- S1M SURFACE MOUNT GENERAL RECTIFIER SMA Package Outline Dimensions 10 52 0 32 4.50 7 ( DIMENSIONS ARE IN MILLIMETER ) SMA Embossed Carrier Tape P0 P1 d E MAX.3° A MAX.3° T F W C B R A P DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P P0 P1 T W SMA 3.0 5.4 2.4 1.5 1.5 5.65 4 4 2 0.3 12 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.05 ±0.1 ±0.1 ±0.1 ±0.05 ±0.2 SMA Reel D2 D W1 DIMENSIONS REEL OPTION D1 ARE IN MILLIMETER D D1 D2 W1 7’’ DIA 178 50 min. 13 16.8 TOLERANCE ±2 ±0.1 ±0.5 ±2 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/3
