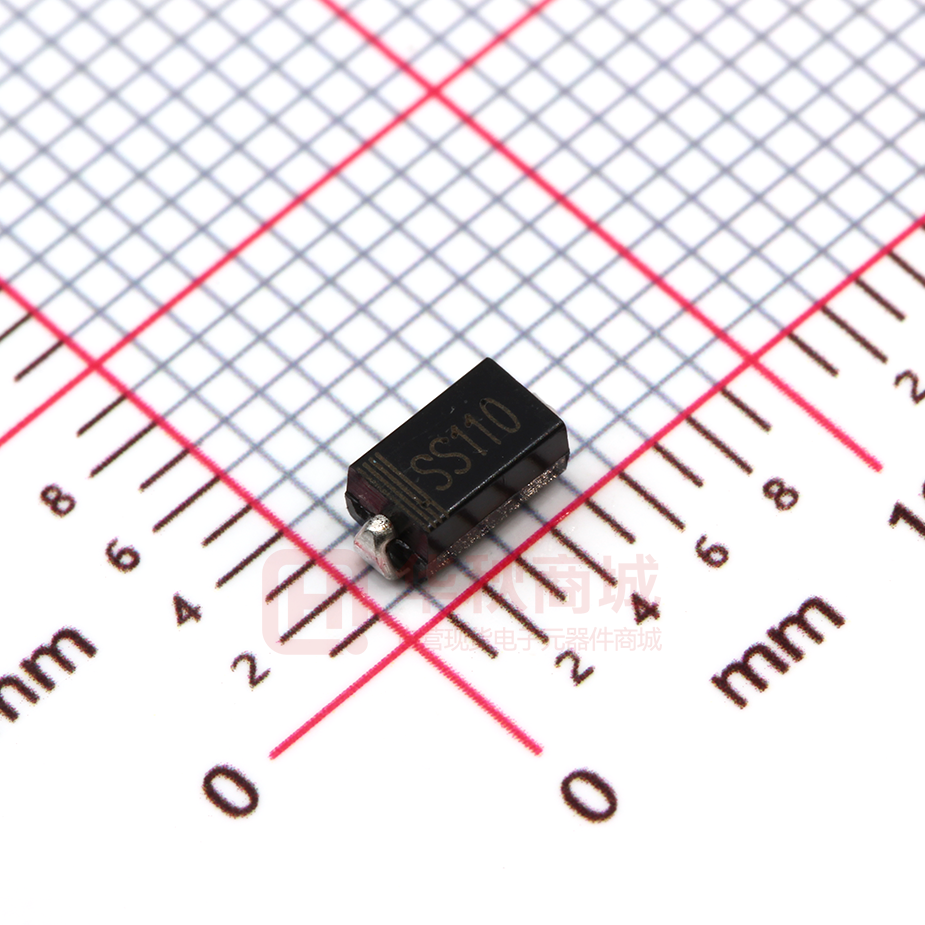

SS110

SS12-SS120 SCHOTTKY BARRIER RECTIFIER FEATURES  For surface mounted applications  Metal silicon junction, majority carrier conduction  Built-in strain relief, ideal for automated placement  Low power loss, high efficiency.  High forward surge current capability DO-214AC (SMA)  Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA 10  Case: DO-214AC (SMA)Molded plastic  Terminals: Pure tin plated, lead free Cathode  Polarity: Indicated by cathode band  Weight: 0.064 gram(approx.) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.For capacitive load, derate current by 20% Parameter Symbol SS 12 SS 13 SS 14 SS 15 SS 16 SS 18 SS 110 SS 115 SS 120 Unit Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 150 200 V Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V Maximum Average Forward Rectified Current IF(AV) 1.0 A Peak Forward Surge Current 8.3 ms Half Sine-wave Superimposed on Rated Load (JEDEC method) IFSM 30.0 A Maximum Instantaneous Forward Voltage at 1A VF Maximum DC Reverse Current Cat Rated DC Blocking Voltage IR @ TA =25°C @ TA =100°C 0.45 0.55 0.70 0.85 0.5 Typical Junction Capacitance(Note1) Cj Typical Thermal Resistance (Note2) RθJA Operating Temperature Range Storage Temperature Range 10.0 5.0 110 90 0.95 V 0.2 mA 2.0 mA pF 88 °C/w TJ -50 to +150 °C TSTG -50 to +150 °C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1/3 SS12-SS120 SCHOTTKY BARRIER RECTIFIER 1.0 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 SS12-SS16 SS18-SS120 0.2 0 0 25 50 75 100 125 150 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 24 18 12 6 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 50 TJ=25 C 10.0 1 SS12-SS14 SS15-SS16 SS18-SS115 SS120 0.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0.01 100 NUMBER OF CYCLES AT 60 Hz FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS INSTANTANEOUS FORWARD CURRENT,AMPERES PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Typical Characteristics 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 400 200 TJ=25 C 20 SS12-SS14 SS15-SS120 2 0.1 1.0 10 REVERSE VOLTAGE,VOLTS ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD TRANSIENT THERMAL IMPEDANCE, C/W INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 100 t,PULSE DURATION,sec. E-mail:hkt@heketai.com 2/3 SS12-SS120 SCHOTTKY BARRIER RECTIFIER SMA Package Outline Dimensions 10 52 0 32 4.50 7 ( DIMENSIONS ARE IN MILLIMETER ) SMA Embossed Carrier Tape P0 P1 d E MAX.3° A MAX.3° T F W C B R A P DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P P0 P1 T W SMA 3.0 5.4 2.4 1.5 1.5 5.65 4 4 2 0.3 12 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.05 ±0.1 ±0.1 ±0.1 ±0.05 ±0.2 SMA Reel D2 D W1 DIMENSIONS REEL OPTION D1 ARE IN MILLIMETER D D1 D2 W1 7’’ DIA 178 50 min. 13 16.8 TOLERANCE ±2 ±0.1 ±0.5 ±2 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/3
