DY-ITR8104

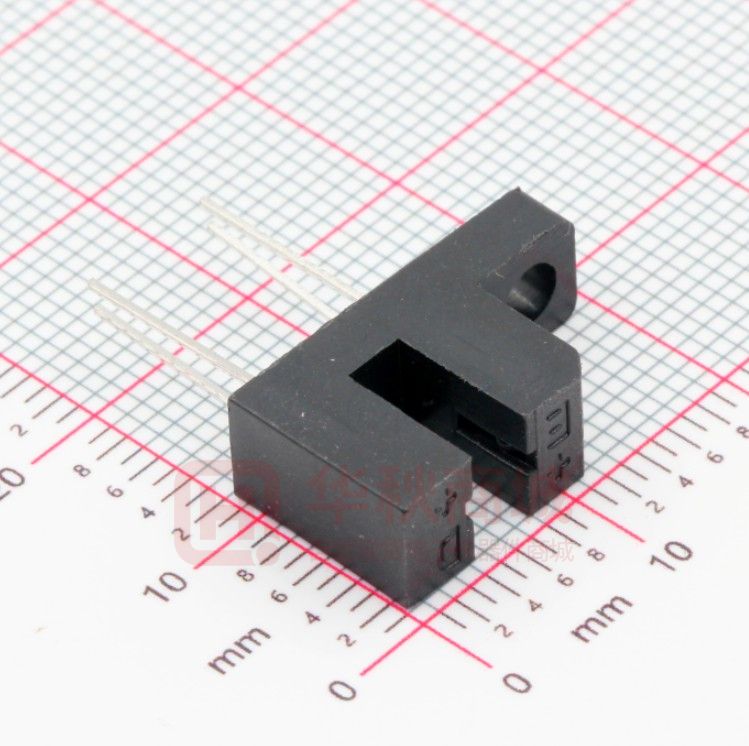

广州市东裕光电科技有限公司 GUANGZHOU TONYU TECHNOLOGY CO., LTD 产品规格书 SPECIFICATION 客户名称 CUSTOMER 产品名称 PRODUCTION 产品型号 MODEL 版本号 VERSION NO 对射式（槽型）光电开关 Transmissive Sensor DY-ITR8104 A1.0 地址(Add)：广东省广州市番禺区石基镇海涌路 3 号 10 号厂房 2 楼 电话(Tel)：020-39294688 传真(Fax)：020-39966833 邮箱(E-mail)：zlx@dyled.cn 网址(Net)：www.tonyuled.com 客户确认 CUSTOMER CONFIRMATION Copyright © 2019, TONYU All Rights Reserved. 审 核 CHECKED BY 编 制 PREPARED BY 汪建新 陈少龙 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 DY-ITR8104 产品描述 Descriptions  带安装孔的对射式（槽型）光电开关。 （An transmissive sensor with mounting holes） 产品特性 Features        可靠性高 响应时间快 解析度高 敏感度高 截止波长 940nm 无铅 符合 RoHS 要求 (High reliability ) (Fast response time) (High analytic) (High sensitivity) (Cut-off visible wavelength λP=940nm) (Pb free ) (This product itself will remain within RoHS compliant version) 产品应用 Applications     鼠标 码盘 非接触式开关 智能家电 (Mouse Copier) (Switchc Scanner) (Non-contact Switching) (Smart Appliances) 包装方式 Packing Quantity Specification  150PCS/袋，5 袋/小盒，10 小盒/箱(150PCS/1Bag，5Bags/1Box，10Boxes/1Carton) Copyright © 2019, TONYU All Rights Reserved. PAGE: 2 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 一、外形图 Outline dimensions： 注(Notes)：1、所有尺寸均以毫米为单位(All dimensions are in millimeters)。 2、尺寸公差值为±0.25mm(Tolerances unless dimensions ±0.25mm)。 ※备注：承认书之编号和型号可用于查询，客户如有需要，请提供相应的编号和型号。 Remark：P/N & Model in samples approval sheet can be used to inquire，please provide corresponding P/N & model if customer need. Copyright © 2019, TONYU All Rights Reserved. PAGE: 3 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 二、光电参数 Electro-Optical Characteristics： （环境温度 Ambient temperature：25℃，环境湿度 Humidity：RH60%） 项目 Item 输入 Input 输出 Output 符号 Symbol 测试条件 Test condition 最小值 Min. 典型值 Type 最大值 Max.. 单位 Unit. 正向电压 Forward voltage VF IF=20mA - 1.2 1.5 V 反向电流 Reverse current IR VR=5V - - 10 μA 峰值波长 Peak wavelength λp IF=20mA - 940 - nm 暗电流 Dark Current ICEO VCE=20V Ee=0mW/cm2 - - 100 nA C-E 饱和电压 C-E Saturation Voltage VCE(sat) IC=2mA, Ee=1mW/cm2 - - 0.4 V 0.9 - 15 mA - - 20 μA - 15 - μs - 15 - μs 集电极电流(*) Collector Current(*) 响应时间 Response Time IC(ON) IC(OFF) 上升时间 Rise Time TR 下降时间 Fall Time TF VCE=5V,IF=20mA VCE=5V,IC=1mA RL=1KΩ 注(Notes)：*正向电压公差范围(Forward voltage tolerance)：±0.1v *辐射强度公差范围(Radiant intensity tolerance)：±10% *波长公差范围(wavelength tolerance)：±1.0nm Copyright © 2019, TONYU All Rights Reserved. PAGE: 4 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 三、典型光电特性曲线图 Typical photoelectricity characteristic curve chart： IR 光电特性图 Typical Characteristics For IR Copyright © 2019, TONYU All Rights Reserved. PAGE: 5 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 PT 光电特性图 Typical Characteristics For PT Copyright © 2019, TONYU All Rights Reserved. PAGE: 6 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 四、极限参数 Absolute Maximum Rating： （环境温度 Ambient temperature：25℃，环境湿度 Humidity：RH60%） 项目 Item 符号 Symbol 数值 Value 单位 Unit 备注 Remark 常温下功耗 Power Dissipation Pd 75 mW at(or below) 25℃ Free Air Temperature 反向耐压 Reverse Voltage VR 5 V --- 正向电流 Forward Current IF 50 mA --- 正向峰值电流 Peck forward current IFP 1 A Pulse width ≦100μs, Duty cycle=1% tw=100 μsec, T=10 msec 集电极功耗 Collector Power Dissipation Pc 75 mW --- 集电极电流 Collector Current Ic 20 mA --- C-E 电压 Collector-Emitter Voltage BVCEO 30 V E-C 电压 Emitter-Collector Voltage BVECO 5 V 使用温度 Operating Temperature Topr -25~+85 ℃ 储存温度 Storage Temperature Tstg -45~+85 ℃ 输入 Input 输出 Output 焊接温度 Soldering temperature Tsol Copyright © 2019, TONYU All Rights Reserved. 260 ℃ PAGE: 7 / 10 波峰焊，离环氧体 3mm 处，≤3S Wave soldering, 3mm out of physical body, ≤3S www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 五、可靠性实验项目 Reliability Test Project： 描述 项目 测试标准 测试条件 测试时间 数量 失效数量 Description Item Test criterion Test condition Test time Qty. Fail Qty. 寿命测试 常温寿命测试 Life test Life test (room temperature) JIS7021:B4 Ta=25℃±5℃，IF=20mA 1000Hrs 22 0 Ta=85℃±5℃ 1000Hrs 22 0 JIS7021:B12 Ta= -35℃±5℃ 1000Hrs 22 0 高温高湿测试 JIS7021:B11 Ta=85℃±5℃ High temperature/ humidity test MIL-STD-202:103D RH=85% 1000Hrs 22 0 JIS7021:B4 30min MIL-STD-202:107D -10℃±5℃←→100℃±5℃ 50Cycles 22 0 50Cycles 22 0 高温存储 High temperature store 低温存储 Low temperature store 环境测试 Ambience test 冷热冲击测试 Cold / Heat strike test 冷热循环测试 Cold and heat cycle test JIS7021:B10 MIL-STD-202:210A MIL-STD-750:2031 MIL-STD-750:1026 5min JIS7021:A3 5min 5min 5min 5min MIL-STD-202:107D -35℃～25℃～85℃～-35℃ MIL-STD-705:105E 30min 5min 30min 5min 六、注意事项 Note： 1、引脚成形方法 LED bracket forming method （1）必需离胶体 3 毫米才能折弯支架。 The pin of LED can be bent where is at least 3mm out of LED colloid. （2）支架成形必须用夹具或由专业人员来完成。 Must use fixture to deform the LED bracket. （3）支架成形必须在焊接前完成。 Finishing the forming of LED bracket must be before soldering. （4）支架成形需保证引脚和间距与线路板上一致。 Guarantee the gap between two pin of LED tallys with LED pads in PCB when forming. 2、烙铁焊接 Manual soldering 烙铁（最高 30W）尖端温度不超过 300℃；焊接时间不超过 3 秒；焊接位置至少离胶体 3 毫米。 The tip temperature of soldering iron don’t exceed 300℃；soldering time don’t exceed 3s and soldering position must be 3mm out of led colloid。 3、防静电措施 ESD countermeasure 静电及高压会对 LED 造成损坏，特别是芯片材质为 InGaN 的产品对静电防护要求更加严格，要求在使用和 检验产品时戴防静电手腕带或防静电手套，焊接工具及设备外壳需可靠接地，焊接条件遵循此份规格书中的 Copyright © 2019, TONYU All Rights Reserved. PAGE: 8 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 条件。 Static electricity and high volt can damage LED，The production whose Die material is InGaN must strictly required to prevent ESD，Must put on static glove and static fillet，Soldering tool and the cover of device must connect the ground，soldering condition follows the related stating of production specification manual。 4、过电流保护 Protecting countermeasure when over current 为避免由于电压的变化引起大电流冲击而造成产品损坏，需要加入保护电阻。 Need add the protecting resistor in circuit in order to avoid damaging led due to big current and voltage fluctuation。 5、LED 安装方法 LED installation method （1）注意各类器件外线的排列以防极性装错，器件不可与发热组件靠得太近，工作条件不要超过其规定的极限。 Pay attention to the LED polarity and avoid installation wrong。LED can’t be close to euthermic component，work condition should tally with it’s specification。 （2）务必不要在引脚间距变形的情况下安装 LED。 Don’t install the LED under the condition of the led pin deformation。 （3）当装配 LED 进入 PCB 或装配孔时，LED 支架不能承受任何压力。 The LED bracket don’t load any pressure when installing the LED into PCB or fitting hole。 （4）在焊接温度回到正常以前，必须避免使 LED 受到任何的震动或外力。 Must avoid any strike and force on LED before the soldering temperature return to room temperature。 6、存储时间 Storage time （1）在温度 5℃～35℃，湿度 RH60%条件下，产品可保存一年。超过保存期的产品需重新检测后方能使用。 LED can be stored for a year under the condition: the temperature of 5℃～35℃ and humidity of RH60%，These production must be re-inspected and tested before use if their storage time exceed a year。 （2）如果打开的产品在 5℃～35℃，RH60%的空气条件下放置超过一周，则需要将产品在 65℃±5℃的环境中放置 24 小时以上，并尽量在十五天内使用。 If LED is exposed in air for a week under the condition: the temperature of 5℃～35℃，humidity of RH60%，must place the LED in the ambience of 65℃±5℃ for 24 hours and use it in 15 days for best。 7、清洗 Cleaning 当用化学用品清洗胶体时必须特别小心，因为有些化学品对胶体表面有损伤并引起褪色如三氯乙烯、丙酮等。 可用乙醇擦拭、浸渍，时间在常温下不超过 3 分钟。 Be careful of some chemical results in the LED colloid fades and damage when using chemical clean the LED，such as chloroethylene, acetone etc。 Can use ethanol to wash or soak LED but the time don’t exceed 3 minutes. 8、弯脚 Kinked 当 LED 成形弯脚时，弯脚模具容易刮花 LED 脚支架镀层，刮伤处容易生锈，特别是空气湿度大时。为减少 生锈机会，建议使用镀锡支架。 Copyright © 2019, TONYU All Rights Reserved. PAGE: 9 / 10 www.tonyuled.com ` 产品规格书 SPECIFICATION 对射式（槽型）光电开关 DY-ITR8104 The kinked tooling scrape easily the pin of LED, where the LED bracket is rusting easily, especial expose it in moist air. To decrease the LED bracket rust, advise using plated tin LED bracket. Copyright © 2019, TONYU All Rights Reserved. PAGE: 10 / 10 www.tonyuled.com
