DY-IR204T

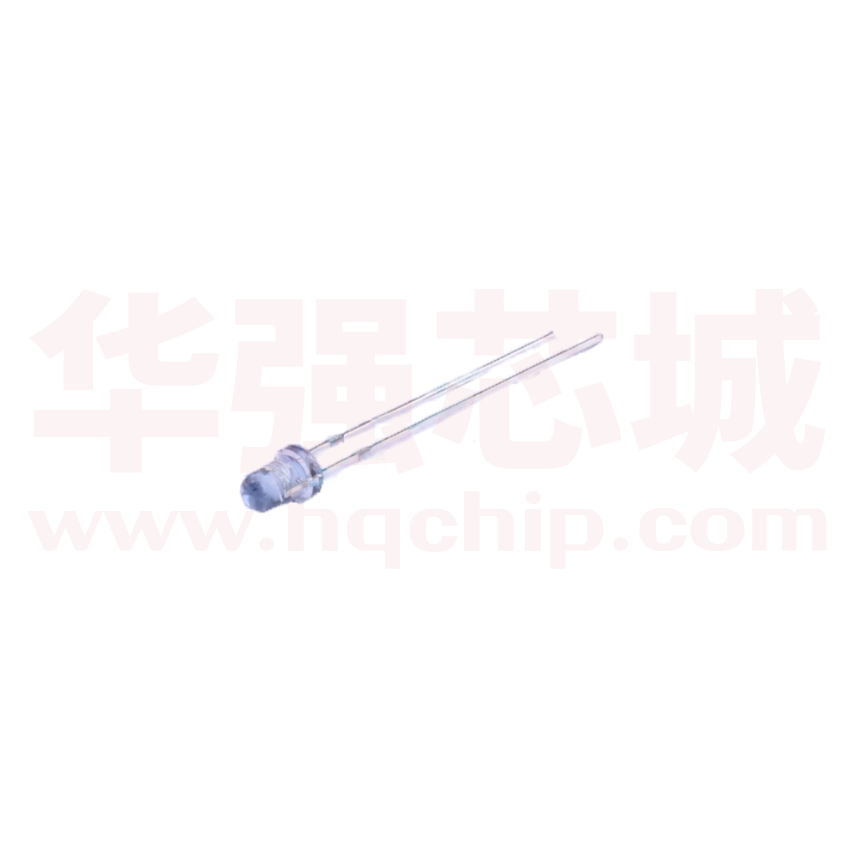

广州市东裕光电科技有限公司 GUANGZHOU TONYU TECHNOLOGY CO., LTD 产品规格书 SPECIFICATION 客户名称 CUSTOMER 产品名称 PRODUCTION 产品型号 MODEL 版本号 VERSION NO 红外线发射管 InfraRed Emitting Diode DY-IR204T A1.0 地址(Add)：广东省广州市番禺区石基镇海涌路 3 号 10 号厂房 2 楼 电话(Tel)：020-39294688 传真(Fax)：020-39966833 邮箱(E-mail)：zlx@dyled.cn 网址(Net)：www.tonyuled.com 客户确认 CUSTOMER CONFIRMATION Copyright © 2019, TONYU All Rights Reserved. 审 核 CHECKED BY 编 制 PREPARED BY 汪建新 陈少龙 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T DY-IR204T 产品描述 Descriptions  淡蓝色胶体高辐射强度红外发射二极管。 (This Infrared Emitting Diode is a high intensity diode, molded in a Blue plastic package.)  可适配光敏三极管、光敏二极管、红外接收头、红外接收模块等。 (The device is spectrally matched with phototransistor, photodiode and infrared receiver module.) 产品特性 Features        可靠性高 (High reliability) 辐射强度高 (High radiant intensity) 峰值波长λp=940nm (Peak wavelength λp=940nm) 引脚间距 2.54mm (2.54mm Lead spacing) 低电压 (Low forward voltage) 无铅 (Pb free) 符合 RoHS 要求 (This product itself will remain within RoHS compliant version) 产品应用 Applications     遥控器 自由空气传输系统 烟感 红外应用系统 (Remote control) (Free air transmission system) (Smoke detector) (Infrared applied system) 包装方式 Packing Quantity Specification  袋装：1000PCS/袋，4 袋/小盒，10 小盒/箱(1000PCS/1Bag，4Bags/1Box，10Boxes/1Carton) Copyright © 2019, TONYU All Rights Reserved. PAGE: 2 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T 一、外形图 Outline dimensions： Notes: 1. All dimensions are in mm, tolerance is ±0.25 unless otherwise noted. 2. An epoxy meniscus way extend about 1.5mm down the leads. 3. Burr around bottom of epoxy may be 0.5mm Max. 单位 Unit 公差 Tolerance 芯片材料 Die material 发光颜色 Emission color 胶体颜色 Lens color mm ±0.25mm GaAlAs － Blue Transparent ※备注：承认书之编号和型号可用于查询，客户如有需要，请提供相应的编号和型号。 Remark：P/N & Model in samples approval sheet can be used to inquire，please provide corresponding P/N & model if customer need. Copyright © 2019, TONYU All Rights Reserved. PAGE: 3 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T 二、光电参数 Electro-Optical Characteristics： （环境温度 Ambient temperature：25℃，环境湿度 Humidity：RH60%） 项目 Item 符号 Symbol 正向电压 Forward voltage VF 反向电流 Reverse current 测试条件 Test condition 最小值 Min. 典型值 Type 最大值 Max.. IF=20mA - 1.2 1.5 辐射强度 Radiant intensity V IF=100mA Pulse width≤100μs Duty≤1% - 1.3 1.85 VR=5V - - 10 IF=20mA 7.8 IF=100mA Pulse width≤100μs Duty≤1% - 38 - IF=1A Pulse width ≤100μs Duty≤1% - 350 - IR Ee 单位 Unit. μA 24 mW/sr 光谱半值宽 Spectral band width Δλ IF=20mA - 45 - nm 峰值波长 Peak wavelength λp IF=20mA - 940 - nm 视 角 Viewing Angle 2θ1/2 IF=20mA 35 - deg 等级(Rank)： 条件(Condition)：IF=20mA 单位(Unit)：mW/sr Bin Number M N P Min 7.8 11.0 15.0 Max 12.5 17.6 24.0 注(Notes)：*正向电压公差范围(Forward voltage tolerance)：±0.1v *辐射强度公差范围(Radiant intensity tolerance)：±10% *波长公差范围(wavelength tolerance)：±1.0nm Copyright © 2019, TONYU All Rights Reserved. PAGE: 4 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T 三、典型光电特性曲线图 Typical photoelectricity characteristic curve chart： 正向电流与辐射强度关系 发射角度图 光谱曲线 正向电流与正向电压的关系 Copyright © 2019, TONYU All Rights Reserved. PAGE: 5 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T 四、极限参数 Absolute Maximum Rating： （环境温度 Ambient temperature：25℃，环境湿度 Humidity：RH60%） 项目 Item 符号 Symbol 数值 Value 单位 Unit 备注 Remark 正向电流 Forward Current IF 100 mA --- 正向峰值电流 Peck forward current IFp 1.0 A --- 反向耐压 Reverse Voltage VR 5 V --- 耗散功率 Power Dissipation Pd 150 mW --- 工作环境温度 Operation temperature Tamb -25 至+80 ℃ --- 贮藏温度 Storage temperature Tstg -35 至+85 ℃ --- 焊接温度 Soldering temperature Tsol 260 ℃ 波峰焊，离环氧体 3mm 处，≤3S Wave soldering, 3mm out of physical body, ≤3S Notes*1: IFP Conditions-Pulse Width≤100μs and Duty≤1% 五、可靠性实验项目 Reliability Test Project： 描述 项目 测试标准 测试条件 测试时间 数量 失效数量 Description Item Test criterion Test condition Test time Qty. Fail Qty. 寿命测试 常温寿命测试 Life test Life test (room temperature) JIS7021:B4 Ta=25℃±5℃，IF=20mA 1000Hrs 22 0 Ta=85℃±5℃ 1000Hrs 22 0 JIS7021:B12 Ta= -35℃±5℃ 1000Hrs 22 0 高温高湿测试 JIS7021:B11 Ta=85℃±5℃ High temperature/ humidity test MIL-STD-202:103D RH=85% 1000Hrs 22 0 JIS7021:B4 30min MIL-STD-202:107D -10℃±5℃←→100℃±5℃ 50Cycles 22 0 50Cycles 22 0 高温存储 High temperature store 低温存储 Low temperature store 环境测试 Ambience test 冷热冲击测试 Cold / Heat strike test 冷热循环测试 Cold and heat cycle test JIS7021:B10 MIL-STD-202:210A MIL-STD-750:2031 MIL-STD-750:1026 JIS7021:A3 5min 5min 5min 5min 5min MIL-STD-202:107D -35℃～25℃～85℃～-35℃ MIL-STD-705:105E 30min Copyright © 2019, TONYU All Rights Reserved. 5min 30min 5min PAGE: 6 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T 六、注意事项 Note： 1、引脚成形方法 LED bracket forming method （1）必需离胶体 2 毫米才能折弯支架。 The pin of LED can be bent where is at least 2mm out of LED colloid. （2）支架成形必须用夹具或由专业人员来完成。 Must use fixture to deform the LED bracket. （3）支架成形必须在焊接前完成。 Finishing the forming of LED bracket must be before soldering. （4）支架成形需保证引脚和间距与线路板上一致。 Guarantee the gap between two pin of LED tallys with LED pads in PCB when forming. 2、烙铁焊接 Manual soldering 烙铁（最高 30W）尖端温度不超过 300℃；焊接时间不超过 3 秒；焊接位置至少离胶体 3 毫米。 The tip temperature of soldering iron don’t exceed 300℃；soldering time don’t exceed 3s and soldering position must be 3mm out of led colloid。 3、防静电措施 ESD countermeasure 静电及高压会对 LED 造成损坏，特别是芯片材质为 InGaN 的产品对静电防护要求更加严格，要求在使用和 检验产品时戴防静电手腕带或防静电手套，焊接工具及设备外壳需可靠接地，焊接条件遵循此份规格书中的 条件。 Static electricity and high volt can damage LED，The production whose Die material is InGaN must strictly required to prevent ESD，Must put on static glove and static fillet，Soldering tool and the cover of device must connect the ground，soldering condition follows the related stating of production specification manual。 4、过电流保护 Protecting countermeasure when over current 为避免由于电压的变化引起大电流冲击而造成产品损坏，需要加入保护电阻。 Need add the protecting resistor in circuit in order to avoid damaging led due to big current and voltage fluctuation。 5、LED 安装方法 LED installation method （1）注意各类器件外线的排列以防极性装错，器件不可与发热组件靠得太近，工作条件不要超过其规定的极限。 Pay attention to the LED polarity and avoid installation wrong。LED can’t be close to euthermic component，work condition should tally with it’s specification。 （2）务必不要在引脚间距变形的情况下安装 LED。 Don’t install the LED under the condition of the led pin deformation。 （3）当装配 LED 进入 PCB 或装配孔时，LED 支架不能承受任何压力。 The LED bracket don’t load any pressure when installing the LED into PCB or fitting hole。 Copyright © 2019, TONYU All Rights Reserved. PAGE: 7 / 8 www.tonyuled.com ` 产品规格书 SPECIFICATION 3mm 红外 LED DY-IR204T （4）在焊接温度回到正常以前，必须避免使 LED 受到任何的震动或外力。 Must avoid any strike and force on LED before the soldering temperature return to room temperature。 6、存储时间 Storage time （1）在温度 5℃～35℃，湿度 RH60%条件下，产品可保存一年。超过保存期的产品需重新检测后方能使用。 LED can be stored for a year under the condition: the temperature of 5℃～35℃ and humidity of RH60%，These production must be re-inspected and tested before use if their storage time exceed a year。 （2）如果打开的产品在 5℃～35℃，RH60%的空气条件下放置超过一周，则需要将产品在 65℃±5℃的环境中放置 24 小时以上，并尽量在十五天内使用。 If LED is exposed in air for a week under the condition: the temperature of 5℃～35℃，humidity of RH60%，must place the LED in the ambience of 65℃±5℃ for 24 hours and use it in 15 days for best。 7、清洗 Cleaning 当用化学用品清洗胶体时必须特别小心，因为有些化学品对胶体表面有损伤并引起褪色如三氯乙烯、丙酮等。 可用乙醇擦拭、浸渍，时间在常温下不超过 3 分钟。 Be careful of some chemical results in the LED colloid fades and damage when using chemical clean the LED，such as chloroethylene, acetone etc。 Can use ethanol to wash or soak LED but the time don’t exceed 3 minutes. 8、弯脚 Kinked 当 LED 成形弯脚时，弯脚模具容易刮花 LED 脚支架镀层，刮伤处容易生锈，特别是空气湿度大时。为减少 生锈机会，建议使用镀锡支架。 The kinked tooling scrape easily the pin of LED, where the LED bracket is rusting easily, especial expose it in moist air. To decrease the LED bracket rust, advise using plated tin LED bracket. Copyright © 2019, TONYU All Rights Reserved. PAGE: 8 / 8 www.tonyuled.com
