MPP105K0160D312011B2815

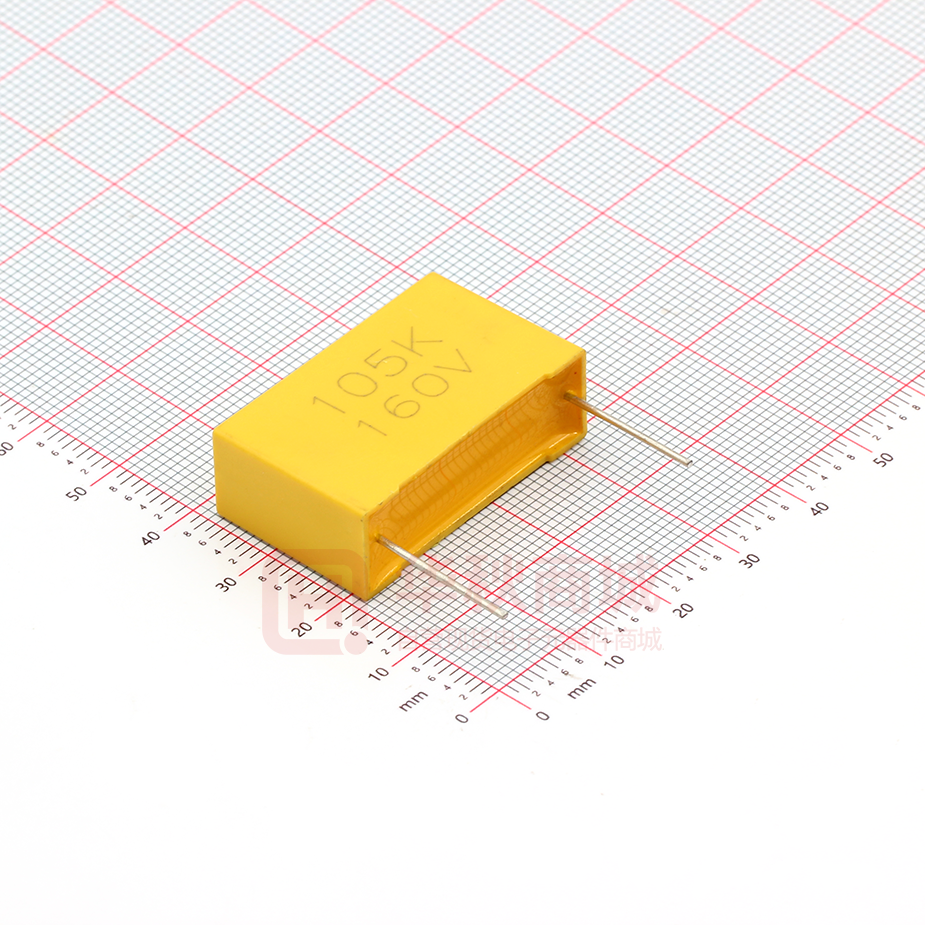

东 莞 市 全 鹏 电 子 科 技 有 限 公 司 DONGGUAN CHAMPION ELECTRONIC TECHNOLOGY CO., LTD. 承 认 书 ( APPROVAL SHEET) 品名 PART NAME METALLIZED POLYPROPYLENE FILM CAPACITOR ( MKP-QP) 承认规格 APPROVE ITEM 105K160VDC 全鹏料号 CHAMPION PART NO P=27.5mm MPP105K0160DXXF1B2815 客户名称 CUSTOMER 华秋 客户料号 PART NO 2019.8.27 送样承认日期 DATE 承 认 印 APPROVAL STAMP 供 应 商 VENDER 东莞市全鹏电子科技有限公司 联系人：谢先生 联系电话：13929202898 东莞市茶山镇卢边恒兴昌工业园 B 栋 4 楼 TEL:0769-86862908 FAX:0769-86862918 www.champion-dg.com 客 戶 CUSTOMER 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 1/6 1. Scope： This specification applied to capacitor for type MPX(BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 2. Operation Temperature： -40℃ ～ +110℃ 3. Capacitance Range： 0.001uF ~ 15 uF 4. Capacitance Tolerance： ±2%(G)、±3%(I)、±5%(J)、±10%(K)、±20%(M) 5. Rated Voltage： 50VDC、63VDC、100VDC、250VDC、400VDC、500VDC、520V、630VDC、1KVDC 6. CHAMPION Part No.： □□□ １ □□□ 2 □ ３ □□□□ ４ □ ５ □□□□ 6 ( tape) (capacitance) (tolerance) (rated voltage) (Dc/Ac) □ 7 □□ ８ □□ 9 (BOX TYPE) (lead forming) (lead pitch) (lead length) 6-1 tape： Code PEI MEF MEM MPP PEN PPN PPS MEC MET Tape PEI MEF MEM MPP PEN PPN PPS MEC MET 6-2 Capacitance： Code 472 103 104 205 Capacitance 0.0047uF 0.01 uF 0.1uF 2.0 uF 6-3 Tolerance： Code F G H I J K M Toleranc ±1% ±2% ±2.5% ±3% ±5% ±10% ±20% e 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene 文件编号 QP-AP-28 版本 1/A 页码 2/6 Film Interference Suppression Capacitor) 6-4 Rated Voltage：Showing the real working voltage indicated. For example：0630 -> 630V, 1000 -> 1KV。 6-5 D→DC；A→AC 6-6 BOX TYPE: Code XXB3 C2-1 XXC3 C5-1 10(W)×4(T)×9(H) 13(W)×5(T)×11(H) 13(W)×6(T)×12(H) 13(W)×8(T)×14(H) XXD7 XXD2 XXD4 XXD5 18(W)×10.8(T)×19(H) 18(W)×6(T)×12(H) 18(W)×8.4(T)×14.5(H) 18(W)×9.5(T)×15.5(H) XXE1 XXE2 XXE3 XXE4 26.5(W)×6(T)×15(H) 26.5(W)×7(T)×16.5(H) 26.5(W)×8.5(T)×17(H) 26.5(W)×10(T)×19(H) XXF1 XXF2 XXF3 XXF4 31.4(W)×11(T)×20(H) 31.5(W)×13(T)×22(H) 31(W)×14(T)×25(H) 32(W)×16(T)×25.5(H) Size(m m) Code Size(m m) Code Size(m m) Code Size(m m) 6-7Lead forming： Code B R U W T Lead S TAPING Forming 6-8 Lead Pitch：Showing the capacitor lead pitch, For example： Code 08 10 15 23 28 Pitch(mm) 7.5mm 10mm 15mm 22.5mm 27.5mm 6-9 Lead length： Showing the capacitor lead Length, For example： Code Length(m m) 03 04 10 15 25 30 40 3.5mm 4mm 10mm 15mm 25mm 30mm 40mm 版本 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 页码 1/A 3/6 7. Specifications ( IEC60384-14) No Test items Performance Withstand voltage (Between Terminals) Test Method Shall be no abnormality 150%UR(DC )Test Of60sec. Shall be no abnormality UR×200％+1500VAC, 60sec. 7-1 Between terminal and Enclosure 7-2 Insulation resistance (Between Terminals) CR ≤ 0.33uF IR ≥ 15,000MΩ CR > 0.33uF IR ≥ 5,000 MΩ÷ C(uF) Measured at 100±15VDC, For 60sec / 25℃ 7-3 Capacitance Within the tolerance specified 1KHz, 1Vrms Max. at 25℃ 7-4 Dissipation Factor 0.001 (0.1%) Max. 1KHz, 1Vrms Max. at 25℃ 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 4/6 7-5 7-6 Tense Strength of Terminal Bending Strength of Terminal No wire breakage and No 1. Load Force : 1.0 Kg Damage of 2. Holding Time : 10 Capacitor 1sec No wire breakage and No 1. Load Force : 0.5 Kg Damage of 2. Bending Time : 4 x 90 ﾟ in Capacitor 5sec ± a. Solder temperature: 270 7-7 Solder-ability 95% Of The Surface Tinning ±5℃ b. Solder time: 2±0.5sec The terminal of capacitor shall be (1) Appearance : No Visible Damage 7-8 Heat Shock test (2) Withstand Voltage : Normal immersed in the melting solder. a. Solder temperature: 270 (3) Capacitance Change : ≤ ±3% ±5℃ of b. Solder time: 3±0.5sec The Initial Value c. Test Voltage: 150% of The Rate Voltage For 1min. (1) Appearance : No Visible Damage 7-9 Cold Resistance a. Test Temperature: -40℃ (2) Capacitance Change : ≤ 0~ -10% b. Test Times: 2Hrs of The Initial Value (1) Appearance : No Visible Damage (2) Withstand Voltage : Normal 7-1 0 Dry Heat Resistance (3) Capacitance Change : ≤ +5~ -2% Of The Initial Value (4) Insulation Resistance: ≥50%of the rated value a. TEST TEMPERATURE: 110℃ ± 2℃ b. Test Times: 2Hrs 版本 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 页码 1/A 5/6 8. Dimensions: T(±0.5mm) W(±0.5mm) CAPACITOR BODY SIZE (Unit:mm) H (±0.5mm) CAP RV BOX TYPE W ±0.5 H ±0.5 T ±0.5 D ± 0.05 p ± 0.5 105 160 F1 31.4 19.5 10.8 0.8 27.5 A(±1mm) P±0.5mm B D±0.05mm R U W B RV Lead Style S TAPING (refer to next page) Customer Require model-A section±1mm CAP T K.R.U.Wmodel -A section ± K.R.U.W model-Bsect P(±0.5mm) ion±0.5mm 0.5mm 105 160 B 15 27.5 东莞市全鹏电子科技有限公司 文件名称 MKP Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 6/6 9.Marking: 105 CAPACITY CODE K CAPAC.ITANCE TOLERANCE 160 RATED VOLTAGE V VOLTAGE UNIT 10.Storage conditions and duration Packaged capacitors should be kept in clean, ventilated, dry coffers, not near the heat source, not subject to direct sunlight, is strictly prohibited and chemical reagents, acid and harmful gas storage together. Capacitor at a temperature within the range 20 ~ 25 ℃, humidity less than 50% of the state of storage for one year.
