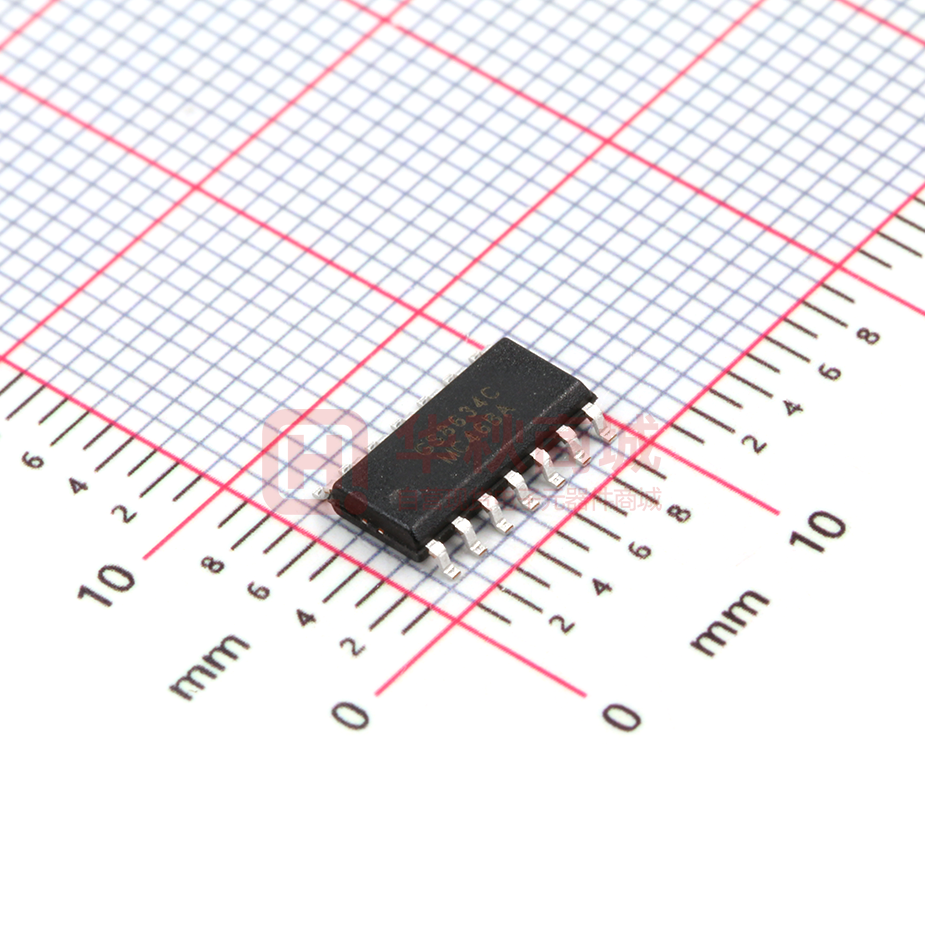

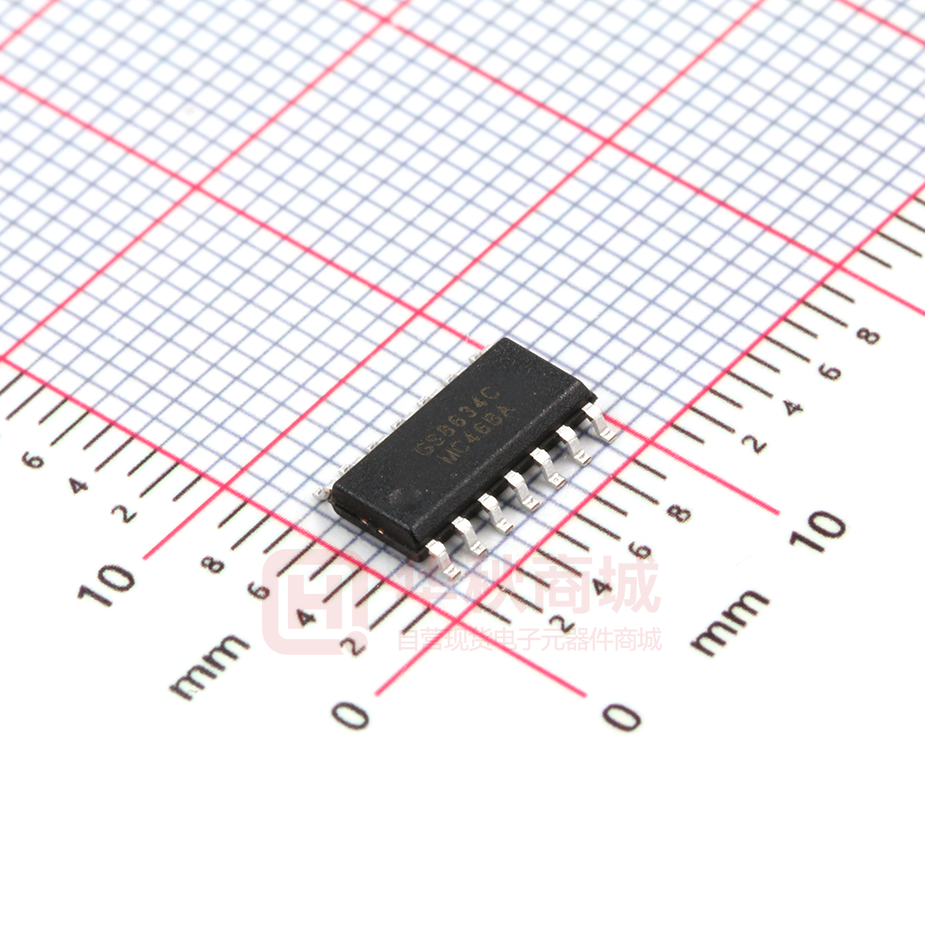

GS8634C-SR

GS8634C LOW COST 6MHZ CMOS Rail-to-Rail IO Opamps Features • Single-Supply Operation from +2.1V ~ +5.5V • Operating Temperature: -40°C ~ +125°C • Rail-to-Rail Input / Output • Small Package: • Gain-Bandwidth Product: 6MHz (Typ.) GS8634C Available in SOP-14 Package • Low Input Bias Current: 1pA (Typ.) • Low Offset Voltage: 3.5mV (Max.) • Quiescent Current: 470µA per Amplifier (Typ.) General Description μ The GS8634C have a high gain-bandwidth product of 6MHz, a slew rate of 4.2V/ s, and a quiescent current of 470 μA per amplifier at 5V. The GS8634C is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS8634C. They are specified over the extended industrial temperature range (-40 ℃ to +125℃). The GS8634C Quad is available in Green SOP-14 package. Applications • Sensors • Audio • Active Filters • Handheld Test Equipment • Cellular and Cordless Phones • Battery-Powered Instrumentation • Laptops and PDAs • A/D Converters Pin Configuration Figure 1. Pin Assignment Diagram Absolute Maximum Ratings Condition Min Max -0.5V +7.5V Analog Input Voltage (IN+ or IN-) Vss-0.5V VDD+0.5V PDB Input Voltage Vss-0.5V +7V -40°C +125°C Power Supply Voltage (VDD to Vss) Operating Temperature Range Junction Temperature V1 +160°C 1/11 GS8634C Storage Temperature Range -55°C Lead Temperature (soldering, 10sec) Package Thermal Resistance (TA=+25 +150°C +260°C ℃) SOP-14, θJA 125°C/W ESD Susceptibility HBM 8KV MM 400V Note: Stress greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification are not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Package/Ordering Information MODEL CHANNEL ORDER NUMBER GS8634C Quad GS8634C-SR V1 PACKAGE PACKAGE MARKING DESCRIPTION OPTION INFORMATION SOP-14 Tape and Reel,2500 GS8634C 2/11 GS8634C Electrical Characteristics (At Vs=5V, TA = +25 ℃, V CM = VS/2, RL = 600 Ω, unless otherwise noted.) GS8634C TYP PARAMETER MIN/MAX OVER TEMPERATURE CONDITIONS +25 ℃ ℃ ℃ to 70℃ 3.5 3.9 +25 0 ℃ to 85℃ ℃ to 125℃ UNITS 4.3 4.6 mV MAX -40 -40 MIN / MAX INPUT CHARACTERISTICS Input Offset Voltage (VOS) 0.8 Input Bias Current (IB) 1 pA TYP Input Offset Current (IOS) 1 pA TYP -0.1 to V TYP Input Common Mode Voltage Range (VCM) VS = 5.5V +5.6 Common Mode Rejection Ratio (CMRR) Open-Loop Voltage Gain (AOL) VS = 5.5V, VCM = -0.1V to 4V 90 VS = 5.5V, VCM = -0.1V to 5.6V 83 RL = 600Ω,VO = 0.15V to 4.85V 97 RL = 10kΩ,VO = 0.05V to 4.95V 108 Input Offset Voltage Drift (∆VOS/∆T) 73 90 70 87 70 86 65 79 dB MIN dB MIN dB MIN dB MIN ℃ 2.4 µV/ TYP RL = 600Ω 0.1 V TYP RL = 10kΩ 0.015 V TYP mA MIN 3 Ω TYP Turn-On Time 4 µs TYP Turn-Off Time 1.2 µs TYP OUTPUT CHARACTERISTICS Output Voltage Swing from Rail Output Current (IOUT) Closed-Loop Output Impedance 53 f = 200kHz, G = 1 49 45 40 35 POWER-DOWN DISABLE POWER SUPPLY Operating Voltage Range Power Supply Rejection Ratio (PSRR) 2.1 2.1 2.1 V MIN 5.5 5.5 5.5 5.5 V MAX 91 74 72 72 68 dB MIN 470 650 727 750 815 µA MAX VS = +2.5V to +5.5V VCM = (-VS) + 0.5V Quiescent Current/Amplifier (IQ) 2.1 IOUT = 0 1 V1 3/11 GS8634C Electrical Characteristics (At Vs=5V, TA = +25 ℃, V CM = VS/2, RL = 600 Ω, unless otherwise noted.) GS8634C TYP PARAMETER MIN/MAX OVER TEMPERATURE CONDITIONS ℃ +25 ℃ +25 ℃ to 70℃ 0 ℃ to 85℃ -40 ℃ 125℃ -40 to MIN / UNITS MAX DYNAMIC PERFORMANCE Gain-Bandwidth Product (GBP) RL = 10kΩ, CL = 100pF 6 MHz TYP Phase Margin (φO) RL = 10kΩ, CL = 100pF 53 Degrees TYP Full Power Bandwidth (BWP) ＜1% distortion, R = 600Ω 250 kHz TYP Slew Rate (SR) G = +1, 2V Step, RL = 10kΩ 4.2 V/µs TYP Settling Time to 0.1% (tS) G = +1, 2V Step, RL = 600Ω 0.4 µs TYP Overload Recovery Time VIN ·Gain = VS, RL = 600Ω 2.5 µs TYP f = 1kHz 13 nV / Hz TYP f = 10kHz 9.5 nV / Hz TYP L NOISE PERFORMANCE Voltage Noise Density (en) V1 4/11 GS8634C Typical Performance characteristics ℃, V (At Vs=5V, TA = +25 CM = VS/2, RL = 600Ω, unless otherwise noted.) Large-Signal Step Response Voltage (500mV/div) Voltage (1V/div) Large-Signal Step Response Vs=5V G=+1 CL=100pF RL=10KΩ Vs=2.5V G=+1 CL=100pF RL=10 KΩ µ µ Small-Signal Step Response Small-Signal Step Response Voltage (50mV/div) Time (1 s/div) Voltage (50mV/div) Time (1 s/div) Vs=5V G=+1 CL=100pF RL=10 KΩ Vs=2.5V G=+1 CL=100pF RL=10 KΩ µ µ Time (1 s/div) Time (1 s/div) Positive Overload Recovery Negative Overload Recovery VIN ± Vs= 2.5V VIN=-50mVp-p 50mV /div 50mV VIN /div RL=600Ω G=-100 RL=600Ω G=-100 VOUT ± 1V Vs= 2.5V VIN=50mVp-p /div 500mV /div VOUT µ Time (2 s/div) V1 µ Time (2 s/div) 5/11 GS8634C Typical Performance characteristics CM = VS/2, RL = 600Ω, unless otherwise noted.) Vs=5V ℃ 135 ℃ ℃ -50 25 Sinking Current Supply Current (µA) Sourcing Current Supply Current vs. Temperature Vs=2.5 Vs=5 Vs=3 ℃ Output Current(mA) Temperature ( ) Input Voltage Noise Spectral Density vs. Frequency Open Loop Gain, Phase Shift vs. Frequency Vs=5V CL=100pF RL=10KΩ Open Loop Gain (dB) Voltage Noise (nV/√Hz) Output Voltage (V) Output Voltage Swing vs.Output Current Vs=5V CL=100pF RL=10KΩ Frequency (Hz) Frequency (Hz) CMRR vs. Frequency PSRR vs. Frequency Phase Shift (Degrees) ℃, V (At Vs=5V, TA = +25 PSRR (dB) CMRR (dB) Vs=5V Frequency (kHz) V1 Vs=5V CL=100pF RL=10KΩ Frequency (kHz) 6/11 GS8634C Application Note Size GS8634C opamp is unity-gain stable and suitable for a wide range of general-purpose applications. The small footprints of the GS8634C package save space on printed circuit boards and enable the design of smaller electronic products. Power Supply Bypassing and Board Layout GS8634C operate from a single 2.1V to 5.5V supply or dual ±1.05V to ±2.75V supplies. For best performance, a 0.1µF ceramic capacitor should be placed close to the VDD pin in single supply operation. For dual supply operation, both VDD and VSS supplies should be bypassed to ground with separate 0.1µF ceramic capacitors. Low Supply Current The low supply current (typical 470uA per channel) of GS8634C will help to maximize battery life. They are ideal for battery powered systems Operating Voltage o GS8634C operate under wide input supply voltage (2.1V to 5.5V). In addition, all temperature specifications apply from -40 C o to +125 C. Most behavior remains unchanged throughout the full operating voltage range. These guarantees ensure operation throughout the single Li-Ion battery lifetime Rail-to-Rail Input The input common-mode range of GS8634C extends 100mV beyond the supply rails (VSS-0.1V to VDD+0.1V). This is achieved by using complementary input stage. For normal operation, inputs should be limited to this range. Rail-to-Rail Output Rail-to-Rail output swing provides maximum possible dynamic range at the output. This is particularly important when operating in low supply voltages. The output voltage of GS8634C can typically swing to less than 2mV from supply rail in light resistive loads (>100kΩ), and 60mV of supply rail in moderate resistive loads (10kΩ). Capacitive Load Tolerance The GS8634C is optimized for bandwidth and speed, not for driving capacitive loads. Output capacitance will create a pole in the amplifier’s feedback path, leading to excessive peaking and potential oscillation. If dealing with load capacitance is a requirement of the application, the two strategies to consider are (1) using a small resistor in series with the amplifier’s output and the load capacitance and (2) reducing the bandwidth of the amplifier’s feedback loop by increasing the overall noise gain. Figure 2. shows a unity gain follower using the series resistor strategy. The resistor isolates the output from the capacitance and, more importantly, creates a zero in the feedback path that compensates for the pole created by the output capacitance. Figure 2. Indirectly Driving a Capacitive Load Using Isolation Resistor The bigger the RISO resistor value, the more stable VOUT will be. However, if there is a resistive load RL in parallel with the capacitive load, a voltage divider (proportional to RISO/RL) is formed, this will result in a gain error. The circuit in Figure 3 is an improvement to the one in Figure 2. RF provides the DC accuracy by feed-forward the VIN to RL. CF and RISO serve to counteract the loss of phase margin by feeding the high frequency component of the output signal back to the V1 7/11 GS8634C amplifier’s inverting input, thereby preserving the phase margin in the overall feedback loop. Capacitive drive can be increased by increasing the value of CF. This in turn will slow down the pulse response. CF RF - RISO VOUT VIN + CL RL Figure 3. Indirectly Driving a Capacitive Load with DC Accuracy V1 8/11 GS8634C Typical Application Circuits Differential amplifier The differential amplifier allows the subtraction of two input voltages or cancellation of a signal common the two inputs. It is useful as a computational amplifier in making a differential to single-end conversion or in rejecting a common mode signal. Figure 4. shown the differential amplifier using GS8634C. Figure 4. Differential Amplifier VOUT= ( RR13++RR24 ) RR41 VIN − RR12 VIP +( RR13++RR24 ) RR13 VREF If the resistor ratios are equal (i.e. R1=R3 and R2=R4), then VOUT = R2 R1 (VIP − VIN ) + VREF Low Pass Active Filter The low pass active filter is shown in Figure 5. The DC gain is defined by –R2/R1. The filter has a -20dB/decade roll-off after its corner frequency ƒC=1/(2πR3C1). C1 R2 R1 VIN VOUT + R3 Figure 5. Low Pass Active Filter V1 9/11 GS8634C Instrumentation Amplifier The triple GS8634C can be used to build a three-op-amp instrumentation amplifier as shown in Figure 6. The amplifier in Figure 6 is a high input impedance differential amplifier with gain of R2/R1. The two differential voltage followers assure the high input impedance of the amplifier. Figure 6. Instrument Amplifier . V1 10/11 GS8634C Package Information SOP-14 V1 11/11
