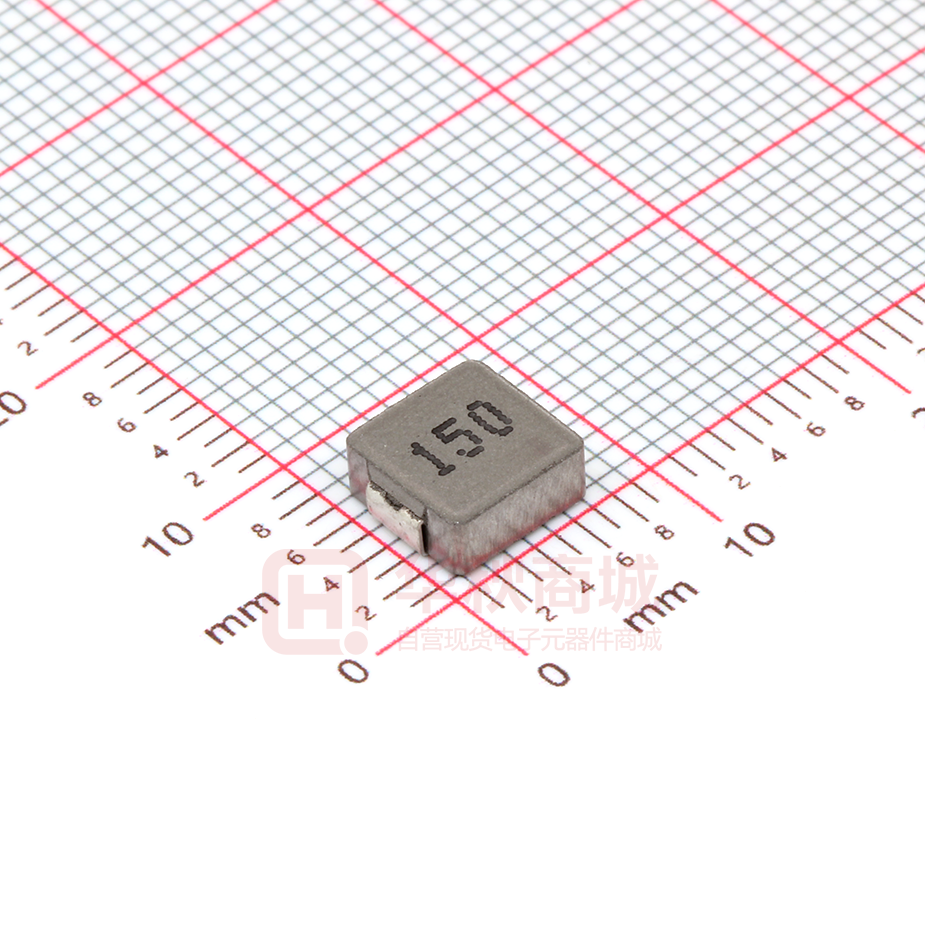

CST0630HY-150M

电感专业制造商 CST贴片一体成型系列电感器 ●EXTERNAL DIMENSIONS PART NO. CST0412 CST0420 CST0520 CST0530 CST0620 CST0630 CST0650 CST0850 CST1040 CST1050 CST1205 CST1207 CST1717 A MAX 4.9 MAX 4.9 MAX 5.9 MAX 5.9 MAX 7.8 MAX 7.8 MAX 7.8 MAX 8.7 MAX 11.6 MAX 11.6 MAX 13.8 MAX 13.8 MAX 18.2 MAX UNIT：mm（外形尺寸） B MAX 4.5 MAX 4.5 MAX 5.5 MAX 5.5 MAX 6.8 MAX 6.8 MAX 6.8 MAX 8.3 MAX 10.5 MAX 10.5 MAX 13.3 MAX 13.3 MAX 17.6MAX ●　PART NUMBERING SYSTEM（品名系统） CST 0630 1R0 1 2 3 1、SERIES NAME 2、DIMENSIONS 3、INDUCTANCE 4、TOLERANCE CODE 5、PACKING CODE ● C MAX 1.5MAX 2.0 MAX 2.0 MAX 3.0 MAX 2.1 MAX 3.2 MAX 5.0 MAX 5.5 MAX 4.2 MAX 5.5 MAX 5.0 MAX 6.5 MAX 8.6MAX M 4 I 1.2±0.5 1.2±0.5 1.4±0.5 1.4±0.5 1.6±0.5 1.6±0.5 1.6±0.5 2.0±0.5 2.5±0.5 2.5±0.5 2.5±0.5 2.5±0.5 3.5±0.5 J 1.5 REF 1.5 REF 2.0 REF 2.0 REF 3.0REF 3.0REF 3.0REF 3.0REF 3.0REF 3.0REF 3.2 REF 3.2 REF 3.8 REF T 5 品名 C代C.RD.，ST指贴片一体成型系列 尺寸 外围*高度 电感值 前两位为有效数字，第三位表示零的个数 公差 J：±5%，K：±10%，L：±15%，M：±20%，P：±25%，N：±30% 包装方式 T：Tape&Reel(卷装) B：In Bulk FEATURES（特性） Various high power inductors are superior to be high saturation for surface mounting. 具有高功率、高饱和电流，低阻抗、小型化之特点 ● APPLICATIONS（用途） 工业电脑、移动电源、汽车电子、液晶电视、笔记本电脑、小型通信机器、DC/DC变压器之电源供应等 ************************************************************************************ Design As Customers Requested Specifications 可根据客户需求设计 电感专业制造商 CST贴片一体成型系列电感器 CST0412 TYPE Part Number 型号 Units 单位 Symbol 符号 Inductance 电感量 @100KHz 1V Max.DC Resistance Heat Rating Current 直流电阻 温升电流 Saturation Current 饱和电流 UH L0A mΩ DCR(Max) A I rms. A I sat. CST0412-R22N 0.22±30% 12 7 11 CST0412-R33N 0.33±30% 19 6.5 8.4 CST0412-R47N 0.47±30% 23 6 6.8 CST0412-R56N 0.56±30% 30 5 6.4 CST0412-R68N 0.68±30% 40 4.7 6 CST0412-1R0M 1±20% 50 4.5 5.5 CST0412-1R5M 1.5±20% 75 3.25 4 CST0412-2R2M 2.2±20% 85 2.75 3.5 CST0412-3R3M 3.3±20% 100 2.1 3.2 CST0412-4R7M 4.7±20% 195 1.8 2.8 Part Number 型号 Inductance 电感量 @100KHz 1V Max.DC Resistance 直流电阻 Heat Rating Current 温升电流 Saturation Current 饱和电流 Units 单位 UH mΩ A A Symbol 符号 L0A DCR(Max) I rms. I sat. CST0420-R10M 0.1±20% 5 13 22 CST0420-R22M 0.22±20% 7 10 13 CST0420-R47M 0.47±20% 14 7.5 9.5 CST0420-R56M 0.56±20% 16 7 10 CST0420-1R0M 1±20% 28 6 7 CST0420-1R2M 1.2±20% 32 6 7 CST0420-1R5M 1.5±20% 46 5 6 CST0420-2R2M 2.2±20% 52 4.5 5 CST0420-3R3M 3.3±20% 85 3.6 4 CST0420-4R7M 4.7±20% 105 2.8 3 CST0420-6R8M 6.8±20% 170 2.4 2.5 CST0420-100M 10±20% 282 1.5 2.2 CST0420 TYPE CST0520 TYPE Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A CST0520-R47M CST0520-R68M CST0520-1R5M CST0520-2R2M CST0520-3R3M CST0520-4R7M CST0520-6R8M CST0520-100M 0.47±20% 0.68±20% 1.5±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A CST0530 TYPE CST0530-R47M CST0530-R68M CST0530-1R0M CST0530-1R5M CST0530-2R2M CST0530-3R3M CST0530-4R7M CST0530-6R8M CST0530-100M 0.47±20% 0.68±20% 1.0±20% 1.5±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A CST0620 TYPE CST0620-R10M CST0620-R22M CST0620-R47M CST0620-R68M CST0620-1R0M CST0620-1R5M CST0620-2R2M CST0620-3R3M CST0620-4R7M CST0620-6R8M CST0620-100M 0.1±20% 0.22±20% 0.47±20% 0.68±20% 1±20% 1.5±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% Max.DC Resistance Heat Rating Current 直流电阻 温升电流 mΩ DCR(Max) 9 11 30 36 60 85 120 155 A I rms. 10.5 10 7.5 5 4.5 3.5 2.8 2.5 Max.DC Resistance Heat Rating Current 直流电阻 温升电流 mΩ DCR(Max) 8.5 12 14 25 29 38 60 90 128 A I rms. 11 9 8.5 8.2 7 5.5 4.5 3.5 3.2 Max.DC Resistance Heat Rating Current 直流电阻 温升电流 mΩ DCR(Max) 2.3 3.5 8.4 12 16 26 35 50 62 110 155 A I rms. 25 22 11.5 9.5 8.5 8 7 4.5 4 3 2.3 Saturation Current 饱和电流 A I sat. 13 12 8 6.5 5 4 3.5 3 Saturation Current 饱和电流 A I sat. 15 11.5 11 9 7.5 6 5 4 3.5 Saturation Current 饱和电流 A I sat. 38 24 18 17 14 12 8 6.5 5 4.5 4 CST0630 TYPE Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A mΩ DCR(Max) A I rms. A I sat. CST0630-R10M 0.1±20% 1.7 32.5 60 CST0630-R22M 0.22±20% 2.9 24 40 CST0630-R33M CST0630-R47M CST0630-R56M 0.33±20% 0.47±20% 0.56±20% 3.9 4.7 5 21 18 16.5 26 21 20 CST0630-R68M 0.68±20% 5.3 16 18 CST0630-R82M 0.82±20% 6 14 17 CST0630-1R0M 1±20% 7.4 12 16 Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST0630-1R5M 1.5±20% 12.1 12 14 CST0630-2R2M CST0630-3R3M CST0630-4R7M CST0630-5R6M CST0630-6R8M 2.2±20% 3.3±20% 4.7±20% 5.6±20% 6.8±20% 15 22 33 41 48 9.5 8.5 6 5.5 5 13 10.5 6.5 6.3 6.3 CST0630-8R2M 8.2±20% 60 5 6 CST0630-100M 10±20% 67 4.5 5.5 CST0630-150M 15±20% 115 3 4.5 CST0630-220M 22±20% 200 2.3 3 CST0630-330M 33±20% 310 2 2.5 Inductance 电感量 @100KHz 1V UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. Max.DC Resistance Heat Rating Current 直流电阻 温升电流 Saturation Current 饱和电流 CST0630 TYPE CST0650 TYPE Part Number 型号 Units 单位 Symbol 符号 CST0650-R36M CST0650-R56M CST0650-R68M CST0650-1R0M CST0650-1R5M 0.36±20% 0.56±20% 0.68±20% 1±20% 1.5±20% 3.5 3.6 4.2 8.5 12 23 20 18 15 13.5 28 23 20 18.5 17 CST0650 TYPE Inductance 电感量 @100KHz 1V UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. Part Number 型号 Inductance 电感量 @100KHz 1V Max.DC Resistance 直流电阻 Heat Rating Current 温升电流 Saturation Current 饱和电流 Units 单位 Symbol 符号 UH L0A mΩ DCR(Max) A I rms. A I sat. CST0850-2R2M 2.2±20% 12 9 14 CST0850-6R8M 6.8±20% 30 7.5 9 CST0850-100M 10±20% 55 6.3 8.1 CST0850-220M 22±20% 110 5 6 CST0850-270M 27±20% 182 4 5.6 CST0850-330M 33±20% 217 3.8 5 CST0850-470M 47±20% 231 2.7 3.8 CST0850-560M 56±20% 310 2 3 Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1040-R36M 0.36±20% 1.5 30 50 CST1040-R47M 0.47±20% 1.7 30 40 CST1040-R56M 0.56±20% 1.8 25 33 CST1040-R68M 0.68±20% 2.4 23 30 CST1040-1R0M 1±20% 3.3 19 28 CST1040-1R5M 1.5±20% 4.2 16 25 CST1040-2R2M 2.2±20% 7 12 16.5 CST1040-3R3M 3.3±20% 12 11 16 Part Number 型号 Units 单位 Symbol 符号 CST0650-2R2M CST0650-3R3M CST0650-4R7M CST0650-6R8M CST0650-100M CST0650-220M CST0650-330M CST0650-470M 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 22±20% 33±20% 47±20% 14 22 30 45 62 140 210 247 11 9.5 7.8 6.3 5.5 4.5 3.1 2.1 15 13 10 8 7.2 5.3 4.5 3.2 CST0850 TYPE CST1040 TYPE CST1040 TYPE Units 单位 Symbol 符号 Inductance 电感量 @100KHz 1V UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1040-4R7M 4.7±20% 20 9 13 CST1040-6R8M 6.8±20% 25 8.5 12 CST1040-100M 10±20% 30 7.8 8.5 CST1040-150M 15±20% 45 6.25 7 CST1040-220M CST1040-330M CST1040-470M 22±20% 33±20% 47±20% 66 92 145 5 4.4 3.3 5.5 4.8 3.5 CST1040-680M 68±20% 195 2.5 3 Units 单位 Symbol 符号 Inductance 电感量 @100KHz 1V UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1050-1R0M 1±20% 3 25 35 CST1050-1R5M 1.5±20% 3.6 20 32 CST1050-2R2M 2.2±20% 6 15 18 CST1050-3R3M 3.3±20% 9.8 12 17 CST1050-4R7M 4.7±20% 15 10.2 15.1 CST1050-6R8M 6.8±20% 20 9.6 13.8 CST1050-100M 10±20% 26 8 10.2 CST1050-150M 15±20% 38 7.2 8.1 CST1050-220M 22±20% 56 5.5 6.8 CST1050-330M 33±20% 87 4.8 5.4 CST1050-470M 47±20% 128 4 5 CST1050-680M 68±20% 173 3 4 CST1050-101M 100±20% 256 2.5 3 Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1205-R36M 0.36±20% 1 42 50 CST1205-R47M 0.47±20% 1.3 38 48 CST1205-R56M 0.56±20% 1.5 36 47 CST1205-R68M 0.68±20% 1.6 33 46 CST1205-R82M 0.82±20% 1.7 30 40 Part Number 型号 CST1050 TYPE Part Number 型号 CST1205 TYPE CST1205 TYPE Units 单位 Symbol 符号 Inductance 电感量 @100KHz 1V UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1205-1R0M 1±20% 2.2 26 35 CST1205-1R2M 1.2±20% 3.5 25 34 CST1205-1R5M 1.5±20% 3.2 23 33 CST1205-2R2M 2.2±20% 5.5 15 25 CST1205-3R3M 3.3±20% 7 14 22 CST1205-4R7M 4.7±20% 9 13 21 CST1205-6R8M 6.8±20% 18 12 19 CST1205-100M 10±20% 22 9 12 CST1205-150M 15±20% 30 8 10 CST1205-220M 22±20% 58 5.8 7 CST1205-330M 33±20% 84 5 6 CST1205-470M 47±20% 130 4.3 5.5 CST1205-680M 68±20% 154 3.8 4.35 CST1205-101M 100±20% 221 2.59 3.56 Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. CST1207-R22M CST1207-R33M CST1207-R68M CST1207-R82M CST1207-1R0M CST1207-1R5M CST1207-2R2M CST1207-3R3M CST1207-4R7M CST1207-5R6M CST1207-6R8M CST1207-8R2M CST1207-100M CST1207-150M CST1207-220M CST1207-330M CST1207-470M CST1207-560M 0.22±20% 0.33±20% 0.68±20% 0.82±20% 1.0±20% 1.5±20% 2.2±20% 3.3±20% 4.7±20% 5.6±20% 6.8±20% 8.2±20% 10±20% 15±20% 22±20% 33±20% 47±20% 56±20% 0.7 0.9 1.6 1.9 2 2.5 4.2 6.8 11.2 13.2 14 16 21 29 40 75 95 95 53 46 36 33 32 30 22 18 14 13.5 11.5 11 10 7 6.5 5.5 4.5 4.2 112 65 60 50 49 48 40 35 30 27 16.5 13.5 12.5 9 8 7.5 6.5 6 Part Number 型号 CST1207 TYPE CST1207 TYPE Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A CST1207-680M CST1207-101M CST1207-151M 68±20% 100±20% 150±20% Max.DC Resistance 直流电阻 mΩ DCR(Max) Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. Heat Rating Current 温升电流 A I rms. Saturation Current 饱和电流 A I sat. 140 200 350 4 3 2 5 4 2.7 CST1717 TYPE Part Number 型号 Inductance 电感量 @100KHz 1V Units 单位 Symbol 符号 UH L0A Max.DC Resistance 直流电阻 mΩ DCR(Max) CST1717-2R2M 2.2±20% 5 30 40 CST1717-3R3M 3.3±20% 7 25 30 CST1717-4R7M 4.7±20% 14 20 25 CST1717-6R8M 6.8±20% 16 15 18 CST1717-100M 10±20% 18 12 17 CST1717-150M 10±20% 30 10 15 CST1717-220M 22±20% 35 8 13 CST1717-330M 33±20% 60 6 10 CST1717-470M 47±20% 70 5 9 CST1717-680M 68±20% 100 4.8 8 CST1717-820M 82±20% 180 4.5 6 CST1717-101M 100±20% 200 4 5 CST1717-151M 150±20% 220 3 4
