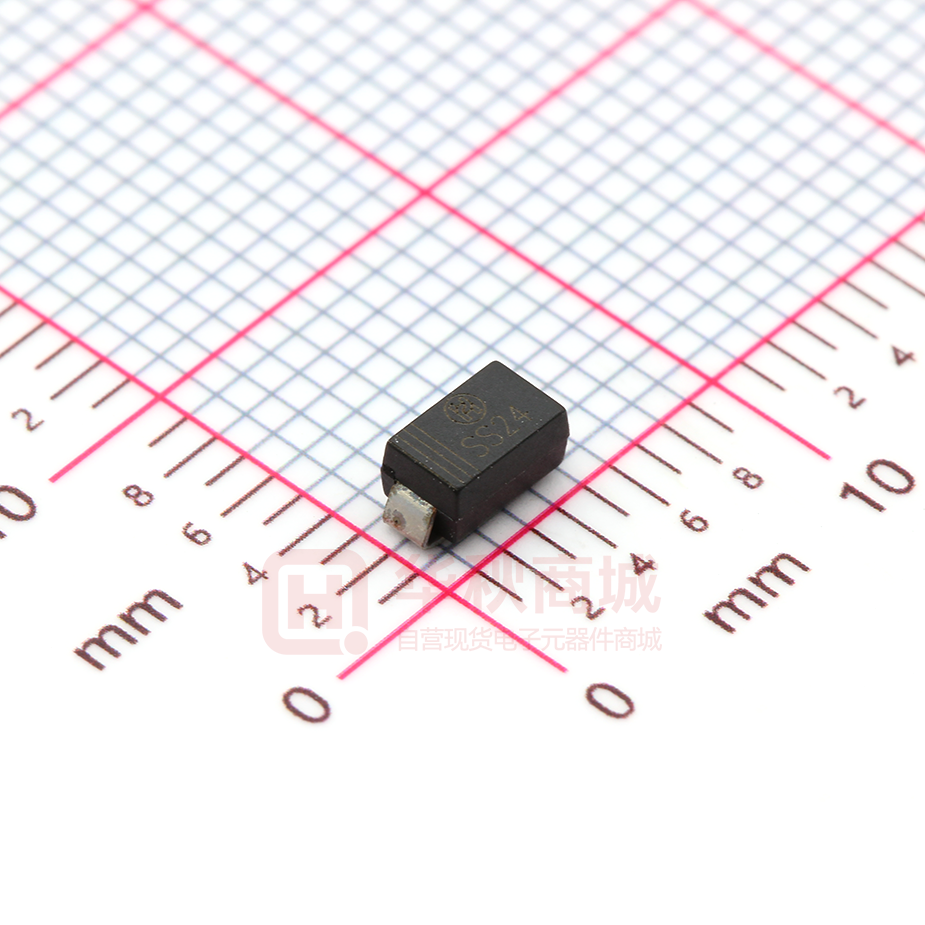

SS24A

Plastic-Encapsulate Diodes SCHOTTKY DIODES SS22---SS2200 FEATURES Metal silicon junction, majority carrier conduction 52 0 32 Low power loss, high efficiency The plastic package carries Underwriters Laboratory flammability 7 4.50 Classification 94V-0 High forward surge current capability Built-in strain relief, ideal for automated placement MECHANICAL DATA SMA (DO-214AC) molded plastic Polarity: Color band denotes cathode end DO-214AC (SMA) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS O Ratings at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS22 SS23 VRRM VRMS VDC 20 14 20 30 21 30 SS24 SS25 SS26 SS28 SS210 SS2150 SS2200 UNITS 40 28 40 50 35 50 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 VOLTS VOLTS VOLTS I(AV) 2.0 Amps IFSM 50.0 Amps VF 0.85 0.5 IR CJ RθJA TJ, TSTG 0.70 0.55 10.0 5.0 220 180 75.0 -50 to +125 -50 to +150 -50 to +150 0.95 0.2 2.0 Volts mA pF C/W C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes SS22---SS2200 Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P2
