RC0603JR-0715ML

厂商：
YAGEO(国巨)
封装：
0603
描述：

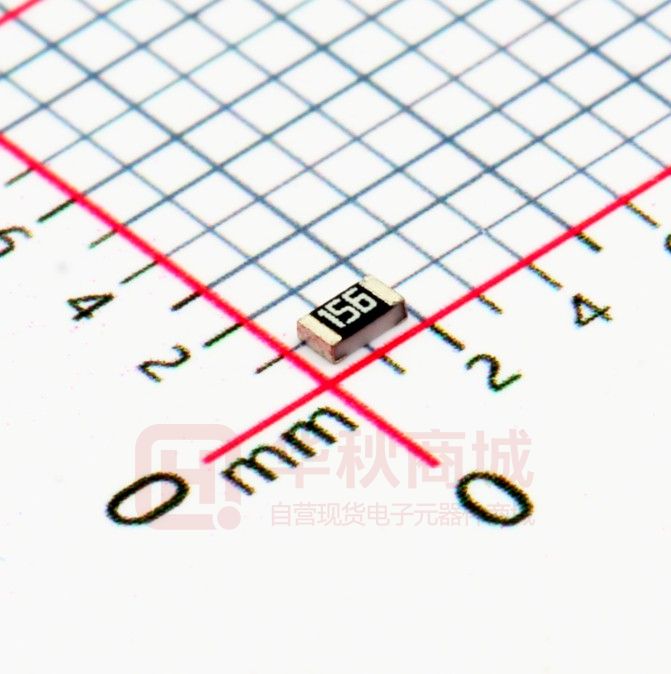

贴片电阻 0603 15MΩ ±5% 1/10W ±200ppm/℃

数据手册：

下载RC0603JR-0715ML.pdf

立即购买

详情介绍
数据手册
价格&库存

RC0603JR-0715ML 数据手册

DATA SHEET GENERAL PURPOSE CHIP RESISTORS RC_L series ±0.1%, ±0.5%, ±1%, ±5% Sizes 0075/0100/0201/0402/0603/0805/ 1206/1210/1218/2010/2512 Product specification – December 12, 2018 V.10 RoHS compliant & Halogen free Product specification Chip Resistor Surface Mount SCOPE This specification describes RC series chip resistors with lead free terminations made by thick film process. RC_L SERIES 2 10 0075 to 2512 ORDERING INFORMATION - GLOBAL PART NUMBER Global part numbers are identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value. GLOBAL PART NUMBER RC XXXX X X X XX XXXX L APPLICATIONS  All general purpose application (1) (2) (3) (4) (5) (6) (7) (1) SIZE 0075/0100/0201/0402/0603/0805/1206/1210/1218/2010/2512 FEATURES  Halogen Free Epoxy  RoHS compliant  Products with lead free terminations meet RoHS requirements  Pb-glass contained in electrodes, resistors element and glass are exempted by RoHS  Reducing environmentally hazardous wastes  High component and equipment reliability  Saving of PCB space  None forbidden-materials used in products/production (2) TOLERANCE B = ± 0.1% D = ± 0.5% F = ± 1.0% J = ± 5.0% (for jumper ordering, use code of J) (3) PACKAGING TYPE R = Paper taping reel K = Embossed taping reel S = ESD safe reel (0075/0100 only) (4) TEMPERATURE COEFFICIENT OF RESISTANCE － = Based on spec. (5) TAPING REEL 07 = 7 inch dia. Reel 10=10 inch dia. Reel 13 =13 inch dia. Reel 7W = 7 inch dia. Reel & 2 x standard power 7N = 7 inch dia. Reel, ESD safe reel (0075/0100 only) 3W = 13 inch dia. Reel & 2 x standard power (6) RESISTANCE VALUE There are 2~4 digits indicated the resistance value. Letter R/K/M is decimal point Example: 97R6 = 97.6Ω 9K76 = 9760Ω 1M = 1,000,000Ω (7) DEFAULT CODE Letter L is the system default code for ordering only.(Note) ORDERING EXAMPLE The ordering code for a RC0402 0.0625W chip resistor value 100KΩwith ±5% tolerance, supplied in 7-inch tape reel of 10,000 units per reel is: RC0402JR-07100KL. NOTE 1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process". 2. On customized label, "LFP" or specific symbol can be printed. www.yageo.com Dec. 12, 2018 V.10 Product specification Chip Resistor Surface Mount RC_L SERIES 3 10 0075 to 2512 MARKING RC0075 / RC0100 / RC0201 / RC0402 No Marking Fig. 1 RC0603 0 1%, 0.5%,E24 exception values 10/11/13/15/20/75 of E24 series Fig. 2 240 = 24 × 100 = 24 88 1%, 0.5%, E96 refer to EIA-96 marking method, including values 10/11/13/15/20/75 of E24 series Fig. 3 88A = 806 × 100 = 806 Ω 03 5%, E24 series : 3 digits First two digits for significant figure and 3rd digit for number of zeros Fig. 4 Value = 10 KΩ RC0805 / RC1206 / RC1210 / RC2010 / RC2512 00 1%, 0.5%, E24/E96 series : 4 digits First three digits for significant figure and 4th digit for number of zeros Fig. 5 Value = 10 KΩ 03 5%, E24 series : 3 digits First two digits for significant figure and 3rd digit for number of zeros Fig. 6 Value = 10 KΩ RC1218 E-24 series: 3 digits, ± 5% First two digits for significant figure and 3rd digit for number of zeros Fig. 7 Value = 10 KΩ 00 Both E-24 and E-96 series: 4 digits, ± 1% & ± 0.5% First three digits for significant figure and 4th digit for number of zeros Fig. 8 Value = 10 KΩ For further marking information, please see special data sheet "Chip resistors marking". www.yageo.com Dec. 12, 2018 V.10 Product specification Chip Resistor Surface Mount SERIES RC_L 4 10 0075 to 2512 Outlines CONSTRUCTION The resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added on each end to make the contacts to the thick film resistive element. The composition of the resistive element is a noble metal imbedded into a glass and covered by a second glass to prevent environmental influences. The resistor is laser trimmed to the rated resistance value. The resistor is covered with a protective epoxy coat, finally the two external terminations (matte tin on Ni-barrier) are added, as shown in Fig.9. For dimensions, please refer to Table 1 9 Fig. 9 Chip resistor outlines DIMENSION Table 1 TYPE RC0075 L (mm) W (mm) H (mm) I1 (mm) I2 (mm) 0.30±0.015 0.15±0.015 0.13±0.02 0.08±0.03 0.08±0.03 RC0100 0.40±0.02 0.20±0.02 0.13±0.02 0.10±0.03 0.10±0.03 RC0201 0.60±0.03 0.30±0.03 0.23±0.03 0.10±0.05 0.15±0.05 RC0402 1.00±0.05 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10 RC0603 1.60±0.10 0.80±0.10 0.45±0.10 0.25±0.15 0.25±0.15 RC0805 2.00±0.10 1.25±0.10 0.50±0.10 0.35±0.20 0.35±0.20 RC1206 3.10±0.10 1.60±0.10 0.55±0.10 0.45±0.20 0.40±0.20 RC1210 3.10±0.10 2.60±0.15 0.55±0.10 0.45±0.15 0.50±0.20 RC1218 3.10±0.10 4.60±0.10 0.55±0.10 0.45±0.20 0.40±0.20 RC2010 5.00±0.10 2.50±0.15 0.55±0.10 0.45±0.15 0.50±0.20 RC2512 6.35±0.10 3.10±0.15 0.55±0.10 0.60±0.20 0.50±0.20 ELECTRICAL CHARACTERISTICS Table 2 CHARACTERISTICS POWER OPERATING TEMPERATURE RANGE -55℃ to 125℃ RC0075 1/50 outlines W Fig. 4 Chip resistor MAXIMUM WORKING VOLTAGE 10V MAXIMUM DIELECTRIC OVERLOAD WITHSTANDING VOLTAGE VOLTAGE 25V 25V RESISTANCE RANGE TEMPERATURE COEFFICIENT JUMPER CRITERIA 5% (E24) 10Ω≦R

下载 PDF

RC0603JR-0715ML

物料型号：RC_L系列，尺寸从0075到2512，包括±0.1%, ±0.5%, ±1%, ±5%的精度等级。

器件简介：RC_L系列是通用芯片电阻器，采用厚膜工艺制作，具有无铅端接，符合RoHS标准，无卤素。

引脚分配：文档中没有明确指出具体的引脚分配，但通常这类贴片电阻器为无引脚设计。

参数特性： - 温度系数：基于规格书。 - 包装类型：包括纸质胶带卷、压花胶带卷和防静电安全卷（仅0075/0100尺寸）。 - 电阻值：由2到4位数字表示，R/K/M作为小数点。

功能详解： - 电阻器构建在高级陶瓷基板上，内部金属电极与厚膜电阻元件接触。 - 电阻元件由嵌入玻璃中的贵金属组成，覆盖有第二层玻璃以防止环境影响。 - 电阻器经过激光修调至额定电阻值。 - 覆盖有保护性环氧涂层，最后添加两个外部端接（Ni阻挡层上的亚光锡）。

应用信息：适用于所有通用目的应用。

封装信息：提供了详细的尺寸信息，包括长度、宽度、高度、内径和外径。

电气特性：包括功率、工作温度范围、最大工作电压、最大电压、电阻范围、温度系数和跳线标准。

包装风格和包装数量：提供了不同尺寸的胶带卷的包装风格和数量。

测试和要求：包括电阻温度系数、寿命/耐久性、高温暴露、湿度、电阻、湿热、冲击、板弯曲/弯曲、焊接性等测试条件、程序和要求。
