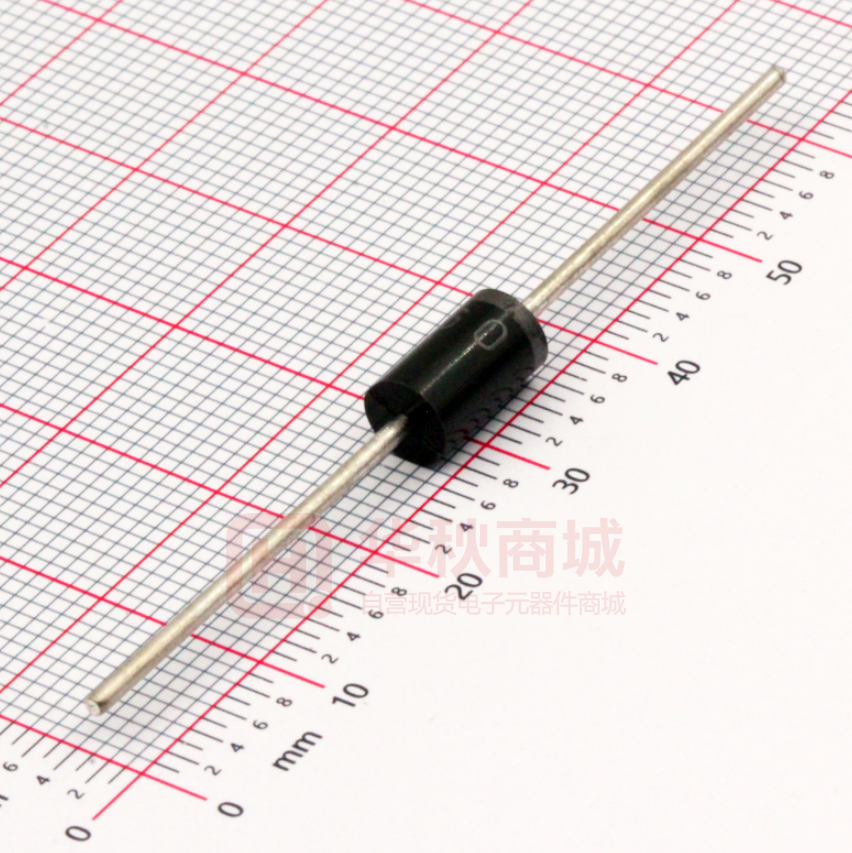

SR560

SR520-SR5150 5.0 AMP. Schottky Barrier Rectifiers DO-201AD/DO - 27 Features






Low power loss, high efficiency. High current capability, Low VF. High reliability High surge current capability. Epitaxial construction. Guard-ring for transient protection. For use in low voltage, high frequency inventor, free wheeling, and polarity protection application Mechanical Data


Cases: DO-201AD/DO-27 Molded plastic Polarity: Color band denotes cathode Higho temperature soldering guaranteed: 260 C/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension
Weight: 1.2 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics o Rating at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% Symbol Type Number VRRM VRMS VDC Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage SR SR SR SR SR SR SR SR Units 520 530 540 550 560 590 5100 5150 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 90 63 90 100 150 70 105 100 150 V V V Maximum Average Forward Rectified Current See Fig. 1 I(AV) 5.0 A Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) IFSM 120 A Maximum Instantaneous Forward Voltage @5.0A Maximum D.C. Reverse Current at Rated DC Blocking Voltage VF @ TA=25 C o @ TA=125 C Typical Junction Capacitance (Note 2) Typical Thermal Resistance (Note 1) Operating Junction Temperature Range Revision:20170301-P1 IR Cj RθJA RθJC TJ TSTG Storage Temperature Range Notes: 0.55 o 0.70 0.5 15 250 10 210 35 2 -65 to +150 -65 to +150 0.85 0.1 5.0 120 10 2 V mA mA pF 1.0 o C/W o C C o 1. Mount on Cu-Pad Size 5mm x 5mm on P.C.B. 2. Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C. ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com SR520-SR5150 5.0 AMP. Schottky Barrier Rectifiers RATINGS AND CHARACTERISTIC CURVES SR S 4 55 0 SR 20 0- R5 52 0-S SR 3 54 0 2 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OF INDUCTIVE LOAD 1 250 200 20 40 60 80 100 120 8.3ms Single Half Sine Wave JEDEC Method 150 100 50 0 0 FIG.2- MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 300 PEAK FORWARD SURGE CURRENT. (A) AVERAGE FORWARD CURRENT. (A) 5 FIG.1- MAXIMUM FORWARD CURRENT DERATING CURVE 1 150 2 5 10 20 NUMBER OF CYCLES AT 60Hz o LEAD TEMPERATURE. ( C) 100 FIG.4- TYPICAL REVERSE CHARACTERISTICS FIG.3- TYPICAL FORWARD CHARACTERISTICS 10 Tj=125 0C 1.0 SSR 0.1 0 55 -S R5 60 SSR 0 59 -S R5 10 0 SSR 51 50 Tj=25oC Pulse Width=300 s 1% Duty Cycle .2 .3 .4 .5 .6 .7 .8 .9 FORWARD VOLTAGE. VOLTS INSTANTANEOUS REVERSE CURRENT. (mA) 52 0- SR 54 0 10 SSR INSTANTANEOUS FORWARD CURRENT. (A) 40 50 Tj=75 0C 1 Tj=25 0C FIG.5- TYPICAL JUNCTION CAPACITANCE 700 SR 550 SR S 300 SR520-540 SR550-5150 -SR 520 560 -SR 0.1 540 Tj=25 0C 100 80 60 SR5 S 90-S R51 50 100 40 20 10 .1 .4 1.0 4 10 REVERSE VOLTAGE. (V) 40 80 100 TRANSIENT THERMAL IMPEDANCE. (OC/W) JUNCTION CAPACITANCE.(pF) 500 ht t p : // 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE. (%) FIG.6- TYPICAL TRANSIENT THERMAL CHARACTERISTICS 10 1 0.1 Revision:20170301-P1 0 0.01 0.1 1 10 T, PULSE DURATION. (sec) www.lgesemi .c o m 100 mail:lge@lgesemi.com Version: A06
