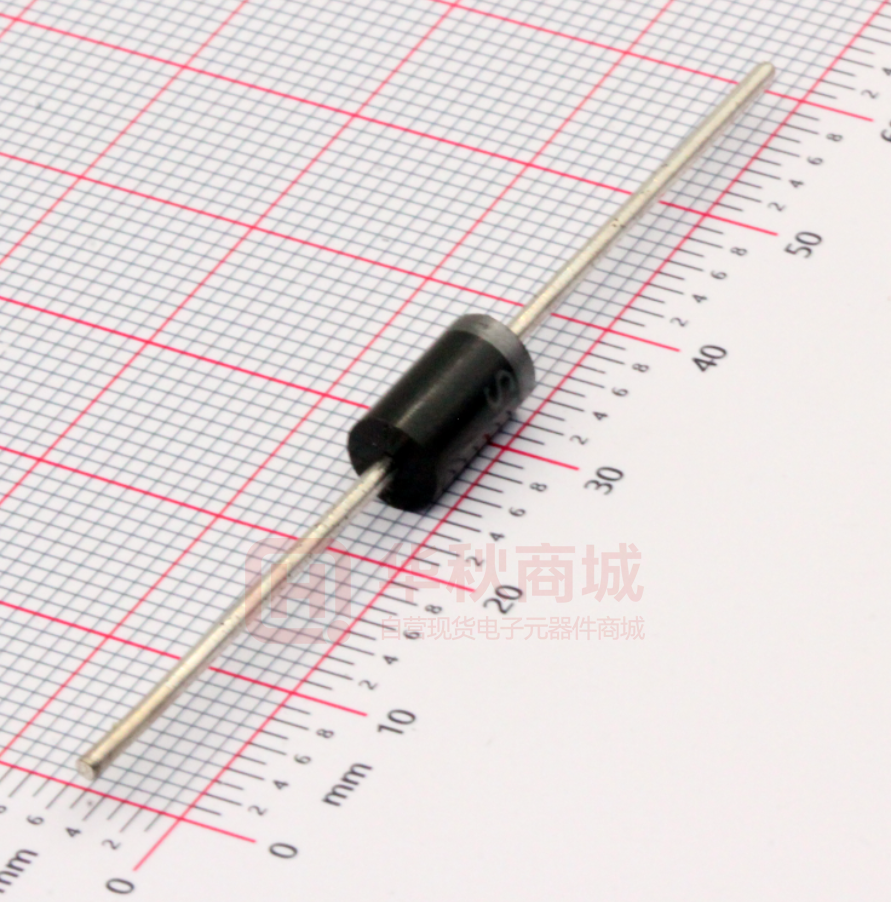

SR3200L

SR320L-SR3200L 3.0 AMP. LOW VF Schottky Barrier Rectifiers VOLTAGE RANGE:20-200V CURRENT:3.0A Fetures ◇ Plastic package has Underwriters Laboratory DO-201AD/DO-27 Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound. ◇ Guard ring for overvoltage protection ◇ High current capability, low forward voltage drop ◇ Low power loss, high efficiency ◇ High surge capability Mechanicla Data ◇ Case: Molded plastic DO-27/DO-201AD ◇ Terminals: Plated leads solderable per MIL-STD-202,Method 208 guaranteed ◇ Polarity: Color band dentes cathode end ◇ Mounting Position: Any ◇ Making: Type Number ◇ Lead Free: For RoHS/Lead Free Version Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERS Ratings at 25℃ ambient temperature unless otherwise specified. Single phase,half wave,60HZ,resistive or inductive load.For capacitive load,derate by 20%. Type Numger Symbol SR3 SR3 SR3 SR3 SR3 SR3 SR3 SR3 20L 40L 50L 60L 80L 100L 150L 200L UNITS Maximum Recurrent Peak Reverse Voltage VRRM 20 40 50 60 80 100 150 200 V Maxium RMS Voltage VRMS 14 28 35 42 56 70 105 140 V Maxium DC Blocking Voltage VDC 20 40 50 60 80 100 150 200 V Average Rectified Output Current (Note 1) @TL=100℃ IF(AV) Peak forward surge current:8.3ms single half-sine-wave IFSM superimposed on rated load (JEDEC Method) I2t Rating for Fusing (t < 8.3ms) I2t 3.0 A 80 A 81.34 A2S Forward Voltage @IF=3.0A VFM Peak Reverse Current @TA=25℃ IR 0.2 0.1 Ma At Rated DC Blocking Voltage @TA=100℃ IR 10 5 Ma Typical Junction Capacitance (Note 2) CJ Typical Thermal Resistance Junction toAmbient(Note 1) Operating Temperature Range Storage Temperature Range 0.42 0.45 0.5 0.72 500 350 V pF RθJA 25 ℃/W TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Note: 1.Leads maintained at ambient temperature at a distance of 9.5mm from the case. 2.Measured at 1.0MHz and applied reverse voltage of 4.0V DC. http://www.luguang.cn 0.85 mail:lge@luguang.cn SR320L-SR3200L FIG.2-TYPICAL FORWARD CHARACTERISTICS 10 5.0 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT (A) FIG. 1 - FORWARD CURRENT DERATING CURVE 4.0 3.0 2.0 1.0 0 25 50 75 100 125 150 175 SR320L-340L SR350L-SR360L 5.0 SR380L- SR3100L 1.0 SR3150L-3200L TA = 25 ℃ 0.1 LEAD TEMPERATURE( C) O FIG. 3 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 INSTANTANEOUS FORWARD VOLTAGE, (V) FIG.4TYPICALREVERSE CHRACTERISTIC MAXIMUM NON-REPETITIVE SURGE CURRENT 200 REVERSE CURRENT (uA) PEAK FORWARD SURGE CURRENT,(A) 10 5 150 100 50 0 PULSE WIDTH 8.3ms SINGLE HALF-SINE-WAVE (JEDEC METHOD) 1 2 5 10 20 NUMBER OF CYCLES AT 60Hz http://www.luguang.cn 50 100 10 4 10 3 T J =125 OC 10 2 T J =75 OC 10 1 10 0 10 -1 10 -2 T J =25 OC 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE ,% mail:lge@luguang.cn 1.0
