RS1MF

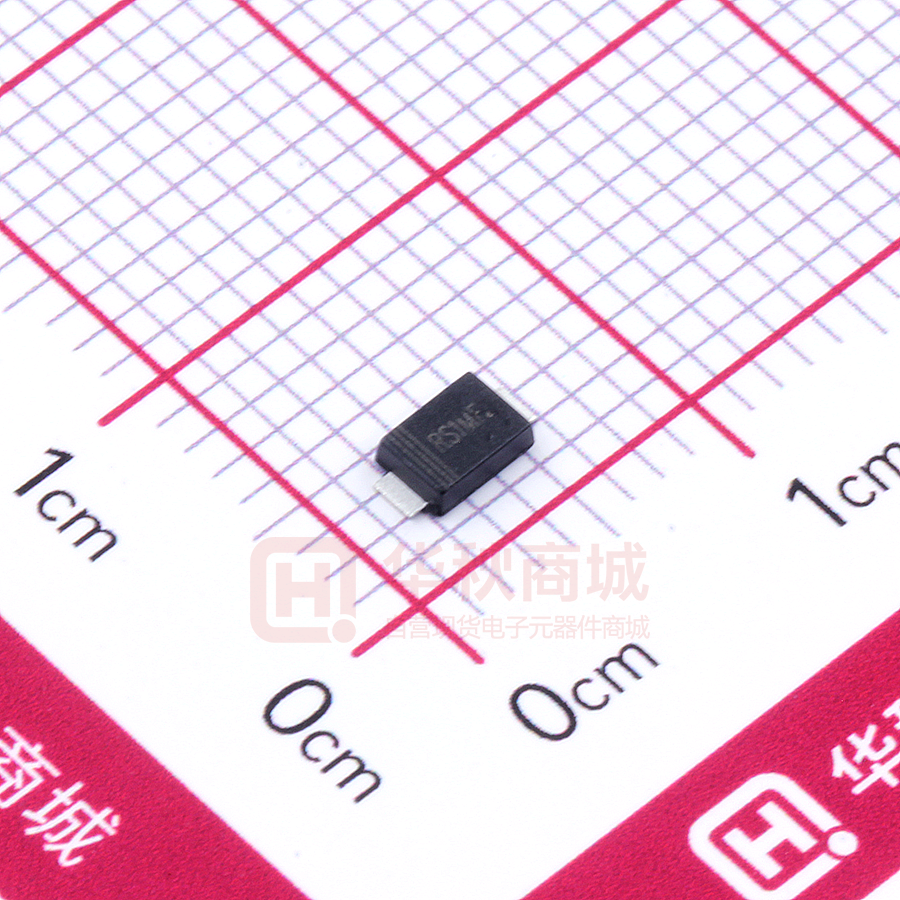

RS1AF-RS1MF SURFACE MOUNT FAST RECOVERY RECTIFIER FEATURES  Glass Passivated Die Construction  Low reverse leakage  Low Forward Voltage Drop and High Current Capability  Ideally Suited for Automated Assembly  Plastic Material: UL Flammability Classification Rating 94V-0 SMAF MECHANICAL DATA 10  Case: SMAF Molded plastic  Terminals: Pure tin plated, lead free Cathode  Polarity: Indicated by cathode band  Weight: 27mg (approx.) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. RS1AF RS1BF RS1DF RS1GF RS1JF RS1KF RS1MF Uni t V RRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T A =75 °C I F(AV) 1.0 A Peak Forward Surge Current 8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC) I FSM 30.0 A Maximum Instantaneous Forward Voltage at 1 A VF 1.3 V Maximum DC Reverse Current at Rated DC Blocking Voltage IR 5.0 50.0 µA Parameter Symbol Maximum Repetitive Peak Reverse Voltage T A = 25 °C T A =100 °C Maximum reverse recovery time (NOTE1) t rr Typical Junction Capacitance (NOTE2) CJ 150 250 500 nS 15.0 pF °C/ W °C Maximum Thermal Resistance (NOTE3) R θJA 50.0 Operating and Storage Temperature Range T J, TS - 50 to + 150 Note: 1.Reverse recovery condition I F =0.5A,I R =1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1/3 RS1AF-RS1MF SURFACE MOUNT FAST RECOVERY RECTIFIER FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Typical Characteristics FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 25 20 15 10 175 5.0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 1,000 100 10 TJ=100 C 1 0.1 TJ=25 C 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 200 100 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 100 t,PULSE DURATION,sec. E-mail:hkt@heketai.com 2/3 RS1AF-RS1MF SURFACE MOUNT FAST RECOVERY RECTIFIER SMAF Package Outline Dimensions ∠ALL ROUND C A ∠ALL ROUND HE E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 3.7 2.7 1.6 1.2 4.9 min 0.9 0.12 3.3 2.4 1.3 0.8 4.4 max 43 7.9 146 106 63 47 193 min 35 4.7 130 94 51 31 173 UNIT mm g pad E e A pad D V M ∠ 7° ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/3
