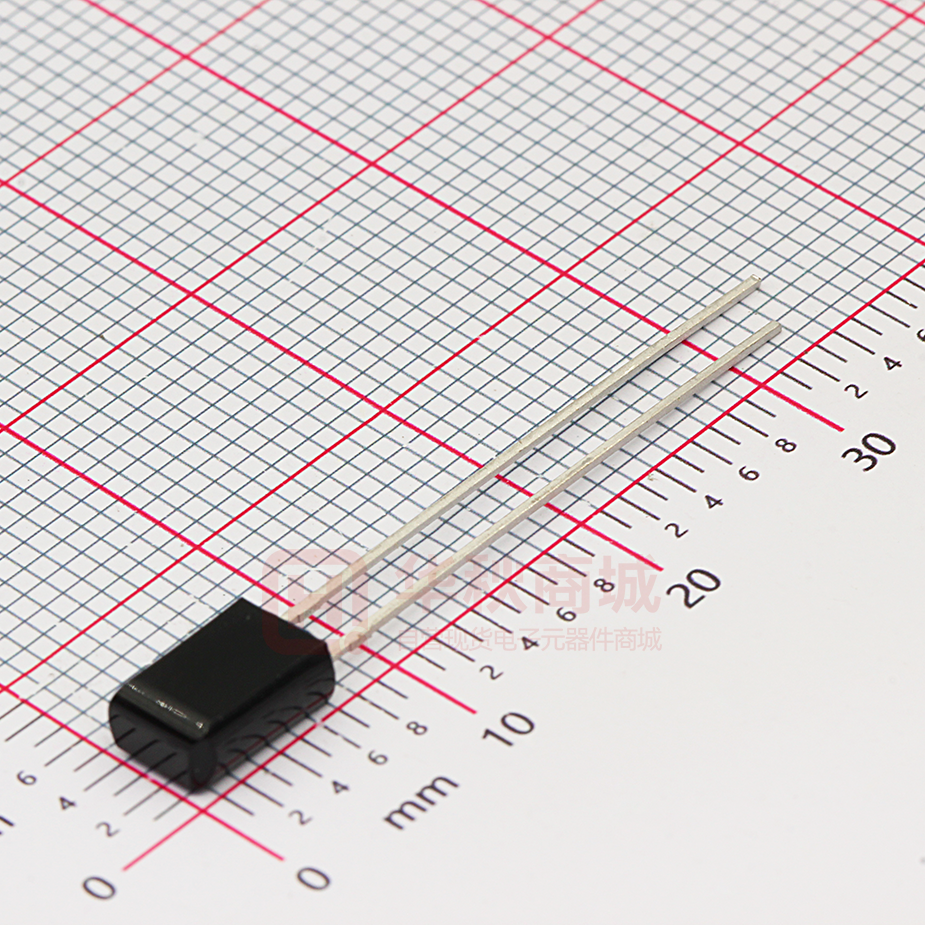

www.osram-os.com Produktdatenblatt | Version 1.1 SFH 235 FA   SFH 235 FA Radial Sidelooker Silicon PIN Photodiode with Daylight Blocking Filter Applications ——Electronic Equipment ——Smoke Detectors ——Highbay Industrial ——White Goods ——Industrial Automation (Machine controls, Light barriers, Vision controls) Features: ——Package: black epoxy ——ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) ——Especially suitable for applications of 880 nm ——Short switching time (typ. 20 ns) ——5 mm LED plastic package ——Also available on tape and reel  Ordering Information  Type Photocurrent  Photocurrent  Ordering Code typ. Ee = 0.5 mW/cm²; λ = 870 nm; VR = 5 V Ee = 0.5 mW/cm²; λ = 870 nm; VR = 5 V IP IP  SFH 235 FA ≥ 40 µA 1 Version 1.3 | 2018-05-04 50 µA Q62702P0273 SFH 235 FA   Maximum Ratings TA = 25 °C Parameter Symbol Operating Temperature Top min. max. -40 °C 100 °C Storage temperature Tstg min. max. -40 °C 100 °C Reverse voltage VR max. 32 V Total power dissipation Ptot max. 150 mW ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) VESD   2 Version 1.3 | 2018-05-04 Values 2 kV SFH 235 FA   Characteristics TA = 25 °C Parameter Symbol Wavelength of max sensitivity λS max typ. 900 nm Spectral range of sensitivity λ10% typ. 740 ... 1120 nm Radiant sensitive area A typ. 7.02 mm² Dimensions of active chip area LxW typ. 2.65 x 2.65 mm x mm Half angle φ typ. 65 ° Dark current VR = 10 V IR typ. max. Spectral sensitivity of the chip λ = 870 nm Sλ typ. 0.65 A / W Quantum yield of the chip λ = 870 nm η typ. 0.93 Electrons / Photon Open-circuit voltage Ee = 0.5 mW/cm²; λ = 870 nm VO min. typ. 250 mV 320 mV Short-circuit current Ee = 0.5 mW/cm²; λ = 870 nm ISC typ. 22 µA Rise time VR = 5 V; RL = 50 Ω; λ = 850 nm; IP = 800 µA tr typ. 0.02 µs Fall time VR = 5 V; RL = 50 Ω; λ = 850 nm; IP = 800 µA tf typ. 0.02 µs Forward voltage IF = 100 mA; E = 0  VF typ. 1.3 V C0 typ. 72 pF Temperature coefficient of voltage TCV typ. -2.6 mV / K Temperature coefficient of short-circuit current λ = 870 nm TCI typ. 0.03 % / K Noise equivalent power VR = 10 V; λ = 870 nm NEP typ. 0.039 pW / Hz1/2 Detection limit VR = 10 V; λ = 870 nm D* typ. 6.8e12 cm x Hz1/2 / W   Capacitance VR = 0 V; f = 1 MHz; E = 0  3 Version 1.3 | 2018-05-04 Values 2 nA 30 nA SFH 235 FA   Relative Spectral Sensitivity 1), 2) Srel = f (λ) OHF01430 100 Srel % 80 70 60 50 40 30 20 10 0 400 Directional Characteristics Srel = f (φ)   4 Version 1.3 | 2018-05-04 1), 2) 600 800 1000 nm 1200 λ SFH 235 FA   Photocurrent/Open-Circuit Voltage IP (VR = 5 V) / VO = f (Ee) ΙP 1), 2) Dark Current 1), 2) IR = f (VR) ; E = 0  OHF01428 10 3 µA 10 2 10 4 mV OHF00080 4000 VO ΙR pA 10 3 3000 10 2 2000 10 1 1000 VO 10 1 ΙP 10 0 10 -1 10 0 10 1 10 2 µW/cm 2 10 0 10 4 Ee Capacitance 1), 2) C = f (VR); f = 1 MHz; E = 0; OHF00081 100 C pF  80 70 60 50 40 30 20 10 10 -1 10 0 10 1  0 -2 10 5 Version 1.3 | 2018-05-04 V 10 2 VR 0 0 5 10 15 V VR 20 SFH 235 FA   Dark Current 2) IR = f (TA); E = 0; VR = 10 V Power Consumption Ptot = f (TA); OHF00398 160 mW Ptot 140  120 100 80 60 40 20 0 20 40 60  0 6 Version 1.3 | 2018-05-04 80 ˚C 100 TA SFH 235 FA   Dimensional Drawing 3) 1.8 (0.071) 1.1 (0.043) 0.7 (0.028) 1.2 (0.047) Approximate Weight: 261.0 mg Package marking: Cathode  7 Version 1.3 | 2018-05-04 5.1 (0.201) 4.6 (0.181) 3.8 (0.150) 7.2 (0.283) 6.6 (0.260) 0.5 (0.020) 0.3 (0.012) 3.1 (0.122) 2.6 (0.102) Cathode Surface not flat  0.4 (0.016) 0.6 (0.024) 2.54 (0.100) spacing 0.75 (0.030) 0.45 (0.018) 35.5 (1.398) 33.5 (1.319) Photosensitive area GEOY6422 SFH 235 FA   Recommended Solder Pad Pad 1: anode   8 Version 1.3 | 2018-05-04 3) SFH 235 FA   TTW Soldering IEC-61760-1 TTW OHA04645 300 10 s max., max. contact time 5 s per wave ˚C T 250 235 ˚C - 260 ˚C First wave Second wave Continuous line: typical process Dotted line: process limits ∆T < 150 K 200 Cooling Preheating ca. 3.5 K/s typical 150 ca. 2 K/s 130 ˚C 120 ˚C 100 ˚C 100 ca. 5 K/s Typical 50 0 0 20 40 60 80 100 120 140 160 180 200 220 s 240 t   9 Version 1.3 | 2018-05-04 SFH 235 FA   Notes The evaluation of eye safety occurs according to the standard IEC 62471:2006 (photo biological safety of lamps and lamp systems). Within the risk grouping system of this IEC standard, the LED specified in this data sheet fall into the class exempt group (exposure time 10000 s). Under real circumstances (for exposure time, conditions of the eye pupils, observation distance), it is assumed that no endangerment to the eye exists from these devices. As a matter of principle, however, it should be mentioned that intense light sources have a high secondary exposure potential due to their blinding effect. When looking at bright light sources (e.g. headlights), temporary reduction in visual acuity and afterimages can occur, leading to irritation, annoyance, visual impairment, and even accidents, depending on the situation. Packing information is available on the internet (online product catalog). For further application related informations please visit www.osram-os.com/appnotes   10 Version 1.3 | 2018-05-04 SFH 235 FA   Disclaimer Disclaimer Language english will prevail in case of any discrepancies or deviations between the two language wordings. Attention please! The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact our Sales Organization. If printed or downloaded, please find the latest version in the OSRAM OS Webside. Packing Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Product safety devices/applications or medical devices/applications OSRAM OS components are not developed, constructed or tested for the application as safety relevant component or for the application in medical devices. In case Buyer – or Customer supplied by Buyer– considers using OSRAM OS components in product safety devices/applications or medical devices/applications, Buyer and/or Customer has to inform the local sales partner of OSRAM OS immediately and OSRAM OS and Buyer and /or Customer will analyze and coordinate the customer-specific request between OSRAM OS and Buyer and/or Customer.   11 Version 1.3 | 2018-05-04 SFH 235 FA   Glossary 1) Testing temperature: TA = 25°C 2) Typical Values: Due to the special conditions of the manufacturing processes of LED, the typical data or calculated correlations of technical parameters can only reflect statistical figures. These do not necessarily correspond to the actual parameters of each single product, which could differ from the typical data and calculated correlations or the typical characteristic line. If requested, e.g. because of technical improvements, these typ. data will be changed without any further notice. 3) Tolerance of Measure: Unless otherwise noted in drawing, tolerances are specified with ±0.1 and dimensions are specified in mm.   12 Version 1.3 | 2018-05-04 SFH 235 FA     Published by OSRAM Opto Semiconductors GmbH Leibnizstraße 4, D-93055 Regensburg www.osram-os.com © All Rights Reserved. 13 Version 1.3 | 2018-05-04
