AC4842
亚芯电子(深圳)有限公司
C
B03C

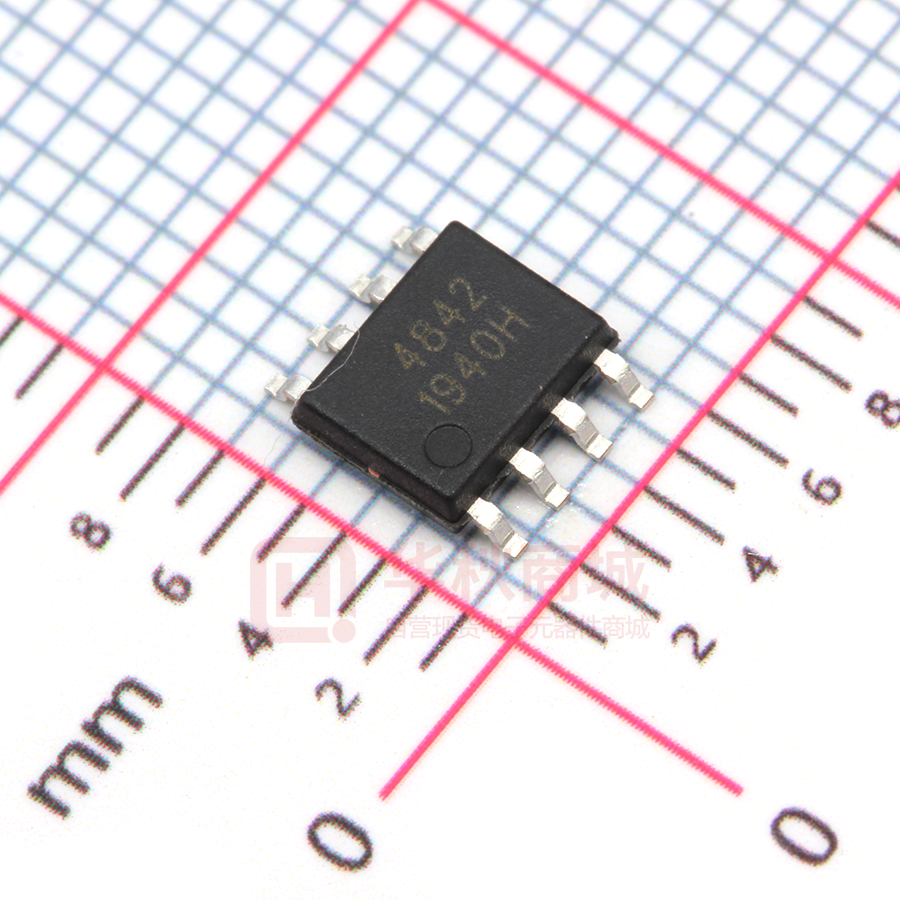

30V /7.7A Dual 2N Power MOSFET
8B03C
B
V
General Description
DS
RDS(on),TYP@VGS=10V
RDS(on),TYP@VGS=4.5
ID
30V /7.7A Dual 2N Power MOSFET
Very low on-resistance RDS(on) @ VGS=4.5 V
Pb-free lead plating; RoHS compliant
Part ID
Package Type
Marking
Tape and reel
infomation
AC4842
SOP8
4842
3000
Parameter
30
V
21.0
mΩ
33.0
mΩ
7.7
A
100% UIS Tested
100% Rg Tested
Symbol
Maximum
Units
Drain-Source Voltage
VDS
30
V
Gate-Source Voltage
VGS
20
±V
Continuous Drain Current A
Pulsed Drain Current
Avalanche Current
TA=25°C
TA=70°C
B
Power Dissipation
G
12.3
IAR
2.5
EAR
5.7
TA=25°C
A
A
mJ
2
PD
TA=70°C
Junction and Storage Temperature Range
6.5
IDM
G
Repetitive avalanche energy L=0.1mH
7.7
ID
W
1.44
-55 to 150
TJ, TSTG
°C
Thermal Characteristics
Parameter
Symbol
Maximum Junction-to-Ambient
A
t ≤ 10s
Maximum Junction-to-Ambient
A
Steady State
Maximum Junction-to-Lead
www.asiachip.cn
C
Steady State
第 1 页,共 4 页
RθJA
RθJL
Typ
Max
Units
75
112
°C/W
150
180
°C/W
45
72
°C/W
Rev0:Oct 2018
亚芯电子(深圳)有限公司
AC4842
30V /7.7A Dual 2N Power MOSFET
STATIC PARAMETERS
Symbol
BVDSS
Parameter
Drain-Source Breakdown
Voltage
Conditions
ID = -250uA, VGS = 0V
IDSS
Zero Gate Voltage Drain Current
VDS=30V, VGS=0V
IGSS
Gate-Body leakage current
VDS = 0V, VGS = ±20V
VGS(th)
Gate Threshold Voltage
VDS = VGS ID = 250µA
RDS(ON)
Static Drain-Source OnResistance
gFS
VSD
Min
Typ
Max
Units
30
V
1
5
uA
±100
nA
2
2.6
V
VGS=-10V, ID=7.7A
21.0
30.0
VGS=4.5V, ID=7.7A
33.0
42.9
Forward Transconductance
VDS=5V, ID=7.7A
40
Diode Forward Voltage
IS=1A,VGS=35V
0.72
1.3
S
1
V
7.7
A
Typ
Max
Units
373
455
pF
67
82
pF
41
48
pF
0.85
Ω
Max
Units
Maximum Body-Diode Continuous Current
IS
mΩ
DYNAMIC PARAMETERS
Symbol
Parameter
Ciss
Input Capacitance
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate resistance
Conditions
Min
VGS=0V, VDS=15V, f=1MHz
VGS=0V, VDS=0V, f=1MHz
SWITCHING PARAMETERS
Symbol
Parameter
Qg (10V)
Total Gate Charge
Qg 4.5V)
Total Gate Charge
Qgs
Gate Source Charge
Qgd
Gate Drain Charge
1.7
tD(on)
Turn-On DelayTime
5.25
tr
Turn-On Rise Time
tD(off)
Turn-Off DelayTime
tf
Turn-Off Fall Time
Body Diode Reverse Recovery
Time
trr
Qrr
Body Diode Reverse Recovery
Charge
www.asiachip.cn
Conditions
Min
Typ
3.5
VGS=10V, VDS=15V, ID=7.7A
VGS=10V, VDS=15V,RL=0.75Ω,
RGEN=3Ω
1.75
1.19
4.2
14.7
nC
ns
4.725
IF=-8A, dI/dt=500A/µs
10.5
ns
IF=18A, dI/dt=500A/µs
4.5
nC
第 2 页,共 4 页
Rev0:Oct 2018
亚芯电子(深圳)有限公司
www.asiachip.cn
第 3 页,共 4 页
AC4842
30V /7.7A Dual 2N Power MOSFET
Rev0:Oct 2018
亚芯电子(深圳)有限公司
www.asiachip.cn
第 4 页,共 4 页
AC4842
30V /7.7A Dual 2N Power MOSFET
Rev0:Oct 2018
