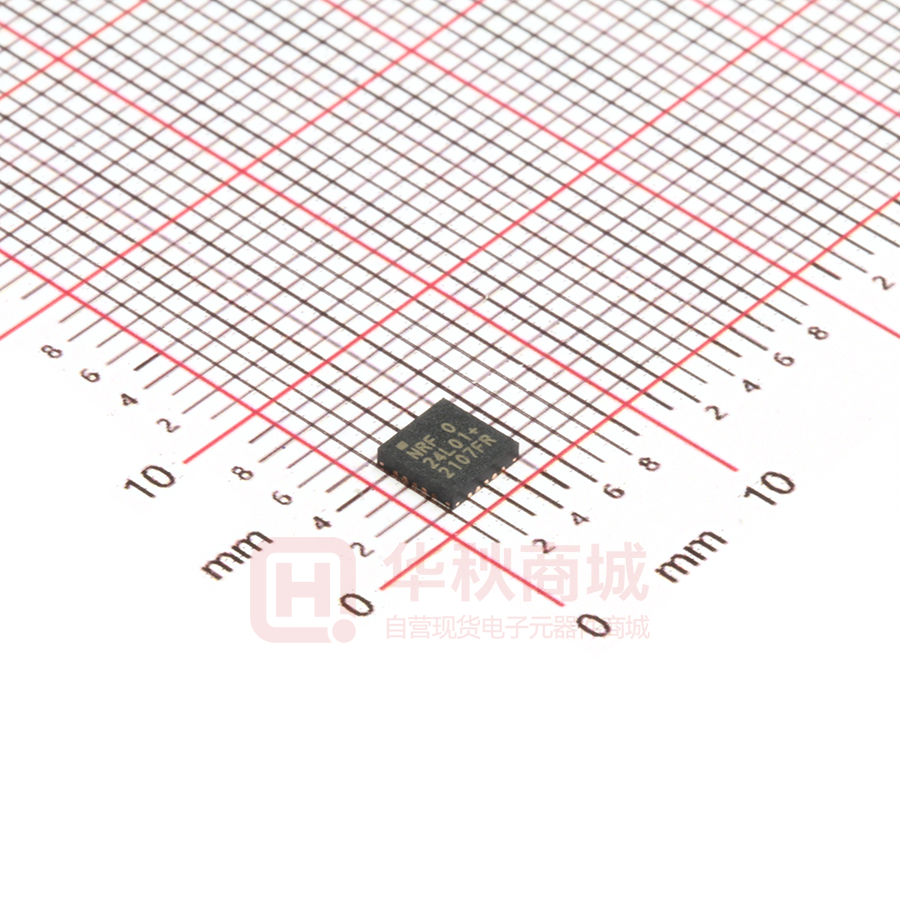

nRF24L01+
Single Chip 2.4GHz Transceiver
Product Specification v1.0
Key Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Worldwide 2.4GHz ISM band operation
250kbps, 1Mbps and 2Mbps on air data
rates
Ultra low power operation
11.3mA TX at 0dBm output power
13.5mA RX at 2Mbps air data rate
900nA in power down
26µA in standby-I
On chip voltage regulator
1.9 to 3.6V supply range
Enhanced ShockBurst™
Automatic packet handling
Auto packet transaction handling
6 data pipe MultiCeiver™
Drop-in compatibility with nRF24L01
On-air compatible in 250kbps and 1Mbps
with nRF2401A, nRF2402, nRF24E1 and
nRF24E2
Low cost BOM
±60ppm 16MHz crystal
5V tolerant inputs
Compact 20-pin 4x4mm QFN package
Applications
•
•
•
•
•
•
•
•
•
•
•
•
•
Wireless PC Peripherals
Mouse, keyboards and remotes
3-in-1 desktop bundles
Advanced Media center remote controls
VoIP headsets
Game controllers
Sports watches and sensors
RF remote controls for consumer electronics
Home and commercial automation
Ultra low power sensor networks
Active RFID
Asset tracking systems
Toys
All rights reserved.
Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder.
September 2008
nRF24L01+ Product Specification
Liability disclaimer
Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to
improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out
of the application or use of any product or circuits described herein.
All application information is advisory and does not form part of the specification.
Limiting values
Stress above one or more of the limiting values may cause permanent damage to the device. These are
stress ratings only and operation of the device at these or at any other conditions above those given in the
specifications are not implied. Exposure to limiting values for extended periods may affect device reliability.
Life support applications
These products are not designed for use in life support appliances, devices, or systems where malfunction
of these products can reasonably be expected to result in personal injury. Nordic Semiconductor ASA customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Nordic Semiconductor ASA for any damages resulting from such improper use or sale.
Data sheet status
Objective product specification
This product specification contains target specifications for product
development.
Preliminary product specification This product specification contains preliminary data; supplementary
data may be published from Nordic Semiconductor ASA later.
Product specification
This product specification contains final product specifications. Nordic
Semiconductor ASA reserves the right to make changes at any time
without notice in order to improve design and supply the best possible
product.
Contact details
Visit www.nordicsemi.no for Nordic Semiconductor sales offices and distributors worldwide
Main office:
Otto Nielsens vei 12
7004 Trondheim
Phone: +47 72 89 89 00
Fax: +47 72 89 89 89
www.nordicsemi.no
Revision 1.0
Page 2 of 78
nRF24L01+ Product Specification
Writing Conventions
This product specification follows a set of typographic rules that makes the document consistent and easy
to read. The following writing conventions are used:
•
Commands, bit state conditions, and register names are written in Courier.
•
Pin names and pin signal conditions are written in Courier bold.
•
Cross references are underlined and highlighted in blue.
Revision History
Date
September 2008
Version
1.0
Description
Attention!
Observe precaution for handling
Electrostatic Sensitive Device.
HBM (Human Body Model) > 1Kv
MM (Machine Model) > 200V
Revision 1.0
Page 3 of 78
nRF24L01+ Product Specification
Contents
1
1.1
1.2
2
2.1
2.2
3
4
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
6
6.1
6.1.1
6.1.2
6.1.3
6.1.4
6.1.5
6.1.6
6.1.7
6.2
6.3
6.4
6.5
6.6
7
7.1
7.2
7.3
7.3.1
7.3.2
7.3.3
7.3.4
7.3.5
7.3.6
7.3.7
7.4
7.4.1
7.4.2
Introduction ...............................................................................................
Features ...............................................................................................
Block diagram ......................................................................................
Pin Information..........................................................................................
Pin assignment.....................................................................................
Pin functions.........................................................................................
Absolute maximum ratings ......................................................................
Operating conditions ................................................................................
Electrical specifications ...........................................................................
Power consumption..............................................................................
General RF conditions .........................................................................
Transmitter operation ...........................................................................
Receiver operation ...............................................................................
Crystal specifications ...........................................................................
DC characteristics ................................................................................
Power on reset .....................................................................................
Radio Control ............................................................................................
Operational Modes...............................................................................
State diagram ..................................................................................
Power Down Mode ..........................................................................
Standby Modes................................................................................
RX mode..........................................................................................
TX mode ..........................................................................................
Operational modes configuration.....................................................
Timing Information ...........................................................................
Air data rate..........................................................................................
RF channel frequency ..........................................................................
Received Power Detector measurements............................................
PA control.............................................................................................
RX/TX control .......................................................................................
Enhanced ShockBurst™ ..........................................................................
Features ...............................................................................................
Enhanced ShockBurst™ overview .......................................................
Enhanced Shockburst™ packet format................................................
Preamble .........................................................................................
Address ...........................................................................................
Packet control field ..........................................................................
Payload............................................................................................
CRC (Cyclic Redundancy Check) ...................................................
Automatic packet assembly .............................................................
Automatic packet disassembly ........................................................
Automatic packet transaction handling ................................................
Auto acknowledgement ...................................................................
Auto Retransmission (ART) .............................................................
Revision 1.0
Page 4 of 78
7
8
9
10
10
11
12
13
14
14
15
15
16
19
20
20
21
21
21
22
22
23
23
24
24
25
25
25
26
26
27
27
27
28
28
28
28
29
30
31
32
33
33
33
nRF24L01+ Product Specification
7.5
7.5.1
7.5.2
7.6
7.7
7.8
7.8.1
7.8.2
7.8.3
7.8.4
7.8.5
7.8.6
Enhanced ShockBurst flowcharts ........................................................ 35
PTX operation.................................................................................. 35
PRX operation ................................................................................. 37
MultiCeiver™........................................................................................ 39
Enhanced ShockBurst™ timing ........................................................... 42
Enhanced ShockBurst™ transaction diagram ..................................... 45
Single transaction with ACK packet and interrupts.......................... 45
Single transaction with a lost packet ............................................... 46
Single transaction with a lost ACK packet ....................................... 46
Single transaction with ACK payload packet ................................... 47
Single transaction with ACK payload packet and lost packet .......... 47
Two transactions with ACK payload packet and the first
ACK packet lost .............................................................................. 48
7.8.7
Two transactions where max retransmissions is reached ............... 48
7.9
Compatibility with ShockBurst™ .......................................................... 49
7.9.1
ShockBurst™ packet format ............................................................ 49
8
Data and Control Interface ....................................................................... 50
8.1
Features ............................................................................................... 50
8.2
Functional description .......................................................................... 50
8.3
SPI operation ....................................................................................... 50
8.3.1
SPI commands ................................................................................ 50
8.3.2
SPI timing ........................................................................................ 52
8.4
Data FIFO ............................................................................................ 55
8.5
Interrupt ................................................................................................ 56
9
Register Map.............................................................................................. 57
9.1
Register map table ............................................................................... 57
10
Peripheral RF Information ........................................................................ 64
10.1
Antenna output ..................................................................................... 64
10.2
Crystal oscillator ................................................................................... 64
10.3
nRF24L01+ crystal sharing with an MCU............................................. 64
10.3.1
Crystal parameters .......................................................................... 64
10.3.2
Input crystal amplitude and current consumption ............................ 64
10.4
PCB layout and decoupling guidelines................................................. 65
11
Application example ................................................................................. 66
11.1
PCB layout examples ........................................................................... 67
12
Mechanical specifications........................................................................ 71
13
Ordering information ................................................................................ 73
13.1
Package marking ................................................................................. 73
13.2
Abbreviations ....................................................................................... 73
13.3
Product options .................................................................................... 73
13.3.1
RF silicon ......................................................................................... 73
13.3.2
Development tools ........................................................................... 73
14
Glossary of Terms..................................................................................... 74
Appendix A - Enhanced ShockBurst™ - Configuration and
communication example ......................................................................... 75
Enhanced ShockBurst™ transmitting payload ..................................... 75
Revision 1.0
Page 5 of 78
nRF24L01+ Product Specification
Enhanced ShockBurst™ receive payload ............................................
Appendix B - Configuration for compatibility with nRF24XX................
Appendix C - Constant carrier wave output for testing.........................
Configuration ........................................................................................
Revision 1.0
Page 6 of 78
76
77
78
78
nRF24L01+ Product Specification
1
Introduction
The nRF24L01+ is a single chip 2.4GHz transceiver with an embedded baseband protocol engine
(Enhanced ShockBurst™), suitable for ultra low power wireless applications. The nRF24L01+ is designed
for operation in the world wide ISM frequency band at 2.400 - 2.4835GHz.
To design a radio system with the nRF24L01+, you simply need an MCU (microcontroller) and a few external passive components.
You can operate and configure the nRF24L01+ through a Serial Peripheral Interface (SPI). The register
map, which is accessible through the SPI, contains all configuration registers in the nRF24L01+ and is
accessible in all operation modes of the chip.
The embedded baseband protocol engine (Enhanced ShockBurst™) is based on packet communication
and supports various modes from manual operation to advanced autonomous protocol operation. Internal
FIFOs ensure a smooth data flow between the radio front end and the system’s MCU. Enhanced ShockBurst™ reduces system cost by handling all the high speed link layer operations.
The radio front end uses GFSK modulation. It has user configurable parameters like frequency channel,
output power and air data rate. nRF24L01+ supports an air data rate of 250 kbps, 1 Mbps and 2Mbps. The
high air data rate combined with two power saving modes make the nRF24L01+ very suitable for ultra low
power designs.
nRF24L01+ is drop-in compatible with nRF24L01 and on-air compatible with nRF2401A, nRF2402,
nRF24E1 and nRF24E2. Intermodulation and wideband blocking values in nRF24L01+ are much
improved in comparison to the nRF24L01 and the addition of internal filtering to nRF24L01+ has improved
the margins for meeting RF regulatory standards.
Internal voltage regulators ensure a high Power Supply Rejection Ratio (PSRR) and a wide power supply
range.
Revision 1.0
Page 7 of 78
nRF24L01+ Product Specification
1.1
Features
Features of the nRF24L01+ include:
•
•
•
•
•
•
•
•
Radio
X Worldwide 2.4GHz ISM band operation
X 126 RF channels
X Common RX and TX interface
X GFSK modulation
X 250kbps, 1 and 2Mbps air data rate
X 1MHz non-overlapping channel spacing at 1Mbps
X 2MHz non-overlapping channel spacing at 2Mbps
Transmitter
X Programmable output power: 0, -6, -12 or -18dBm
X 11.3mA at 0dBm output power
Receiver
X Fast AGC for improved dynamic range
X Integrated channel filters
X 13.5mA at 2Mbps
X -82dBm sensitivity at 2Mbps
X -85dBm sensitivity at 1Mbps
X -94dBm sensitivity at 250kbps
RF Synthesizer
X Fully integrated synthesizer
X No external loop filer, VCO varactor diode or resonator
X Accepts low cost ±60ppm 16MHz crystal
Enhanced ShockBurst™
X 1 to 32 bytes dynamic payload length
X Automatic packet handling
X Auto packet transaction handling
X 6 data pipe MultiCeiver™ for 1:6 star networks
Power Management
X Integrated voltage regulator
X 1.9 to 3.6V supply range
X Idle modes with fast start-up times for advanced power management
X 26µA Standby-I mode, 900nA power down mode
X Max 1.5ms start-up from power down mode
X Max 130us start-up from standby-I mode
Host Interface
X 4-pin hardware SPI
X Max 10Mbps
X 3 separate 32 bytes TX and RX FIFOs
X 5V tolerant inputs
Compact 20-pin 4x4mm QFN package
Revision 1.0
Page 8 of 78
nRF24L01+ Product Specification
1.2
Block diagram
RF Transmitter
PA
Baseband
TX
Filter
CSN
TX FIFOs
GFSK
Modulator
SPI
LNA
ANT2
Radio Control
VDD_PA
DVDD
Power Management
IREF
RF Synthesiser
VSS
XC2
RX FIFOs
VDD
XC1
GFSK
Demodulator
Figure 1. nRF24L01+ block diagram
Revision 1.0
Page 9 of 78
Register map
ANT1
RX
Filter
MISO
MOSI
Enhanced ShockBurst
Baseband Engine
RF Receiver
SCK
IRQ
CE
nRF24L01+ Product Specification
VDD
VSS
IREF
Pin assignment
DVDD
2.1
Pin Information
VSS
2
20
19
18
17
16
CE
1
15
VDD
CSN
2
14
VSS
13
ANT2
nRF24L01+
SCK
3
QFN20 4X4
5
11
VDD_PA
6
7
8
9
10
XC1
MISO
XC2
ANT1
VSS
12
VDD
4
IRQ
MOSI
Figure 2. nRF24L01+ pin assignment (top view) for the QFN20 4x4 package
Revision 1.0
Page 10 of 78
nRF24L01+ Product Specification
2.2
Pin functions
Pin
1
2
3
4
5
6
7
8
9
10
11
Name
CE
CSN
SCK
MOSI
MISO
IRQ
VDD
VSS
XC2
XC1
VDD_PA
Pin function
Digital Input
Digital Input
Digital Input
Digital Input
Digital Output
Digital Output
Power
Power
Analog Output
Analog Input
Power Output
12
13
14
15
16
ANT1
ANT2
VSS
VDD
IREF
RF
RF
Power
Power
Analog Input
17
18
19
VSS
VDD
DVDD
Power
Power
Power Output
20
VSS
Power
Description
Chip Enable Activates RX or TX mode
SPI Chip Select
SPI Clock
SPI Slave Data Input
SPI Slave Data Output, with tri-state option
Maskable interrupt pin. Active low
Power Supply (+1.9V - +3.6V DC)
Ground (0V)
Crystal Pin 2
Crystal Pin 1
Power Supply Output (+1.8V) for the internal
nRF24L01+ Power Amplifier. Must be connected
to ANT1 and ANT2 as shown in Figure 32.
Antenna interface 1
Antenna interface 2
Ground (0V)
Power Supply (+1.9V - +3.6V DC)
Reference current. Connect a 22kΩ resistor to
ground. See Figure 32.
Ground (0V)
Power Supply (+1.9V - +3.6V DC)
Internal digital supply output for de-coupling purposes. See Figure 32.
Ground (0V)
Table 1. nRF24L01+ pin function
Revision 1.0
Page 11 of 78
nRF24L01+ Product Specification
3
Absolute maximum ratings
Note: Exceeding one or more of the limiting values may cause permanent damage to nRF24L01+.
Operating conditions
Supply voltages
VDD
VSS
Input voltage
VI
Output voltage
VO
Total Power Dissipation
PD (TA=85°C)
Temperatures
Operating Temperature
Storage Temperature
Minimum
Maximum
Units
-0.3
3.6
0
V
V
-0.3
5.25
V
VSS to VDD
VSS to VDD
-40
-40
Table 2. Absolute maximum ratings
Revision 1.0
Page 12 of 78
60
mW
+85
+125
°C
°C
nRF24L01+ Product Specification
4
Operating conditions
Symbol
Parameter (condition)
VDD
Supply voltage
Supply voltage if input signals >3.6V
VDD
TEMP Operating Temperature
Notes
Table 3. Operating conditions
Revision 1.0
Page 13 of 78
Min.
1.9
2.7
-40
Typ.
3.0
3.0
+27
Max. Units
3.6
V
3.3
V
+85
ºC
nRF24L01+ Product Specification
5
Electrical specifications
Conditions: VDD = +3V, VSS = 0V, TA = - 40ºC to + 85ºC
5.1
Power consumption
Symbol
IVDD_PD
IVDD_ST1
IVDD_ST2
IVDD_SU
IVDD_TX0
IVDD_TX6
IVDD_TX12
IVDD_TX18
IVDD_AVG
IVDD_TXS
IVDD_2M
IVDD_1M
IVDD_250
IVDD_RXS
Parameter (condition)
Notes
Idle modes
Supply current in power down
a
Supply current in standby-I mode
Supply current in standby-II mode
Average current during 1.5ms crystal
oscillator startup
Transmit
b
Supply current @ 0dBm output power
b
Supply current @ -6dBm output
power
b
Supply current @ -12dBm output
power
b
Supply current @ -18dBm output
power
c
Average Supply current @ -6dBm output power, ShockBurst™
d
Average current during TX settling
Receive
Supply current 2Mbps
Supply current 1Mbps
Supply current 250kbps
e
Average current during RX settling
Min.
a.
b.
c.
d.
Typ.
Max.
900
26
320
400
nA
µA
µA
µA
11.3
9.0
mA
mA
7.5
mA
7.0
mA
0.12
mA
8.0
mA
13.5
13.1
12.6
8.9
mA
mA
mA
mA
This current is for a 12pF crystal. Current when using external clock is dependent on signal swing.
Antenna load impedance = 15Ω+j88Ω..
Antenna load impedance = 15Ω+j88Ω. Average data rate 10kbps and max. payload length packets.
Average current consumption during TX startup (130µs) and when changing mode from RX to TX
(130µs).
e. Average current consumption during RX startup (130µs) and when changing mode from TX to RX
(130µs).
Table 4. Power consumption
Revision 1.0
Page 14 of 78
Units
nRF24L01+ Product Specification
5.2
General RF conditions
Symbol
fOP
PLLres
fXTAL
Δf250
Δf1M
Δf2M
RGFSK
Parameter (condition)
Notes
a
Operating frequency
PLL Programming resolution
Crystal frequency
Frequency deviation @ 250kbps
Frequency deviation @ 1Mbps
Frequency deviation @ 2Mbps
b
Air Data rate
c
FCHANNEL 1M Non-overlapping channel spacing @ 250kbps/
1Mbps
c
FCHANNEL 2M Non-overlapping channel spacing @ 2Mbps
Min.
2400
Typ.
Max.
2525
1
Units
MHz
MHz
MHz
kHz
kHz
kHz
kbps
MHz
2
MHz
1
16
±160
±160
±320
250
2000
a. Regulatory standards determine the band range you can use.
b. Data rate in each burst on-air
c. The minimum channel spacing is 1MHz
Table 5. General RF conditions
5.3
Transmitter operation
Symbol
PRF
PRFC
PRFCR
PBW2
PBW1
PBW250
PRF1.2
PRF2.2
PRF1.1
PRF2.1
PRF1.250
PRF2.250
Parameter (condition)
Notes Min.
a
Maximum Output Power
RF Power Control Range
16
RF Power Accuracy
20dB Bandwidth for Modulated Carrier (2Mbps)
20dB Bandwidth for Modulated Carrier (1Mbps)
20dB Bandwidth for Modulated Carrier (250kbps)
1st Adjacent Channel Transmit Power 2MHz
(2Mbps)
2nd Adjacent Channel Transmit Power 4MHz
(2Mbps)
1st Adjacent Channel Transmit Power 1MHz
(1Mbps)
2nd Adjacent Channel Transmit Power 2MHz
(1Mbps)
1st Adjacent Channel Transmit Power 1MHz
(250kbps)
2nd Adjacent Channel Transmit Power 2MHz
(250kbps)
a. Antenna load impedance = 15Ω+j88Ω
Table 6. Transmitter operation
Revision 1.0
Page 15 of 78
Typ.
0
18
1800
900
700
Max.
+4
20
±4
2000
1000
800
-20
Units
dBm
dB
dB
kHz
kHz
kHz
dBc
-50
dBc
-20
dBc
-45
dBc
-30
dBc
-45
dBc
nRF24L01+ Product Specification
5.4
Receiver operation
Datarate
Symbol
RXmax
RXSENS
RXSENS
RXSENS
2Mbps
1Mbps
250kbps
Parameter (condition)
Notes Min.
Maximum received signal at 12MHz
i
C/INth Nth ACS C/I, f > 36MHz
i
C/ICO C/I Co-channel
C/I1ST 1st ACS C/I 1MHz
C/I2ND 2nd ACS C/I 2MHz
C/I3RD 3rd ACS C/I 3MHz
C/INth Nth ACS C/I, f > 6MHz
a
C/INth Nth ACS C/I, f > 25MHz
i
250kbps C/ICO C/I Co-channel
C/I1ST 1st ACS C/I 1MHz
C/I2ND 2nd ACS C/I 2MHz
C/I3RD 3rd ACS C/I 3MHz
C/INth Nth ACS C/I, f > 6MHz
a
C/INth Nth ACS C/I, f > 25MHz
i
a
1Mbps
i
i
Typ. Max. Units
7
dBc
3
dBc
-17
dBc
-21
dBc
-40
dBc
-48
dBc
9
8
-20
-30
-40
dBc
dBc
dBc
dBc
dBc
-47
dBc
12
-12
-33
-38
-50
dBc
dBc
dBc
dBc
dBc
-60
dBc
a. Narrow Band (In Band) Blocking measurements:
0 to ±40MHz; 1MHz step size
For Interferer frequency offsets n*2*fxtal, blocking performance is degraded by approximately 5dB compared to adjacent figures.
Table 8. RX selectivity according to ETSI EN 300 440-1 V1.3.1 (2001-09) page 27
Revision 1.0
Page 16 of 78
nRF24L01+ Product Specification
Datarate
2Mbps
Symbol
C/ICO
C/I1ST
C/I2ND
C/I3RD
C/INth
C/INth
1Mbps
C/ICO
C/I1ST
C/I2ND
C/I3RD
C/INth
C/INth
250kbps
C/ICO
C/I1ST
C/I2ND
C/I3RD
C/INth
C/INth
Parameter (condition)
C/I Co-channel (Modulated carrier)
Notes Min.
1st ACS C/I 2MHz
2nd ACS C/I 4MHz
3rd ACS C/I 6MHz
Nth ACS C/I, fi > 12MHz
Nth ACS C/I, fi > 36MHz
C/I Co-channel
a
st
1 ACS C/I 1MHz
2nd ACS C/I 2MHz
3rd ACS C/I 3MHz
Nth ACS C/I, fi > 6MHz
Nth ACS C/I, fi > 25MHz
C/I Co-channel
a
1st
ACS C/I 1MHz
2nd ACS C/I 2MHz
3rd ACS C/I 3MHz
Nth ACS C/I, fi >6MHz
Nth ACS C/I, fi >25MHz
a
Typ.
11
4
-18
-24
-40
Max.
Units
dBc
dBc
dBc
dBc
dBc
-48
dBc
12
8
-21
-30
-40
dBc
dBc
dBc
dBc
dBc
-50
dBc
7
-12
-34
-39
-50
dBc
dBc
dBc
dBc
dBc
-60
dBc
a. Narrow Band (In Band) Blocking measurements:
0 to ±40MHz; 1MHz step size
Wide Band Blocking measurements:
30MHz to 2000MHz; 10MHz step size
2000MHz to 2399MHz; 3MHz step size
2484MHz to 3000MHz; 3MHz step size
3GHz to 12.75GHz; 25MHz step size
Wanted signal for wideband blocking measurements:
-67dBm in 1Mbps and 2Mbps mode
-77dBm in 250kbps mode
For Interferer frequency offsets n*2*fxtal, blocking performance are degraded by approximately 5dB
compared to adjacent figures.
If the wanted signal is 3dB or more above the sensitivity level then, the carrier/interferer ratio is independent of the wanted signal level for a given frequency offset.
Table 9. RX selectivity with nRF24L01+ equal modulation on interfering signal. Measured using
Pin = -67dBm for wanted signal.
Revision 1.0
Page 17 of 78
nRF24L01+ Product Specification
Datarate Symbol
Parameter (condition)
Notes Min. Typ. Max. Units
2Mbps P_IM(6 Input power of IM interferers at 6 and 12MHz offset
-42
dBm
from wanted signal
P_IM(8) Input power of IM interferers at 8 and 16MHz offset
-38
dBm
from wanted signal
P_IM(10) Input power of IM interferers at 10 and 20MHz offset
-37
dBm
from wanted signal
1Mbps P_IM(3) Input power of IM interferers at 3 and 6MHz offset
-36
dBm
from wanted signal
P_IM(4) Input power of IM interferers at 4 and 8MHz offset
-36
dBm
from wanted signal
P_IM(5) Input power of IM interferers at 5 and 10MHz offset
-36
dBm
from wanted signal
250kbps P_IM(3) Input power of IM interferers at 3 and 6MHz offset
-36
dBm
from wanted signal
P_IM(4) Input power of IM interferers at 4 and 8MHz offset
-36
dBm
from wanted signal
P_IM(5) Input power of IM interferers at 5 and 10MHz offset
-36
dBm
from wanted signal
Note: Wanted signal level at Pin = -64 dBm. Two interferers with equal input power are used. The
interferer closest in frequency is unmodulated, the other interferer is modulated equal with the
wanted signal. The input power of interferers where the sensitivity equals BER = 0.1% is presented.
Table 10. RX intermodulation test performed according to Bluetooth Specification version 2.0
Revision 1.0
Page 18 of 78
nRF24L01+ Product Specification
5.5
Crystal specifications
Symbol
Fxo
ΔF
C0
Ls
CL
ESR
Parameter (condition)
Crystal Frequency
Tolerance
Equivalent parallel capacitance
Equivalent serial inductance
Load capacitance
Equivalent Series Resistance
Notes
Min.
Typ.
16
ab
c
8
1.5
30
12
Max.
±60
7.0
16
100
Units
MHz
ppm
pF
mH
pF
Ω
a. Frequency accuracy including; tolerance at 25ºC, temperature drift, aging and crystal loading.
b. Frequency regulations in certain regions set tighter requirements for frequency tolerance (For
example, Japan and South Korea specify max. +/- 50ppm).
c. Startup time from power down to standby mode is dependant on the Ls parameter. See Table 16. on
page 24 for details.
Table 11. Crystal specifications
The crystal oscillator startup time is proportional to the crystal equivalent inductance. The trend in crystal
design is to reduce the physical outline. An effect of a small outline is an increase in equivalent serial
inductance Ls, which gives a longer startup time. The maximum crystal oscillator startup time, Tpd2stby =
1.5 ms, is set using a crystal with equivalent serial inductance of maximum 30mH.
An application specific worst case startup time can be calculated as :
Tpd2stby= Ls/30mH *1.5ms if Ls exceeds 30mH.
Note: In some crystal datasheets Ls is called L1 or Lm and Cs is called C1 or Cm.
Co
ESR
Cs
Ls
Figure 3. Equivalent crystal components
Revision 1.0
Page 19 of 78
nRF24L01+ Product Specification
5.6
DC characteristics
Symbol
VIH
VIL
Parameter (condition)
HIGH level input voltage
LOW level input voltage
Notes
Min.
0.7VDD
VSS
Typ.
Max.
Units
V
0.3VDD
V
5.25a
a. If the input signal >3.6V, the VDD of the nRF24L01+ must be between 2.7V and 3.3V (3.0V±10%)
Table 12. Digital input pin
Symbol
VOH
VOL
Parameter (condition)
HIGH level output voltage (IOH=-0.25mA)
LOW level output voltage (IOL=0.25mA)
Notes
Min.
VDD -0.3
Typ.
Max.
VDD
0.3
Units
V
V
Max.
100
100
Units
ms
ms
Table 13. Digital output pin
5.7
Power on reset
Symbol
TPUP
TPOR
Parameter (condition)
Power ramp up time
Power on reset
Notes
Min.
a
b
a. From 0V to 1.9V.
b. Measured from when the VDD reaches 1.9V to when the reset finishes.
Table 14. Power on reset
Revision 1.0
Page 20 of 78
1
Typ.
nRF24L01+ Product Specification
6
Radio Control
This chapter describes the nRF24L01+ radio transceiver’s operating modes and the parameters used to
control the radio.
The nRF24L01+ has a built-in state machine that controls the transitions between the chip’s operating
modes. The state machine takes input from user defined register values and internal signals.
6.1
Operational Modes
You can configure the nRF24L01+ in power down, standby, RX or TX mode. This section describes these
modes in detail.
6.1.1
State diagram
The state diagram in Figure 4. shows the operating modes and how they function. There are three types of
distinct states highlighted in the state diagram:
•
•
•
Recommended operating mode: is a recommended state used during normal operation.
Possible operating mode: is a possible operating state, but is not used during normal operation.
Transition state: is a time limited state used during start up of the oscillator and settling of the PLL.
When the VDD reaches 1.9V or higher nRF24L01+ enters the Power on reset state where it remains in
reset until entering the Power Down mode.
Revision 1.0
Page 21 of 78
nRF24L01+ Product Specification
.
Legend:
Undefined
Undefined
Undefined
VDD >= 1.9V
Recommended operating mode
Power on
reset
100ms
Possible operating mode
Transition state
Recommended path between operating modes
Crystal
oscillator
start up
Tpd2stby
Power Down
Possible path between operating modes
CE = 1
Pin signal condition
PWR_DN = 1
Bit state condition
TX FIFO empty
PWR_UP=0
PWR_UP = 1
System information
PWR_UP=0
PWR_UP = 0
PRIM_RX = 0
TX FIFO empty
CE = 1
Standby-I
PWR_UP = 0
CE = 0
RX Settling
130 µs
PRIM_RX = 1
CE = 1
Standby-II
TX FIFO not empty
PRIM_RX = 0
CE = 1 for more than 10µs
TX finished with one packet
CE = 0
CE = 0
TX FIFO not empty
CE = 1
TX Settling
130 µs
RX Mode
TX FIFO empty
CE = 1
PWR_UP=0
TX Mode
PWR_UP = 0
CE = 1
TX FIFO not empty
Figure 4. Radio control state diagram
6.1.2
Power Down Mode
In power down mode nRF24L01+ is disabled using minimal current consumption. All register values available are maintained and the SPI is kept active, enabling change of configuration and the uploading/downloading of data registers. For start up times see Table 16. on page 24. Power down mode is entered by
setting the PWR_UP bit in the CONFIG register low.
6.1.3
Standby Modes
6.1.3.1
Standby-I mode
By setting the PWR_UP bit in the CONFIG register to 1, the device enters standby-I mode. Standby-I mode is
used to minimize average current consumption while maintaining short start up times. In this mode only
part of the crystal oscillator is active. Change to active modes only happens if CE is set high and when CE
is set low, the nRF24L01 returns to standby-I mode from both the TX and RX modes.
Revision 1.0
Page 22 of 78
nRF24L01+ Product Specification
6.1.3.2
Standby-II mode
In standby-II mode extra clock buffers are active and more current is used compared to standby-I mode.
nRF24L01+ enters standby-II mode if CE is held high on a PTX device with an empty TX FIFO. If a new
packet is uploaded to the TX FIFO, the PLL immediately starts and the packet is transmitted after the normal PLL settling delay (130µs).
Register values are maintained and the SPI can be activated during both standby modes. For start up
times see Table 16. on page 24.
6.1.4
RX mode
The RX mode is an active mode where the nRF24L01+ radio is used as a receiver. To enter this mode, the
nRF24L01+ must have the PWR_UP bit, PRIM_RX bit and the CE pin set high.
In RX mode the receiver demodulates the signals from the RF channel, constantly presenting the demodulated data to the baseband protocol engine. The baseband protocol engine constantly searches for a valid
packet. If a valid packet is found (by a matching address and a valid CRC) the payload of the packet is presented in a vacant slot in the RX FIFOs. If the RX FIFOs are full, the received packet is discarded.
The nRF24L01+ remains in RX mode until the MCU configures it to standby-I mode or power down mode.
However, if the automatic protocol features (Enhanced ShockBurst™) in the baseband protocol engine are
enabled, the nRF24L01+ can enter other modes in order to execute the protocol.
In RX mode a Received Power Detector (RPD) signal is available. The RPD is a signal that is set high
when a RF signal higher than -64 dBm is detected inside the receiving frequency channel. The internal
RPD signal is filtered before presented to the RPD register. The RF signal must be present for at least 40µs
before the RPD is set high. How to use the RPD is described in Section 6.4 on page 25.
6.1.5
TX mode
The TX mode is an active mode for transmitting packets. To enter this mode, the nRF24L01+ must have
the PWR_UP bit set high, PRIM_RX bit set low, a payload in the TX FIFO and a high pulse on the CE for
more than 10µs.
The nRF24L01+ stays in TX mode until it finishes transmitting a packet. If CE = 0, nRF24L01+ returns to
standby-I mode. If CE = 1, the status of the TX FIFO determines the next action. If the TX FIFO is not
empty the nRF24L01+ remains in TX mode and transmits the next packet. If the TX FIFO is empty the
nRF24L01+ goes into standby-II mode. The nRF24L01+ transmitter PLL operates in open loop when in TX
mode. It is important never to keep the nRF24L01+ in TX mode for more than 4ms at a time. If the
Enhanced ShockBurst™ features are enabled, nRF24L01+ is never in TX mode longer than 4ms.
Revision 1.0
Page 23 of 78
nRF24L01+ Product Specification
6.1.6
Operational modes configuration
The following table (Table 15.) describes how to configure the operational modes.
RX mode
TX mode
PWR_UP
register
1
1
PRIM_RX
register
1
0
TX mode
1
0
Standby-II
Standby-I
Power Down
1
1
0
0
-
Mode
CE input pin
FIFO state
1
1
Data in TX FIFOs. Will empty all
levels in TX FIFOsa.
Minimum 10µs Data in TX FIFOs.Will empty one
high pulse level in TX FIFOsb.
1
TX FIFO empty.
0
No ongoing packet transmission.
-
a. If CE is held high all TX FIFOs are emptied and all necessary ACK and possible retransmits are carried out. The transmission continues as long as the TX FIFO is refilled. If the TX FIFO is empty when
the CE is still high, nRF24L01+ enters standby-II mode. In this mode the transmission of a packet is
started as soon as the CSN is set high after an upload (UL) of a packet to TX FIFO.
b. This operating mode pulses the CE high for at least 10µs. This allows one packet to be transmitted.
This is the normal operating mode. After the packet is transmitted, the nRF24L01+ enters standby-I
mode.
Table 15. nRF24L01+ main modes
6.1.7
Timing Information
The timing information in this section relates to the transitions between modes and the timing for the CE
pin. The transition from TX mode to RX mode or vice versa is the same as the transition from the standby
modes to TX mode or RX mode (max. 130µs), as described in Table 16.
Name
nRF24L01+
Notes
Tpd2stby Power Down Î Standby mode
a
Tstby2a Standby modes Î TX/RX mode
Thce
Minimum CE high
Tpece2csn Delay from CE positive edge to CSN
low
Max.
150µs
1.5ms
3ms
4.5ms
130µs
Min.
Comments
With external clock
External crystal, Ls < 30mH
External crystal, Ls = 60mH
External crystal, Ls = 90mH
10µs
4µs
a. See Table 11. on page 19 for crystal specifications.
Table 16. Operational timing of nRF24L01+
For nRF24L01+ to go from power down mode to TX or RX mode it must first pass through stand-by mode.
There must be a delay of Tpd2stby (see Table 16.) after the nRF24L01+ leaves power down mode before
the CE is set high.
Note: If VDD is turned off the register value is lost and you must configure nRF24L01+ before entering the TX or RX modes.
Revision 1.0
Page 24 of 78
nRF24L01+ Product Specification
6.2
Air data rate
The air data rate is the modulated signaling rate the nRF24L01+ uses when transmitting and receiving
data. It can be 250kbps, 1Mbps or 2Mbps. Using lower air data rate gives better receiver sensitivity than
higher air data rate. But, high air data rate gives lower average current consumption and reduced probability of on-air collisions.
The air data rate is set by the RF_DR bit in the RF_SETUP register. A transmitter and a receiver must be
programmed with the same air data rate to communicate with each other.
nRF24L01+ is fully compatible with nRF24L01. For compatibility with nRF2401A, nRF2402, nRF24E1, and
nRF24E2 the air data rate must be set to 250kbps or 1Mbps.
6.3
RF channel frequency
The RF channel frequency determines the center of the channel used by the nRF24L01+. The channel
occupies a bandwidth of less than 1MHz at 250kbps and 1Mbps and a bandwidth of less than 2MHz at
2Mbps. nRF24L01+ can operate on frequencies from 2.400GHz to 2.525GHz. The programming resolution of the RF channel frequency setting is 1MHz.
At 2Mbps the channel occupies a bandwidth wider than the resolution of the RF channel frequency setting.
To ensure non-overlapping channels in 2Mbps mode, the channel spacing must be 2MHz or more. At
1Mbps and 250kbps the channel bandwidth is the same or lower than the resolution of the RF frequency.
The RF channel frequency is set by the RF_CH register according to the following formula:
F0= 2400 + RF_CH [MHz]
You must program a transmitter and a receiver with the same RF channel frequency to communicate with
each other.
6.4
Received Power Detector measurements
Received Power Detector (RPD), located in register 09, bit 0, triggers at received power levels above -64
dBm that are present in the RF channel you receive on. If the received power is less than -64 dBm,
RDP = 0.
The RPD can be read out at any time while nRF24L01+ is in receive mode. This offers a snapshot of the
current received power level in the channel. The RPD status is latched when a valid packet is received
which then indicates signal strength from your own transmitter. If no packets are received the RPD is
latched at the end of a receive period as a result of host MCU setting CE low or RX time out controlled by
Enhanced ShockBurst™.
The status of RPD is correct when RX mode is enabled and after a wait time of Tstby2a +Tdelay_AGC=
130us + 40us. The RX gain varies over temperature which means that the RPD threshold also varies over
temperature. The RPD threshold value is reduced by - 5dB at T = -40°C and increased by + 5dB at 85°C.
Revision 1.0
Page 25 of 78
nRF24L01+ Product Specification
6.5
PA control
The PA (Power Amplifier) control is used to set the output power from the nRF24L01+ power amplifier. In
TX mode PA control has four programmable steps, see Table 17.
The PA control is set by the RF_PWR bits in the RF_SETUP register.
SPI RF-SETUP
RF output power
(RF_PWR)
11
0dBm
10
-6dBm
01
-12dBm
00
-18dBm
DC current
consumption
11.3mA
9.0mA
7.5mA
7.0mA
Conditions: VDD = 3.0V, VSS = 0V, TA = 27ºC, Load impedance = 15Ω+j88Ω.
Table 17. RF output power setting for the nRF24L01+
6.6
RX/TX control
The RX/TX control is set by PRIM_RX bit in the CONFIG register and sets the nRF24L01+ in transmit/
receive mode.
Revision 1.0
Page 26 of 78
nRF24L01+ Product Specification
7
Enhanced ShockBurst™
Enhanced ShockBurst™ is a packet based data link layer that features automatic packet assembly and
timing, automatic acknowledgement and retransmissions of packets. Enhanced ShockBurst™ enables the
implementation of ultra low power and high performance communication with low cost host microcontrollers. The Enhanced ShockBurst™ features enable significant improvements of power efficiency for bidirectional and uni-directional systems, without adding complexity on the host controller side.
7.1
Features
The main features of Enhanced ShockBurst™ are:
•
•
•
•
7.2
1 to 32 bytes dynamic payload length
Automatic packet handling
Automatic packet transaction handling
X Auto Acknowledgement with payload
X Auto retransmit
6 data pipe MultiCeiver™ for 1:6 star networks
Enhanced ShockBurst™ overview
Enhanced ShockBurst™ uses ShockBurst™ for automatic packet handling and timing. During transmit,
ShockBurst™ assembles the packet and clocks the bits in the data packet for transmission. During
receive, ShockBurst™ constantly searches for a valid address in the demodulated signal. When ShockBurst™ finds a valid address, it processes the rest of the packet and validates it by CRC. If the packet is
valid the payload is moved into a vacant slot in the RX FIFOs. All high speed bit handling and timing is controlled by ShockBurst™.
Enhanced ShockBurst™ features automatic packet transaction handling for the easy implementation of a
reliable bi-directional data link. An Enhanced ShockBurst™ packet transaction is a packet exchange
between two transceivers, with one transceiver acting as the Primary Receiver (PRX) and the other transceiver acting as the Primary Transmitter (PTX). An Enhanced ShockBurst™ packet transaction is always
initiated by a packet transmission from the PTX, the transaction is complete when the PTX has received an
acknowledgment packet (ACK packet) from the PRX. The PRX can attach user data to the ACK packet
enabling a bi-directional data link.
The automatic packet transaction handling works as follows:
1.
2.
3.
You begin the transaction by transmitting a data packet from the PTX to the PRX. Enhanced
ShockBurst™ automatically sets the PTX in receive mode to wait for the ACK packet.
If the packet is received by the PRX, Enhanced ShockBurst™ automatically assembles and
transmits an acknowledgment packet (ACK packet) to the PTX before returning to receive mode.
If the PTX does not receive the ACK packet immediately, Enhanced ShockBurst™ automatically
retransmits the original data packet after a programmable delay and sets the PTX in receive
mode to wait for the ACK packet.
In Enhanced ShockBurst™ it is possible to configure parameters such as the maximum number of retransmits and the delay from one transmission to the next retransmission. All automatic handling is done without
the involvement of the MCU.
Revision 1.0
Page 27 of 78
nRF24L01+ Product Specification
7.3
Enhanced Shockburst™ packet format
The format of the Enhanced ShockBurst™ packet is described in this section. The Enhanced ShockBurst™ packet contains a preamble, address, packet control, payload and CRC field. Figure 5. shows the
packet format with MSB to the left.
P re a m b le 1 b y te
A d d re s s 3 -5 b y te
P a c k e t C o n tro l F ie ld 9 b it
P a y lo a d 0 - 3 2 b y te
C R C 1 -2
b y te
Figure 5. An Enhanced ShockBurst™ packet with payload (0-32 bytes)
7.3.1
Preamble
The preamble is a bit sequence used to synchronize the receivers demodulator to the incoming bit stream.
The preamble is one byte long and is either 01010101 or 10101010. If the first bit in the address is 1 the
preamble is automatically set to 10101010 and if the first bit is 0 the preamble is automatically set to
01010101. This is done to ensure there are enough transitions in the preamble to stabilize the receiver.
7.3.2
Address
This is the address for the receiver. An address ensures that the packet is detected and received by the
correct receiver, preventing accidental cross talk between multiple nRF24L01+ systems. You can configure
the address field width in the AW register to be 3, 4 or 5 bytes, see Table 28. on page 63.
Note: Addresses where the level shifts only one time (that is, 000FFFFFFF) can often be detected in
noise and can give a false detection, which may give a raised Packet Error Rate. Addresses
as a continuation of the preamble (hi-low toggling) also raises the Packet Error Rate.
7.3.3
Packet control field
Figure 6. shows the format of the 9 bit packet control field, MSB to the left.
Payload length 6bit
PID 2bit
NO_ACK 1bit
Figure 6. Packet control field
The packet control field contains a 6 bit payload length field, a 2 bit PID (Packet Identity) field and a 1 bit
NO_ACK flag.
Revision 1.0
Page 28 of 78
nRF24L01+ Product Specification
7.3.3.1
Payload length
This 6 bit field specifies the length of the payload in bytes. The length of the payload can be from 0 to 32
bytes.
Coding: 000000 = 0 byte (only used in empty ACK packets.) 100000 = 32 byte, 100001 = Don’t care.
This field is only used if the Dynamic Payload Length function is enabled.
7.3.3.2
PID (Packet identification)
The 2 bit PID field is used to detect if the received packet is new or retransmitted. PID prevents the PRX
device from presenting the same payload more than once to the receiving host MCU. The PID field is
incremented at the TX side for each new packet received through the SPI. The PID and CRC fields (see
section 7.3.5 on page 30) are used by the PRX device to determine if a packet is retransmitted or new.
When several data packets are lost on the link, the PID fields may become equal to the last received PID.
If a packet has the same PID as the previous packet, nRF24L01+ compares the CRC sums from both
packets. If the CRC sums are also equal, the last received packet is considered a copy of the previously
received packet and discarded.
7.3.3.3
No Acknowledgment flag (NO_ACK)
The Selective Auto Acknowledgement feature controls the NO_ACK flag.
This flag is only used when the auto acknowledgement feature is used. Setting the flag high tells the
receiver that the packet is not to be auto acknowledged.
On the PTX you can set the NO_ACK flag bit in the Packet Control Field with this command:
W_TX_PAYLOAD_NOACK
However, the function must first be enabled in the FEATURE register by setting the EN_DYN_ACK bit.
When you use this option the PTX goes directly to standby-I mode after transmitting the packet. The PRX
does not transmit an ACK packet when it receives the packet.
7.3.4
Payload
The payload is the user defined content of the packet. It can be 0 to 32 bytes wide and is transmitted on-air
when it is uploaded to nRF24L01+.
Enhanced ShockBurst™ provides two alternatives for handling payload lengths; static and dynamic.
The default is static payload length. With static payload length all packets between a transmitter and a
receiver have the same length. Static payload length is set by the RX_PW_Px registers on the receiver side.
The payload length on the transmitter side is set by the number of bytes clocked into the TX_FIFO and
must equal the value in the RX_PW_Px register on the receiver side.
Dynamic Payload Length (DPL) is an alternative to static payload length. DPL enables the transmitter to
send packets with variable payload length to the receiver. This means that for a system with different payload lengths it is not necessary to scale the packet length to the longest payload.
Revision 1.0
Page 29 of 78
nRF24L01+ Product Specification
With the DPL feature the nRF24L01+ can decode the payload length of the received packet automatically
instead of using the RX_PW_Px registers. The MCU can read the length of the received payload by using
the R_RX_PL_WID command.
Note: Always check if the packet width reported is 32 bytes or shorter when using the
R_RX_PL_WID command. If its width is longer than 32 bytes then the packet contains errors
and must be discarded. Discard the packet by using the Flush_RX command.
In order to enable DPL the EN_DPL bit in the FEATURE register must be enabled. In RX mode the DYNPD
register must be set. A PTX that transmits to a PRX with DPL enabled must have the DPL_P0 bit in DYNPD
set.
7.3.5
CRC (Cyclic Redundancy Check)
The CRC is the mandatory error detection mechanism in the packet. It is either 1 or 2 bytes and is calculated over the address, Packet Control Field and Payload.
The polynomial for 1 byte CRC is X8 + X2 + X + 1. Initial value 0xFF.
The polynomial for 2 byte CRC is X16+ X12 + X5 + 1. Initial value 0xFFFF.
The number of bytes in the CRC is set by the CRCO bit in the CONFIG register. No packet is accepted by
Enhanced ShockBurst™ if the CRC fails.
Revision 1.0
Page 30 of 78
nRF24L01+ Product Specification
7.3.6
Automatic packet assembly
The automatic packet assembly assembles the preamble, address, packet control field, payload and CRC
to make a complete packet before it is transmitted.
Start:
Collect Address from
TX_ADDR register
TX_ADDR MSB =1
Add preamble 0x55
Add preamble 0xAA
EN_DPL=1
PID[7:3]= #bytes in TX_FIFO
New data in
TX_FIFO
REUSE_TX_PL
active
PID[2:1]++
SPI TX command:
W_TX_PAYLOAD
PID[0]=0
PID[0]=1
Collect Payload from
TX_FIFO
EN_CRC = 1
CRCO = 1
Calculate and add 2 Byte
CRC based on Address, PID
and Payload
Calculate and add 1 Byte CRC
based on Address, PID and
Payload
STOP
Figure 7. Automatic packet assembly
Revision 1.0
Page 31 of 78
nRF24L01+ Product Specification
7.3.7
Automatic packet disassembly
After the packet is validated, Enhanced ShockBurst™ disassembles the packet and loads the payload into
the RX FIFO, and asserts the RX_DR IRQ.
Start
Read Address width
from SETUP_AW
Monitor SETUP_AW wide
window of received bit
stream
Received window =
RX_ADDR_Px
PID = 1 byte from
received bit stream
EN_DPL=1
Payload = PID[7:3] bytes
from received bit stream
Payload = RX_PW_Px
bytes from received bit
stream
CRCO = 1
TX_CRC = 2 Bytes from
received bit stream
TX_CRC = 1 Byte from
received bit stream
RX_CRC = 2 Byte CRC
calculated from received
Address, PID and Payload
RX_CRC = 1 Byte CRC
calculated from received
Address, PID and Payload
TX_CRC = RX_CRC
PID[2:1]
Changed from last
packet
CRC
Changed from last
packet
New packet received
Duplicate received
STOP
Figure 8. Automatic packet disassembly
Revision 1.0
Page 32 of 78
nRF24L01+ Product Specification
7.4
Automatic packet transaction handling
Enhanced ShockBurst™ has two functions for automatic packet transaction handling; auto acknowledgement and auto re-transmit.
7.4.1
Auto acknowledgement
Auto acknowledgment is a function that automatically transmits an ACK packet to the PTX after it has
received and validated a packet. The auto acknowledgement function reduces the load of the system MCU
and can remove the need for dedicated SPI hardware. This also reduces cost and average current consumption. The Auto Acknowledgement feature is enabled by setting the EN_AA register.
Note: If the received packet has the NO_ACK flag set, auto acknowledgement is not executed.
An ACK packet can contain an optional payload from PRX to PTX. In order to use this feature, the
Dynamic Payload Length (DPL) feature must be enabled. The MCU on the PRX side has to upload the
payload by clocking it into the TX FIFO by using the W_ACK_PAYLOAD command. The payload is pending
in the TX FIFO (PRX) until a new packet is received from the PTX. nRF24L01+ can have three ACK packet
payloads pending in the TX FIFO (PRX) at the same time.
RX Pipe
address
ACK
generator
Address decoder and buffer controller
TX FIFO
Payload 3
Payload 2
Payload 1
TX Pipe
address
SPI
Module
From
MCU
Figure 9. TX FIFO (PRX) with pending payloads
Figure 9. shows how the TX FIFO (PRX) is operated when handling pending ACK packet payloads. From
the MCU the payload is clocked in with the W_ACK_PAYLOAD command. The address decoder and buffer
controller ensure that the payload is stored in a vacant slot in the TX FIFO (PRX). When a packet is
received, the address decoder and buffer controller are notified with the PTX address. This ensures that
the right payload is presented to the ACK generator.
If the TX FIFO (PRX) contains more than one payload to a PTX, payloads are handled using the first in –
first out principle. The TX FIFO (PRX) is blocked if all pending payloads are addressed to a PTX where the
link is lost. In this case, the MCU can flush the TX FIFO (PRX) by using the FLUSH_TX command.
In order to enable Auto Acknowledgement with payload the EN_ACK_PAY bit in the FEATURE register
must be set.
7.4.2
Auto Retransmission (ART)
The auto retransmission is a function that retransmits a packet if an ACK packet is not received. It is used
in an auto acknowledgement system on the PTX. When a packet is not acknowledged, you can set the
number of times it is allowed to retransmit by setting the ARC bits in the SETUP_RETR register. PTX enters
RX mode and waits a short period for an ACK packet each time a packet is transmitted. The time period
the PTX is in RX mode is based on the following conditions:
Revision 1.0
Page 33 of 78
nRF24L01+ Product Specification
•
•
•
Auto Retransmit Delay (ARD) has elapsed.
No address match within 250µs (or 500µs in 250kbps mode).
After received packet (CRC correct or not).
nRF24L01+ asserts the TX_DS IRQ when the ACK packet is received.
nRF24L01+ enters standby-I mode if there is no more untransmitted data in the TX FIFO and the CE pin is
low. If the ACK packet is not received, nRF24L01+ goes back to TX mode after a delay defined by ARD
and retransmits the data. This continues until acknowledgment is received, or the maximum number of
retransmits is reached.
Two packet loss counters are incremented each time a packet is lost, ARC_CNT and PLOS_CNT in the
OBSERVE_TX register. The ARC_CNT counts the number of retransmissions for the current transaction.
You reset ARC_CNT by initiating a new transaction. The PLOS_CNT counts the total number of retransmissions since the last channel change. You reset PLOS_CNT by writing to the RF_CH register. It is possible to use the information in the OBSERVE_TX register to make an overall assessment of the channel
quality.
The ARD defines the time from the end of a transmitted packet to when a retransmit starts on the PTX.
ARD is set in SETUP_RETR register in steps of 250µs. A retransmit is made if no ACK packet is received by
the PTX.
There is a restriction on the length of ARD when using ACK packets with payload. The ARD time must
never be shorter than the sum of the startup time and the time on-air for the ACK packet:
•
•
For 2Mbps data rate and 5 byte address; 15 byte is maximum ACK packet payload length for
ARD=250µs (reset value).
For 1Mbps data rate and 5 byte address; 5 byte is maximum ACK packet payload length for
ARD=250µs (reset value).
ARD=500µs is long enough for any ACK payload length in 1 or 2Mbps mode.
•
For 250kbps data rate and 5byte address the following values apply:
ARD
1500µs
1250µs
1000µs
750µs
500µs
ACK packet size (in bytes)
All ACK payload sizes
< 24
< 16
10us
TIRQ
TUL
PTX SPI
Tstdby2a
TOA
IRQ:
TX DS1
UL
PTX CE
PTX IRQ
PTX MODE
Standby-I
PLL Lock
TX
Standby-I
1 IRQ if No Ack is on.
TIRQ = 8.2µs @ 1Mbps, TIRQ = 6.0µs @ 2Mbps, Tstdby2a = 130us
Figure 15. Transmitting one packet with NO_ACK on
The following equations calculate various timing measurements:
Symbol
TOA
Description
Time on-air
Equation
⎤ ⋅ ⎛⎜1[byte]+ 3,4 or 5 [bytes ]+ N [bytes ]+ 1 or 2 [bytes ]⎞⎟ +
8⎡bit
⎣⎢ byte ⎥⎦ ⎝ preamble
packet length
address
payload
CRC
⎠
=
=
air data rate
air data rate bit
s
packet control field
T ACK =
⎤ ⋅ ⎛⎜1 [byte]+ 3,4 or 5 [bytes]+ N [bytes ]+ 1 or 2 [bytes ]⎞⎟ +
8⎡bit
⎣⎢ byte⎥⎦ ⎝ preamble
packet length
address
payload
CRC
⎠
=
air data rate
air data rate bit
s
packet control field
TU L =
⎤ ⋅ N [bytes ]
8 ⎡ bit
payload length
⎣⎢ byte ⎥⎦
payload
=
SPI data rate
SPI data rate bit
s
TOA
Time on-air Ack
TACK
[ ]
Time Upload
TUL
TESB
[ ]
9 [bit ]
[ ]
Time Enhanced Shock- TESB = TUL + 2 . Tstby2a + TOA + TACK + TIRQ
Burst™ cycle
Table 19. Timing equations
Revision 1.0
Page 42 of 78
9 [bit ]
nRF24L01+ Product Specification
TESB Cycle
>10us
TUL
PTX SPI
130us
TIRQ
TOA
IRQ:
TX DS
UL
PTX CE
PTX IRQ
PTX MODE
PRX MODE
Standby 1
Standby 1
PLL Lock
PLL Lock
TX
RX
PLL Lock
RX
Standby 1
PLL Lock
TX
PLL Lock
TACK
130us
RX
PRX IRQ
PRX CE
PRX SPI
IRQ:RX DR/DL
130us
130us
TIRQ
Figure 16. Timing of Enhanced ShockBurst™ for one packet upload (2Mbps)
In Figure 16. the transmission and acknowledgement of a packet is shown. The PRX device activates RX
mode (CE=1), and the PTX device is activated in TX mode (CE=1 for minimum 10µs). After 130µs the
transmission starts and finishes after the elapse of TOA.
When the transmission ends the PTX device automatically switches to RX mode to wait for the ACK packet
from the PRX device. When the PRX device receives the packet it sets the interrupt for the host MCU and
switches to TX mode to send an ACK. After the PTX device receives the ACK packet it sets the interrupt to
the MCU and clears the packet from the TX FIFO.
Revision 1.0
Page 43 of 78
nRF24L01+ Product Specification
In Figure 17. the PTX timing of a packet transmission is shown when the first ACK packet is lost. To see
the complete transmission when the ACK packet fails see Figure 20. on page 46.
>10us
TUL
PTX SPI
ARD
130us
TOA
130us
PLL Lock
TX
PLL Lock
250us
max
130us
UL
PTX CE
PTX IRQ
PTX MODE
Standby I
RX
Standby II
PLL Lock
TX
Figure 17. Timing of Enhanced ShockBurst™ when the first ACK packet is lost (2Mbps)
Revision 1.0
Page 44 of 78
nRF24L01+ Product Specification
7.8
Enhanced ShockBurst™ transaction diagram
This section describes several scenarios for the Enhanced ShockBurst™ automatic transaction handling.
The call outs in this section’s figures indicate the IRQs and other events. For MCU activity the event may
be placed at a different timeframe.
Note: The figures in this section indicate the earliest possible download (DL) of the packet to the
MCU and the latest possible upload (UL) of payload to the transmitter.
7.8.1
Single transaction with ACK packet and interrupts
In Figure 18. the basic auto acknowledgement is shown. After the packet is transmitted by the PTX and
received by the PRX the ACK packet is transmitted from the PRX to the PTX. The RX_DR IRQ is asserted
after the packet is received by the PRX, whereas the TX_DS IRQ is asserted when the packet is acknowledged and the ACK packet is received by the PTX.
MCU PTX
UL
IRQ
Ack received
IRQ:TX DS (PID=1)
130us1
PTX
TX:PID=1
RX
PRX
RX
ACK:PID=1
Packet received
IRQ: RX DR (PID=1)
MCU PRX
DL
1 Radio Turn Around Delay
Figure 18. TX/RX cycles with ACK and the according interrupts
Revision 1.0
Page 45 of 78
nRF24L01+ Product Specification
7.8.2
Single transaction with a lost packet
Figure 19. is a scenario where a retransmission is needed due to loss of the first packet transmit. After the
packet is transmitted, the PTX enters RX mode to receive the ACK packet. After the first transmission, the
PTX waits a specified time for the ACK packet, if it is not in the specific time slot the PTX retransmits the
packet as shown in Figure 19.
MCU PTX
UL
IRQ
Packet PID=1 lost
during transmission
No address detected.
RX off to save current
Auto retransmit delay
elapsed
130us1
PTX
TX:PID=1
Retransmit of packet
PID=1
130us1
ACK received
IRQ: TX DS (PID=1)
130us1
RX
TX:PID=1
RX
ARD
PRX
RX
ACK:PID=1
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
DL
1 Radio Turn Around Delay
Figure 19. TX/RX cycles with ACK and the according interrupts when the first packet transmit fails
When an address is detected the PTX stays in RX mode until the packet is received. When the retransmitted packet is received by the PRX (see Figure 19.), the RX_DR IRQ is asserted and an ACK is transmitted
back to the PTX. When the ACK is received by the PTX, the TX_DS IRQ is asserted.
7.8.3
Single transaction with a lost ACK packet
Figure 20. is a scenario where a retransmission is needed after a loss of the ACK packet. The corresponding interrupts are also indicated.
MCU PTX
UL
IRQ
No address detected.
RX off to save current
130us
PTX
TX:PID=1
Auto retransmit delay
elapsed
1
130us
Retransmit of packet
PID=1
1
RX
ACK received
IRQ: TX DS (PID=1)
130us1
TX:PID=1
RX
ARD
PRX
RX
ACK:PID=1
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
ACK PID=1 lost
during transmission
RX
ACK:PID=1
Packet detected as
copy of previous,
discarded
DL
1 Radio Turn Around Delay
Figure 20. TX/RX cycles with ACK and the according interrupts when the ACK packet fails
Revision 1.0
Page 46 of 78
nRF24L01+ Product Specification
7.8.4
Single transaction with ACK payload packet
Figure 21. is a scenario of the basic auto acknowledgement with payload. After the packet is transmitted by
the PTX and received by the PRX the ACK packet with payload is transmitted from the PRX to the PTX.
The RX_DR IRQ is asserted after the packet is received by the PRX, whereas on the PTX side the TX_DS
IRQ is asserted when the ACK packet is received by the PTX. On the PRX side, the TX_DS IRQ for the
ACK packet payload is asserted after a new packet from PTX is received. The position of the IRQ in Figure
21. shows where the MCU can respond to the interrupt.
MCU PTX
UL1
DL
IRQ
UL2
ACK received
IRQ: TX DS (PID=1)
RX DR (ACK1PAY)
Transmit of packet
PID=2
≥130us3
130us1
PTX
TX:PID=1
PRX
RX
RX
TX:PID=2
ACK1 PAY
RX
Packet received.
IRQ: RX DR (PID=2)
TX DS (ACK1PAY)
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
UL2
DL
IRQ
DL
1 Radio Turn Around Delay
2 Uploading Payload for Ack Packet
3 Delay defined by MCU on PTX side, ≥ 130us
Figure 21. TX/RX cycles with ACK Payload and the according interrupts
7.8.5
Single transaction with ACK payload packet and lost packet
Figure 22. is a scenario where the first packet is lost and a retransmission is needed before the RX_DR IRQ
on the PRX side is asserted. For the PTX both the TX_DS and RX_DR IRQ are asserted after the ACK
packet is received. After the second packet (PID=2) is received on the PRX side both the RX_DR (PID=2)
and TX_DS (ACK packet payload) IRQ are asserted.
MCU PTX
UL1
DL
IRQ
UL2
Packet PID=1 lost
during transmission
No address detected.
RX off to save current
Auto retransmit delay
elapsed
130us1
PTX
TX:PID=1
Retransmit of packet
PID=1
130us1
RX
ACK received
IRQ: TX DS (PID=1)
RX DR (ACK1PAY)
≥130us3
130us1
TX:PID=1
RX
TX:PID=2
ACK1 PAY
RX
ARD
PRX
RX
Packet received.
IRQ: RX DR (PID=2)
TX DS (ACK1PAY)
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
UL 2
DL
DL
1 Radio Turn Around Delay
2 Uploading Paylod for Ack Packet
3 Delay defined by MCU on PTX side, ≥ 130us
Figure 22. TX/RX cycles and the according interrupts when the packet transmission fails
Revision 1.0
Page 47 of 78
nRF24L01+ Product Specification
7.8.6
Two transactions with ACK payload packet and the first ACK packet lost
MCU PTX
UL1
UL2
130us
PTX
TX:PID=1
DL
IRQ
UL3
No address detected.
RX off to save current
Auto retransmit delay
elapsed
1
130us
ACK received
IRQ: TX DS (PID=1)
RX DR (ACK1PAY)
Retransmit of packet
PID=1
1
RX
130us
TX:PID=1
ACK received
IRQ: TX DS (PID=2)
RX DR (ACK2PAY)
≥ 130us3
1
≥130us3
130us 1
RX
TX:PID=2
RX
TX:PID=3
ACK1 PAY
RX
ACK2 PAY
RX
ARD
PRX
RX
ACK1 PAY
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
UL1
2
RX
Packet detected as
copy of previous,
discarded
ACK PID=1 lost
during transmission
DL
UL2
Packet received.
IRQ: RX DR (PID=2)
TX DS (ACK1PAY)
Packet received.
IRQ: RX DR (PID=3)
TX DS (ACK2PAY)
DL
IRQ
2
1 Radio Turn Around Delay
2 Uploading Payload for Ack Packet
3 Delay defined by MCU on PTX side, ≥ 130us
Figure 23. TX/RX cycles with ACK Payload and the according interrupts when the ACK packet fails
In Figure 23. the ACK packet is lost and a retransmission is needed before the TX_DS IRQ is asserted, but
the RX_DR IRQ is asserted immediately. The retransmission of the packet (PID=1) results in a discarded
packet. For the PTX both the TX_DS and RX_DR IRQ are asserted after the second transmission of ACK,
which is received. After the second packet (PID=2) is received on the PRX both the RX_DR (PID=2) and
TX_DS (ACK1PAY) IRQ is asserted. The callouts explains the different events and interrupts.
7.8.7
Two transactions where max retransmissions is reached
MCU PTX
UL
IRQ
No address detected.
RX off to save current
Auto retransmit delay
elapsed
130us1
PTX
TX:PID=1
Retransmit of packet
PID=1
130us1
RX
≥130us3
130us1
TX:PID=1
No address detected.
RX off to save current
RX
ARD
No address detected.
RX off to save current.
IRQ:MAX_RT reached
130us1
TX:PID=1
RX
ARD
130us1
PRX
RX
ACK1 PAY
Packet received.
IRQ: RX DR (PID=1)
MCU PRX
UL2
RX
ACK PID=1 lost
during transmission
ACK PID=1 lost
during transmission
ACK1 PAY
Packet detected as
copy of previous,
discarded
RX
ACK PID=1 lost
during transmission
DL
1 Radio Turn Around Delay
2 Uploading Paylod for Ack Packet
3 Delay defined by MCU on PTX side, ≥ 130us
Figure 24. TX/RX cycles with ACK Payload and the according interrupts when the transmission fails. ARC
is set to 2.
MAX_RT IRQ is asserted if the auto retransmit counter (ARC_CNT) exceeds the programmed maximum limit
(ARC). In Figure 24. the packet transmission ends with a MAX_RT IRQ. The payload in TX FIFO is NOT
removed and the MCU decides the next step in the protocol. A toggle of the CE starts a new transmitting
sequence of the same packet. The payload can be removed from the TX FIFO using the FLUSH_TX command.
Revision 1.0
Page 48 of 78
nRF24L01+ Product Specification
7.9
Compatibility with ShockBurst™
You must disable Enhanced ShockBurst™ for backward compatibility with the nRF2401A, nRF2402,
nRF24E1 and nRF24E2. Set the register EN_AA = 0x00 and ARC = 0 to disable Enhanced ShockBurst™.
In addition, the nRF24L01+ air data rate must be set to 1Mbps or 250kbps.
7.9.1
ShockBurst™ packet format
Figure 25. shows the packet format with MSB to the left.
Preamble 1 byte
Address 3-5 byte
Payload 1 - 32 byte
CRC 1-2
byte
Figure 25. A ShockBurst™ packet compatible with nRF2401/nRF2402/nRF24E1/nRF24E2 devices.
The ShockBurst™ packet format has a preamble, address, payload and CRC field that are the same as
the Enhanced ShockBurst™ packet format described in section 7.3 on page 28.
The differences between the ShockBurst™ packet and the Enhanced ShockBurst™ packet are:
•
•
The 9 bit Packet Control Field is not present in the ShockBurst™ packet format.
The CRC is optional in the ShockBurst™ packet format and is controlled by the EN_CRC bit in the
CONFIG register.
Revision 1.0
Page 49 of 78
nRF24L01+ Product Specification
8
Data and Control Interface
The data and control interface gives you access to all the features in the nRF24L01+. The data and control
interface consists of the following six 5Volt tolerant digital signals:
•
•
•
•
•
•
IRQ (this signal is active low and controlled by three maskable interrupt sources)
CE (this signal is active high and used to activate the chip in RX or TX mode)
CSN (SPI signal)
SCK (SPI signal)
MOSI (SPI signal)
MISO (SPI signal)
Using 1 byte SPI commands, you can activate the nRF24L01+ data FIFOs or the register map during all
modes of operation.
8.1
•
•
•
•
•
8.2
Features
Special SPI commands for quick access to the most frequently used features
0-10Mbps 4-wire SPI
8 bit command set
Easily configurable register map
Full three level FIFO for both TX and RX direction
Functional description
The SPI is a standard SPI with a maximum data rate of 10Mbps.
8.3
SPI operation
This section describes the SPI commands and timing.
8.3.1
SPI commands
The SPI commands are shown in Table 20. Every new command must be started by a high to low transition on CSN.
The STATUS register is serially shifted out on the MISO pin simultaneously to the SPI command word shifting to the MOSI pin.
The serial shifting SPI commands is in the following format:
See Figure 26. on page 52 and Figure 27. on page 52 for timing information.
Revision 1.0
Page 50 of 78
nRF24L01+ Product Specification
Command name
R_REGISTER
W_REGISTER
Command
# Data bytes
word (binary)
000A AAAA 1 to 5
LSByte first
001A AAAA 1 to 5
LSByte first
R_RX_PAYLOAD
0110 0001
1 to 32
LSByte first
W_TX_PAYLOAD
1010 0000
FLUSH_TX
FLUSH_RX
1110 0001
1110 0010
1 to 32
LSByte first
0
0
REUSE_TX_PL
1110 0011
0
R_RX_PL_WIDa
0110 0000
1
W_ACK_PAYLOADa
1010 1PPP
1 to 32
LSByte first
W_TX_PAYLOAD_NO
ACKa
NOP
1011 0000
1 to 32
LSByte first
0
1111 1111
Operation
Read command and status registers. AAAAA =
5 bit Register Map Address
Write command and status registers. AAAAA = 5
bit Register Map Address
Executable in power down or standby modes
only.
Read RX-payload: 1 – 32 bytes. A read operation
always starts at byte 0. Payload is deleted from
FIFO after it is read. Used in RX mode.
Write TX-payload: 1 – 32 bytes. A write operation
always starts at byte 0 used in TX payload.
Flush TX FIFO, used in TX mode
Flush RX FIFO, used in RX mode
Should not be executed during transmission of
acknowledge, that is, acknowledge package will
not be completed.
Used for a PTX device
Reuse last transmitted payload.
TX payload reuse is active until
W_TX_PAYLOAD or FLUSH TX is executed. TX
payload reuse must not be activated or deactivated during package transmission.
Read RX payload width for the top
R_RX_PAYLOAD in the RX FIFO.
Note: Flush RX FIFO if the read value is larger
than 32 bytes.
Used in RX mode.
Write Payload to be transmitted together with
ACK packet on PIPE PPP. (PPP valid in the
range from 000 to 101). Maximum three ACK
packet payloads can be pending. Payloads with
same PPP are handled using first in - first out
principle. Write payload: 1– 32 bytes. A write
operation always starts at byte 0.
Used in TX mode. Disables AUTOACK on this
specific packet.
No Operation. Might be used to read the STATUS
register
a. The bits in the FEATURE register shown in Table 28. on page 63 have to be set.
Table 20. Command set for the nRF24L01+ SPI
The W_REGISTER and R_REGISTER commands operate on single or multi-byte registers. When accessing
multi-byte registers read or write to the MSBit of LSByte first. You can terminate the writing before all bytes
in a multi-byte register are written, leaving the unwritten MSByte(s) unchanged. For example, the LSByte
of RX_ADDR_P0 can be modified by writing only one byte to the RX_ADDR_P0 register. The content of the
status register is always read to MISO after a high to low transition on CSN.
Revision 1.0
Page 51 of 78
nRF24L01+ Product Specification
Note: The 3 bit pipe information in the STATUS register is updated during the IRQ pin high to low
transition. The pipe information is unreliable if the STATUS register is read during an IRQ pin
high to low transition.
8.3.2
SPI timing
SPI operation and timing is shown in Figure 26. to Figure 28. and in Table 22. to Table 27.. nRF24L01+
must be in a standby or power down mode before writing to the configuration registers.
In Figure 26. to Figure 28. the following abbreviations are used:
Abbreviation
Description
Cn
SPI command bit
STATUS register bit
Sn
Dn
Data Bit (Note: LSByte to MSByte, MSBit in each byte first)
Table 21. Abbreviations used in Figure 26. to Figure 28.
CSN
SCK
MOSI
C7
C6
C5
C4
C3
C2
C1
C0
MISO
S7
S6
S5
S4
S3
S2
S1
S0
D7
D6
D5
D4
D3
D2
D1
D0
D1 5
D1 4
D1 3
D1 2
D1 1
D1 0
D9
D9
D8
Figure 26. SPI read operation
CSN
SCK
MOSI
C7
C6
C5
C4
C3
C2
C1
C0
MISO
S7
S6
S5
S4
S3
S2
S1
S0
D7
D6
D5
D4
D3
D2
D1
D0
D1 5
D1 4
D1 3
Figure 27. SPI write operation
Tcwh
CSN
Tcc
Tch
Tcl
Tcch
SCK
Tdh
Tdc
MOSI
C7
C6
Tcsd
MISO
C0
Tcd
S7
Tcdz
S0
Figure 28. SPI NOP timing diagram
Revision 1.0
Page 52 of 78
D1 2
D1 1
D1 0
D8
nRF24L01+ Product Specification
Figure 29. shows the Rpull and Cload that are referenced in Table 22. to Table 27.
Vdd
Rpull
External
nRF24L01+ pin
Cload
Figure 29. Rpull and Cload
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Tcch
Tcwh
Tcdz
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
2
Max
38
55
40
40
0
10
100
2
2
50
38
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
ns
ns
ns
Table 22. SPI timing parameters (Cload = 5pF)
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Revision 1.0
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
Min.
2
2
Max
42
58
40
40
0
2
Page 53 of 78
8
100
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
nRF24L01+ Product Specification
Symbol
Tcch
Tcwh
Tcdz
Parameters
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
50
Max
42
Units
ns
ns
ns
Table 23. SPI timing parameters (Cload = 10pF)
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Tcch
Tcwh
Tcdz
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
2
Max
75
86
40
40
0
5
100
2
2
50
75
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
ns
ns
ns
Table 24. SPI timing parameters (Rpull = 10kΩ, Cload = 50pF)
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Tcch
Tcwh
Tcdz
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
2
Max
116
123
40
40
0
4
100
2
2
50
116
Table 25. SPI timing parameters (Rpull = 10kΩ, Cload = 100pF)
Revision 1.0
Page 54 of 78
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
ns
ns
ns
nRF24L01+ Product Specification
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Tcch
Tcwh
Tcdz
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
2
Max
75
85
40
40
0
5
100
2
2
50
75
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
ns
ns
ns
Table 26. SPI timing parameters (Rpull = 50kΩ, Cload = 50pF)
Symbol
Tdc
Tdh
Tcsd
Tcd
Tcl
Tch
Fsck
Tr,Tf
Tcc
Tcch
Tcwh
Tcdz
Parameters
Data to SCK Setup
SCK to Data Hold
CSN to Data Valid
SCK to Data Valid
SCK Low Time
SCK High Time
SCK Frequency
SCK Rise and Fall
CSN to SCK Setup
SCK to CSN Hold
CSN Inactive time
CSN to Output High Z
Min.
2
2
Max
116
121
40
40
0
4
100
2
2
50
116
Units
ns
ns
ns
ns
ns
ns
MHz
ns
ns
ns
ns
ns
Table 27. SPI timing parameters (Rpull = 50kΩ, Cload = 100pF)
8.4
Data FIFO
The data FIFOs store transmitted payloads (TX FIFO) or received payloads that are ready to be clocked
out (RX FIFO). The FIFOs are accessible in both PTX mode and PRX mode.
The following FIFOs are present in nRF24L01+:
•
•
TX three level, 32 byte FIFO
RX three level, 32 byte FIFO
Both FIFOs have a controller and are accessible through the SPI by using dedicated SPI commands. A TX
FIFO in PRX can store payloads for ACK packets to three different PTX devices. If the TX FIFO contains
more than one payload to a pipe, payloads are handled using the first in - first out principle. The TX FIFO in
a PRX is blocked if all pending payloads are addressed to pipes where the link to the PTX is lost. In this
case, the MCU can flush the TX FIFO using the FLUSH_TX command.
The RX FIFO in PRX can contain payloads from up to three different PTX devices and a TX FIFO in PTX
can have up to three payloads stored.
Revision 1.0
Page 55 of 78
nRF24L01+ Product Specification
You can write to the TX FIFO using these three commands; W_TX_PAYLOAD and
W_TX_PAYLOAD_NO_ACK in PTX mode and W_ACK_PAYLOAD in PRX mode. All three commands provide
access to the TX_PLD register (see Table 28. on page 63. for details of this register).
The RX FIFO can be read by the command R_RX_PAYLOAD in PTX and PRX mode. This command provides access to the RX_PLD register.
The payload in TX FIFO in a PTX is not removed if the MAX_RT IRQ is asserted.
RX FIFO
32 byte
32 byte
32 byte
RX FIFO Controller
TX FIFO Controller
Data
Control
SPI
command
decoder
SPI
Data
Control
TX FIFO
Data
32 byte
32 byte
Data
32 byte
Figure 30. FIFO (RX and TX) block diagram
You can read if the TX and RX FIFO are full or empty in the FIFO_STATUS register.
8.5
Interrupt
The nRF24L01+ has an active low interrupt (IRQ) pin. The IRQ pin is activated when TX_DS IRQ, RX_DR
IRQ or MAX_RT IRQ are set high by the state machine in the STATUS register. The IRQ pin resets when
MCU writes '1' to the IRQ source bit in the STATUS register. The IRQ mask in the CONFIG register is used
to select the IRQ sources that are allowed to assert the IRQ pin. By setting one of the MASK bits high, the
corresponding IRQ source is disabled. By default all IRQ sources are enabled.
Note: The 3 bit pipe information in the STATUS register is updated during the IRQ pin high to low
transition. The pipe information is unreliable if the STATUS register is read during an IRQ pin
high to low transition.
Revision 1.0
Page 56 of 78
nRF24L01+ Product Specification
9
Register Map
You can configure and control the radio by accessing the register map through the SPI.
9.1
Register map table
All undefined bits in the table below are redundant. They are read out as '0'.
Note: Addresses 18 to 1B are reserved for test purposes, altering them makes the chip malfunction.
Address
(Hex)
00
01
Mnemonic
Bit
Reset
Value
CONFIG
Reserved
MASK_RX_DR
7
6
0
0
MASK_TX_DS
5
0
MASK_MAX_RT
4
0
EN_CRC
3
1
CRCO
2
0
PWR_UP
PRIM_RX
1
0
0
0
Type
Description
Configuration Register
R/W Only '0' allowed
R/W Mask interrupt caused by RX_DR
1: Interrupt not reflected on the IRQ pin
0: Reflect RX_DR as active low interrupt on the
IRQ pin
R/W Mask interrupt caused by TX_DS
1: Interrupt not reflected on the IRQ pin
0: Reflect TX_DS as active low interrupt on the IRQ
pin
R/W Mask interrupt caused by MAX_RT
1: Interrupt not reflected on the IRQ pin
0: Reflect MAX_RT as active low interrupt on the
IRQ pin
R/W Enable CRC. Forced high if one of the bits in the
EN_AA is high
R/W CRC encoding scheme
'0' - 1 byte
'1' – 2 bytes
R/W 1: POWER UP, 0:POWER DOWN
R/W RX/TX control
1: PRX, 0: PTX
EN_AA
Enhanced
ShockBurst™
Reserved
ENAA_P5
ENAA_P4
ENAA_P3
ENAA_P2
ENAA_P1
ENAA_P0
7:6
5
4
3
2
1
0
00
1
1
1
1
1
1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Enable ‘Auto Acknowledgment’ Function Disable
this functionality to be compatible with nRF2401,
see page 75
Only '00' allowed
Enable auto acknowledgement data pipe 5
Enable auto acknowledgement data pipe 4
Enable auto acknowledgement data pipe 3
Enable auto acknowledgement data pipe 2
Enable auto acknowledgement data pipe 1
Enable auto acknowledgement data pipe 0
EN_RXADDR
Reserved
ERX_P5
ERX_P4
ERX_P3
ERX_P2
7:6
5
4
3
2
00
0
0
0
0
R/W
R/W
R/W
R/W
R/W
Enabled RX Addresses
Only '00' allowed
Enable data pipe 5.
Enable data pipe 4.
Enable data pipe 3.
Enable data pipe 2.
02
Revision 1.0
Page 57 of 78
nRF24L01+ Product Specification
Address
(Hex)
03
04
Mnemonic
Bit
ERX_P1
ERX_P0
1
0
Reset
Value
1
1
SETUP_AW
Reserved
AW
7:2
1:0
000000
11
SETUP_RETR
ARDa
7:4
0000
ARC
3:0
0011
RF_CH
Reserved
RF_CH
7
6:0
0
0000010
RF_SETUP
CONT_WAVE
Reserved
RF_DR_LOW
7
6
5
0
0
0
PLL_LOCK
RF_DR_HIGH
4
3
0
1
05
06
Revision 1.0
Type
Description
R/W Enable data pipe 1.
R/W Enable data pipe 0.
Setup of Address Widths
(common for all data pipes)
R/W Only '000000' allowed
R/W RX/TX Address field width
'00' - Illegal
'01' - 3 bytes
'10' - 4 bytes
'11' – 5 bytes
LSByte is used if address width is below 5 bytes
Setup of Automatic Retransmission
R/W Auto Retransmit Delay
‘0000’ – Wait 250µS
‘0001’ – Wait 500µS
‘0010’ – Wait 750µS
……..
‘1111’ – Wait 4000µS
(Delay defined from end of transmission to start of
next transmission)b
R/W Auto Retransmit Count
‘0000’ –Re-Transmit disabled
‘0001’ – Up to 1 Re-Transmit on fail of AA
……
‘1111’ – Up to 15 Re-Transmit on fail of AA
RF Channel
R/W Only '0' allowed
R/W Sets the frequency channel nRF24L01+ operates
on
RF Setup Register
R/W Enables continuous carrier transmit when high.
R/W Only '0' allowed
R/W Set RF Data Rate to 250kbps. See RF_DR_HIGH
for encoding.
R/W Force PLL lock signal. Only used in test
R/W Select between the high speed data rates. This bit
is don’t care if RF_DR_LOW is set.
Encoding:
[RF_DR_LOW, RF_DR_HIGH]:
‘00’ – 1Mbps
‘01’ – 2Mbps
‘10’ – 250kbps
‘11’ – Reserved
Page 58 of 78
nRF24L01+ Product Specification
Address
(Hex)
07
08
Bit
RF_PWR
2:1
Obsolete
0
Reset
Value
11
Type
Reserved
RX_DR
7
6
0
0
R/W
R/W
TX_DS
5
0
R/W
MAX_RT
4
0
R/W
RX_P_NO
3:1
111
R
TX_FULL
0
0
R
OBSERVE_TX
PLOS_CNT
7:4
0
R
ARC_CNT
3:0
0
R
RPD
Reserved
RPD
7:1
0
000000
0
R
R
RX_ADDR_P0
39:0
0xE7E7E
7E7E7
Revision 1.0
Description
R/W Set RF output power in TX mode
'00' – -18dBm
'01' – -12dBm
'10' – -6dBm
'11' – 0dBm
Don’t care
STATUS
09
0A
Mnemonic
Status Register (In parallel to the SPI command
word applied on the MOSI pin, the STATUS register
is shifted serially out on the MISO pin)
Only '0' allowed
Data Ready RX FIFO interrupt. Asserted when
new data arrives RX FIFOc.
Write 1 to clear bit.
Data Sent TX FIFO interrupt. Asserted when
packet transmitted on TX. If AUTO_ACK is activated, this bit is set high only when ACK is
received.
Write 1 to clear bit.
Maximum number of TX retransmits interrupt
Write 1 to clear bit. If MAX_RT is asserted it must
be cleared to enable further communication.
Data pipe number for the payload available for
reading from RX_FIFO
000-101: Data Pipe Number
110: Not Used
111: RX FIFO Empty
TX FIFO full flag.
1: TX FIFO full.
0: Available locations in TX FIFO.
Transmit observe register
Count lost packets. The counter is overflow protected to 15, and discontinues at max until reset.
The counter is reset by writing to RF_CH. See
page 75.
Count retransmitted packets. The counter is reset
when transmission of a new packet starts. See
page 75.
Received Power Detector. This register is called
CD (Carrier Detect) in the nRF24L01. The name is
different in nRF24L01+ due to the different input
power level threshold for this bit. See section 6.4
on page 25.
R/W Receive address data pipe 0. 5 Bytes maximum
length. (LSByte is written first. Write the number of
bytes defined by SETUP_AW)
Page 59 of 78
nRF24L01+ Product Specification
Address
(Hex)
0B
Mnemonic
Bit
RX_ADDR_P1
39:0
0C
RX_ADDR_P2
7:0
0D
RX_ADDR_P3
7:0
0E
RX_ADDR_P4
7:0
0F
RX_ADDR_P5
7:0
10
TX_ADDR
39:0
0xE7E7E
7E7E7
R/W Transmit address. Used for a PTX device only.
(LSByte is written first)
Set RX_ADDR_P0 equal to this address to handle
automatic acknowledge if this is a PTX device with
Enhanced ShockBurst™ enabled. See page 75.
11
RX_PW_P0
Reserved
RX_PW_P0
7:6
5:0
00
0
R/W Only '00' allowed
R/W Number of bytes in RX payload in data pipe 0 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
RX_PW_P1
Reserved
RX_PW_P1
7:6
5:0
00
0
R/W Only '00' allowed
R/W Number of bytes in RX payload in data pipe 1 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
RX_PW_P2
Reserved
RX_PW_P2
7:6
5:0
00
0
R/W Only '00' allowed
R/W Number of bytes in RX payload in data pipe 2 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
RX_PW_P3
Reserved
7:6
00
R/W Only '00' allowed
12
13
14
Revision 1.0
Reset
Type
Description
Value
0xC2C2C R/W Receive address data pipe 1. 5 Bytes maximum
2C2C2
length. (LSByte is written first. Write the number of
bytes defined by SETUP_AW)
0xC3
R/W Receive address data pipe 2. Only LSB. MSBytes
are equal to RX_ADDR_P1[39:8]
0xC4
R/W Receive address data pipe 3. Only LSB. MSBytes
are equal to RX_ADDR_P1[39:8]
0xC5
R/W Receive address data pipe 4. Only LSB. MSBytes
are equal to RX_ADDR_P1[39:8]
0xC6
R/W Receive address data pipe 5. Only LSB. MSBytes
are equal to RX_ADDR_P1[39:8]
Page 60 of 78
nRF24L01+ Product Specification
Address
(Hex)
Mnemonic
Bit
RX_PW_P3
5:0
Reset
Value
0
RX_PW_P4
Reserved
RX_PW_P4
7:6
5:0
00
0
R/W Only '00' allowed
R/W Number of bytes in RX payload in data pipe 4 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
RX_PW_P5
Reserved
RX_PW_P5
7:6
5:0
00
0
R/W Only '00' allowed
R/W Number of bytes in RX payload in data pipe 5 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
FIFO_STATUS
Reserved
TX_REUSE
7
6
0
0
TX_FULL
5
0
TX_EMPTY
4
1
Reserved
RX_FULL
3:2
1
00
0
RX_EMPTY
0
1
15
16
17
Revision 1.0
Type
Description
R/W Number of bytes in RX payload in data pipe 3 (1 to
32 bytes).
0 Pipe not used
1 = 1 byte
…
32 = 32 bytes
FIFO Status Register
R/W Only '0' allowed
R
Used for a PTX device
Pulse the rfce high for at least 10µs to Reuse last
transmitted payload. TX payload reuse is active
until W_TX_PAYLOAD or FLUSH TX is executed.
TX_REUSE is set by the SPI command
REUSE_TX_PL, and is reset by the SPI commands
W_TX_PAYLOAD or FLUSH TX
R
TX FIFO full flag. 1: TX FIFO full. 0: Available locations in TX FIFO.
R
TX FIFO empty flag.
1: TX FIFO empty.
0: Data in TX FIFO.
R/W Only '00' allowed
R
RX FIFO full flag.
1: RX FIFO full.
0: Available locations in RX FIFO.
R
RX FIFO empty flag.
1: RX FIFO empty.
0: Data in RX FIFO.
Page 61 of 78
nRF24L01+ Product Specification
Address
(Hex)
N/A
Mnemonic
Bit
ACK_PLD
255:0
Reset
Value
X
N/A
TX_PLD
255:0
X
W
N/A
RX_PLD
255:0
X
R
1C
DYNPD
Reserved
DPL_P5
7:6
5
0
0
DPL_P4
4
0
DPL_P3
3
0
Revision 1.0
Type
Description
W
Written by separate SPI command
ACK packet payload to data pipe number PPP
given in SPI command.
Used in RX mode only.
Maximum three ACK packet payloads can be
pending. Payloads with same PPP are handled
first in first out.
Written by separate SPI command TX data payload register 1 - 32 bytes.
This register is implemented as a FIFO with three
levels.
Used in TX mode only.
Read by separate SPI command.
RX data payload register. 1 - 32 bytes.
This register is implemented as a FIFO with three
levels.
All RX channels share the same FIFO.
Enable dynamic payload length
R/W Only ‘00’ allowed
R/W Enable dynamic payload length data pipe 5.
(Requires EN_DPL and ENAA_P5)
R/W Enable dynamic payload length data pipe 4.
(Requires EN_DPL and ENAA_P4)
R/W Enable dynamic payload length data pipe 3.
(Requires EN_DPL and ENAA_P3)
Page 62 of 78
nRF24L01+ Product Specification
Address
(Hex)
1D
Mnemonic
Bit
DPL_P2
2
Reset
Value
0
DPL_P1
1
0
DPL_P0
0
0
FEATURE
Reserved
EN_DPL
EN_ACK_PAYd
EN_DYN_ACK
7:3
2
1
0
0
0
0
0
Type
Description
R/W Enable dynamic payload length data pipe 2.
(Requires EN_DPL and ENAA_P2)
R/W Enable dynamic payload length data pipe 1.
(Requires EN_DPL and ENAA_P1)
R/W Enable dynamic payload length data pipe 0.
(Requires EN_DPL and ENAA_P0)
R/W
R/W
R/W
R/W
R/W
Feature Register
Only ‘00000’ allowed
Enables Dynamic Payload Length
Enables Payload with ACK
Enables the W_TX_PAYLOAD_NOACK command
a. Please take care when setting this parameter. If the ACK payload is more than 15 byte in 2Mbps mode the
ARD must be 500µS or more, if the ACK payload is more than 5byte in 1Mbps mode the ARD must be
500µS or more. In 250kbps mode (even when the payload is not in ACK) the ARD must be 500µS or more.
Please see section 7.4.2 on page 33 for more information.
b. This is the time the PTX is waiting for an ACK packet before a retransmit is made. The PTX is in RX mode
for 250µS (500µS in 250kbps mode) to wait for address match. If the address match is detected, it stays in
RX mode to the end of the packet, unless ARD elapses. Then it goes to standby-II mode for the rest of the
specified ARD. After the ARD it goes to TX mode and then retransmits the packet.
c. The RX_DR IRQ is asserted by a new packet arrival event. The procedure for handling this interrupt should
be: 1) read payload through SPI, 2) clear RX_DR IRQ, 3) read FIFO_STATUS to check if there are more
payloads available in RX FIFO, 4) if there are more data in RX FIFO, repeat from step 1).
d. If ACK packet payload is activated, ACK packets have dynamic payload lengths and the Dynamic Payload
Length feature should be enabled for pipe 0 on the PTX and PRX. This is to ensure that they receive the
ACK packets with payloads. If the ACK payload is more than 15 byte in 2Mbps mode the ARD must be
500µS or more, and if the ACK payload is more than 5 byte in 1Mbps mode the ARD must be 500µS or
more. In 250kbps mode (even when the payload is not in ACK) the ARD must be 500µS or more.
Table 28. Register map of nRF24L01+
Revision 1.0
Page 63 of 78
nRF24L01+ Product Specification
10
Peripheral RF Information
This chapter describes peripheral circuitry and PCB layout requirements that are important for achieving
optimum RF performance from the nRF24L01+.
10.1
Antenna output
The ANT1 and ANT2 output pins provide a balanced RF output to the antenna. The pins must have a DC
path to VDD_PA, either through a RF choke or through the center point in a balanced dipole antenna. A
load of 15Ω+j88Ω is recommended for maximum output power (0dBm). Lower load impedance (for
instance, 50Ω) can be obtained by fitting a simple matching network between the load and ANT1 and
ANT2. A recommended matching network for 50Ω load impedance is described in chapter 11 on page 66.
10.2
Crystal oscillator
A crystal used with the nRF24L01+ must fulfil the specifications in Table 11. on page 19.
To achieve a crystal oscillator solution with low power consumption and fast start up time use a crystal with
a low load capacitance specification. A lower C0 also gives lower current consumption and faster start up
time, but can increase the cost of the crystal. Typically C0=1.5pF at a crystal specified for C0max=7.0pF.
The crystal load capacitance, CL, is given by:
CL =
C1 '⋅C 2 '
C1 ' + C 2 '
, where C1’ = C1 + CPCB1 +CI1 and C2’ = C2 + CPCB2 + CI2
C1 and C2 are SMD capacitors, see the application schematics in Figure 32. on page 66. CPCB1 and CPCB2
are the layout parasitic on the circuit board. CI1 and CI2 are the internal capacitance load of the XC1 and
XC2 pins respectively; the value is typically 1pF for both these pins.
10.3
nRF24L01+ crystal sharing with an MCU
Follow the rules described in sections 10.3.1 and 10.3.2 when using an MCU to drive the crystal reference
input XC1 of the nRF24L01+ transceiver.
10.3.1
Crystal parameters
The MCU sets the requirement of load capacitance CL when it is driving the nRF24L01+ clock input. A frequency accuracy of ±60ppm is required to get a functional radio link. The nRF24L01+ loads the crystal by
1pF in addition to the PCB routing.
10.3.2
Input crystal amplitude and current consumption
The input signal should not have amplitudes exceeding any rail voltage. Exceeding rail voltage excites the
ESD structure and consequently, the radio performance degrades below specification. You must use an
external DC block if you are testing the nRF24L01+ with a reference source that has no DC offset (which is
usual with a RF source).
Revision 1.0
Page 64 of 78
nRF24L01+ Product Specification
XO_OUT
Buffer:
Sine to
full swing
Amplitude
controlled
current source
Current starved
inverter:
XOSC core
Vdd
Vdd
Rbias
Vss
Vss
ESD
ESD
XC1
XC2
Figure 31. Principle of crystal oscillator
The nRF24L01+ crystal oscillator is amplitude regulated. It is recommended to use an input signal larger
than 0.4V-peak to achieve low current consumption and good signal-to-noise ratio when using an external
clock. XC2 is not used and can be left as an open pin when clocked externally.
10.4
PCB layout and decoupling guidelines
A well designed PCB is necessary to achieve good RF performance. A poor layout can lead to loss of performance or functionality. You can download a fully qualified RF layout for the nRF24L01+ and its surrounding components, including matching networks, from www.nordicsemi.no.
A PCB with a minimum of two layers including a ground plane is recommended for optimum performance.
The nRF24L01+ DC supply voltage should be decoupled as close as possible to the VDD pins with high
performance RF capacitors, see Table 29. on page 67. Mounting a large surface mount capacitor (for
example, 4.7µF ceramic) in parallel with the smaller value capacitors is recommended. The nRF24L01+
supply voltage should be filtered and routed separately from the supply voltages of any digital circuitry.
Avoid long power supply lines on the PCB. All device grounds, VDD connections and VDD bypass capacitors must be connected as close as possible to the nRF24L01+ IC. The VSS pins should be connected
directly to the ground plane for a PCB with a topside RF ground plane. We recommend having via holes as
close as possible to the VSS pads for a PCB with a bottom ground plane. A minimum of one via hole
should be used for each VSS pin.
Full swing digital data or control signals should not be routed close to the crystal or the power supply lines.
The exposed die attach pad is a ground pad connected to the IC substrate die ground and is intentionally
not used in our layouts. We recommend to keep it unconnected.
Revision 1.0
Page 65 of 78
nRF24L01+ Product Specification
11
Application example
nRF24L01+ with single ended matching network crystal, bias resistor, and decoupling capacitors.
C7
33nF
0402
C8
1nF
0402
1
2
3
4
5
CE
CSN
SCK
MOSI
MISO
nRF24L01+
15
14
13
12
11
VDD
VSS
ANT2
ANT1
VDD_PA
IRQ
VDD
VSS
XC2
XC1
CE
CSN
SCK
MOSI
MISO
U1
VSS
DVDD
VDD
VSS
IREF
C9
10nF
0402
R2
22K
0402
20
19
18
17
16
VDD
C5
L3
L1
8.2nH
0402
50ohm, R
3.9nH
0402
1.5pF
0402
C6
1.0pF
0402
L2
2.7nH
0402
6
7
8
9
10
NRF24L01
IRQ
C3
2.2nF
0402
X1
C4
4.7pF
0402
16 MHz
R1
1M
C1
22pF
0402
C2
22pF
0402
Figure 32. nRF24L01+ schematic for RF layouts with single ended 50Ω RF output
Revision 1.0
Page 66 of 78
nRF24L01+ Product Specification
Part
a
22pF
22pFa
2.2nF
4.7pF
1.5pF
1,0pF
33nF
1nF
10nF
8,2nH
2.7nH
3,9nH
Not mountedb
22kΩ
nRF24L01+
16MHz
Designator
C1
C2
C3
C4
C5
C6
C7
C8
C9
L1
L2
L3
R1
R2
U1
X1
Footprint
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
QFN20 4x4
Description
NPO, +/- 2%
NPO, +/- 2%
X7R, +/- 10%
NPO, +/- 0.25pF
NPO, +/- 0.1pF
NPO, +/- 0.1pF
X7R, +/- 10%
X7R, +/- 10%
X7R, +/- 10%
chip inductor +/- 5%
chip inductor +/- 5%
chip inductor +/- 5%
+/-1%
+/-60ppm, CL=12pF
a. C1 and C2 must have values that match the crystals load capacitance, CL.
b. The nRF24L01+ and nRF24L01 application example and BOM are the same with the exception of
R1. R1 can be mounted for backward compatibility with nRF24L01. The use of a 1Mohm resistor
externally does not have any impact on crystal performance.
Table 29. Recommended components (BOM) in nRF24L01+ with antenna matching network
11.1
PCB layout examples
Figure 33., Figure 34. and Figure 35. show a PCB layout example for the application schematic in Figure
32..
A double-sided FR-4 board of 1.6mm thickness is used. This PCB has a ground plane on the bottom layer.
Additionally, there are ground areas on the component side of the board to ensure sufficient grounding of
critical components. A large number of via holes connect the top layer ground areas to the bottom layer
ground plane.
Revision 1.0
Page 67 of 78
nRF24L01+ Product Specification
+
Figure 33. Top overlay (nRF24L01+ RF layout with single ended connection to PCB antenna and 0402
size passive components)
Figure 34. Top layer (nRF24L01+ RF layout with single ended connection to PCB antenna and 0402 size
passive components)
Revision 1.0
Page 68 of 78
nRF24L01+ Product Specification
Figure 35. Bottom layer (nRF24L01+ RF layout with single ended connection to PCB antenna and 0402
size passive components
The nest figure (Figure 36., Figure 37. and Figure 38.) is for the SMA output to have a board for direct
measurements at a 50Ω SMA connector.
Figure 36. Top Overlay (Module with OFM crystal and SMA connector)
Revision 1.0
Page 69 of 78
nRF24L01+ Product Specification
Figure 37. Top Layer (Module with OFM crystal and SMA connector)
Figure 38. Bottom Layer (Module with OFM crystal and SMA connector)
Revision 1.0
Page 70 of 78
nRF24L01+ Product Specification
12
Mechanical specifications
nRF24L01+ uses the QFN20 4x4 package, with matt tin plating.
Revision 1.0
Page 71 of 78
nRF24L01+ Product Specification
Package Type
Saw QFN20
(4x4 mm)
Min.
Typ.
Max
A
0.80
0.85
0.95
A1
A3
0.00
0.02 0.20
0.05 REF.
K
0.20
min.
D/E
e
D2/E2
2.50
4.0 0.5 BSC 2.60
2.70
BSCa
a. BSC: Basic Spacing between Centers, ref. JEDEC standard 95, page 4.17-11/A
Figure 39. nRF24L01+ Package Outline
Revision 1.0
Page 72 of 78
L
0.35
0.40
0.45
L1
0.15
max
b
0.18
0.25
0.30
nRF24L01+ Product Specification
13
Ordering information
13.1
Package marking
n
2
Y
13.2
R F
A
4 L 0 1
Y W W L
X
+
L
Abbreviations
Abbreviation
nRF
A
X
YY
WW
LL
Definition
Fixed text
Variable Build Code, that is, unique code for production sites, package type and test platform
“X" grade, that is, Engineering Samples (optional)
2 digit Year number
2 digit Week number
2 letter wafer lot number code
13.3
Product options
13.3.1
RF silicon
Ordering code
nRF24L01P-SAMPLE
nRF24L01P-T
nRF24L01P-R
nRF24L01P-R7
Package
Container
4x4mm 20-pin QFN, lead free
(green)
4x4mm 20-pin QFN, lead free
(green)
4x4mm 20-pin QFN, lead free
(green)
4x4mm 20-pin QFN, lead free
(green)
Sample box
MOQa
5
Tray
490
Tape and reel
4000
Tape and reel
1500
a. Minimum Order Quantity
Table 30. nRF24L01+ RF silicon options
13.3.2
Development tools
Type Number
nRF24L01P-EVKIT
nRF24L01P-UPGRADE
nRF24L01P-MODULE-SMA
nRF24L01P-MODULE-PCB
Description
nRF24L01+ Evaluation kit
nRF24L01+ Upgrade kit for owners of nRF24L01EVKIT
nRF24L01+ Evaluation kit module with SMA
antenna
nRF24L01+ Evaluation kit module with PCB
antenna
Table 31. nRF24L01+ solution options
Revision 1.0
Page 73 of 78
Version
nRF24L01+ Product Specification
14
Glossary of Terms
Term
ACK
ACS
AGC
ART
CD
CE
CLK
CRC
CSN
ESB
GFSK
IM
IRQ
ISM
LNA
LSB
LSByte
Mbps
MCU
MISO
MOSI
MSB
MSByte
PCB
PID
PLD
PRX
PTX
PWR_DWN
PWR_UP
RoHS
RPD
RX
RX_DR
SPI
TX
TX_DS
Description
Acknowledgement
Adjacent Channel Selectivity
Automatic Gain Control
Auto Re-Transmit
Carrier Detect
Chip Enable
Clock
Cyclic Redundancy Check
Chip Select NOT
Enhanced ShockBurst™
Gaussian Frequency Shift Keying
Intermodulation
Interrupt Request
Industrial-Scientific-Medical
Low Noise Amplifier
Least Significant Bit
Least Significant Byte
Megabit per second
Microcontroller Unit
Master In Slave Out
Master Out Slave In
Most Significant Bit
Most Significant Byte
Printed Circuit Board
Packet Identity Bits
Payload
Primary RX
Primary TX
Power Down
Power Up
Restriction of use of Certain Hazardous Substances
Received Power Detector
Receive
Receive Data Ready
Serial Peripheral Interface
Transmit
Transmit Data Sent
Table 32. Glossary
Revision 1.0
Page 74 of 78
nRF24L01+ Product Specification
Appendix A - Enhanced ShockBurst™ - Configuration and communication example
Enhanced ShockBurst™ transmitting payload
1.
2.
3.
4.
5.
6.
7.
Set the configuration bit PRIM_RX low.
When the application MCU has data to transmit, clock the address for the receiving node
(TX_ADDR) and payload data (TX_PLD) into nRF24L01+ through the SPI. The width of TX-payload is counted from the number of bytes written into the TX FIFO from the MCU. TX_PLD must
be written continuously while holding CSN low. TX_ADDR does not have to be rewritten if it is
unchanged from last transmit. If the PTX device shall receive acknowledge, configure data pipe 0
to receive the ACK packet. The RX address for data pipe 0 (RX_ADDR_P0) must be equal to the
TX address (TX_ADDR) in the PTX device. For the example in Figure 14. on page 41 perform the
following address settings for the TX5 device and the RX device:
TX5 device: TX_ADDR = 0xB3B4B5B605
TX5 device: RX_ADDR_P0 = 0xB3B4B5B605
RX device: RX_ADDR_P5 = 0xB3B4B5B605
A high pulse on CE starts the transmission. The minimum pulse width on CE is 10µs.
nRF24L01+ ShockBurst™:
X Radio is powered up.
X 16MHz internal clock is started.
X RF packet is completed (see the packet description).
X Data is transmitted at high speed (1Mbps or 2Mbps configured by MCU).
If auto acknowledgement is activated (ENAA_P0=1) the radio goes into RX mode immediately,
unless the NO_ACK bit is set in the received packet. If a valid packet is received in the valid
acknowledgement time window, the transmission is considered a success. The TX_DS bit in the
STATUS register is set high and the payload is removed from TX FIFO. If a valid ACK packet is
not received in the specified time window, the payload is retransmitted (if auto retransmit is
enabled). If the auto retransmit counter (ARC_CNT) exceeds the programmed maximum limit
(ARC), the MAX_RT bit in the STATUS register is set high. The payload in TX FIFO is NOT
removed. The IRQ pin is active when MAX_RT or TX_DS is high. To turn off the IRQ pin, reset the
interrupt source by writing to the STATUS register (see Interrupt chapter). If no ACK packet is
received for a packet after the maximum number of retransmits, no further packets can be transmitted before the MAX_RT interrupt is cleared. The packet loss counter (PLOS_CNT) is incremented at each MAX_RT interrupt. That is, ARC_CNT counts the number of retransmits that were
required to get a single packet through. PLOS_CNT counts the number of packets that did not get
through after the maximum number of retransmits.
nRF24L01+ goes into standby-I mode if CE is low. Otherwise, next payload in TX FIFO is transmitted. If TX FIFO is empty and CE is still high, nRF24L01+ enters standby-II mode.
If nRF24L01+ is in standby-II mode, it goes to standby-I mode immediately if CE is set low.
Revision 1.0
Page 75 of 78
nRF24L01+ Product Specification
Enhanced ShockBurst™ receive payload
1.
2.
3.
4.
5.
6.
7.
8.
Select RX by setting the PRIM_RX bit in the CONFIG register to high. All data pipes that receive
data must be enabled (EN_RXADDR register), enable auto acknowledgement for all pipes running
Enhanced ShockBurst™ (EN_AA register), and set the correct payload widths (RX_PW_Px registers). Set up addresses as described in item 2 in the Enhanced ShockBurst™ transmitting payload example above.
Start Active RX mode by setting CE high.
After 130µs nRF24L01+ monitors the air for incoming communication.
When a valid packet is received (matching address and correct CRC), the payload is stored in the
RX-FIFO, and the RX_DR bit in STATUS register is set high. The IRQ pin is active when RX_DR is
high. RX_P_NO in STATUS register indicates what data pipe the payload has been received in.
If auto acknowledgement is enabled, an ACK packet is transmitted back, unless the NO_ACK bit
is set in the received packet. If there is a payload in the TX_PLD FIFO, this payload is added to
the ACK packet.
MCU sets the CE pin low to enter standby-I mode (low current mode).
MCU can clock out the payload data at a suitable rate through the SPI.
nRF24L01+ is now ready for entering TX or RX mode or power down mode.
Revision 1.0
Page 76 of 78
nRF24L01+ Product Specification
Appendix B - Configuration for compatibility with nRF24XX
How to setup nRF24L01+ to receive from an nRF2401/nRF2402/nRF24E1/nRF24E2:
1.
2.
3.
4.
5.
6.
7.
8.
Use the same CRC configuration as the nRF2401/nRF2402/nRF24E1/nRF24E2.
Set the PWR_UP and PRIM_RX bit to 1.
Disable auto acknowledgement on the data pipe that is addressed.
Use the same address width as the PTX device.
Use the same frequency channel as the PTX device.
Select data rate 1Mbps or 250kbps on both nRF24L01+ and nRF2401/nRF2402/nRF24E1/
nRF24E2.
Set correct payload width on the data pipe that is addressed.
Set CE high.
How to setup nRF24L01+ to transmit to an nRF2401/nRF24E1:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Use the same CRC configuration as the nRF2401/nRF2402/nRF24E1/nRF24E2.
Set the PRIM_RX bit to 0.
Set the Auto Retransmit Count to 0 to disable the auto retransmit functionality.
Use the same address width as the nRF2401/nRF2402/nRF24E1/nRF24E2.
Use the same frequency channel as the nRF2401/nRF2402/nRF24E1/nRF24E2.
Select data rate 1Mbps or 250kbps on both nRF24L01+ and nRF2401/nRF2402/nRF24E1/
nRF24E2.
Set PWR_UP high.
Clock in a payload that has the same length as the nRF2401/nRF2402/nRF24E1/nRF24E2 is
configured to receive.
Pulse CE to transmit the packet.
Revision 1.0
Page 77 of 78
nRF24L01+ Product Specification
Appendix C - Constant carrier wave output for testing
The output power of a radio is a critical factor for achieving wanted range. Output power is also the first test
criteria needed to qualify for all telecommunication regulations.
Configuration
1.
2.
3.
4.
5.
6.
Set PWR_UP = 1 and PRIM_RX = 0 in the CONFIG register.
Wait 1.5ms PWR_UP->standby.
In the RF register set:
X CONT_WAVE = 1.
X PLL_LOCK = 1.
X RF_PWR.
Set the wanted RF channel.
Set CE high.
Keep CE high as long as the carrier is needed.
Note: Do not use REUSE_TX_PL together with CONT_WAVE=1. When both these registers are set
the chip does not react when setting CE low. If however, both registers are set PWR_UP = 0
will turn TX mode off.
The nRF24L01+ should now output an unmodulated centered carrier.
Revision 1.0
Page 78 of 78
工商网监
湘ICP备2023018690号
