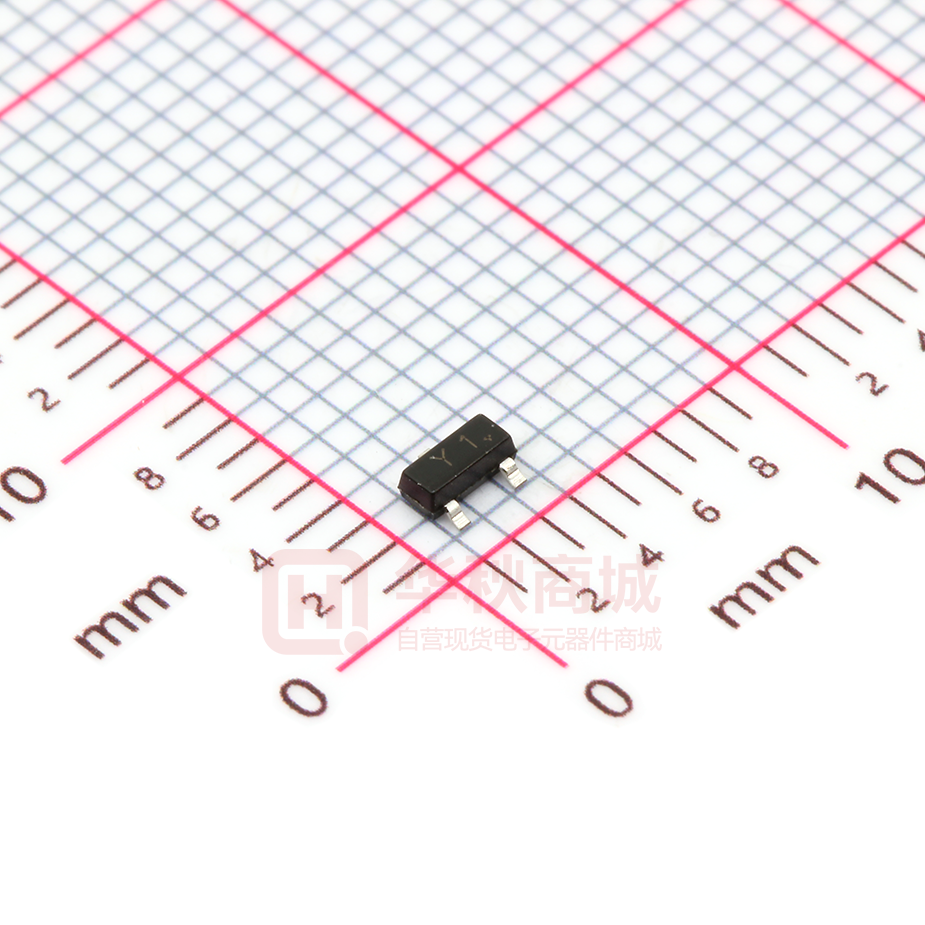

SS8050

Plastic-Encapsulate Transistors FEATURES SS8050 Complimentary to SS8550 Marking : (NPN) Y1 MAXIMUM RATINGS (TA=25 unless otherwise noted) Parameter Symbol Value Unit Collector-Base Voltage VCBO 40 V Collector-Emitter Voltage VCEO 25 V Emitter-Base Voltage VEBO 5 V Collector Current -Continuous IC 1500 mA Collector Power Dissipation PC 300 mW Junction Temperature TJ 150 Storage Temperature Tstg -55 to +150 ELECTRICAL CHARACTERISTICS (Tamb=25 Parameter 1. BASE SOT-23 2. EMITTER 3. COLLECTO unless otherwise specified) Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage VCBO IC= 100μA, IE=0 40 V Collector-emitter breakdown voltage VCEO IC= 0.1mA, IB=0 25 V Emitter-base breakdown voltage VEBO IE=100μA, IC=0 5 V Collector cut-off current ICBO VCB=40V, IE=0 0.1 μA Collector cut-off current O ICEO VCB=20V, IE=0 0.1 μA Emitter cut-off current IEBO VEB= 5V, IC=0 0.1 μA hFE(1) VCE=1V, IC= 100mA 120 hFE(2) VCE=1V, IC= 800mA 40 Collector-emitter saturation voltage VCE(sat) IC=800mA, IB= 80mA 0.5 V Base-emitter saturation voltage VBE(sat) IC=800mA, IB= 80mA 1.2 V 400 DC current gain fT Transition frequency CLASSIFICATION OF VCE=10V, IC= 50mA f=30MHz 100 MHz hFE Rank L Range 120-200 GUANGDONG HOTTECH H 200-350 INDUSTRIAL CO., LTD J 300-400 Page:P2-P1 Plastic-Encapsulate Transistors SS8050 Typical Characteristics 1000 0.5 VCE = 1V 0.4 hFE, DC CURRENT GAIN IC[A], COLLECTOR CURRENT IB = 3.0mA IB = 2.5mA IB = 2.0mA 0.3 IB = 1.5mA 0.2 IB = 1.0mA 0.1 100 10 IB = 0.5mA 0 0.4 0.8 1.2 1.6 1 0.1 2.0 1 10000 1000 100 IC = 10 IB VCE = 1V VBE(sat) 1000 100 VCE(sat) 10 0.1 1 10 100 10 1 0.1 0.0 1000 0.2 0.4 0.6 0.8 1.0 1.2 VBE[V], BASE-EMITTER VOLTAGE IC[mA], COLLECTOR CURRENT 1000 fT[MHz], CURRENT GAIN BANDWIDTH PRODUCT 1000 IE = 0 f = 1MHz Cob [pF], CAPACITANCE 100 IC[mA], COLLECTOR CURRENT IC[mA], COLLECTOR CURRENT VBE(sat), VCE(sat)[mV], SATURATION VOLTAGE VCE[V], COLLECTOR-EMITTER VOLTAGE 10 100 10 1 1 10 100 VCB [V], COLLECTOR-BASE VOLTAGE GUANGDONG HOTTECH VCE = 10V 100 10 1 1 10 100 400 IC[mA], COLLECTOR CURRENT INDUSTRIAL CO., LTD Page:P2-P2
