BM43THA80C
Description
1. Description
1.1 General Description
The BM43THA80C is a CMOS compatible thermopile temperature sensor based on MEMS (microelectromechanical systems) technology. This thermopile detector consists of thermopile MEMS chip, 514um infrared band pass filter, a NTC thermistor for temperature compensation and a small size TO
Package.
1.2 Features
Non-contact surface temperature measuring
TO housing with an 5-14um infrared filter
Using NTC thermistor for ambient temperature compensation
High sensitivity
Fast response time
Wide working temperature: -40℃+120℃(Temperature range can be extended to +1000℃by
using specific infrared lens)
1.3 Applications
Non-contact human body temperature infrared thermometer
Microwave oven
Automatic induction equipment
Heating, Ventilation and Air Conditioning(HVAC)
Appliance

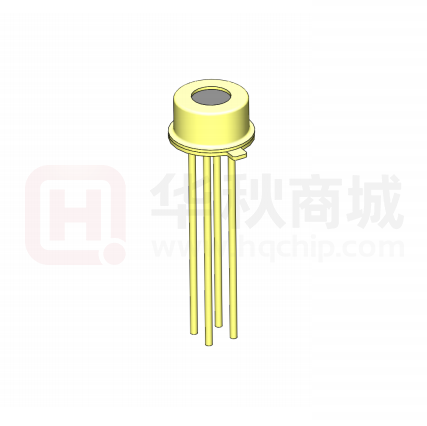

1.4 Package
1／18
BM43THA80C
Pin Description
2 Pin Descriptions
Table1 Pin Descriptions
Pin
Function
Description
1
GND Thermistor
2
Thermopile-
Output DC voltage- pin.
3
Thermistor
Ambient temperature compensation resistance+ pin.
4
Thermopile+
Ambient temperature compensation resistance- pin and GND.
Output DC voltage+ pin.
2／18
BM43THA80C
Specification
3 Characteristics
3.1 Thermopile Parameter
Table 2 Thermopile Parameter
Parameter
Specification
Unit
Condition
Chip Size
1.28X1.28
mm
-
Active Area
0.9X0.9
mm
-
Responsivity
135
V/W
Black body=500K,1HZ @temp=25℃
Detectivity
6.3E07
cm·Hz1/2/W
Black body=500K,1HZ @temp=25℃
Thermopile Res
225±10
k
@temp=25℃
Time Constant
15
ms
-
Field of View(FOV)
0
Operating Temp
-40~120
℃
-
Storage Temp
-40~150
℃
-
°
Degree at 50% signal level
Thermistor for Temperature Compensation
Thermistor
Resistance
TC of Thermistor(B)
100
k
+2% tolerance, @temp=25℃
3950
K
±1% tolerance, Defined at 25/50℃
3／18
BM43THA80C
Specification
3.2 NTC Temperature VS Resistance Table
Table 3 NTC Temperature VS Resistance Table
Temp.(℃)
Rmax(kΩ) Temp.(℃)
Rmin(kΩ)
Rnor(kΩ)
Rmin(kΩ)
Rnor(kΩ)
Rmax(kΩ)
-40
3062.1
3235.1
3416.6
43
45.920
47.210
48.517
-39
2869.0
3029.1
3196.9
44
44.112
45.369
46.644
-38
2689.3
2837.6
2992.8
45
42.384
43.609
44.852
-37
2522.1
2659.4
2803.1
46
40.731
41.925
43.137
-36
2366.4
2493.6
2626.6
47
39.150
40.314
41.496
-35
2221.4
2339.3
2462.5
48
37.638
38.772
39.924
-34
2086.2
2195.5
2309.7
49
36.191
37.295
38.418
-33
1960.1
2061.5
2167.4
50
34.806
35.882
36.977
-32
1842.5
1936.6
2034.8
51
33.479
34.527
35.594
-31
1732.6
1820.1
1911.1
52
32.208
33.229
34.269
-30
1630.1
1711.3
1795.8
53
30.991
31.986
32.999
-29
1534.3
1609.7
1688.2
54
29.825
30.794
31.782
-28
1444.7
1514.8
1587.7
55
28.708
29.652
30.615
-27
1360.9
1426.1
1493.8
56
27.638
28.557
29.496
-26
1282.6
1343.2
1406.1
57
26.612
27.508
28.422
-25
1209.2
1265.6
1324.1
58
25.628
26.501
27.392
-24
1140.5
1193.0
1247.4
59
24.685
25.535
26.404
-23
1076.1
1125.0
1175.6
60
23.781
24.609
25.455
-22
1015.8
1061.3
1108.4
61
22.913
23.720
24.545
-21
959.19
1001.6
1045.4
62
22.081
22.867
23.671
-20
906.11
945.61
986.44
63
21.283
22.048
22.831
-19
856.11
892.92
930.94
64
20.516
21.262
22.025
-18
809.19
843.50
878.91
65
19.781
20.507
21.251
-17
765.13
797.12
830.11
66
19.074
19.781
20.507
-16
723.74
753.58
784.33
67
18.396
19.085
19.792
-15
684.85
712.69
741.36
68
17.745
18.416
19.105
-14
648.29
674.27
701.01
69
17.119
17.773
18.444
-13
613.91
638.16
663.10
70
16.518
17.155
17.809
-12
581.56
604.20
627.47
71
15.940
16.561
17.199
-11
551.12
572.26
593.98
72
15.385
15.990
16.611
-10
522.45
542.20
562.48
73
14.852
15.441
16.047
4／18
BM43THA80C
Specification
Temp.(℃)
Rmax(kΩ) Temp.(℃)
Rmin(kΩ)
Rnor(kΩ)
Rmin(kΩ)
Rnor(kΩ)
Rmax(kΩ)
-9
495.45
513.91
532.84
74
14.339
14.913
15.503
-8
470.01
487.26
504.94
75
13.846
14.405
14.980
-7
446.03
462.15
478.67
76
13.371
13.916
14.477
-6
423.41
438.49
453.92
77
12.915
13.446
13.993
-5
402.08
416.18
430.60
78
12.476
12.993
13.526
-4
381.95
395.13
408.61
79
12.054
12.558
13.078
-3
362.94
375.28
387.88
80
11.648
12.139
12.645
-2
345.00
356.54
368.32
81
11.261
11.740
12.234
-1
328.04
338.85
349.87
82
10.890
11.356
11.838
0
312.02
322.13
332.44
83
10.532
10.987
11.457
1
296.93
306.40
316.05
84
10.187
10.631
11.089
2
282.65
291.52
300.55
85
9.855
10.288
10.735
3
269.14
277.45
285.90
86
9.535
9.957
10.393
4
256.35
264.13
272.04
87
9.227
9.639
10.064
5
244.23
251.52
258.93
88
8.931
9.332
9.747
6
232.75
239.59
246.52
89
8.645
9.036
9.441
7
221.88
228.28
234.78
90
8.369
8.750
9.145
8
211.57
217.57
223.65
91
8.103
8.475
8.861
9
201.79
207.42
213.11
92
7.847
8.210
8.586
10
192.52
197.79
203.13
93
7.600
7.954
8.321
11
183.72
188.66
193.66
94
7.361
7.707
8.065
12
175.37
180.00
184.69
95
7.132
7.468
7.818
13
167.44
171.79
176.17
96
6.910
7.238
7.580
14
159.92
163.99
168.10
97
6.696
7.016
7.349
15
152.77
156.58
160.43
98
6.489
6.802
7.127
16
145.97
149.55
153.16
99
6.290
6.595
6.913
17
139.52
142.87
146.25
100
6.098
6.395
6.705
18
133.38
136.52
139.69
101
5.912
6.202
6.505
19
127.54
130.49
133.46
102
5.732
6.016
6.311
20
121.99
124.76
127.53
103
5.559
5.836
6.124
21
116.71
119.30
121.90
104
5.392
5.662
5.944
22
111.68
114.11
116.55
105
5.230
5.494
5.769
23
106.90
109.17
111.45
106
5.074
5.332
5.600
24
102.34
104.47
106.61
107
4.923
5.175
5.437
5／18
BM43THA80C
Specification
Temp.(℃)
Rmax(kΩ) Temp.(℃)
Rmin(kΩ)
Rnor(kΩ)
Rmin(kΩ)
Rnor(kΩ)
Rmax(kΩ)
25
98.000
100.00
102.00
108
4.777
5.023
5.279
26
93.784
95.740
97.697
109
4.636
4.876
5.126
27
89.770
91.682
93.597
110
4.500
4.734
4.978
28
85.948
87.816
89.688
111
4.368
4.597
4.835
29
82.306
84.131
85.962
112
4.241
4.464
4.697
30
78.837
80.620
82.409
113
4.118
4.336
4.563
31
75.531
77.271
79.020
114
3.999
4.211
4.434
32
72.379
74.078
75.787
115
3.883
4.091
4.309
33
69.374
71.032
72.701
116
3.772
3.975
4.187
34
66.507
68.126
69.755
117
3.664
3.862
4.070
35
63.773
65.352
66.943
118
3.560
3.753
3.956
36
61.164
62.704
64.258
119
3.459
3.648
3.846
37
58.674
60.176
61.692
120
3.361
3.546
3.739
38
56.297
57.762
59.242
121
3.266
3.447
3.636
39
54.027
55.456
56.899
122
3.174
3.351
3.536
40
51.860
53.252
54.661
123
3.086
3.258
3.439
41
49.789
51.147
52.521
124
3.000
3.168
3.345
42
47.810
49.134
50.474
125
2.916
3.081
3.254
Note: B=3950K,R(25℃)=100KΩ.
6／18
BM43THA80C
Specification
3.3 Filter Transmission Curve
Figure 1 Filter Transmission Curve
3.4 Sensitivity Output Curve
7／18
BM43THA80C
Specification
3.5 Typical Reliability Test Items
No.
Tested Item
Condition
Result (N/F1)
1
High Humidity Test
+85±2℃, 85±2%RH 120h
20/0
2
Low Temperature
-40±3℃ 200h
20/0
3
High Temperature
+105±3℃ 200h
20/0
4
Thermal Shock
(-40℃→+85℃)×20Cycle 2h
20/0
Frequency sweep: 10~55Hz/min 2h
5
Vibration
Direction : X, Y, X
(1.5mm distance for each direction)
Note1: N for amount of sample, F for amount of failure after test
8／18
20/0
BM43THA80C
Ordering Information
4. Ordering Information
4.1 Naming Scheme
BM
43
Company Prefix
Bestow Mascot Technology Ltd.
Series Name
43: Temperature Sensor
Measure Type
T-Thermopile IR
Performance
H-High N-Normal
Signal Type
A-Analogy D-Digital
FOV Value
Version
Operating Temperature Range
A-High B-Middle C-Low
Package
T2-TO Package Type2 T3- TO Package Type3
Packing
T-Tube
A-Tray
Plating Technology
Blank-Standard SnPb Plating
R-RoHS compliant
G-Green (REACH compliant)
9／18
T
H
A
80
C
-X
-X
-X
-G
BM43THA80C
Ordering Information
4.2 Order Information
Temperature Range
Package
Packaging
HSF
Order Code
Tube
Green
BM43THA80C-B-T2-T-G
Tray
Green
BM43THA80C-B-T2-A-G
Tube
Green
BM43THA80C-B-T3-T-G
Tray
Green
BM43THA80C-B-T3-A-G
Tube
Green
BM43THA80C-C-T2-T-G
Tray
Green
BM43THA80C-C-T2-A-G
Tube
Green
BM43THA80C-C-T3-T-G
Tray
Green
BM43THA80C-C-T3-A-G
T2
Middle
T3
T2
Low
T3
10／18
BM43THA80C
Ordering Information
4.3 TO Package Type2 Outline Information (in mm)
TOP
5
.0 0
+0 0.1
-
40
5.
55
3.
±0.0
5
5
.0 5
+0 0.0
-
2.50
4.
70
1.
02
+
- 0 0.0
.1 3
0
+
- 0 0.0
.0 5
5
R0.20
Bottom
Front
+0.05
TND
0.25
0.38Max
Thermopile-
+0.05
- 0.05
5.40 - 0.10
+0.03
4.70 - 0.10
45°
Thermister
Thermopile+
0.45
11／18
+0.03
- 0.04
16.85
14
+1
-1
+1
-1
2.54
BM43THA80C
Ordering Information
4.4 TO Package Type3 Outline Information (in mm)
5
.0 0
+0 0.1
-
2.
50
±0
.0
40
5.
5
TOP
3
.0
+0 0.10
-
70
4.
Bottom
Front
+0.05
0.25 ±0.05
4
2.5
Thermister
Thermopile+
0.45
12／18
+0.03
- 0.04
16.85
14
+1
-1
+1
-1
TND
0.38Max
Thermopile-
2.60 ±0.05
5.40 - 0.10
+0.03
4.70 - 0.10
BM43THA80C
Ordering Information
4.5 Packing Information
Container
Tray
Quantity
1000 pcs
Direction of feed
Direction of products is fixed in a container tray
100pcs per tray
10 tray per box
MOQ=1000pcs
Container
Tube
Quantity
2000 pcs
Direction of feed
Direction of products is fixed in a container tray
40 tube per box
50pcs per tube
MOQ=2000pcs
13／18
BM43THA80C
Notice
5. Notice
●General Precaution
1) Before you use our Products, you are requested to carefully read this document and fully
understand its contents. BM shall not be in any way responsible or liable for failure,
malfunction or accident arising from the use of any BM’s Products against warning, caution or
note contained in this document.
2) All information contained in this document is current as of the issuing date and subject to
change without any prior notice. Before purchasing or using BM’s Products, please confirm the
latest information with a BM sales representative.
●Precaution on using BM Products
1) Our Products are designed and manufactured for application in ordinary electronic
equipments (such as AV equipment, OA equipment, telecommunication equipment, home
electronic appliances, amusement equipment, etc.). If you intend to use our Products in
devices requiring extremely high reliability (such as medical equipment, transport equipment,
traffic equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment
including car accessories, safety devices, etc.) and whose malfunction or failure may cause
loss of human life, bodily injury or serious damage to property (“Specific Applications”), please
consult with the BM sales representative in advance. Unless otherwise agreed in writing by BM
in advance, BM shall not be in any way responsible or liable for any damages, expenses or
losses incurred by you or third parties arising from the use of any BM’s Products for Specific
Applications.
2) BM designs and manufactures its Products subject to strict quality control system. However,
semiconductor products can fail or malfunction at a certain rate. Please be sure to implement,
at your own responsibilities, adequate safety measures including but not limited to fail-safe
design against the physical injury, damage to any property, which a failure or malfunction of
our Products may cause. The following are examples of safety measures:
[a] Installation of protection circuits or other protective devices to improve system safety
[b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure
3) Our Products are designed and manufactured for use under standard conditions and not
under any special or extraordinary environments or conditions, as exemplified below.
Accordingly, BM shall not be in any way responsible or liable for any damages, expenses or
losses arising from the use of any BM’s Products under any special or extraordinary
environments or conditions. If you intend to use our Products under any special or
extraordinary environments or conditions (as exemplified below), your independent verification
and confirmation of product performance, reliability, etc, prior to use, must be necessary:
[a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic
solvents
14／18
BM43THA80C
Notice
[b] Use of our Products outdoors or in places where the Products are exposed to direct
sunlight or dust
[c] Use of our Products in places where the Products are exposed to sea wind or corrosive
gases, including Cl2, H2S, NH3, SO2, and NO2
[d] Use of our Products in places where the Products are exposed to static electricity or
electromagnetic waves
[e] Use of our Products in proximity to heat-producing components, plastic cords, or other
flammable items
[f] Sealing or coating our Products with resin or other coating materials
[g] Use of our Products without cleaning residue of flux (even if you use no-clean type
fluxes, cleaning residue of flux is recommended); or Washing our Products by using water
or water-soluble cleaning agents for cleaning residue after soldering
[h] Use of the Products in places subject to dew condensation
4) The Products are not subject to radiation-proof design.
5) Please verify and confirm characteristics of the final or mounted products in using the
Products.
6) In particular, if a transient load (a large amount of load applied in a short period of time,
such as pulse) is applied, confirmation of performance characteristics after on-board mounting
is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the
power rating under steady-state loading condition may negatively affect product performance
and reliability.
7) De-rate Power Dissipation (Pd) depending on Ambient temperature (Ta). When used in
sealed area, confirm the actual ambient temperature.
8) Confirm that operation temperature is within the specified range described in the product
specification.
9) BM shall not be in any way responsible or liable for failure induced under deviant condition
from what is defined in this document.
●Precaution for Mounting / Circuit board design
1) When a highly active halogen us (chlorine, bromine, etc.) flux is used, the residue of flux
may negatively affect product performance and reliability.
2) In principle, the reflow soldering method must be used; if flow soldering method is preferred,
please consult with the BM representative in advance. For details, please refer to BM Mounting
specification
●Precautions Regarding Application Examples and External Circuits
1) If change is made to the constant of an external circuit, please allow a sufficient margin
considering variations of the characteristics of the Products and external components,
15／18
BM43THA80C
Notice
including transient characteristics, as well as static characteristics.
2) You agree that application notes, reference designs, and associated data and information
contained in this document are presented only as guidance for Products use. Therefore, in
case you use such information, you are solely responsible for it and you must exercise your
own independent verification and judgment in the use of such information contained in this
document. BM shall not be in any way responsible or liable for any damages, expenses or
losses incurred by you or third parties arising from the use of such information.
●Precaution for Electrostatic
This Product is electrostatic sensitive product, which may be damaged due to electrostatic
discharge. Please take proper caution in your manufacturing process and storage so that
voltage exceeding the Products maximum rating will not be applied to Products. Please take
special care under dry condition (e.g. Grounding of human body / equipment / solder iron,
isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity
control).
●Precaution for Storage / Transportation
1) Product performance and soldered connections may deteriorate if the Products are stored in
the places where:
[a] the Products are exposed to sea winds or corrosive gases, including Cl2, H2S, NH3,
SO2, and NO2
[b] the temperature or humidity exceeds those recommended by BM
[c] the Products are exposed to direct sunshine or condensation
[d] the Products are exposed to high Electrostatic
2) Even under BM recommended storage condition, solder ability of products out of
recommended storage time period may be degraded. It is strongly recommended to confirm
solder ability before using Products of which storage time is exceeding the recommended
storage time period.
3) Store / transport cartons in the correct direction, which is indicated on a carton with a
symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a
carton.
4) Use Products within the specified time after opening a humidity barrier bag. Baking is
required before using Products of which storage time is exceeding the recommended storage
time period.
●Precaution for Product Label
QR code printed on BM Products label is for BM’s internal use only.
16／18
BM43THA80C
Notice
●Precaution for Disposition
When disposing Products please dispose them properly using an authorized industry waste
company.
●Precaution for Foreign Exchange and Foreign Trade act
Since our Products might fall under controlled goods prescribed by the applicable foreign
exchange and foreign trade act, please consult with BM representative in case of export.
●Precaution Regarding Intellectual Property Rights
1) All information and data including but not limited to application example contained in this
document is for reference only. BM does not warrant that foregoing information or data will not
infringe any intellectual property rights or any other rights of any third party regarding such
information or data. BM shall not be in any way responsible or liable for infringement of any
intellectual property rights or other damages arising from use of such information or data.
2) No license, expressly or implied, is granted hereby under any intellectual property rights or
other rights of BM or any third parties with respect to the information contained in this
document.
●Other Precaution
1) The information contained in this document is provided on an “as is” basis and BM
does not warrant that all information contained in this document is accurate and/or errorfree. BM shall not be in any way responsible or liable for any damages, expenses or losses
incurred by you or third parties resulting from inaccuracy or errors of or concerning such
information.
2) This document may not be reprinted or reproduced, in whole or in part, without prior written
consent of BM.
3) The Products may not be disassembled, converted, modified, reproduced or otherwise
changed without prior written consent of BM.
4) In no event shall you use in any way whatsoever the Products and the related technical
information contained in the Products or this document for any military purposes, including
but not limited to, the development of mass-destruction weapons.
5) The proper names of companies or products described in this document are trademarks
or registered trademarks of BM, its affiliated companies or third parties.
17／18
BM43THA80C
Revision History
6. Revision History
Version
Publication date
Pages
Revise Description
1.0
Oct.2019
18
Initial Document Release
18／18
工商网监
湘ICP备2023018690号
