AUI
SPECIFICATION
For Thermopile Temperature Sensor
TOTAL PAGE 07
www.auimems.com
Customer
Model Name
ATS1-46
Customer P/N
Product No.
19****
Date
11 Nov.2017
Issue No.
Page
01 of 09
Issue Date
RoHS
BS/TEM01.***A
2017.11.11
Approval:
1.Descriptions
2.Features
3.Applications
4.Drawing
5.Parameter
6.Packing
7.History change record
Drawn by
Checked by
Approved by
Customer approved
Audio Unlimited Incorporation CO.,LTD
No.11 qingyang north road, tianning district, changzhou,JiangSu Province,P.R.China
Tel: +86 519 68191786
Fax: +86 519 88222551
E-mail:wu@auimems.com
http:// www.auimems.com
AUI
6
5
4
3
2
1
H
H
ATS1-46
G
G
1. Descriptions
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
F
F

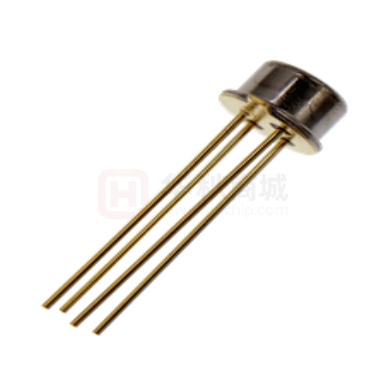

The ATS1-46 is a thermopile temperature sensor based on MEMS
(Micro-ElectroMechanical Systems) technology. This thermopile detector
consists of a thermopile MEMS chip, a F5.5 infrared band pass filter, a NTC
thermistor for temperature compensation and a small size TO-46 package.
E
E
2. Features
Non-contact surface temperature measuring
TO housing with an F5.5 infrared filter
Using NTC thermistor for ambient temperature compensation
Suitable for human body temperature detecting and Industrial
temperature measurement
Fast response time
High sensitivity
D
D
3.Applications
Non-contact infrared thermometer
Microwave oven
Automatic induction equipment
Heating, Ventilation and Air Conditioning(HVAC)
Appliance
C
C
B
B
2017.11.11
Date:
A
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Drawn by:
王焕焕
Checked by:
徐
Approved by:
徐金国
波
www.auimems.com wu@auimems.com
6
文件号:BS/QDTE045B
5
4
ATS1-46
3
Sensor
DRG NO: BS/TEM01.***A
2
A
Page:2 of 7
1
AUI
6
H
5
4
2
3
1
H
ATS1-46
4.Drawing
1.3±0.05
0
1-0.07
G
14
2.4±0.05
Ø2.5±0.05
2.85±0.05
G
F
F
Ø4.6+0.02
-0.03
1.8
Unit: mm
E
E
45°
Ø2.54±0.05
Description
Pin No.
2(TH)
D
3(TP-)
1(TP+)
4(NC)
2(TH)
6.26±0.1
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
2-Ø0.45±0.03
Ø5.5±0.05
3(TP-)
1(TP+)
4(NC)
Thermopile+(TP+)
Thermistor(TH)
1
2
3
Thermopile-(TP-)
4
GND
D
Bottom
C
C
Pin Function Description
1 Thermopile+(TP+) : Thermopile Output DC Voltage+ pin.
2 Thermistor(TH): Ambient Temperature Compensation Resistance+ pin.
3 Thermopile-(TP-): Thermopile Output DC Voltage- pin.
4 GND: Ambient Temperature Compensation Resistance- pin and GND.
B
B
Notes
Tolerance±0.15mm unless otherwise specified.
2017.11.11
Date:
Drawn by:
A
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Checked by:
徐
Approved by:
徐金国
波
www.auimems.com wu@auimems.com
6
文件号:BS/QDTE045B
5
4
ATS1-46
王焕焕
3
Sensor
DRG NO: BS/TEM01.***A
2
Page:3 of 7
1
A
AUI
6
H
5
4
2
3
1
H
ATS1-46
5. Parameter
5.1 Thermopile parameter
G
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
F
E
Specification
Condition
Min.
Typ.
Max.
Chip Size
1.85*1.85
Active Area
0.7X0.7
Responsivity
Black body=500K,1HZ @temp=25℃
63
Detectivity
Black body=500K,1HZ @temp=25℃
1.21E08
NEP
Black body=500K,1HZ @temp=25℃
0.56
Voltage Response Black body=500K,1HZ @temp=25℃
29
Thermopile Res @temp=25℃
65
75
85
TC of Thermopile
-0.11
Noise Voltage
@temp=25℃
33
35
37
Time Constant
16
Field of View(FOV) Degree at 50% signal level
83
Operating Temp
-40~120
Storage Temp
-40~120
Thermistor Resistance @temp=25
100 +1.5%
TC of Thermistor(B) Defined at 25/50℃
3950 ±1%
G
Unit
mm²
mm²
V/W
cm·Hz½ /W
nW·Hz½
V·mm²/W
kΩ
%/℃
nV/Hz½
ms
°
℃
℃
kΩ
K
F
E
5.2. NT Temperature VS Resistance Table
Rmin(kΩ)
3073.524
1644.113
912.905
524.122
311.198
191.179
120.819
97.000
77.949
51.246
34.450
23.673
16.576
11.812
8.546
6.275
4.671
3.523
Temp.( )
-40
-30
-20
-10
0
10
20
25
30
40
50
60
70
80
90
100
110
120
D
C
B
Drawn by:
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Checked by:
徐
Approved by:
徐金国
文件号:BS/QDTE045B
5
4
波
3
D
C
B
ATS1-46
王焕焕
www.auimems.com wu@auimems.com
6
Rmax(kΩ)
3499.634
1848.539
1014.286
575.836
338.322
205.806
128.863
103.000
83.130
55.108
37.339
25.850
18.229
13.076
9.522
7.034
5.267
3.995
2017.11.11
Date:
A
Rnor(kΩ)
3281.143
1744.117
962.695
549.618
324.623
198.447
124.832
100.000
80.534
53.166
35.882
24.749
17.391
12.433
9.024
6.647
4.963
3.753
Sensor
DRG NO: BS/TEM01.***A
2
A
Page:4 of 7
1
AUI
6
5
4
3
2
1
ATS1-46
H
H
5.3 Filter Transmission Curve
transmittance %
G
F
F
E
E
μm
5.4 Sensitivity Output Curve
D
D
output mv
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
G
C
C
B
B
Temperature( )
Object Temperature(℃)@Tamb.=25℃
2017.11.11
Date:
Drawn by:
A
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Checked by:
徐
Approved by:
徐金国
波
www.auimems.com wu@auimems.com
6
文件号:BS/QDTE045B
5
4
ATS1-46
王焕焕
3
Sensor
DRG NO: BS/TEM01.***A
2
A
Page:5 of 7
1
AUI
6
5
4
3
2
1
ATS1-46
H
H
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
6.Packing
G
G
F
F
TBD
E
E
D
D
C
C
B
B
Notes
All dimensions are in millimeter(mm).
2017.11.11
Date:
Drawn by:
A
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Checked by:
徐
Approved by:
徐金国
波
www.auimems.com wu@auimems.com
6
文件号:BS/QDTE045B
5
4
ATS1-46
王焕焕
3
Sensor
DRG NO: BS/TEM01.***A
2
A
Page:6 of 7
1
AUI
6
4
5
2
3
1
ATS1-46
H
H
7. History change record
version
No.
Change Items
Date
G
This print and information there in are proprietary to Audio Unlimited Incorporation Co., Ltd.
and shall not be used in whole or in part without its written content
Drawn
Approved
After
Before
2017.11.11
王焕焕
G
徐金国
F
F
E
E
D
D
C
C
B
B
2017.11.11
Date:
Drawn by:
A
A
2017.11.11
Date
Rev.
王焕焕
Drawn
Note
Checked by:
徐
Approved by:
徐金国
波
www.auimems.com wu@auimems.com
6
文件号:BS/QDTE045B
5
4
ATS1-46
王焕焕
3
Sensor
DRG NO: BS/TEM01.***A
2
A
Page:7 of 7
1
很抱歉,暂时无法提供与“ATS1-46”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+6.67001
- 30+6.44001
- 100+5.98001
- 500+5.52000
- 1000+5.29000
