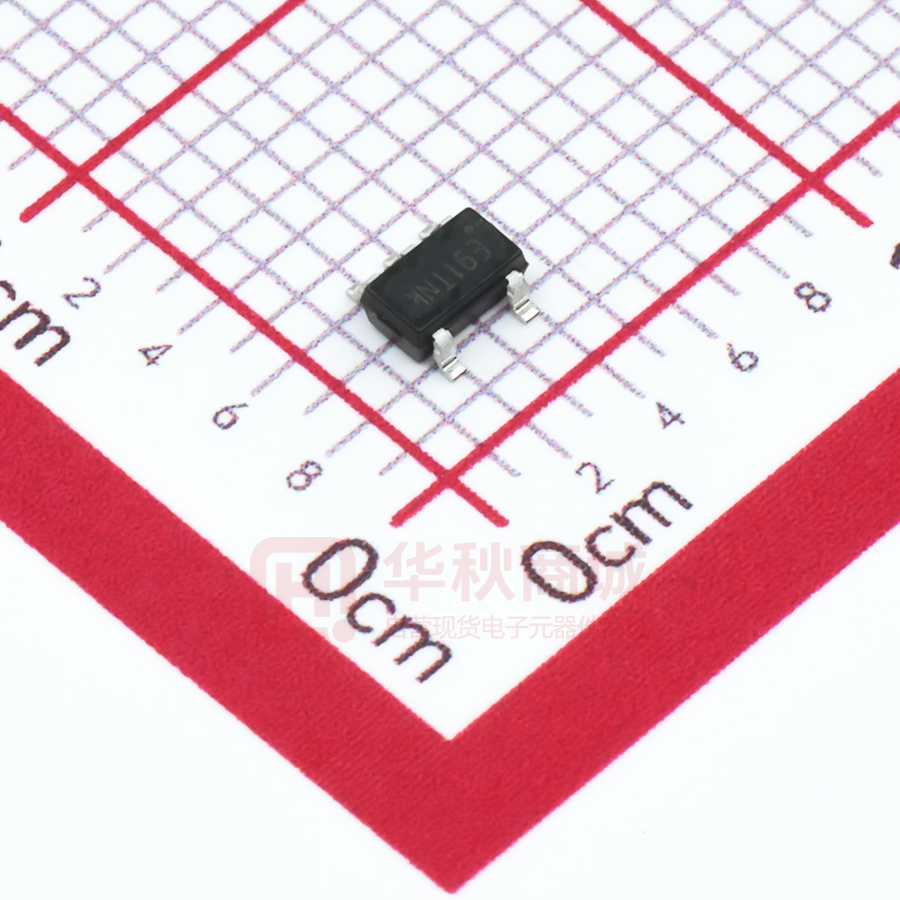

3PEAK TP5591 / TP5592 / TP5594 Low Noise, 1.8V, 3.3MHz, RRIO, Zero Drift Op-amps Description Features  LOW OFFSET VOLTAGE: 20 μV (Max)  ZERO DRIFT: 0.01 µV/°C  Ultra-low Noise: - Input Noise Voltage: 17 nV/√Hz at 1 kHz - 0.1Hz to 10Hz Noise Voltage: 370 nVPP - 1/f Noise Corner Down to 0.1Hz  3.3 MHz Bandwidth, 2.5 V/μs Slew Rate  Low Supply Current: 470 μA per Amplifier  Single-Supply Operation Down to +1.8V  Low Input Bias Current: 60 pA  High Gain, 127 dB High CMRR & PSRR  Overload Recovery Time: 35 μs  Rail-to-Rail Input and Output Swing  –40°C to 125°C Operation Range The TP5591-2-4 amplifiers are single, dual and quad chopper stabilized zero-drift operational amplifiers optimized for single or dual supply operation from 1.8V to 5.5V or ±0.9V to ±2.75V. The TP559x op-amps feature very low input offset voltage and low noise with 1/f noise corner down to 0.1Hz. The TP559x amplifiers are designed to have low offset voltage and offset temperature drift, wide gain bandwidth and rail-to-rail input and output swing while minimizing power consumption. The TP559x op-amps can provide low offset voltage (20μV Max) and near-zero drift over time and temperature with excellent CMRR and PSRR. The TP5591 (single version) is available in SC70-5, SOT23-5 and SO-8 packages. The TP5592 (dual version) is offered in MSOP-8, SO-8 package. The TP5594 (quad version) is available in TSSOP-14 and SO-14 package. All versions are specified for operation from -40°C to 125°C. 3PEAK and the 3PEAK logo are registered trademarks of Applications 3PEAK INCORPORATED. All other trademarks are the property of their respective owners.  Medical Instrumentation      Temperature Measurements Precision current sensing Precision Low Drift, Low Frequency ADC Drivers Process Control Systems Precision Voltage Reference Buffers Pin Configuration (Top View) TP5591 5-Pin SOT23/SC70 TP5591 8-Pin SOIC TP5592 8-Pin SOIC/MSOP TP5594 14-Pin SOIC/TSSOP (-T and -C Suffixes) (-S Suffix) (-S and -V Suffixes) (-S and -T Suffixes) Out 1 ﹣Vs 2 +In 3 5 4 ﹢Vs -In NC 1 8 NC Out A 1 ﹣In 2 7 ﹢Vs ﹣In A 2 ﹢In ﹣Vs TP5591U 5-Pin SC70/SOT23 1 ﹣Vs 2 -In 3 4 6 5 Out NC ﹢In A ﹣Vs 3 4 B ﹢Vs Out A 1 7 Out B ﹣In A 2 ﹢In A 3 ﹢Vs 6 5 ﹣In B ﹢In B 14 Out D 13 ﹣In D 12 ﹢In D 4 11 ﹣Vs ﹢In B 5 10 ﹢In C ﹣In B 6 9 ﹣In C Out B 7 8 Out C A B (-C and -T Suffixes) +In 3 A 8 5 ﹢Vs 4 Out www.3peakic.com.cn REV A.02 D C 1 TP5591 / TP5592 / TP5594 Low Noise, 1.8V, 3.3MHz, RRIO, Zero Drift Op-amps Order Information Op-amps Model Name TP5591 TP5591U TP5592 TP5594 Order Number Package Marking Information Transport Media, Quantity TP5591-TR SOT23-5 Tape and Reel, 3,000 E91T TP5591-CR SC70-5 Tape and Reel, 3,000 91C TP5591-SR SOIC-8 Tape and Reel, 4,000 TP5591 TP5591U-CR SC70-5 Tape and Reel, 3,000 91V TP5591U-TR SOT23-5 E91U TP5592-SR SOIC-8 Tape and Reel, 3,000 Tape and Reel, 4,000 TP5592 TP5592-VR MSOP-8 Tape and Reel, 3,000 TP5592 TP5594-SR SOIC-14 Tape and Reel, 2,500 TP5594 TP5594-TR TSSOP-14 Tape and Reel, 3,000 TP5594 Absolute Maximum Ratings Note 1 Supply Voltage: .....................................................6V – Current at Supply Pins……………............... ±50mA Input Voltage: ....................... ……V – 0.1 to V + 0.1 Operating Temperature Range.......–40°C to 125°C Input Current: +IN, –IN + Note 2 ........................... ±20mA Maximum Junction Temperature................... 150°C Output Current: OUT...................................... ±60mA Storage Temperature Range.......... –65°C to 150°C …....... Indefinite Lead Temperature (Soldering, 10 sec) ......... 260°C Output Short-Circuit Duration Note 3 Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 500mV beyond the power supply, the input current should be limited to less than 10mA. Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD, Electrostatic Discharge Protection 2 Symbol Parameter Condition HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 7 kV CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 2 kV REV A.02 Minimum Level Unit www.3peakic.com.cn TP5591 / TP5592 / TP5594 Electrical Characteristics Low Noise, 1.8V, 3.3MHz, RRIO, Zero Drift Op-amps At TA = 27° C, VS = 5V, RL = 10kΩ, VCM = VDD/2, unless otherwise noted. SYMBOL PARAMETER VS Supply voltage range IQ Quiescent current per amplifier VOS Input offset voltage dVOS/dT vs. temperature PSRR vs power supply Vn en UNITS 5.5 V TP5591 1200 1400 μA TP5592/4 550 950 μA VCM = 0.05V to 4.95V ±5 ±20 μV VS = 1.8V, VCM = 0.9V ±5 ±20 μV dB Input voltage noise, f=0.01Hz to 1Hz 0.1 μVpp Input voltage noise, f=0.1Hz to 10Hz 0.37 μVpp 17 nV/√Hz 3 2 ±60 ±800 ±100 pF pF pA pA pA V dB mV mA MHz V/μs μs μs Vs = 3V to 5V 95 Input voltage noise density, f=1kHz Open-loop voltage gain θJA 1.8 MAX 130 AVOL IOS VCM CMRR TYP μV/°C ISC GBWP SR tOR tS IB MIN 0.01 Input capacitor differential Input capacitor common-mode Input current Over temperature Input offset current Common-mode voltage range Common-mode rejection ratio Output voltage swing from rail Short-circuit current Unity gain bandwidth Slew rate Overload recovery time Settling time to 0.01% CIN CONDITIONS Thermal resistance junction to ambient www.3peakic.com.cn VCM = 0.5V to 4.5V RL=10kΩ CL=100pF G=+1, CL=100pF G=-10 CL=100pF (V-)+100mV
