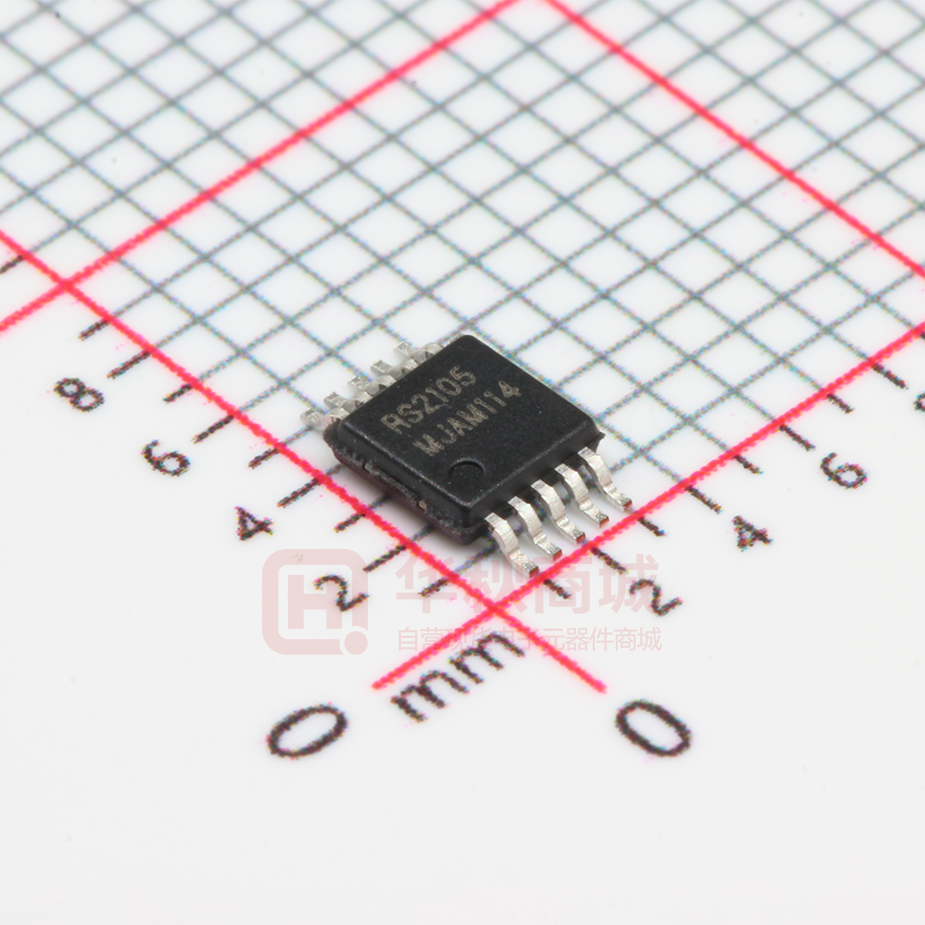

RS2105 Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch FEATURES DESCRIPTION • -3dB Bandwidth: 30MHz • High Speed, Typically 50ns • Supply Range: +1.8V to +5.5V • Low ON-State Resistance, 0.6Ω(TYP) • Break-Before-Make Switching The RS2105 is a dual, low on-resistance, single-pole double-throw (SPDT) analog switch that is designed to operate from1.8 V to 5.5 V. The RS2105 device can handle both analog and digital signals. It features fast switching speeds (50ns) and • Rail-to-Rail Operation low on-resistance (0.6Ω TYP). • TTL/CMOS Compatible • Extended Industrial Temperature Range: -40°C to +125°C Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. APPLICATIONS • Wearable Devices • Battery-Operated Equipment • Signal Gating, Chopping, Modulation or Demodulation (Modem) • Portable Computing • Cell Phones PIN CONFIGURATIONS RS2105 FUNCTION TABLE LOGIC 0 1 NO OFF ON V+ 1 10 NO2 NO1 2 9 COM2 COM1 3 8 IN2 IN1 4 7 NC2 NC1 5 6 GND NC ON OFF MSOP-10 RS2105 PIN DESCRIPTION NAME PIN V+ NO1, NO2 1 2, 10 Power Supply Normally-Open Terminal COM1 COM2 3, 9 Common Terminal IN1, IN2 NC1, NC2 GND 4, 8 5, 7 6 Digital Control Pin Normally-Closed Terminal Ground REV C.2 FUNCTION V+ 1 10 NO2 NO1 2 9 COM2 COM1 3 8 IN2 IN1 4 7 NC2 NC1 5 6 GND TDFN-3x3-10L 1 www.run-ic.com RS2105 ABSOLUTE MAXIMUM RATINGS (1) V+, IN to GND..................................................-0.3V to 6.0V Analog, Digital Voltage Range (2) …......– 0.3 to (V+) + 0.3V Continuous Current NO, NC, or COM……......…... ±500mA Peak Current NO, NC, or COM……........….....…... ±800mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….…….…… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C MSOP-10……….………………………………….... 204°C/W TDFN-3x3-10L………….……….………...……….…40°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................1000V MM ……………………….........………………...……….300V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.3V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER TEMPERATURE RANGE PACKAGE LEAD PACKAGE MARKING PACKAGE OPTION RS2105XN -40℃~125℃ MSOP-10 RS2105 Tape and Reel,3000 RS2105XTDC10 -40℃~125℃ TDFN-3x3-10L RS2105 Tape and Reel,5000 RS2105 2 www.run-ic.com RS2105 ELECTRICAL CHARACTERISTICS V+ = 5.0 V, TA= –40°C to 125°C (unless otherwise noted) PARAMETER SYMBOL CONDITIONS V+ TA MIN FULL 0 TYP MAX UNITS ANALOG SWITCH Analog Signal Range On-Resistance On-Resistance Match Between Channels On-Resistance Flatness VNO, VNC, VCOM RON ∆RON RFLAT(ON) 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 NC,NO OFF Leakage Current INC(OFF), INO(OFF) VNO or VNC = 0.3V, V+/2 VCOM = V+/2, 0.3V See Figure 2 NC,NO,COM ON Leakage Current INC(ON), INO(ON), VNO or VNC = 0.3V, Open VCOM = ICOM(ON) Open, 0.3V See Figure 2 V+ V 1.0 Ω 1.2 Ω 1.5 Ω 1.7 Ω 0.1 Ω 0.12 Ω 0.1 Ω 0.12 Ω 0.3 Ω 0.4 Ω 0.7 Ω FULL 0.8 Ω 1.8 to 5.5V FULL 1 μA 1.8 to 5.5V FULL 1 μA 5V FULL 1.5 V 3.3V FULL 1.3 V 5V FULL 0.6 V 3.3V FULL 0.5 V 1.8 to 5.5V FULL 1 μA 5V 3.3V 5V 3.3V 5V 3.3V 0.6 +25℃ FULL 1.0 +25℃ FULL 0.04 +25℃ FULL 0.04 +25℃ FULL 0.18 +25℃ FULL 0.54 +25℃ DIGITAL CONTROL INPUTS(1) Input High Voltage VINH Input Low Voltage VINL Input Leakage Current IIN VIN = VIO or 0 (1) All unused digital inputs of the device must be held at VIO or GND to ensure proper device operation. 3 www.run-ic.com RS2105 ELECTRICAL CHARACTERISTICS (continued) V+ = 5.0 V, TEMP= –40°C to 125°C (unless otherwise noted)) PARAMETER SYMBOL CONDITIONS V+ 5V 3.3V 5V 3.3V 5V 3.3V TEMP MIN TYP MAX UNITS DYNAMIC CHARACTERISTICS Turn-On Time tON VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Turn-Off Time tOFF VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Break-Before-Make Time Delay tBBM VNO1 = VNC1 = VNO2 = VNC2 = 3V, RL = 300Ω, CL = 35pF,See Figure 6 Off Isolation OISO RL = 50Ω, Switch OFF, f = 100KHz See Figure 8 f = 10KHz -3dB Bandwidth NC,NO OFF Capacitance NC,NO,COM ON Capacitance BW CNC(OFF), CNO(OFF) CNC(ON), CNO(ON), CCOM(ON) Switch ON, RL = 50Ω See Figure 7 VNC or VNO=V+/2 or GND, Switch OFF See Figure 4 VNC or VNO=V+/2 or GND, Switch ON See Figure 4 50 50 15 17 10 11 +25℃ +25℃ +25℃ ns ns ns +25℃ -68 dB +25℃ -86 dB +25℃ 30 MHz +25℃ 80 pF +25℃ 350 pF POWER REQUIREMENTS Power Supply Range V+ Power Supply Current I+ FULL VIN = GND or V+ 5.5V 4 FULL 1.8 5.5 V 1 μA www.run-ic.com RS2105 TYPICAL CHARACTERISTICS BANDWIDTH 3 3 0 0 Gain(dB) Gain(dB) BANDWIDTH -3 -3 -6 -6 -9 -9 0 1 10 100 0 1 Frequency(MHz) V+=3V 10 100 Frequency(MHz) V+=5V Typical ron as a Function of Input Voltage (VI ) for VI = 0 to V+ Ron(Ω) 10 1 0.1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VI(V) V+=5.5V V+=4V V+=3.3V 5 V+=2.5V V+=1.8V www.run-ic.com RS2105 Parameter Measurement Information Figure 1.ON-State Resistance (ron) Figure 2.OFF-State Leakage Current (ICOM(OFF), INO(OFF)) Figure 3.ON-State Leakage Current (ICOM(ON), INO(ON)) 6 www.run-ic.com RS2105 Figure 4.Capacitance (CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON)) Figure 5.Turn-On (tON) and Turn-Off Time (tOFF) Figure 6.Break-Before-Make Time (tBBM) 7 www.run-ic.com RS2105 Figure 7.Bandwidth (BW) Figure 8.OFF Isolation (OISO) Figure 9.Crosstalk (XTALK) 8 www.run-ic.com RS2105 Figure 10.Charge Injection (QC) Figure11.Total Harmonic Distortion (THD) 9 www.run-ic.com RS2105 PACKAGE OUTLINE DIMENSIONS MSOP-10 b e E 4.65 E1 1.02 0.31 D 0.5 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol A c L Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.180 0.280 0.007 0.011 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.50(BSC) 0.020(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 10 www.run-ic.com RS2105 TDFN-3x3-10L E e K D E1 L b N5 N1 D1 TOP VIEW BOTTOM VIEW 2.8 A1 A2 1.7 A 0.6 2.4 SIDE VIEW 0.24 0.5 RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.203 0.008 b 0.180 0.300 0.007 0.012 D 2.900 3.100 0.114 0.122 D1 2.300 2.600 0.091 0.103 E 2.900 3.100 0.114 0.122 E1 1.500 1.800 0.059 0.071 e 0.500 TYP 0.020 TYP k 0.200 MIN 0.008 MIN L 0.300 0.500 11 0.012 0.020 www.run-ic.com
