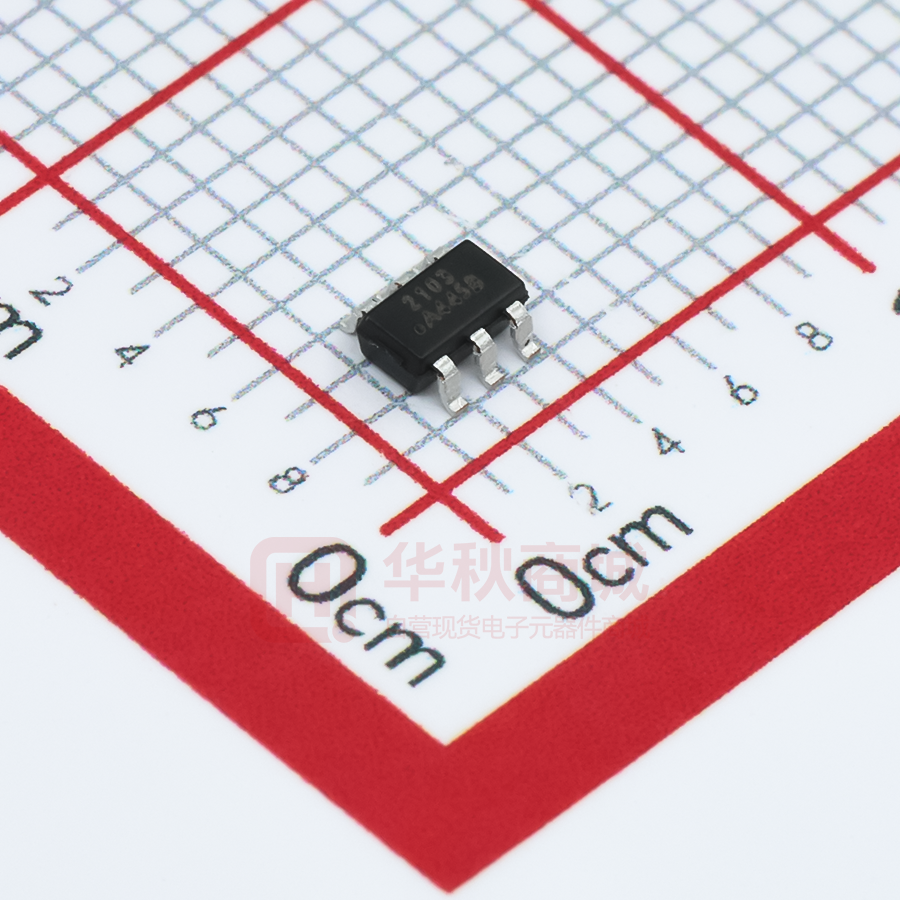

RS2103XH

RS2103 Ultra Low ON-Resistance, Low Voltage, SPDT Analog Switch FEATURES DESCRIPTION • -3dB Bandwidth: 30MHz • High Speed, Typically 50ns • Supply Range: +1.8V to +5.5V • Low ON-State Resistance, 0.6Ω(TYP) • Break-Before-Make Switching • Rail-to-Rail Operation The RS2103 device can handle both analog and digital signals. It features fast switching speeds (50ns) and • TTL/CMOS Compatible low on-resistance (0.6Ω TYP). • Extended Industrial Temperature Range: -40°C to +125°C • MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6 The RS2103 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. APPLICATIONS • Wearable Devices • Battery-Operated Equipment • Signal Gating, Chopping, Modulation or Demodulation (Modem) • Portable Computing • Cell Phones PIN CONFIGURATIONS RS2103 IN 1 6 NO V+ 2 5 COM GND 3 4 NC FUNCTION TABLE LOGIC 0 1 NO OFF ON SOT23-6/ SOT363(SC70-6) NC ON OFF RS2103 PIN DESCRIPTION NAME PIN (6) PIN (8) IN V+ GND NC COM NO 1 2 3 4 5 6 6 4 3 2 1 8 RevC.1 FUNCTION Digital Control Pin Power Supply Ground Normally-Closed Terminal Common Terminal Normally-Open Terminal COM 1 8 NO NC 2 7 N.C. GND 3 6 IN V+ 4 5 N.C. N.C.=NO CONNECT MSOP-8 1 www.run-ic.com RS2103 ABSOLUTE MAXIMUM RATINGS (1) V+, IN to GND..................................................-0.3V to 7.0V Analog, Digital Voltage Range (2) …......– 0.3 to (V+) + 0.3V Continuous Current NO, NC, or COM……......…... ±500mA Peak Current NO, NC, or COM……........…..... . ... ±800mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….…….…… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C SOT23-5, SOT23-6………………….………………200°C/W MSOP-10, SOIC-8 ,TSSOP-8……….………….... 150°C/W SOIC-14, TSSOP-14………….……….……………100°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................1000V MM ……………………….........………………...……….100V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.3V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER RS2103 TEMPERATURE PACKAGE PACKAGE RANGE LEAD MARKING RS2103XC6 -40℃~125℃ RS2103XH -40℃~125℃ RS2103XM -40℃~125℃ SOT363 PACKAGE OPTION 2103X Tape and Reel,3000 SOT23-6 2103 Tape and Reel,3000 MSOP-8 RS2103 Tape and Reel,3000 (SC70-6) NOTE: X = Date Code MARKING INFORMATION 2103 X Date code Product name 2 www.run-ic.com RS2103 ELECTRICAL CHARACTERISTICS V+ = 5.0 V, TA= –40°C to 125°C (unless otherwise noted) PARAMETER SYMBOL CONDITIONS V+ TA MIN FULL 0 TYP MAX UNITS ANALOG SWITCH Analog Signal Range On-Resistance On-Resistance Match Between Channels On-Resistance Flatness VNO, VNC, VCOM RON ∆RON RFLAT(ON) 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 0 ≤ (VNO or VNC) ≤V+, ICOM = -10mA, Switch ON, See Figure 1 NC,NO OFF Leakage Current INC(OFF), INO(OFF) VNO or VNC = 0.3V, V+/2 VCOM = V+/2, 0.3V See Figure 2 NC,NO,COM ON Leakage Current INC(ON), INO(ON), VNO or VNC = 0.3V, Open VCOM = ICOM(ON) Open, 0.3V See Figure 2 V+ V 1.0 Ω 1.2 Ω 1.5 Ω 1.7 Ω 0.1 Ω 0.12 Ω 0.1 Ω 0.12 Ω 0.3 Ω 0.4 Ω 0.7 Ω FULL 0.8 Ω 1.8 to 5.5V FULL 1 μA 1.8 to 5.5V FULL 1 μA 5V FULL 1.5 V 3.3V FULL 1.3 V 5V FULL 0.6 V 3.3V FULL 0.5 V 1.8 to 5.5V FULL 1 μA 5V 3.3V 5V 3.3V 5V 3.3V 0.6 +25℃ FULL 1.0 +25℃ FULL 0.04 +25℃ FULL 0.04 +25℃ FULL 0.18 +25℃ FULL 0.54 +25℃ DIGITAL CONTROL INPUTS(1) Input High Voltage VINH Input Low Voltage VINL Input Leakage Current IIN VIN = VIO or 0 (1) All unused digital inputs of the device must be held at VIO or GND to ensure proper device operation. 3 www.run-ic.com RS2103 ELECTRICAL CHARACTERISTICS (continued) V+ = 5.0 V, TEMP= –40°C to 125°C (unless otherwise noted) PARAMETER SYMBOL CONDITIONS V+ TEMP MIN TYP MAX UNITS DYNAMIC CHARACTERISTICS Turn-On Time tON VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Turn-Off Time tOFF VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Break-Before-Make Time Delay tBBM VNO1 = VNC1 = VNO2 = VNC2 = 3V, RL = 300Ω, CL = 35pF,See Figure 6 Off Isolation OISO RL = 50Ω, Switch OFF, f = 100KHz See Figure 8 f = 10KHz -3dB Bandwidth NC,NO OFF Capacitance NC,NO,COM ON Capacitance BW CNC(OFF), CNO(OFF) CNC(ON), CNO(ON), CCOM(ON) 5V 3.3V 5V 3.3V 5V 3.3V Switch ON, RL = 50Ω See Figure 7 VNC or VNO=V+/2 or GND, Switch OFF See Figure 4 VNC or VNO=V+/2 or GND, Switch ON See Figure 4 50 50 15 17 10 11 +25℃ +25℃ +25℃ ns ns ns +25℃ -68 dB +25℃ -86 dB +25℃ 30 MHz +25℃ 80 pF +25℃ 350 pF POWER REQUIREMENTS Power Supply Range V+ Power Supply Current I+ FULL VIN = GND or V+ 5.5V 4 FULL 1.8 5.5 V 1 μA www.run-ic.com RS2103 TYPICAL CHARACTERISTICS BANDWIDTH 3 3 0 0 Gain(dB) Gain(dB) BANDWIDTH -3 -3 -6 -6 -9 -9 0 1 10 100 0 1 Frequency(MHz) V+=3V 10 100 Frequency(MHz) V+=5V Typical ron as a Function of Input Voltage (VI ) for VI = 0 to V+ Ron(Ω) 10 1 0.1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VI(V) V+=5.5V V+=4V V+=3.3V 5 V+=2.5V V+=1.8V www.run-ic.com RS2103 Parameter Measurement Information Figure 1.ON-State Resistance (ron) Figure 2.OFF-State Leakage Current (ICOM(OFF), INO(OFF)) Figure 3.ON-State Leakage Current (ICOM(ON), INO(ON)) 6 www.run-ic.com RS2103 Figure 4.Capacitance (CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON)) Figure 5.Turn-On (tON) and Turn-Off Time (tOFF) Figure 6.Break-Before-Make Time (tBBM) 7 www.run-ic.com RS2103 Figure 7.Bandwidth (BW) Figure 8.OFF Isolation (OISO) Figure 9.Crosstalk (XTALK) 8 www.run-ic.com RS2103 Figure 10.Charge Injection (QC) Figure11.Total Harmonic Distortion (THD) 9 www.run-ic.com RS2103 PACKAGE OUTLINE DIMENSIONS SOT363 (SC70-6) D 1.30 b 1.9 E E1 0.75 Pin1 Index Area 0.65 0.4 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters L1 Dimensions In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650(BSC) 0.026(BSC) e1 1.300(BSC) 0.051(BSC) L 0.260 L1 θ 0.460 0.010 0.525 0° 0.018 0.021 8° 10 0° 8° www.run-ic.com RS2103 SOT23-6 D 1.90 b 2.59 E E1 0.99 Pin1 Index Area 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 11 www.run-ic.com RS2103 MSOP-8 b e E E1 4.8 1.02 D 0.65 0.41 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.650(BSC) 0.026(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 12 www.run-ic.com
