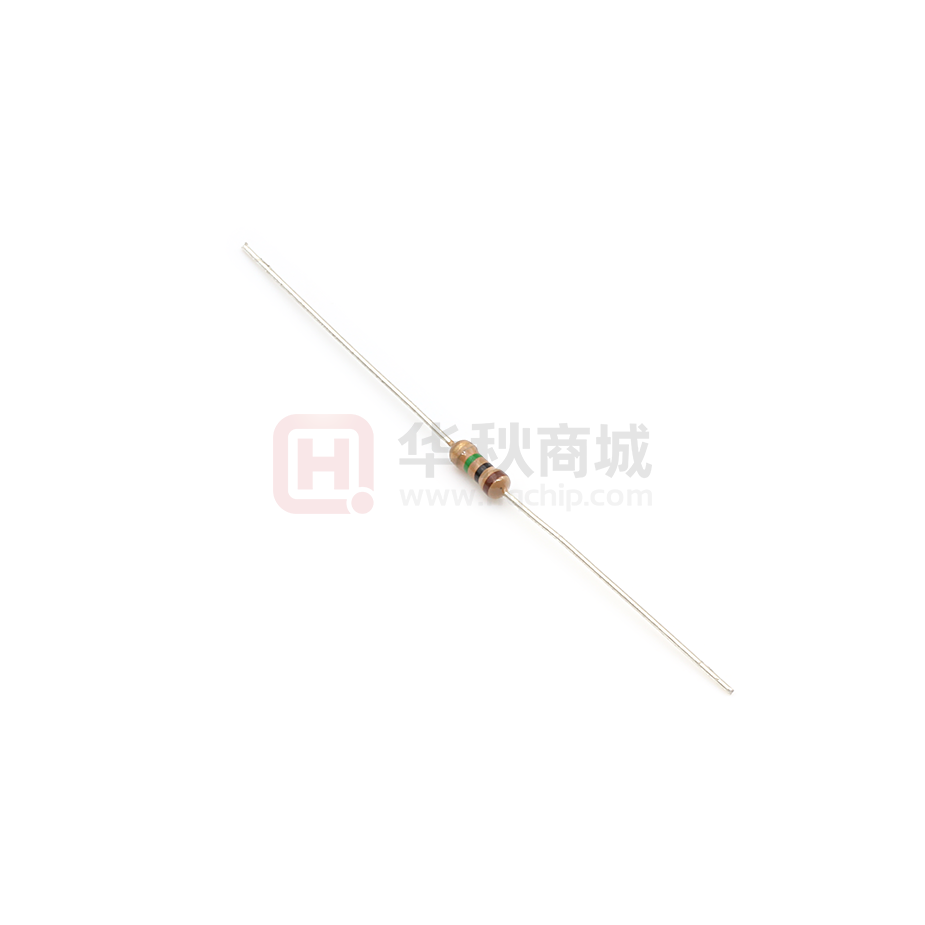

CF14JT1M00

CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Features: • • • • • • • • • • General purpose resistor ideal for commercial/industrial applications Flame retardant coatings standard Flameproof version available as CFF Panasert available on selected sizes - contact factory Auto sequencing/insertion compatible CFM (mini) ideal choice when size constraints apply Cut and formed product is available on select sizes - contact factory Standard lead wire for CF / CFM is copper plated steel, with 100% tin over plate 100% tin plate on copper wire is available as type CFQ / CFQM RoHS compliant, lead free and halogen free Electrical Specifications - CF Maximum Power Rating Working Type/Code (Watts) @ 70ºC Voltage (1) CF18 0.125 W 250 V CF14 0.25 W 350 V CF12 0.5 W 350 V CF1 1W 500 V CF2 2W 500 V (1) Lesser of √P*R or maximum working voltage. Maximum Overload Voltage 500 V 600 V 700 V 1,000 V 1,000 V Dielectric Withstanding Voltage 350 V 350 V 600 V 600 V 600 V Resistance Temperature Coefficient per Ohmic Range < 10 Ω 10 Ω to 9.99 K Ω 10 K Ω to 99 K Ω 100 K Ω to 999 K Ω 1 M Ω and above = = = = = ±400 ppm/ºC 0 ~ -400 ppm/ºC 0 ~ -500 ppm/ºC 0 ~ -850 ppm/ºC 0 ~ -1500 ppm/ºC Ohmic Range (Ω) and Tolerance 2% 10 - 1 M 1-1M 10 - 1 M 1-1M 1-1M 5% 1 - 22 M 1 - 22 M 1 - 22 M 1 - 10 M 1 - 10 M Electrical Specifications - CFM Type/Code Power Rating (Watts) @ 70ºC Maximum Working Voltage (1) CFM14 0.25 W 250 V 500 V 350 V CFM12 0.5 W 350 V 600 V 350 V CFM1 1W 600 V 1,000 V 600 V Maximum Overload Voltage Dielectric Withstanding Voltage Resistance Temperature Coefficient per Ohmic Range < 10 Ω 10 Ω to 9.99 K Ω 10 K Ω to 99 K Ω 100 K Ω to 999 K Ω 1 M Ω and above = = = = = ±400 ppm/ºC 0 ~ -400 ppm/ºC 0 ~ -500 ppm/ºC 0 ~ -850 ppm/ºC 0 ~ -1500 ppm/ºC Ohmic Range (Ω) and Tolerance 2% 5% 1-1M 1 - 10 M 1-1M 1 - 10 M 1-1M 1 - 10 M (1) Lesser of √P*R or maximum working voltage. Mechanical Specifications – CF / CFQ Type / Code CF18 / CFQ18 CF14 / CFQ14 CF12 / CFQ12 CF1 / CFQ1 CF2 / CFQ2 A Body Length 0.130 ± 0.012 3.30 ± 0.30 0.236 ± 0.012 6.00 ± 0.30 0.335 ± 0.039 8.50 ± 1.00 0.433 ± 0.039 11.00 ± 1.00 0.591 ± 0.039 15.00 ± 1.00 B Body Diameter 0.067 ± 0.012 1.70 ± 0.30 0.091 ± 0.012 2.30 ± 0.30 0.106 ± 0.020 2.70 ± 0.50 0.177 ± 0.020 4.50 ± 0.50 0.197 ± 0.020 5.00 ± 0.50 Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. C Lead Length (Bulk) 1.102 ± 0.118 28.00 ± 3.00 1.102 ± 0.118 28.00 ± 3.00 1.102 ± 0.118 28.00 ± 3.00 1.181 ± 0.118 30.00 ± 3.00 1.339 ± 0.157 34.00 ± 4.00 1 D - Lead Diameter CF / CFM 0.016 ± 0.003 0.40 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.031 ± 0.004 0.80 ± 0.10 0.031 ± 0.004 0.80 ± 0.10 D - Lead Diameter CFQ / CFQM 0.018 ± 0.003 0.45 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.031 ± 0.004 0.80 ± 0.10 0.031 ± 0.004 0.80 ± 0.10 Unit inches mm inches mm inches mm inches mm inches mm www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Mechanical Specifications – CFM / CFQM A Body Length 0.130 ± 0.012 3.30 ± 0.30 0.236 ± 0.012 6.00 ± 0.30 0.354 ± 0.020 9.00 ± 0.50 Type / Code CFM14 / CFQM14 CFM12 / CFQM12 CFM1 / CFQM1 B Body Diameter 0.067 ± 0.012 1.70 ± 0.30 0.091 ± 0.012 2.30 ± 0.30 0.138 ± 0.020 3.50 ± 0.50 C Lead Length (Bulk) 1.102 ± 0.118 28.00 ± 3.00 1.102 ± 0.118 28.00 ± 3.00 1.102 ± 0.118 28.00 ± 3.00 D - Lead Diameter CF / CFM 0.016 ± 0.003 0.40 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.028 ± 0.002 0.70 ± 0.05 D - Lead Diameter CFQ / CFQM 0.018 ± 0.003 0.45 ± 0.08 0.022 ± 0.003 0.55 ± 0.08 0.028 ± 0.002 0.70 ± 0.05 Unit inches mm inches mm inches mm Performance Characteristics Test Test Method Typical Result Test Limit 1 Ω ~ 91 K Ω 100 K Ω ~ 910 K Ω 1 M Ω ~ 22 M Ω 1 Ω ~ 91 K Ω 100 K Ω ~ 910 K Ω 1 M Ω ~ 22 M Ω Current Noise MIL-STD 202, Method 308 Short Time Overload JIS C5201-1, IEC60115-1, 4.13 < ± 0.25% ≤ ± (0.75% + 0.05 Ω) 0.15 μ V/V 0.32 μ V/V 0.54 μ V/V 0.2 μ V/V 0.4 μ V/V 0.6 μ V/V Resistance to Solder Heat JIS C5201-1, IEC60115-1, 4.18 < ± 0.3% ≤ ± (0.50% + 0.05 Ω) Rapid Change of Temperature JIS C5201-1, IEC60115-1, 4.19 < ± 0.3% ≤ ± (1.00% + 0.05 Ω) Endurance at 70 °C JIS C5201-1, IEC60115-1, 4.25.1 < ± 1% R < 100 K Ω: ≤ ± (2.0% + 0.05 Ω) Terminal Strength MIL-STD 202, Method 211 < ± 0.2% ≤ ± (0.50% + 0.05 Ω) Damp Heat (Steady state) JIS C5201-1, IEC60115-1, 4.24 < ± 1.5% R < 100 K Ω: ≤ ± (3.0% + 0.05 Ω) Operating Temperature Range: -55 C to +155 C Power Derating Curve: 100 -55 ºC 70 ºC Power Load (%) 80 60 40 20 155 ºC 0 -60 0 20 40 60 80 100 120 140 160 180 Ambient Temperature (ºC) Single Pulse Power: CF, CFM Series One-Pulse Limitation Characteristics Pulse Applied Wattages (W) 10K CF2 1140W CF1, CFM1 570W CF12 430W CFM12, CF14 285W CFM14, CF18 115W 1K 100 10 1 1μ 10μ 100μ 1m 10m 100m 1 Pulse Duration (sec) Typical performance for reference only. Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. 2 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Repetitive Pulse Data: If repetitive pulses are applied to resistors, pulse wave form must be less than “Pulse limiting voltage”, “Pulse limiting current” or “Pulse limiting wattage” calculated by the formula below. Vp = K √P x R x T / t lp = K √P / R x T / t Pp = K2 x P x T / t Where: Vp: lp: Pp: P: R: T: t: K: [Vr: Pulse limiting voltage (V) Pulse limiting current (A) Pulse limiting wattage (W) Power rating (W) Nominal resistance (ohm) Repetitive period (sec.) Pulse duration (sec.) Coefficient by resistors type (refer to below matrix) Rated Voltage (V), Ir: Rated Current (A)] Note 1: If T > 10 → T = 10 (sec.), T / t > 1000 → T / t = 1000 Note 2: If T > 10 and T / t > 1000, “Pulse Limiting power (single pulse) is applied Note 3: If Vp < Vr (lp < lr or Pp < P), Vr (lr, P) is Vp (lp, Pp) Note 4: Pulse limiting voltage (Current, Wattage) is applied at less than rated ambient temperature. If ambient temperature is more than the rated temperature (70 °C), please decrease power rating according to “Power Derating Curve” Note 5: Please assure sufficient margin for use period and conditions for “Pulse limiting voltage” Note 6: If the pulse waveform is not square wave, please judge after transform the waveform into square wave according to the “Waveform Transformation to Square Wave”. Coefficient (K) Matrix Resistor Type K RNF, RNMF 0.7 CF, CFM, HDM 0.8 ASR, SPR, ASRM, SPRM 1 RSPF, RSPL 0.9 RSF, RSMF 0.8 FRN 0.6 Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. 3 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Waveform Transformation to Square Wave 1. Discharge curve wave with time constant “t” → Square wave 2. Damping oscillation wave with time constant of envelope “t” → Square wave 3. Half-wave rectification wave → Square wave 4. Triangular wave → Square wave 5. Special wave → Square wave Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. 4 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Current Noice (µV/V) Current Noise: 0.8 0.6 0.4 0.2 0 1K 10K 100K 1M 10M Nominal Resistance (Ω) Packaging Specifications Type / Code Class CF18 / CFQ18 I CF14 / CFQ14 I CF12 / CFQ12 I CF1 / CFQ1 I CF2 / CFQ2 I CFM14 / CFQM14 I CFM12 / CFQM12 I CFM1 / CFQM1 I Tape 0.250 6.35 0.250 6.35 0.250 6.35 0.250 6.35 0.250 6.35 0.250 6.35 0.250 6.35 0.250 6.35 A Max (1). 2.508 63.70 2.638 67.00 2.736 69.50 2.972 75.50 3.130 79.50 2.508 63.70 2.638 67.00 2.736 69.50 B Max 13.504 343.00 13.504 343.00 13.504 343.00 13.504 343.00 13.504 343.00 13.504 343.00 13.504 343.00 13.504 343.00 0.197 5.00 0.197 5.00 0.197 5.00 0.197 5.00 0.394 10.00 0.197 5.00 0.197 5.00 0.197 5.00 C ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± 0.020 0.50 0.020 0.50 0.020 0.50 0.020 0.50 0.020 0.50 0.020 0.50 0.020 0.50 0.020 0.50 D (2) 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 2.063 ± 0.079 52.40 ± 2.00 Unit inches mm inches mm inches mm inches mm inches mm inches mm inches mm inches mm Dimension "E": This is a non-critical dimension that does not have a tolerance in the standard. Range of diameters is from 0.547 inches (13.90 mm) to 1.500 inches (38.10 mm). (1) Reference value only. The "A" dimension shall be governed by the overall length of the taped component. The distance between flanges shall be 0.059 inches (1.50 mm) to 0.315 (8.00 mm) greater than the overall component. (2) The given dimension "D" expresses the standard width spacing. A 26 mm narrow spacing is available as option "N" packaging code. Contact factory for more details. Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. 5 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Radial Lead Taping Specifications (Pana-Sert PCF14) Symbol Description A Resistor body length C PANA-SERT Unit Symbol Description 0.256 ± 0.020 6.50 ± 0.50 inches mm L Cutout Length(1) Height of bending 0.098 ± 0.020 2.50 ± 0.50 inches mm P D Resistor body diameter 0.091 ± 0.008 2.30 ± 0.20 inches mm D0 Sprocket-hole diameter 0.157 ± 0.012 4.00 ± 0.30 F Resistor lead spacing H PANA-SERT Unit 0.433 max. 11.00 max. inches mm Resitor pitch(1) 0.500 ± 0.039 12.70 ± 1.00 inches mm P0 Sprocket-hole pitch(1) 0.500 ± 0.012 12.70 ± 0.30 inches mm inches mm P1 Sprocket-hole center to lead center 0.152 ± 0.028 3.85 ± 0.70 inches mm 0.197 ± 0.039 5.00 ± 1.00 inches mm P2 Sprocket-hole center to resistor center(1) 0.250 ± 0.051 6.35 ± 1.30 inches mm Height to bottom of resistor 0.748 ± 0.039 19.00 ± 1.00 inches mm T Thickness (chipboard and tape) 0.028 ± 0.008 0.70 ± 0.20 inches mm H0 Height to lead clinch 0.630 ± 0.020 16.00 ± 0.50 inches mm W Chipboard width(1) 0.709 + 0.039 / -0.020 18.00 + 1.00 / -0.50 inches mm H1 Height of resistor 1.122 max. 28.50 max. inches mm W0 Hold-down tape width 0.49 min. 12.50 min. inches mm h Resistor alignment 0 ± 0.079 (0 ± 5º) 0 ± 2.00 (0 ± 5º) inches mm W1 Sprocket-hole position 0.354 + 0.030 / -0.020 9.00 + 0.75 / -0.50 inches mm h1 Resistor alignment 0 ± 0.079 (0 ± 5º) 0 ± 2.00 (0 ± 5º) inches mm W2 Hold-down tape position 0.118 max. 3.00 max. inches mm I Lead protrusion 0.079 max. 2.00 max. Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. inches mm 6 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor Surface Temperature Rise Measurement Point Standard Color Codes 1 2 3 4 COLOR BAND DESCRIPTION 5 BAND 1ST BAND 2ND BAND 3RD BAND 4TH BAND 5TH BAND PRECISION - Have three significant-figure bands, a multiplier band and a tolerance band. Tolerances 1% or less. GENERAL PURPOSE - Have two significant-figure bands, a multiplier band and a tolerance band. Tolerances 2% or greater. Black Brown Red Orange Yellow Green Blue Violet Gray White Silver Gold Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. 7 PRECISION NOMINAL NOMINAL NOMINAL MULTIPLIER TOLERANCE GENERAL PURPOSE NOMINAL NOMINAL MULTIPLIER TOLERANCE - Nominal Multiplier Tolerance (%) 0 1 2 3 4 5 6 7 8 9 - 1 10 100 1K 10K 100K 1000K 0.001 0.01 0.1 1 2 0.5 0.25 0.1 10 5 www.seielect.com marketing@seielect.com CF / CFM Series Stackpole Electronics, Inc. Resistive Product Solutions Carbon Film Resistor RoHS Compliance Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances” (RoHS 3). As part of this ongoing program, we periodically update this document with the status regarding the availability of our compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament as amended by Directive (EU) 2015/863/EU as regards the list of restricted substances. RoHS Compliance Status Standard Product Series CF CFM Description Package / Termination Type Standard Series RoHS Compliant Lead-Free Termination Composition Lead-Free Mfg. Effective Date (Std Product Series) Lead-Free Effective Date Code (YY/WW) Carbon Film Leaded Resistor Mini-Carbon Film Leaded Resistor Axial Axial YES YES 100% Matte Sn 100% Matte Sn Jan-04 (Taiwan, China) Jan-04 (Taiwan, China) 04/01 04/01 “Conflict Metals” Commitment We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals. Compliance to “REACH” We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List. Environmental Policy It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms of pollution. How to Order Code CF CFF CFM PCF 1 2 3 4 5 6 7 8 9 10 C F 1 2 J T 1 0 0 K Product Series Description Standard Flameproof Mini Panasert CF14 Panasert CF12 PCFM CFQ Tin plating on copper wire CFQM Tin plating (mini) Tin plating on copper wire PCFQ Panasert Power Rating Code Power 18 0.125 W 0.25 W 14 0.5 W 12 1W 1 2 Tolerance Code Tol G 2% 5% J Code T Description Tape and Reel 2W Rev Date: 01/06/2020 This specification may be changed at any time without prior notice Please confirm technical specifications before you order and/or use. A Ammo B Bulk 8 Packaging Product Code CF18, CFQ18, CFM14, CFQM14, CF14, CFQ14, CFM12, CFQM12, CF12, CFQ12, PCF14, PCFM12 Resistance Value Quantity 5000 Four characters with the multiplier used as the decimal holder. CFM1/CFQM1 2500 10 ohm = 10R0 CF1/CFQ1 CF2/CFQ2 CF18, CFQ18, CFM14, CFQM14, CF14, CFQ14, CFM12, CFQM12 CF12, CFQ12, CFM1, CFQM1, PCF14, PCFM12, CF1, CFQ1 2000 1000 10.2 Kohm = 10K2 1 Mohm = 1M00 CF2 1000 All Sizes 1000 5000 2000 www.seielect.com marketing@seielect.com
