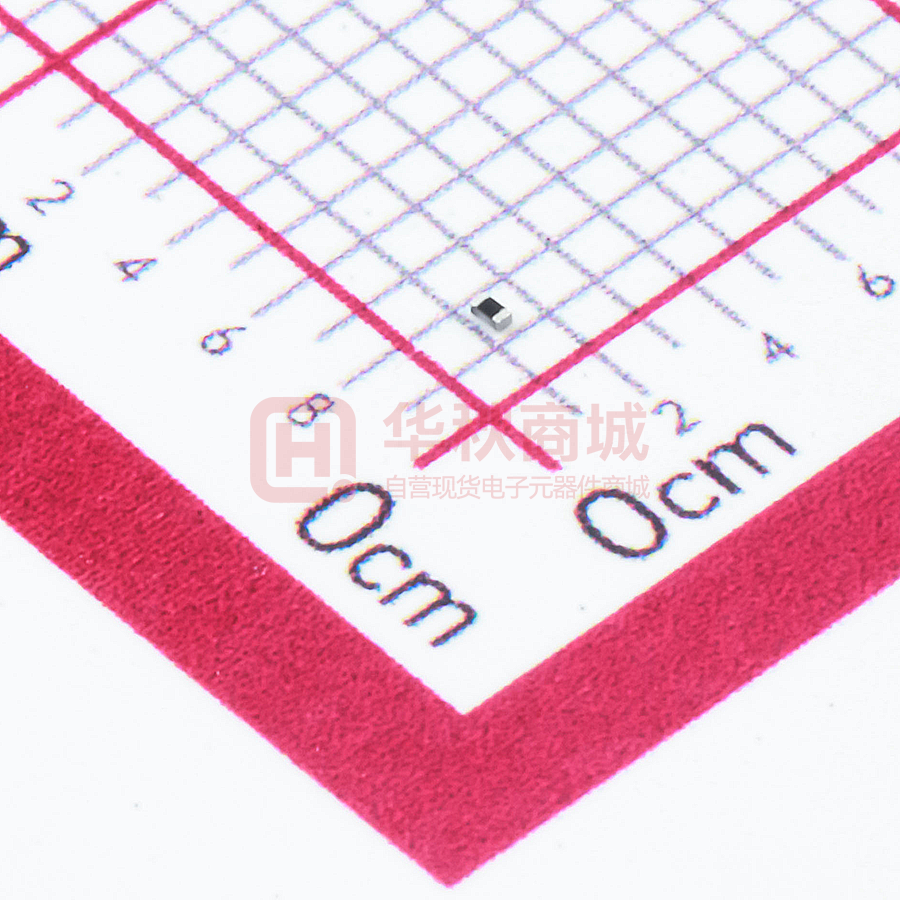

AC0402FR-07243RL

DATA SHEET THICK FILM CHIP RESISTORS AUTOMOTIVE GRADE AC series ±5%, ±1%, ±0.5% Sizes 0201/0402/0603/0805/1206/ 1210/1218/2010/2512 Product specification – July 10, 2017 V.7 RoHS compliant & Halogen free 2 Product specification Chip Resistor Surface Mount AC 12 0201 to 2512 SERIES SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER This specification describes AC0201 to AC2512 chip resistors with leadfree terminations made by thick film process. Part number is identified by the series name, size, tolerance, packaging type, temperature coefficient, taping reel and resistance value. APPLICATIONS  All general purpose applications  Car electronics, industrial application FEATURES  AEC-Q200 qualified  Moisture sensitivity level: MSL 1  AC series soldering is compliant with J-STD-020D  Halogen free epoxy  RoHS compliant - Products with lead-free terminations meet RoHS requirements - Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS  Reduce environmentally hazardous waste  High component and equipment reliability  The resistors are 100% performed by automatic optical inspection prior to taping. GLOBAL PART NUMBER AC XXXX X X X XX XXXX L (1) (2) (3) (4) (5) (6) (7) (1) SIZE 0201/ 0402 / 0603 / 0805 / 1206 / 1210 / 1218 / 2010 / 2512 (2) TOLERANCE D = ± 0.5% J = ± 5% (for Jumper ordering, use code of J) F = ± 1% (3) PACKAGING TYPE R = Paper taping reel K = Embossed taping reel (4) TEMPERATURE COEFFICIENT OF RESISTANCE – = Base on spec (5) TAPING REEL 07 = 7 inch dia. Reel 10 = 10 inch dia. Reel 13 = 13 inch dia. Reel 7W = 7 inch dia. Reel & 2 x standard power 3W = 13 inch dia. Reel & 2 x standard power (6) RESISTANCE VALUE 1Ω to 22 MΩ There are 2~4 digits indicated the resistance value. Letter R/K/M is decimal point, no need to mention the last zero after R/K/M, e.g.1K2, not 1K20. Detailed coding rules of resistance are shown in the table of “Resistance rule of global part number”. (7) DEFAULT CODE Letter L is the system default code for ordering only. (Note) Resistance rule of global part number Resistance coding Example rule XRXX (1 to 9.76Ω) 1R = 1Ω 1R5 = 1.5Ω 9R76 = 9.76Ω XXRX (10 to 97.6Ω) 10R = 10Ω 97R6 = 97.6Ω XXXR (100 to 976Ω) 100R = 100Ω 976R = 976Ω XKXX (1 to 9.76 KΩ) 1K = 1,000Ω 9K76 = 9760Ω XMXX (1 to 9.76 MΩ) 1M = 1,000,000Ω 9M76= 9,760,000Ω XXMX (10 MΩ) 10M = 10,000,000Ω O RDERING EXAMPLE The ordering code for an AC0402 chip resistor, value 100 KΩ with ± 1% tolerance, supplied in 7-inch tape reel is: AC0402FR-07100KL. NOTE 1. All our R-Chip products are RoHS compliant and Halogen free. "LFP" of the internal 2D reel label states "Lead-Free Process". 2. On customized label, "LFP" or specific symbol can be printed. 3. AC series with ±0.5% tolerance is also available. For further information, please contact sales. www.yageo.com Jul. 10, 2017 V.7 Product specification Chip Resistor Surface Mount AC SERIES 3 12 0201 to 2512 MARKING AC0201 / AC0402 No marking Fig. 1 AC0603 / AC0805 / AC1206 / AC1210 / AC2010 / AC2512 03 Fig. 2 E-24 series: 3 digits, ± 5% First two digits for significant figure and 3rd digit for number of zeros Value=10 KΩ AC0603 0 Fig. 3 E-24 series: 3 digits, ± 1% & ± 0.5% One short bar under marking letter Value = 24 Ω E-96 series: 3 digits, ± 1% & ± 0.5% First two digits for E-96 marking rule and 3rd letter for number of zeros Fig. 4 Value = 12.4 KΩ AC0805 / AC1206 / AC1210 / AC2010 / AC2512 Both E-24 and E-96 series: 4 digits, ± 1% & ± 0.5% First three digits for significant figure and 4th digit for number of zeros Fig. 5 Value = 10 KΩ AC1218 E-24 series: 3 digits, ± 5% First two digits for significant figure and 3rd digit for number of zeros Fig. 6 Value = 10 KΩ 00 Both E-24 and E-96 series: 4 digits, ± 1% & ± 0.5% First three digits for significant figure and 4th digit for number of zeros Fig. 7 Value = 10 KΩ NOTE For further marking information, please refer to data sheet “Chip resistors marking”. Marking of AC series is the same as RC series. www.yageo.com Jul. 10, 2017 V.7 Product specification Chip Resistor Surface Mount AC SERIES 4 12 0201 to 2512 CONSTRUCTION The resistors are constructed on top of an automotive grade ceramic body. Internal metal electrodes are added at each end and connected by a resistive glaze. The resistive glaze is covered by a protective glass. The composition of the glaze is adjusted to give the approximately required resistance value and laser trimming of this resistive glaze achieves the value within tolerance. The whole element is covered by a protective overcoat. Size 0603 and bigger is marked with the resistance value on top. Finally, the two external terminations (Ni / matte tin) are added, as shown in Fig.8. OUTLINES marking layer overcoat overcoat protective glass protective glass resistive layer (Jumper chip is a conductor) resistive layer (Jumper chip is a conductor) inner electrode termination(Ni/matte tin) inner electrode inner electrode termination(Ni/matte tin) inner electrode ceramic substrate YNSC088 Fig. 8_1 marking layer ceramic substrate YNSC088_1 Fig. 8_2 Chip resistor outlines AC2010/ 2512 double power chip resistor outlines DIMENSIONS Table 1 For outlines, please refer to Fig. 9 TYPE L (mm) W (mm) H (mm) I1 (mm) I2 (mm) AC0201 0.60± 0.03 0.30± 0.03 0.23± 0.03 0.12± 0.05 0.15± 0.05 AC0402 1.00 ± 0.05 0.50 ± 0.05 0.32 ± 0.05 0.20 ± 0.10 0.25 ± 0.10 AC0603 1.60 ± 0.10 0.80 ± 0.10 0.45 ± 0.10 0.25 ± 0.15 0.25 ± 0.15 AC0805 2.00 ± 0.10 1.25 ± 0.10 0.50 ± 0.10 0.35 ± 0.20 0.35 ± 0.20 AC1206 3.10 ± 0.10 1.60 ± 0.10 0.55 ± 0.10 0.45 ± 0.20 0.40 ± 0.20 AC1210 3.10 ± 0.10 2.60 ± 0.15 0.55 ± 0.10 0.45 ± 0.15 0.50 ± 0.20 AC1218 3.10 ± 0.10 4.60 ± 0.10 0.55 ± 0.10 0.45 ± 0.20 0.40 ± 0.20 AC2010 5.00 ± 0.10 2.50 ± 0.15 0.55 ± 0.10 0.55 ± 0.15 0.50 ± 0.20 AC2512 6.35 ± 0.10 3.10 ± 0.15 0.55 ± 0.10 0.60 ± 0.20 0.50 ± 0.20 For dimension, please refer to Table 1 AC0201/0402 0603/0805/1206/1210/ 2010/2512 AC1218 Side view for all type Fig. 9 Chip resistor dimensions www.yageo.com Jul. 10, 2017 V.7 Product specification Chip Resistor Surface Mount AC SERIES 5 12 0201 to 2512 ELECTRICAL CHARACTERISTICS Table 2 TYPE AC0201 POWER 1/20 W CHARACTERISTICS Resistance Operating Max. Max. Dielectric Range Temperature Working Overload Withstanding Range Voltage Voltage Voltage –55 °C to 155 °C 25V 50V 50V Temperature Coefficient Jumper Criteria 5% (E24) 1Ω ≤ R ≤ 10Ω Rated Current 1Ω ≤ R ≤ 10MΩ -100/+350ppm℃ 0.5A 1% (E24/E96) 10Ω < R ≤ 10M Maximum 1Ω ≤ R ≤ 10MΩ ± 200ppm℃ Current 1.0A 0.5% (E24/E96) 10Ω ≤ R ≤ 1MΩ Jumper
