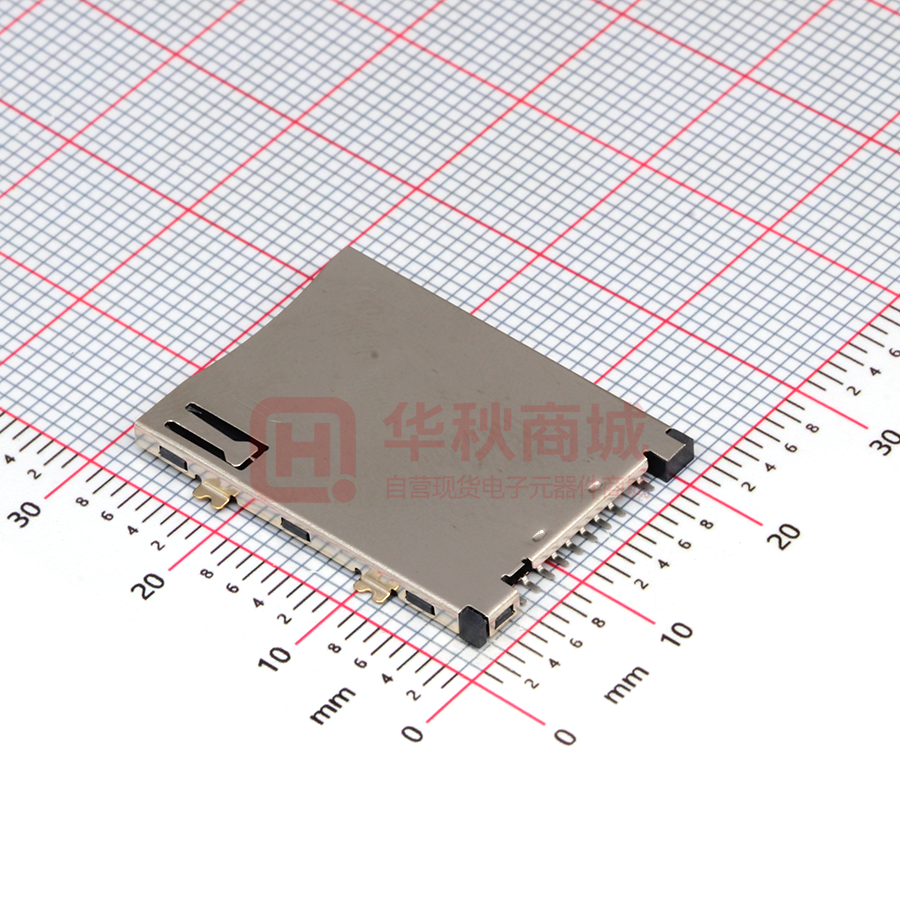

SIM-015-C

Memory-Card-Sockets C ONNECTORS Operation:MINI SIM&Push-Push 自弹出式识别卡卡座 LTEM NO.:SMO-015-C (L26.30× 26.30×W19.30× W19.30×H1.90 Unit:mm Technical parameter ╲ LEVEL ╲ PROJECT Initial Contact Electrical Resistance Properties Contact Resistance Withstand Voltage There No Load Durable Performance Rated Load Insertion Force ▼ A[better product] B[average product] C[low product] 30mΩ max. 30mΩ max. no data! SIM CARD SOCKETS) 表面貼裝 SMT 側向導入 LATERAL 100MΩ min.100V DC Skey/PD：50MΩ min.100V DC 300V AC for 1min 精密部品 NICETY 250 V AC for 1min 8,000 Cycles 7,000 Cycles 6,500 Cycles 5,000 Cycles 50mΩ max. 30mΩ max. 4.0Kgf MAX (Springback: no data! 可靠 STABILIZE no data! ) 適合環保 RoHS sofng.com C ONNECTORS CIRCUIT BOARD SIZE (Vertical view) Operating Force Inward 8.0～12.0N.(1N.=100gram-force) Exiting 10N.[±100gf] SIM CARD Pin DESIGN PIN Assignment Pin No. Pin NAME Type Description PIN① 卡電源 1 VCC PIN② 接地 1 GND PIN③ 復位 1 RST PIN④ Vpp 1 VPP PIN⑤ 時鐘 1 CLK PIN⑥ 輸入/輸出 1 I/O PIN⑦ DAT 1 DAT 0 PIN⑧ MCMD 1 MCMD PIN⑨ 检测 1 CARD DETECT Switch PIN⑩ 接地 1 GND Material declaration No. NAME MATERIAL ①A 基座 LCP 30%G/F (Black)耐热塑胶 - ②B 滑块 PA6T 30%G/F (Black)耐热尼龙 SET ③C 接触端子 C5191R-H (t=0.15mm)磷青铜【锡 30u〞基镀金 1u〞】 G/F ④D 外壳 SUS301-3/4H(t=0.25mm)不锈钢【焊点镀金 1u〞】 G/F ⑤E 线簧 象唛钢线 OD=0.21mm - ⑥F 弹簧 SUS304(t=0.30mm)不锈钢 - 注記 NOTICE 1.碩方電子公司擁有最終解釋權；The company reserves the right of final interpretation； 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； 3.未經授權修改無效。Modify is invalid. PLATING
