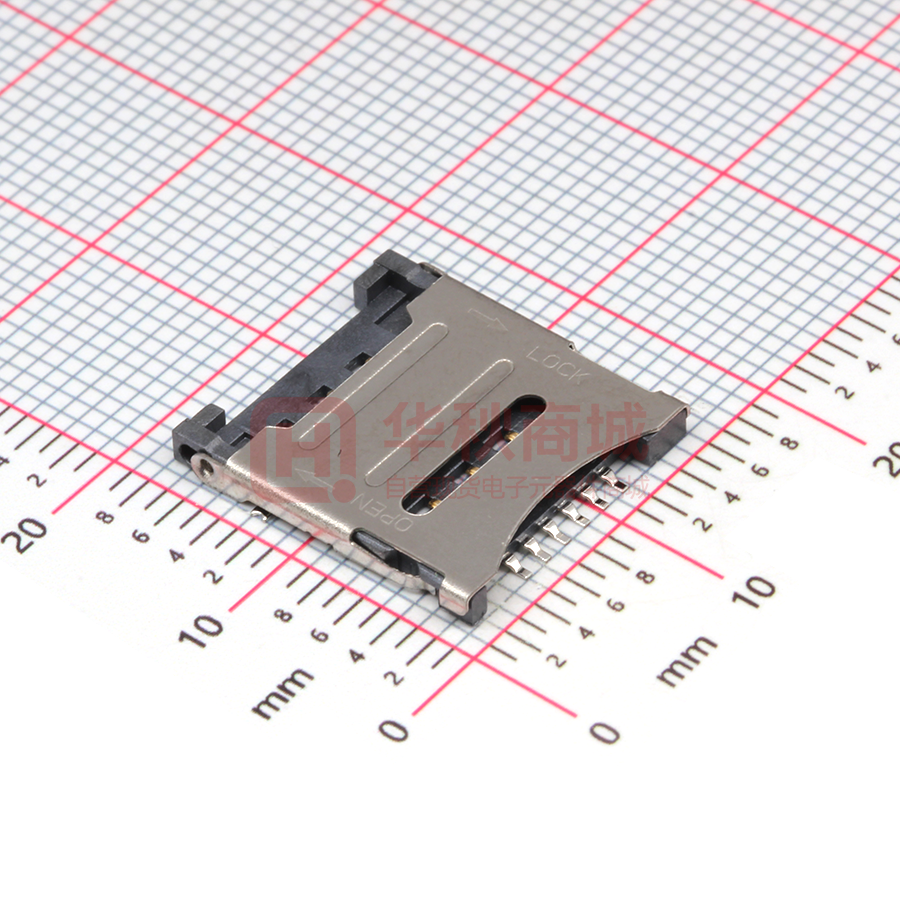

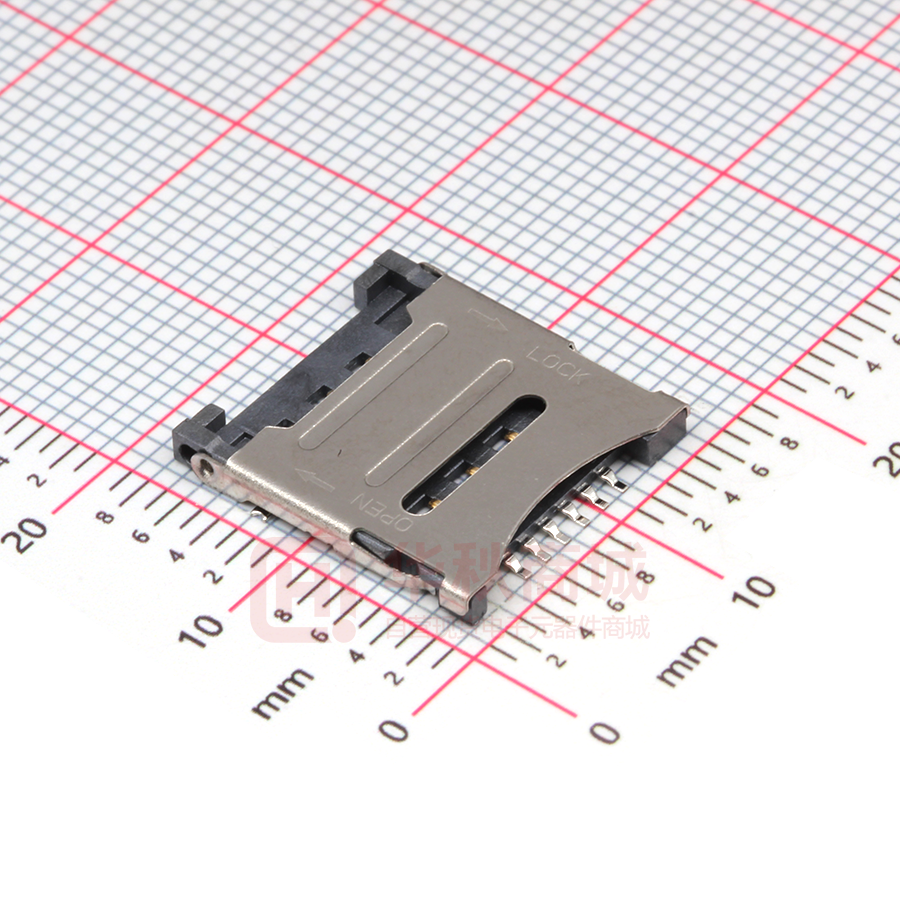

SMO-1512

www.Sofng.com C Operation:SMT& Hinge ARD SOCKETS 铰链式　　ＭＩＣＲＯ－ＳＩＭ卡座 LTEM NO.:SMO-1512 (Consumer Electronics) (16.3L× (16.3L×14.6W× 14.6W×1.8H & MICRO-SIM Sockets) MEMORY-CARD-SOCKETS 外焊贴装 SMT Technical parameter ╲ LEVEL A[better product] ╲ PROJECT Contact Rating Electrical Initial Contact Resistance Properties Insulation Resistance Withstand Voltage B[average product] 侧向導入 LATERAL 25mA, 24V DC 50mΩ max. 精密部品 NICETY 80mΩ max. 100MΩ min.500V DC 500V AC for 1 minute 350 V AC for 1 minut There No Load 5,000 Cycles 3,500 Cycles Rated Load 3,500 Cycles 2,500 Cycles 可靠 STABILIZE Durable Performance 適合環保 RoHS Sterage temp. Page1 -25℃～+85℃(Operating Temp: ) Unit:mm 0.08 ● ● NAME MATERIAL A HOUSING 基座 LCP 30% (Black)耐热塑胶 UL94V-0 B CONTACT 接触端子 C5210-H (t=0.15mm)磷青铜【镍 30u〞基镀金 1u〞】 C SHELL 外壳 SUS304(t=0.20mm)不锈钢【焊点镀金 1u〞】 ● SOFNG ELECTRONIC TECHNOLOGY Co., LTD CIRCUIT BOARD SIZE (Vertical view) Operating Force Inward 4.0～5.5N.(1N.=100gram-force) Exiting 4.0～5.5N.(1N.=100gram-force) Solder-ability IR Reflow:255℃,5sec. (Max.) Manual:350℃,3sec. DECIMALS ● Pin definition Pin No. Pin NAME Type Description C ① 卡電源 1 VCC C ② 復位 1 RST C ③ 時鐘 1 CLK C ⑤ 接地 1 GND C ⑥ Vpp 1 VPP C ⑦ 輸入/輸出 1 I/O 15.00 Micro 12.00 Micro MICRO-SIM VCC GND RST VPP CLK I/O 注記 NOTICE 1.碩方公司擁有最終解釋權；The SOFNG company reserves the right of final interpretation； 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； 3.未經授權修改無效。Modify is invalid. ANGLES .X :±0.20 X.° :±1.5° .XX :±0.10 X.X° :±1.0° .XXX :±0.05 .XXX° :±0.5°
