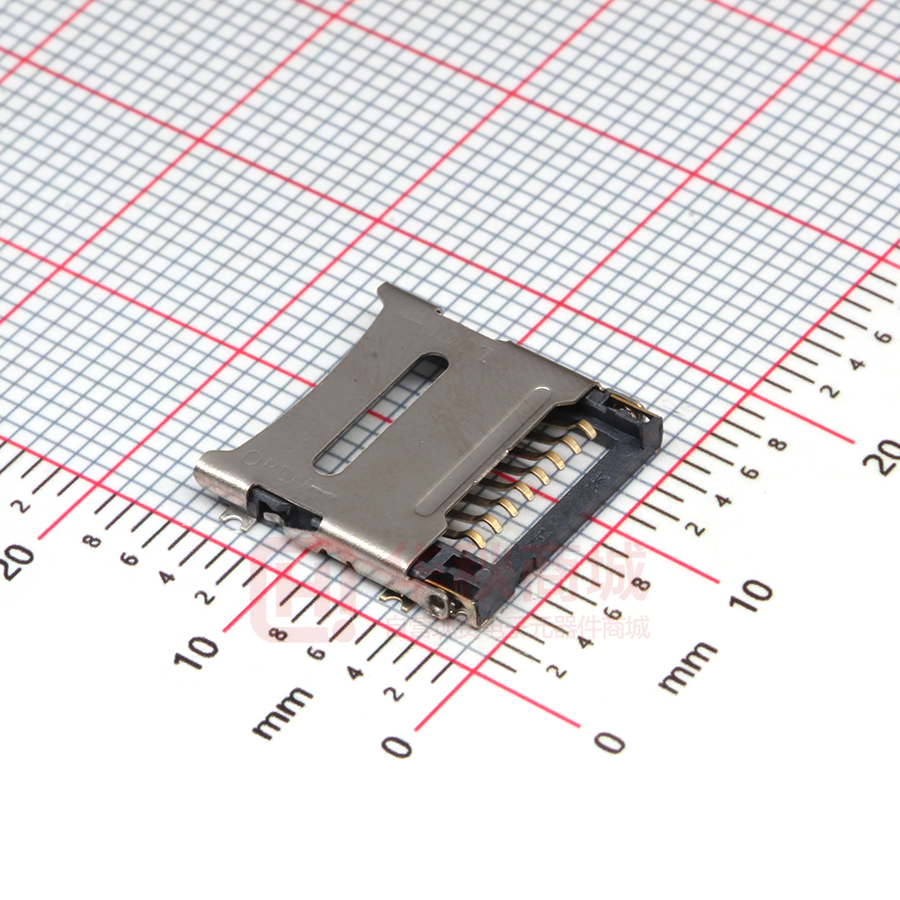

TF-002X-H18

www.Sofng.com C Operation:SMT& 铰链(Hinge)上掀式 T-Flash 连接器 ARD SOCKETS LTEM NO.:TF-002X-H18 (Consumer Electronics) (14.5L× (14.5L×13.6W× 13.6W×1.8H & T-Flash Sockets) MEMORY-CARD-SOCKETS 外焊贴装 SMT Technical parameter ╲ LEVEL A[better product] ╲ PROJECT Contact Rating Electrical Initial Contact Resistance Properties Insulation Resistance B[average product] 侧向導入 LATERAL 25mA, 24V DC 30mΩ max. 精密部品 NICETY 50mΩ max. 100MΩ min.500V DC Withstand Voltage 500V AC for 1 minute 350 V AC for 1 minut There No Load 5,000 Cycles 35000 Cycles Rated Load 3,500 Cycles 2,500 Cycles 可靠 STABILIZE Durable Performance 適合環保 RoHS -35℃～+85℃(Operating Temp: Sterage temp. Page1 ) Unit:mm A B D C ● NAME ● ● MATERIAL A HOUSING 基座 B SHELL 外壳 SUS301-3/4H(t=0.20mm)不锈钢【焊点镀金 1u〞】 C HINGE 铰链 C5191R-H (t=0.15mm)磷青铜【锡 30u〞基镀金 1u〞】 D CONTACT 接触端子 C5191R-H (t=0.15mm)磷青铜【锡 30u〞基镀金 1u〞】 LCP E475 30% (Black)耐热塑胶 UL94V-0 SOFNG ELECTRONIC TECHNOLOGY Co., LTD CIRCUIT BOARD SIZE (Vertical view) Operating Force Inward 4.0～5.5N.(1N.=100gram-force) Exiting 4.0～5.5N.(1N.=100gram-force) Solder-ability IR Reflow:250℃,5sec. (Max.) Manual:350℃,3sec. DECIMALS ANGLES .X :±0.25 X.° :±1.5° .XX :±0.15 X.X° :±1.0° .XXX :±0.10 .XXX° :±0.5° Pin definition T-Flash CARD Pin No. Pin NAME Type Description PIN① DAT2 I/0/PP Date Line[Bit 2] PIN② CD/DAT3 I/0/PP Card Detect Date Lin(Bit 3) PIN③ CMD PP Command Response PIN④ VDD S Supply voltage PIN⑤ CLX l Clock PIN⑥ Vss S Supply voltage ground PIN⑦ DAT 0 l/0/PP Date Line [Bit 0] PIN⑧ DAT 1 l/0/PP Date Line [Dit 1] Ｐ１ Ｐ８ T-Flash 本品不屬於危害性廢棄物,須丟棄時可以委託 回收商予以回收再生處理。Products do not belong to hazardous waste,When waste can recycling processing 運送時本產品不要直接與水、酸鹼性化學物質 接觸,或放置於含有以上氣體環境中,並且需要 注記 NOTICE 1.碩方公司擁有最終解釋權；The SOFNG company reserves the right of final interpretation； 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； 3.未經授權修改無效。Modify is invalid. 注意會有滑落、側翻的危險發生；運輸過程中 不能有碰撞或者擠壓,須保證溫度與濕度適中 [常溫 25℃,濕度在 50℃以內],不可導致材料變 形或氧化。
