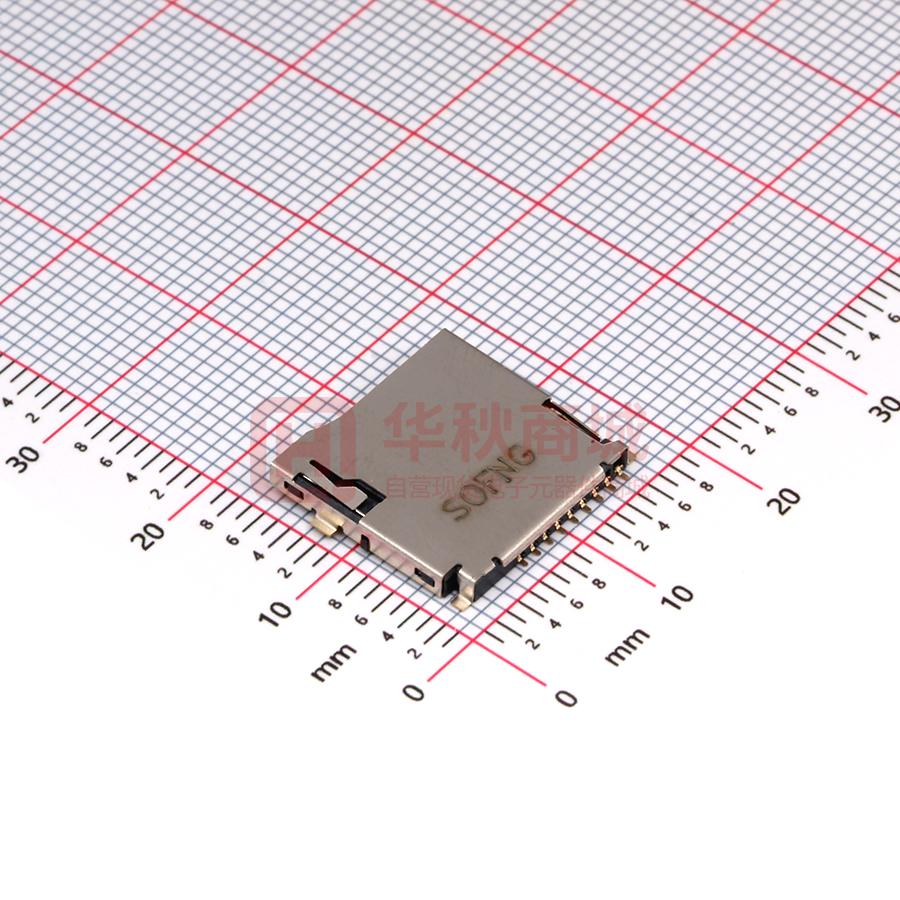

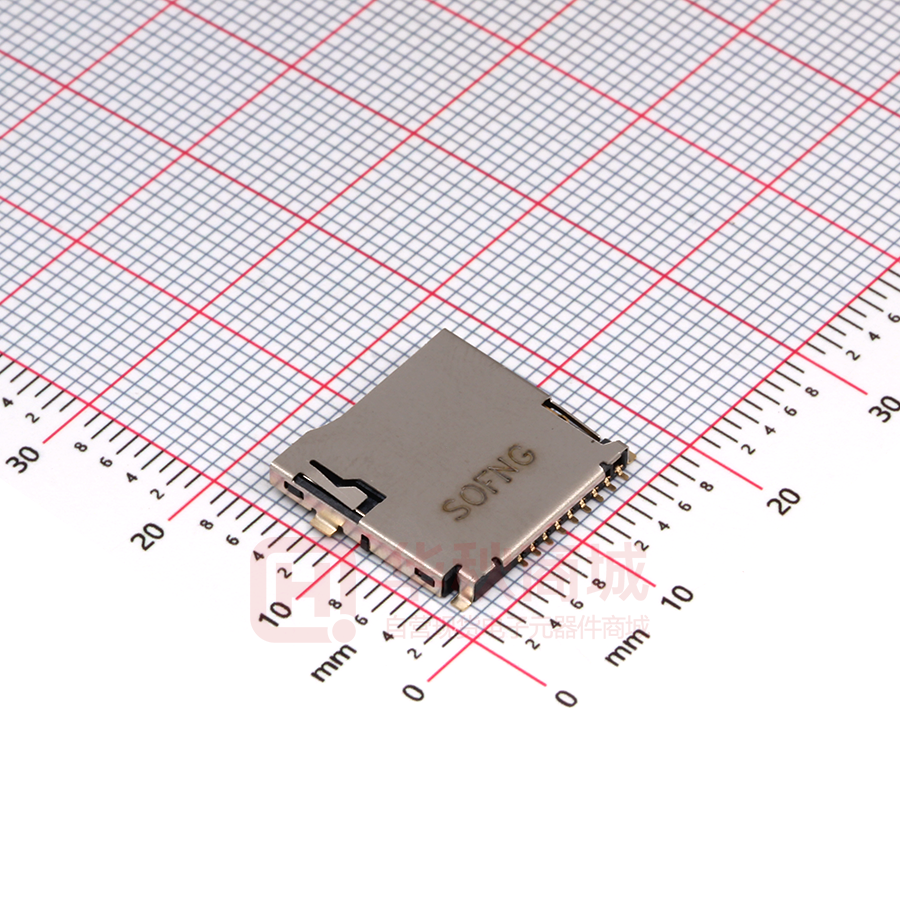

TF-15X15

www.Sofng.com C Operation:SMT&Push-Push ARD SOCKETS LTEM NO.:TF-15X15 (Consumer Electronics) (14.50L× (14.50L×14.75W× 14.75W×1.90H & T-Flash Sockets) MEMORY-CARD-SOCKETS 外焊贴装 SMT Technical parameter ╲ LEVEL A[better product] ╲ PROJECT Contact Rating Electrical Initial Contact Resistance Properties Insulation Resistance Withstand Voltage B[average product] 侧向導入 LATERAL 25mA, 24V DC 30mΩ max. 100MΩ min.500V DC 精密部品 NICETY 50mΩ max. Skey/PD：100MΩ min.300V DC 500V AC for 1 minute 350 V AC for 1 minut There No Load 6,500 Cycles 5,500 Cycles Rated Load 5,500 Cycles 4,500 Cycles 可靠 STABILIZE Durable Performance 適合環保 RoHS Sterage temp. Page1 -25℃～+85℃(Operating Temp: ) Unit:mm F E B A Page2 D C Ｃｄ ＧＮＤ CARD DETECTION SWITCH ＧＮＤ WHENCARD IS EJECTED Ｃｄ ＧＮＤ ＧＮＤ ＧＮＤ DECIMALS SPECIFED TOLERANCES UNLESS OTHERWISE WHEN CARD IS INSERTED Ｃｄ ＧＮＤ ANGLES X.X :±0.35 X.X :±3° X.XX :±0.25 X.XX :±2° X.XXX :±0.15 Material declaration No. NAME MATERIAL PLATING ①A 基座 LCP 30%G/F (Black)耐热塑胶 - ②B 滑块 PA6T 30%G/F (Black)耐热尼龙 SET ③C 接触端子 C5191R-H (t=0.15mm)磷青铜【锡 30u〞基镀金 1u〞】 G/F ④D 外壳 SUS301-3/4H(t=0.15mm)不锈钢【焊点镀金 1u〞】 G/F ⑤E 线簧 象唛钢线 OD=0.21mm - ⑥F 弹簧 SUS304(t=0.30mm)不锈钢 - MATERIAL SOFNG ELECTRONIC TECHNOLOGY Co., LTD CIRCUIT BOARD SIZE (Vertical view) Operating Force Inward 8.0～12.0N.(1N.=100gram-force) Exiting 10N.[±100gf] Pin definition T-Flash CARD Pin No. Pin NAME Type Description P① DAT2 I/0/PP Date Line[Bit 2] P② CD/DAT3 I/0/PP Card Detect Date Lin(Bit 3) P③ CMD PP Command Response P④ VDD S Supply voltage P⑤ CLX l Clock P⑥ Vss S Supply voltage ground P⑦ DAT 0 l/0/PP Date Line [Bit 0] P⑧ DAT 1 l/0/PP Date Line [Dit 1] Ｐ１ Ｐ８ T-Flash 本品不屬於危害性廢棄物,須丟棄時可以委託 回收商予以回收再生處理。Products do not belong to hazardous waste,When waste can recycling processing 運送時本產品不要直接與水、酸鹼性化學物質 接觸,或放置於含有以上氣體環境中,並且需要 注記 NOTICE 注意會有滑落、側翻的危險發生；運輸過程中 不能有碰撞或者擠壓,須保證溫度與濕度適中 1.碩方公司擁有最終解釋權；The SOFNG company reserves the right of final interpretation； 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； 3.未經授權修改無效。Modify is invalid. [常溫 25℃,濕度在 50℃以內],不可導致材料變 形或氧化。
