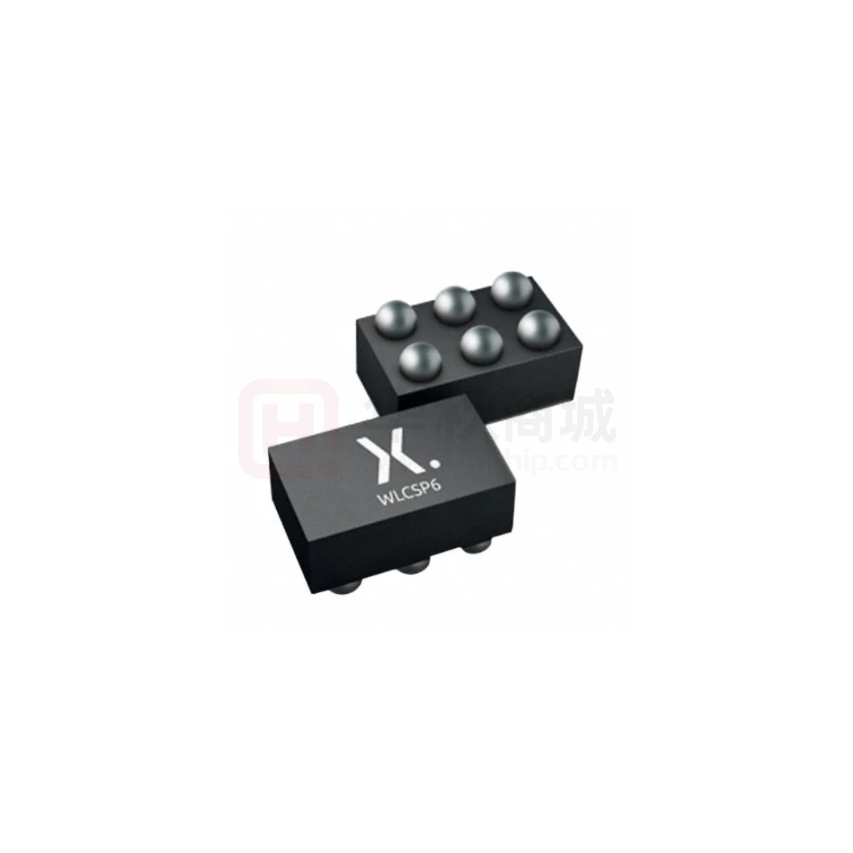

74AUP1G34 Low-power buffer Rev. 8 — 8 June 2018 1 Product data sheet General description The 74AUP1G34 provides a low-power, low-voltage single buffer. Schmitt trigger action at all inputs makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 0.8 V to 3.6 V. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. 2 Features and benefits • Wide supply voltage range from 0.8 V to 3.6 V • High noise immunity • Complies with JEDEC standards: – JESD8-12 (0.8 V to 1.3 V) – JESD8-11 (0.9 V to 1.65 V) – JESD8-7 (1.2 V to 1.95 V) – JESD8-5 (1.8 V to 2.7 V) – JESD8-B (2.7 V to 3.6 V) • ESD protection: – HBM: ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 5000 V – CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V – MM: JESD22-A115-A exceeds 200 V • Low static power consumption; ICC = 0.9 μA (maximum) • Latch-up performance exceeds 100 mA per JESD 78 Class II • Inputs accept voltages up to 3.6 V • Low noise overshoot and undershoot < 10 % of VCC • IOFF circuitry provides partial power-down mode operation • Multiple package options • Specified from -40 °C to +85 °C and -40 °C to +125 °C 74AUP1G34 Nexperia Low-power buffer 3 Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version 74AUP1G34GW -40 °C to +125 °C TSSOP5 plastic thin shrink small outline package; 5 leads; body width 1.25 mm SOT353-1 74AUP1G34GM -40 °C to +125 °C XSON6 plastic extremely thin small outline package; no leads; SOT886 6 terminals; body 1 x 1.45 x 0.5 mm 74AUP1G34GF -40 °C to +125 °C XSON6 plastic extremely thin small outline package; no leads; SOT891 6 terminals; body 1 x 1 x 0.5 mm 74AUP1G34GN -40 °C to +125 °C XSON6 extremely thin small outline package; no leads; 6 terminals; body 0.9 x 1.0 x 0.35 mm SOT1115 74AUP1G34GS -40 °C to +125 °C XSON6 extremely thin small outline package; no leads; 6 terminals; body 1.0 x 1.0 x 0.35 mm SOT1202 74AUP1G34GX -40 °C to +125 °C X2SON5 plastic thermal enhanced extremely thin small outline package; no leads; 5 terminals; body 0.8 x 0.8 x 0.35 mm SOT1226 74AUP1G34GX4 -40 °C to +125 °C X2SON4 plastic thermal enhanced extremely thin small outline package; no leads; 4 terminals; body 0.6 x 0.6 x 0.32 mm SOT1269-2 74AUP1G34UK WLCSP6 wafer level chip-scale package; 6 bumps; 0.65 x 0.44 x 0.27 mm SOT1454-1 4 -40 °C to +125 °C Marking Table 2. Marking Type number Marking code 74AUP1G34GW aN 74AUP1G34GM aN 74AUP1G34GF aN 74AUP1G34GN aN 74AUP1G34GS aN 74AUP1G34GX aN 74AUP1G34GX4 aN 74AUP1G34UK 4 [1] [1] The pin 1 indicator is located on the lower left corner of the device, below the marking code. 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 2 / 24 74AUP1G34 Nexperia Low-power buffer 5 Functional diagram A Y A 001aac538 001aac537 Figure 1. Logic symbol 6 Y 001aac536 Figure 2. IEC logic symbol Figure 3. Logic diagram Pinning information 6.1 Pinning 74AUP1G34 74AUP1G34 n.c. 1 A 2 GND 3 5 n.c. 1 6 VCC A 2 5 n.c. GND 3 4 Y VCC 4 001aaf032 Y Transparent top view 001aac535 Figure 4.  Pin configuration SOT353-1 (TSSOP5) Figure 5.  Pin configuration SOT886, SOT891, SOT1115 and SOT1202 (XSON6) 74LVC1G34 74AUP1G34 n.c. 1 5 VCC 4 Y A 1 4 VCC GND 2 3 Y 3 GND A 2 aaa-003005 aaa-028398 Transparent top view Transparent top view Figure 6. Pin configuration SOT1226 (X2SON5) Figure 7. Pin configuration SOT1269-2 (X2SON4) 74AUP1G34UK 74AUP1G34UK ball A1 index area 1 2 A GND VCC B B A GND C C GND Y aaa-026280 aaa-026281 Transparent top view Figure 8.  Pin configuration SOT1454-1 (WLCSP6) Product data sheet 2 A Transparent top view 74AUP1G34 1 Figure 9. Ball mapping for SOT1454-1 (WLCSP6) All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 3 / 24 74AUP1G34 Nexperia Low-power buffer 6.2 Pin description Table 3. Pin description Symbol Pin Description TSSOP5 and X2SON5 XSON6 X2SON4 WLCSP6 n.c. 1 1 - - not connected A 2 2 1 B1 data input GND 3 3 2 A1, B2, C1 ground (0 V) Y 4 4 3 C2 data output n.c. - 5 - - not connected VCC 5 6 4 A2 supply voltage 7 Functional description Table 4. Function table H = HIGH voltage level; L = LOW voltage level. Input Output A Y L L H H 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 4 / 24 74AUP1G34 Nexperia Low-power buffer 8 Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter VCC supply voltage IIK input clamping current VI input voltage IOK output clamping current Conditions VI < 0 V [1] VO < 0 V [1] Min Max Unit -0.5 +4.6 V -50 - -0.5 +4.6 -50 - -0.5 +4.6 V - ±20 mA mA V mA VO output voltage Active mode and Power-down mode IO output current VO = 0 V to VCC ICC supply current - +50 mA IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation Tamb = -40 °C to +125 °C TSSOP5, XSON6, X2SON5 and WLCSP6 package [2] - 250 mW X2SON4 package [3] - 150 mW [1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed. [2] For TSSOP5 packages: above 87.5 °C the value of Ptot derates linearly with 4.0 mW/K. For XSON6 and X2SON5 packages: above 118 °C the value of Ptot derates linearly with 7.8 mW/K. For WLCSP6 package: above 102.5 °C the value of Ptot derates linearly with 5.3 mW/K. [3] For X2SON4 packages: above 57 °C the value of Ptot derates linearly with 1.7 mW/K. 9 Recommended operating conditions Table 6. Recommended operating conditions Symbol Parameter VCC supply voltage VI input voltage VO output voltage Conditions Tamb ambient temperature Δt/ΔV input transition rise and fall rate 74AUP1G34 Product data sheet Min Max Unit 0.8 3.6 V 0 3.6 V Active mode 0 VCC V Power-down mode; VCC = 0 V 0 3.6 V -40 +125 °C 0 200 ns/V VCC = 0.8 V to 3.6 V All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 5 / 24 74AUP1G34 Nexperia Low-power buffer 10 Static characteristics Table 7. Static characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.70 × VCC - - V VCC = 0.9 V to 1.95 V 0.65 × VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.30 × VCC V VCC = 0.9 V to 1.95 V - - 0.35 × VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V VCC - 0.1 - - V IO = -1.1 mA; VCC = 1.1 V 0.75 × VCC - - V IO = -1.7 mA; VCC = 1.4 V 1.11 - - V IO = -1.9 mA; VCC = 1.65 V 1.32 - - V IO = -2.3 mA; VCC = 2.3 V 2.05 - - V IO = -3.1 mA; VCC = 2.3 V 1.9 - - V IO = -2.7 mA; VCC = 3.0 V 2.72 - - V IO = -4.0 mA; VCC = 3.0 V 2.6 - - V IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - IO = 1.7 mA; VCC = 1.4 V - - 0.31 V IO = 1.9 mA; VCC = 1.65 V - - 0.31 V IO = 2.3 mA; VCC = 2.3 V - - 0.31 V IO = 3.1 mA; VCC = 2.3 V - - 0.44 V IO = 2.7 mA; VCC = 3.0 V - - 0.31 V IO = 4.0 mA; VCC = 3.0 V - - 0.44 V Tamb = 25 °C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VI = VIH or VIL IO = -20 μA; VCC = 0.8 V to 3.6 V VI = VIH or VIL 0.3 × VCC V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.1 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.2 μA ΔIOFF additional power-off VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.2 μA leakage current 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 6 / 24 74AUP1G34 Nexperia Low-power buffer Symbol Parameter Conditions ICC supply current VI = GND or VCC; IO = 0 A; Min Typ Max Unit - - 0.5 μA - - 40 μA VCC = 0.8 V to 3.6 V [1] ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V CI input capacitance VCC = 0 V to 3.6 V; VI = GND or VCC - 0.8 - pF CO output capacitance VO = GND; VCC = 0 V - 1.7 - pF VCC = 0.8 V 0.70 × VCC - - V VCC = 0.9 V to 1.95 V 0.65 × VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.30 × VCC V VCC = 0.9 V to 1.95 V - - 0.35 × VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V IO = -20 μA; VCC = 0.8 V to 3.6 V VCC - 0.1 - - V IO = -1.1 mA; VCC = 1.1 V 0.7 × VCC - - V IO = -1.7 mA; VCC = 1.4 V 1.03 - - V IO = -1.9 mA; VCC = 1.65 V 1.30 - - V IO = -2.3 mA; VCC = 2.3 V 1.97 - - V IO = -3.1 mA; VCC = 2.3 V 1.85 - - V IO = -2.7 mA; VCC = 3.0 V 2.67 - - V IO = -4.0 mA; VCC = 3.0 V 2.55 - - V IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - IO = 1.7 mA; VCC = 1.4 V - - 0.37 V IO = 1.9 mA; VCC = 1.65 V - - 0.35 V IO = 2.3 mA; VCC = 2.3 V - - 0.33 V IO = 3.1 mA; VCC = 2.3 V - - 0.45 V IO = 2.7 mA; VCC = 3.0 V - - 0.33 V IO = 4.0 mA; VCC = 3.0 V - - 0.45 V Tamb = -40 °C to +85 °C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VI = VIH or VIL VI = VIH or VIL 0.3 × VCC V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.5 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.5 μA 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 7 / 24 74AUP1G34 Nexperia Low-power buffer Symbol Parameter Conditions Min Typ Max Unit ΔIOFF additional power-off VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.6 μA - - 0.9 μA - - 50 μA VCC = 0.8 V 0.75 × VCC - - V VCC = 0.9 V to 1.95 V 0.70 × VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.25 × VCC V VCC = 0.9 V to 1.95 V - - 0.30 × VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V IO = -20 μA; VCC = 0.8 V to 3.6 V VCC - 0.11 - - V IO = -1.1 mA; VCC = 1.1 V 0.6 × VCC - - V IO = -1.7 mA; VCC = 1.4 V 0.93 - - V IO = -1.9 mA; VCC = 1.65 V 1.17 - - V IO = -2.3 mA; VCC = 2.3 V 1.77 - - V IO = -3.1 mA; VCC = 2.3 V 1.67 - - V IO = -2.7 mA; VCC = 3.0 V 2.40 - - V IO = -4.0 mA; VCC = 3.0 V 2.30 - - V leakage current ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V [1] Tamb = -40 °C to +125 °C VIH VIL VOH HIGH-level input voltage LOW-level input voltage HIGH-level output voltage 74AUP1G34 Product data sheet VI = VIH or VIL All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 8 / 24 74AUP1G34 Nexperia Low-power buffer Symbol Parameter Conditions Min Typ Max Unit VOL LOW-level output voltage VI = VIH or VIL IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.11 V IO = 1.1 mA; VCC = 1.1 V - - IO = 1.7 mA; VCC = 1.4 V - - 0.41 V IO = 1.9 mA; VCC = 1.65 V - - 0.39 V IO = 2.3 mA; VCC = 2.3 V - - 0.36 V IO = 3.1 mA; VCC = 2.3 V - - 0.50 V IO = 2.7 mA; VCC = 3.0 V - - 0.36 V IO = 4.0 mA; VCC = 3.0 V - - 0.50 V 0.33 × VCC V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.75 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.75 μA ΔIOFF additional power-off VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.75 μA - - 1.4 μA - - 75 μA leakage current ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V [1] [1] One input at VCC - 0.6 V, other input at VCC or GND. 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 9 / 24 74AUP1G34 Nexperia Low-power buffer 11 Dynamic characteristics Table 8. Dynamic characteristics Voltages are referenced to GND (ground = 0 V); for test circuit see Figure 11. Symbol Parameter Conditions Tamb = 25 °C Min Typ [1] Tamb = -40 °C to +125 °C Max Min Max Min (85 °C) Unit Max (125 °C) CL = 5 pF tpd propagation A to Y; see Figure 10 delay [2] VCC = 0.8 V - 15.0 - - - - - ns VCC = 1.1 V to 1.3 V 2.6 4.7 9.2 2.0 10.0 2.0 11.0 ns VCC = 1.4 V to 1.6 V 2.1 3.4 5.7 1.6 6.5 1.6 7.2 ns VCC = 1.65 V to 1.95 V 1.8 2.9 4.5 1.4 5.2 1.4 5.8 ns VCC = 2.3 V to 2.7 V 1.5 2.3 3.5 1.2 4.2 1.2 4.6 ns VCC = 3.0 V to 3.6 V 1.4 2.1 3.2 1.0 3.8 1.0 4.2 ns - 18.4 - - - - - ns VCC = 1.1 V to 1.3 V 3.2 5.6 10.9 2.3 11.8 2.3 13.1 ns VCC = 1.4 V to 1.6 V 2.6 4.1 6.7 1.9 7.7 1.9 8.5 ns VCC = 1.65 V to 1.95 V 2.3 3.4 5.3 1.7 6.2 1.7 6.9 ns VCC = 2.3 V to 2.7 V 2.0 2.9 4.2 1.5 5.0 1.5 5.5 ns VCC = 3.0 V to 3.6 V 1.7 2.6 3.8 1.4 4.6 1.4 5.1 ns - 21.9 - - - - - ns VCC = 1.1 V to 1.3 V 3.6 6.4 12.6 2.6 13.8 2.6 15.2 ns VCC = 1.4 V to 1.6 V 3.0 4.6 7.6 2.2 8.9 2.2 9.8 ns VCC = 1.65 V to 1.95 V 2.6 3.9 6.0 2.0 7.2 2.0 7.9 ns VCC = 2.3 V to 2.7 V 2.3 3.3 4.8 1.8 5.7 1.8 6.3 ns VCC = 3.0 V to 3.6 V 2.1 3.1 4.2 1.6 5.0 1.6 5.5 ns CL = 10 pF tpd propagation A to Y; see Figure 10 delay [2] VCC = 0.8 V CL = 15 pF tpd propagation A to Y; see Figure 10 delay 74AUP1G34 Product data sheet VCC = 0.8 V [2] All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 10 / 24 74AUP1G34 Nexperia Low-power buffer Symbol Parameter Conditions Tamb = 25 °C Min Typ [1] Tamb = -40 °C to +125 °C Max Min Max Min (85 °C) Unit Max (125 °C) CL = 30 pF tpd propagation A to Y; see Figure 10 delay [2] VCC = 0.8 V - 32.1 - - - - - ns VCC = 1.1 V to 1.3 V 4.8 8.7 16.3 3.6 18.9 3.6 20.8 ns VCC = 1.4 V to 1.6 V 4.0 6.2 10.3 3.4 12.2 3.4 13.4 ns VCC = 1.65 V to 1.95 V 3.6 5.2 8.1 3.2 9.8 3.2 10.8 ns VCC = 2.3 V to 2.7 V 3.0 4.4 6.4 2.7 7.7 2.7 8.5 ns 2.9 4.2 5.6 2.5 6.5 2.5 7.2 ns VCC = 0.8 V - 2.5 - - - - - pF VCC = 1.1 V to 1.3 V - 2.6 - - - - - pF VCC = 1.4 V to 1.6 V - 2.7 - - - - - pF VCC = 1.65 V to 1.95 V - 2.9 - - - - - pF VCC = 2.3 V to 2.7 V - 3.4 - - - - - pF VCC = 3.0 V to 3.6 V - 4.0 - - - - - pF VCC = 3.0 V to 3.6 V CPD power VI = GND to VCC; dissipation fi = 1 MHz capacitance [3] [1] All typical values are measured at nominal VCC. [2] tpd is the same as tPLH and tPHL. [3] CPD is used to determine the dynamic power dissipation (PD in μW). 2 2 PD = CPD x VCC x fi x N + Σ(CL x VCC x fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; 2 Σ(CL x VCC x fo) = sum of outputs. 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 11 / 24 74AUP1G34 Nexperia Low-power buffer 11.1 Waveform and test circuit VI VM A input GND t PHL t PLH VOH VM Y output VOL mnb153 Measurement points are given in Table 9 . VOL and VOH are typical output voltage levels that occur with the output load. Figure 10.  The data input (A) to output (Y) propagation delays Table 9. Measurement points Supply voltage Output Input VCC VM VM VI tr = tf 0.8 V to 3.6 V 0.5 × VCC 0.5 × VCC VCC ≤ 3.0 ns VCC G VI DUT VEXT 5 kΩ VO RT CL RL 001aac521 Test data is given in Table 10 . Definitions for test circuit: RL = Load resistance. CL = Load capacitance including jig and probe capacitance. RT = Termination resistance should be equal to the output impedance Zo of the pulse generator. VEXT = External voltage for measuring switching times. Figure 11.  Test circuit for measuring switching times Table 10. Test data Supply voltage Load VEXT [1] VCC CL RL 0.8 V to 3.6 V 5 pF, 10 pF, 15 pF and 30 pF 5 kΩ or 1 MΩ tPLH, tPHL tPZH, tPHZ tPZL, tPLZ open GND 2 × VCC [1] For measuring enable and disable times RL = 5 kΩ, for measuring propagation delays, setup and hold times and pulse width RL = 1 MΩ. 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 12 / 24 74AUP1G34 Nexperia Low-power buffer 12 Package outline TSSOP5: plastic thin shrink small outline package; 5 leads; body width 1.25 mm D E SOT353-1 A X c y HE v M A Z 5 4 A2 A (A3) A1 θ 1 Lp 3 e e1 L w M bp detail X 0 1.5 3 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max. A1 A2 A3 bp c D(1) E(1) e e1 HE L Lp v w y Z(1) θ mm 1.1 0.1 0 1.0 0.8 0.15 0.30 0.15 0.25 0.08 2.25 1.85 1.35 1.15 0.65 1.3 2.25 2.0 0.425 0.46 0.21 0.3 0.1 0.1 0.60 0.15 7° 0° Note 1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. OUTLINE VERSION SOT353-1 REFERENCES IEC JEDEC JEITA MO-203 SC-88A EUROPEAN PROJECTION ISSUE DATE 00-09-01 03-02-19 Figure 12. Package outline SOT353-1 (TSSOP5) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 13 / 24 74AUP1G34 Nexperia Low-power buffer SOT886 XSON6: plastic extremely thin small outline package; no leads; 6 terminals; body 1 x 1.45 x 0.5 mm b 1 2 3 4x (2) L L1 e 6 5 e1 4 e1 6x A (2) A1 D E terminal 1 index area 0 1 2 mm scale Dimensions (mm are the original dimensions) Unit mm max nom min A(1) 0.5 A1 b D E 0.04 0.25 1.50 1.05 0.20 1.45 1.00 0.17 1.40 0.95 e e1 0.6 0.5 L L1 0.35 0.40 0.30 0.35 0.27 0.32 Notes 1. Including plating thickness. 2. Can be visible in some manufacturing processes. Outline version SOT886 sot886_po References IEC JEDEC JEITA European projection Issue date 04-07-22 12-01-05 MO-252 Figure 13. Package outline SOT886 (XSON6) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 14 / 24 74AUP1G34 Nexperia Low-power buffer XSON6: plastic extremely thin small outline package; no leads; 6 terminals; body 1 x 1 x 0.5 mm 1 SOT891 b 3 2 4× (1) L L1 e 6 5 e1 4 e1 6× A (1) A1 D E terminal 1 index area 0 1 2 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max A1 max b D E e e1 L L1 mm 0.5 0.04 0.20 0.12 1.05 0.95 1.05 0.95 0.55 0.35 0.35 0.27 0.40 0.32 Note 1. Can be visible in some manufacturing processes. OUTLINE VERSION REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 05-04-06 07-05-15 SOT891 Figure 14. Package outline SOT891 (XSON6) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 15 / 24 74AUP1G34 Nexperia Low-power buffer XSON6: extremely thin small outline package; no leads; 6 terminals; body 0.9 x 1.0 x 0.35 mm 1 SOT1115 b 3 2 (4×)(2) L L1 e 6 5 4 e1 e1 (6×)(2) A1 A D E terminal 1 index area 0 0.5 Dimensions Unit mm 1 mm scale A(1) A1 b D E e e1 max 0.35 0.04 0.20 0.95 1.05 nom 0.15 0.90 1.00 0.55 min 0.12 0.85 0.95 0.3 L L1 0.35 0.40 0.30 0.35 0.27 0.32 Note 1. Including plating thickness. 2. Visible depending upon used manufacturing technology. Outline version sot1115_po References IEC JEDEC JEITA European projection Issue date 10-04-02 10-04-07 SOT1115 Figure 15. Package outline SOT1115 (XSON6) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 16 / 24 74AUP1G34 Nexperia Low-power buffer XSON6: extremely thin small outline package; no leads; 6 terminals; body 1.0 x 1.0 x 0.35 mm 1 SOT1202 b 3 2 (4×)(2) L L1 e 6 5 4 e1 e1 (6×)(2) A1 A D E terminal 1 index area 0 0.5 Dimensions Unit mm 1 mm scale A(1) A1 b D E e e1 L L1 max 0.35 0.04 0.20 1.05 1.05 0.35 0.40 nom 0.15 1.00 1.00 0.55 0.35 0.30 0.35 min 0.12 0.95 0.95 0.27 0.32 Note 1. Including plating thickness. 2. Visible depending upon used manufacturing technology. Outline version sot1202_po References IEC JEDEC JEITA European projection Issue date 10-04-02 10-04-06 SOT1202 Figure 16. Package outline SOT1202 (XSON6) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 17 / 24 74AUP1G34 Nexperia Low-power buffer X2SON5: plastic thermal enhanced extremely thin small outline package; no leads; 5 terminals; body 0.8 x 0.8 x 0.35 mm D A B SOT1226 X A E A1 A3 detail X terminal 1 index area e v w b 1 2 terminal 1 index area C C A B C y1 C y k D h 3 L 5 4 0 1 mm scale Dimensions Unit mm A(1) A1 A3 D Dh E b e k L max 0.35 0.04 0.128 0.85 0.30 0.85 0.27 0.27 nom 0.80 0.25 0.80 0.22 0.48 0.22 min 0.040 0.75 0.20 0.75 0.17 0.20 0.17 v 0.1 w y y1 0.05 0.05 0.05 Note 1. Dimension A is including plating thickness. 2. Plastic or metal protrusions of 0.075 mm maximum per side are not included. Outline version References IEC JEDEC EIAJ sot1226_po European projection Issue date 12-04-10 12-04-25 SOT1226 Figure 17. Package outline SOT1226 (X2SON5) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 18 / 24 74AUP1G34 Nexperia Low-power buffer X2SON4: plastic thermal enhanced extremely thin small outline package; no leads; 4 terminals; body 0.6 x 0.6 x 0.32 mm SOT1269-2 X A D B pin 1 ID area A E detail X A1 C e y1 C 2 y 3 L (4x) e 1 4 v w b (4x) C A B C 0 1 mm scale Dimensions (mm are the original dimensions) Unit mm A A1 D E b e L max 0.35 0.04 0.65 0.65 0.20 nom 0.32 0.02 0.60 0.60 0.15 0.40 min 0.30 0.00 0.55 0.55 0.10 v w y y1 0.23 0.18 0.10 0.05 0.05 0.05 0.13 sot1269-2_po Outline version SOT1269-2 References IEC JEDEC JEITA European projection Issue date 17-04-07 17-06-30 --- Figure 18. Package outline SOT1269-2 (X2SON4) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 19 / 24 74AUP1G34 Nexperia Low-power buffer WLCSP6: wafer level chip-scale package, 6 bumps; 0.65 x 0.44 x 0.27 mm A E SOT1454-1 B ball A1 index area A2 A D A1 detail X e1 C Øv Øw b C A B C y1 C y C e e2 B A 1 ball A1 index area 2 X 0 1 mm scale Dimensions (mm are the original dimensions) Unit mm A max 0.30 nom 0.27 min 0.24 A1 A2 b D E e e1 e2 v w y y1 0.085 0.070 0.055 0.22 0.20 0.18 0.100 0.085 0.070 0.68 0.65 0.62 0.47 0.44 0.41 0.22 0.23 0.44 0.15 0.05 0.05 0.1 sot1454-1_po Outline version SOT1454-1 References IEC JEDEC JEITA European projection Issue date 15-11-16 14-12-16 --- Figure 19. Package outline SOT1454-1 (WLCSP6) 74AUP1G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 20 / 24 74AUP1G34 Nexperia Low-power buffer 13 Abbreviations Table 11. Abbreviations Acronym Description CDM Charged Device Model DUT Device Under Test ESD ElectroStatic Discharge HBM Human Body Model MM Machine Model 14 Revision history Table 12. Revision history Document ID Release date Data sheet status Change notice Supersedes 74AUP1G34 v.8 20180608 Product data sheet - 74AUP1G34 v.7 Modifications: • Added type number 74AUP1G34GX4 (SOT1269-2) 74AUP1G34 v.7 20170328 Modifications: • Added type number 74AUP1G34UK (SOT1454-1/WLCSP6) 74AUP1G34 v.6 20120628 Modifications: • Added type number 74AUP1G34GX (SOT1226) • Package outline drawing of SOT886 (Figure 13) modified. 74AUP1G34 v.5 20111128 Modifications: • Legal pages updated. 74AUP1G34 v.4 20100714 74AUP1G34 v.3 Product data sheet Product data sheet - 74AUP1G34 v.6 74AUP1G34 v.5 - 74AUP1G34 v.4 Product data sheet - 74AUP1G34 v.3 20080814 Product data sheet - 74AUP1G34 v.2 74AUP1G34 v.2 20060704 Product data sheet - 74AUP1G34 v.1 74AUP1G34 v.1 20050804 Product data sheet - - 74AUP1G34 Product data sheet Product data sheet - All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 21 / 24 74AUP1G34 Nexperia Low-power buffer 15 Legal information 15.1 Data sheet status Document status [1][2] Product status [3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 15.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. 15.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia's aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical 74AUP1G34 Product data sheet systems or equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 22 / 24 74AUP1G34 Nexperia Low-power buffer Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia's warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia's specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer 74AUP1G34 Product data sheet design and use of the product for automotive applications beyond Nexperia's standard warranty and Nexperia's product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 15.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. All information provided in this document is subject to legal disclaimers. Rev. 8 — 8 June 2018 © Nexperia B.V. 2018. All rights reserved. 23 / 24 74AUP1G34 Nexperia Low-power buffer Contents 1 2 3 4 5 6 6.1 6.2 7 8 9 10 11 11.1 12 13 14 15 General description ............................................ 1 Features and benefits .........................................1 Ordering information .......................................... 2 Marking .................................................................2 Functional diagram ............................................. 3 Pinning information ............................................ 3 Pinning ............................................................... 3 Pin description ................................................... 4 Functional description ........................................4 Limiting values .................................................... 5 Recommended operating conditions ................ 5 Static characteristics .......................................... 6 Dynamic characteristics ...................................10 Waveform and test circuit ................................ 12 Package outline .................................................13 Abbreviations .................................................... 21 Revision history ................................................ 21 Legal information .............................................. 22 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section 'Legal information'. © Nexperia B.V. 2018. All rights reserved. For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 8 June 2018 Document identifier: 74AUP1G34 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Nexperia: 74AUP1G34GF,132 74AUP1G34GM,115 74AUP1G34GM,132 74AUP1G34GW,125 74AUP1G34GN,132 74AUP1G34GS,132 74AUP1G34GX,125 74AUP1G34GX4Z 74AUP1G34UKAZ
