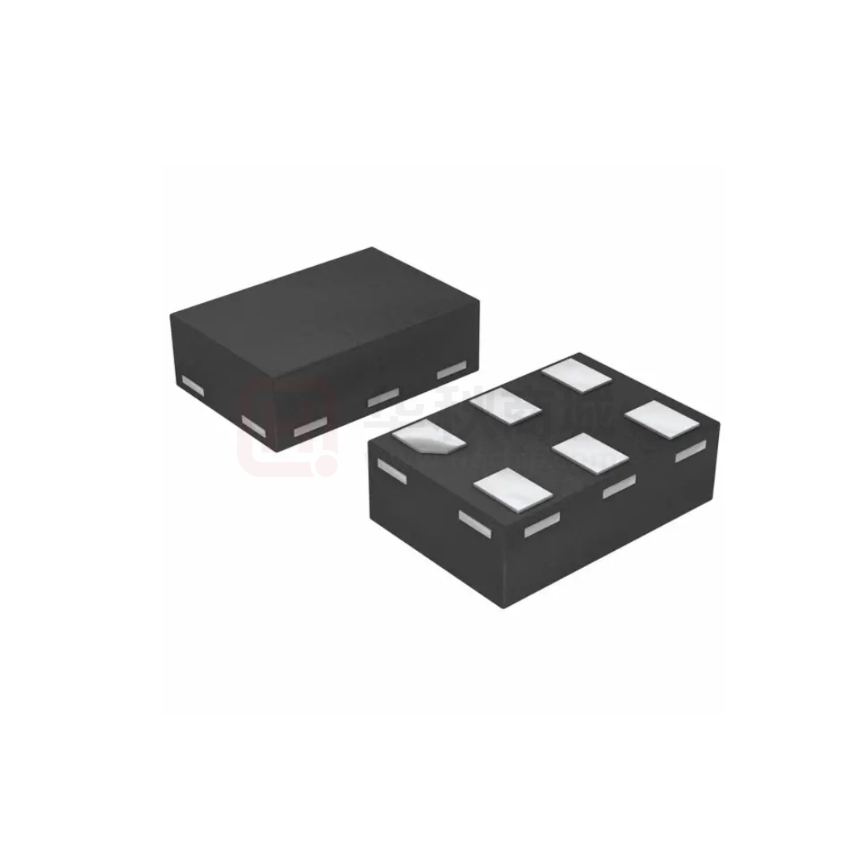

74LVC1G3157GM-Q10X

74LVC1G3157-Q100 2-channel analog multiplexer/demultiplexer Rev. 5 — 28 January 2019 Product data sheet 1. General description The 74LVC1G3157-Q100 provides one analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1) and a common input/output (Z). Schmitt trigger action at the select input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 V to 5.5 V. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2. Features and benefits • • • • • • • • • • • • Automotive product qualification in accordance with AEC-Q100 (Grade 1) • Specified from -40 °C to +85 °C and from -40 °C to +125 °C Wide supply voltage range from 1.65 V to 5.5 V Very low ON resistance: • 7.5 Ω (typical) at VCC = 2.7 V • 6.5 Ω (typical) at VCC = 3.3 V • 6 Ω (typical) at VCC = 5 V Switch current capability of 32 mA Break-before-make switching High noise immunity CMOS low power consumption TTL interface compatibility at 3.3 V Latch-up performance meets requirements of JESD 78 Class I Control input accepts voltages up to 5.5 V Multiple package options ESD protection: • MIL-STD-883, method 3015 exceeds 2000 V • HBM JESD22-A114F exceeds 2000 V • MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω) 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version 74LVC1G3157GW-Q100 -40 °C to +125 °C SC-88 plastic surface-mounted package; 6 leads SOT363 74LVC1G3157GV-Q100 SC-74 plastic surface-mounted package (SC-74; TSOP6); 6 leads SOT457 XSON6 plastic extremely thin small outline package; no leads; 6 terminals; body 1 × 1.45 × 0.5 mm SOT886 -40 °C to +125 °C 74LVC1G3157GM-Q100 -40 °C to +125 °C 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 4. Marking Table 2. Marking Type number Marking code [1] 74LVC1G3157GW-Q100 YJ 74LVC1G3157GV-Q100 YJ 74LVC1G3157GM-Q100 YJ [1] The pin 1 indicator is located on the lower left corner of the device, below the marking code. 5. Functional diagram Y1 S 1 Y1 3 Y0 Z S 6 Z 4 Y0 001aac355 001aac354 Fig. 1. Logic symbol Fig. 2. Logic diagram 6. Pinning information 6.1. Pinning 74LVC1G3157 74LVC1G3157 Y1 1 6 S GND 2 5 VCC Y0 3 4 Z Y1 1 6 S GND 2 5 VCC Y0 3 4 Z Transparent top view 001aac356 Fig. 3. Pin configuration SOT363 (SC-88) and SOT457 (SC-74) 74LVC1G3157_Q100 Product data sheet 001aac357 Fig. 4. Pin configuration SOT886 (XSON6) All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 2 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 6.2. Pin description Table 3. Pin description Symbol Pin Description Y1 1 independent input or output GND 2 ground (0 V) Y0 3 independent input or output Z 4 common output or input VCC 5 supply voltage S 6 select input 7. Functional description Table 4. Function table H = HIGH voltage level; L = LOW voltage level. Input S Channel on L Y0 H Y1 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter VCC supply voltage VI input voltage IIK input clamping current ISK Conditions Min Max Unit -0.5 +6.5 V -0.5 +6.5 V VI < -0.5 V or VI > VCC + 0.5 V -50 - mA switch clamping current VI < -0.5 V or VI > VCC + 0.5 V - ±50 mA VSW switch voltage enable and disable mode ISW switch current VSW > -0.5 V or VSW < VCC + 0.5 V ICC [1] [2] -0.5 VCC + 0.5 V - ±50 mA supply current - 100 mA IGND ground current -100 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 250 mW [1] [2] [3] Tamb = -40 °C to +125 °C [3] The minimum input voltage rating may be exceeded if the input current rating is observed. The minimum and maximum switch voltage ratings may be exceeded if the switch clamping current rating is observed. For SC-88 and SC-74 packages: above 87.5 °C the value of Ptot derates linearly with 4.0 mW/K. For XSON6 packages: above 118 °C the value of Ptot derates linearly with 7.8 mW/K. 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 3 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 9. Recommended operating conditions Table 6. Recommended operating conditions Symbol Parameter Conditions Min Typ Max Unit VCC supply voltage 1.65 - 5.5 V VI input voltage 0 - 5.5 V VSW switch voltage 0 - VCC V Tamb ambient temperature °C Δt/ΔV input transition rise and fall rate [1] [2] enable and disable mode [1] -40 - +125 VCC = 1.65 V to 2.7 V [2] - - 20 ns/V VCC = 2.7 V to 5.5 V [2] - - 10 ns/V To avoid sinking GND current from terminal Z when switch current flows in terminal Yn, the voltage drop across the bidirectional switch must not exceed 0.4 V. If the switch current flows into terminal Z, no GND current will flow from terminal Yn. In this case, there is no limit for the voltage drop across the switch. Applies to control signal levels. 10. Static characteristics Table 7. Static characteristics At recommended operating conditions; voltages are referenced to GND (ground 0 V). Symbol VIH Parameter HIGH-level input voltage Conditions -40 °C to +85 °C LOW-level input voltage Unit Min Typ[1] Max Min Max 0.65VCC - - 0.65VCC - V VCC = 2.3 V to 2.7 V 1.7 - - 1.7 - V VCC = 3 V to 3.6 V 2.0 - - 2.0 - V 0.7VCC - - 0.7VCC - V VCC = 1.65 V to 1.95 V - - 0.35VCC - 0.35VCC V VCC = 2.3 V to 2.7 V - - 0.7 - 0.7 V VCC = 3 V to 3.6 V - - 0.8 - VCC = 4.5 V to 5.5 V - - 0.3VCC VCC = 1.65 V to 1.95 V VCC = 4.5 V to 5.5 V VIL -40 °C to +125 °C 0.8 V 0.3VCC V II input leakage current pin S; VI = 5.5 V or GND; VCC = 0 V to 5.5 V [2] - ±0.1 ±1 - ±1 μA IS(OFF) OFF-state leakage current VCC = 5.5 V; see Fig. 5 [2] - ±0.1 ±0.2 - ±0.5 μA IS(ON) ON-state leakage VCC = 5.5 V; see Fig. 6 current [2] - ±0.1 ±1 - ±2 μA ICC supply current [2] - 0.1 4 - 4 μA ΔICC additional supply pin S; VI = VCC - 0.6 V; current VCC = 5.5 V; VSW = GND or VCC [2] - 5 500 - 500 μA CI input capacitance - 2.5 - - - pF CS(OFF) OFF-state capacitance - 6.0 - - - pF CS(ON) ON-state capacitance - 18 - - - pF [1] [2] VI = 5.5 V or GND; VSW = GND or VCC; VCC = 1.65 V to 5.5 V Typical values are measured at Tamb = 25 °C. These typical values are measured at VCC = 3.3 V 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 4 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 10.1. Test circuits VCC VIL or VIH S Y0 1 Z Y1 2 switch switch S 1 VIH 2 VIL IS VI VO GND 001aac358 VI = VCC or GND and VO = GND or VCC. Fig. 5. Test circuit for measuring OFF-state leakage current VCC VIL or VIH IS S Y0 1 Z Y1 2 switch S 1 VIH 2 VIL switch VI VO GND 001aac359 VI = VCC or GND and VO = open circuit. Fig. 6. Test circuit for measuring ON-state leakage current 10.2. ON resistance Table 8. ON resistance At recommended operating conditions; voltages are referenced to GND (ground 0 V); for graphs see Fig. 8 to Fig. 13. Symbol Parameter RON(peak) ON resistance (peak) 74LVC1G3157_Q100 Product data sheet Conditions -40 °C to +85 °C -40 °C to +125 °C Unit Min Typ[1] Max Min Max ISW = 4 mA; VCC = 1.65 V to 1.95 V - 34.0 130 - 195 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 12.0 30 - 45 Ω ISW = 12 mA; VCC = 2.7 V - 10.4 25 - 38 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 7.8 20 - 30 Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 6.2 15 - 23 Ω VI = GND to VCC; see Fig. 7 All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 5 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer Symbol Parameter RON(rail) Conditions -40 °C to +85 °C -40 °C to +125 °C Unit Min Typ[1] Max Min Max ISW = 4 mA; VCC = 1.65 V to 1.95 V - 8.2 18 - 27 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 7.1 16 - 24 Ω ISW = 12 mA; VCC = 2.7 V - 6.9 14 - 21 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 6.5 12 - 18 Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 5.8 10 - 15 Ω ISW = 4 mA; VCC = 1.65 V to 1.95 V - 10.4 30 - 45 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 7.6 20 - 30 Ω ISW = 12 mA; VCC = 2.7 V - 7.0 18 - 27 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 6.1 15 - 23 Ω - 4.9 10 - 15 Ω ISW = 4 mA; VCC = 1.65 V to 1.95 V - 26.0 - - - Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 5.0 - - - Ω ISW = 12 mA; VCC = 2.7 V - 3.5 - - - Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 2.0 - - - Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 1.5 - - - Ω VI = GND; see Fig. 7 ON resistance (rail) VI = VCC; see Fig. 7 ISW = 32 mA; VCC = 4.5 V to 5.5 V RON(flat) [1] [2] VI = GND to VCC ON resistance (flatness) [2] Typical values are measured at Tamb = 25 °C and nominal VCC. Flatness is defined as the difference between the maximum and minimum value of ON resistance measured at identical VCC and temperature. 10.3. ON resistance test circuit and graphs mna673 40 RON (Ω) 30 (1) 20 (2) (3) VSW V VCC VIL or VIH S Y0 1 Z Y1 2 ISW switch switch S 1 VIL 2 VIH 10 (4) 0 0 GND 001aac360 Fig. 7. Test circuit for measuring ON resistance 74LVC1G3157_Q100 Product data sheet 2 3 4 VI (V) 5 (1) VCC = 1.8 V. (2) VCC = 2.5 V. (3) VCC = 2.7 V. (4) VCC = 3.3 V. (5) VCC = 5.0 V. VI RON = VSW / ISW 1 (5) Fig. 8. Typical ON resistance as a function of input voltage; Tamb = 25 °C All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 6 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 001aaa712 55 RON (Ω) 001aaa708 15 RON (Ω) 45 13 35 11 (4) (3) (2) (1) 25 (1) (2) 9 (3) (4) 15 5 7 0 0.4 0.8 1.2 1.6 VI (V) 5 2.0 0 (1) Tamb = 125 °C. (2) Tamb = 85 °C. (3) Tamb = 25 °C. (4) Tamb = -40 °C. Fig. 9. 0.5 1.0 1.5 2.0 VI (V) 2.5 (1) Tamb = 125 °C. (2) Tamb = 85 °C. (3) Tamb = 25 °C. (4) Tamb = -40 °C. ON resistance as a function of input voltage; VCC = 1.8 V 001aaa709 13 RON (Ω) Fig. 10. ON resistance as a function of input voltage; VCC = 2.5 V 001aaa710 10 RON (Ω) 11 8 (1) (1) 9 (2) (2) 6 (3) (3) 7 (4) 5 0 0.5 1.0 (4) 1.5 2.0 2.5 3.0 VI (V) 4 0 (1) Tamb = 125 °C. (2) Tamb = 85 °C. (3) Tamb = 25 °C. (4) Tamb = -40 °C. Product data sheet 2 3 VI (V) 4 (1) Tamb = 125 °C. (2) Tamb = 85 °C. (3) Tamb = 25 °C. (4) Tamb = -40 °C. Fig. 11. ON resistance as a function of input voltage; VCC = 2.7 V 74LVC1G3157_Q100 1 Fig. 12. ON resistance as a function of input voltage; VCC = 3.3 V All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 7 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 001aaa711 7 RON (Ω) 6 5 (1) (2) (3) 4 (4) 3 0 1 2 3 4 VI (V) 5 (1) Tamb = 125 °C. (2) Tamb = 85 °C. (3) Tamb = 25 °C. (4) Tamb = -40 °C. Fig. 13. ON resistance as a function of input voltage; VCC = 5.0 V 11. Dynamic characteristics Table 9. Dynamic characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V); for test circuit see Fig. 17. Symbol tpd ten Parameter propagation delay enable time Conditions -40 °C to +85 °C Min Typ[1] VCC = 1.65 V to 1.95 V - VCC = 2.3 V to 2.7 V - VCC = 2.7 V disable time 74LVC1G3157_Q100 Product data sheet Unit Max Min Max - 2 - 3.0 ns - 1.2 - 2.0 ns - - 1.0 - 1.5 ns VCC = 3 V to 3.6 V - - 0.8 - 1.5 ns VCC = 4.5 V to 5.5 V - - 0.6 - 1.0 ns VCC = 1.65 V to 1.95 V 3.1 8.7 20.8 3.1 22.0 ns VCC = 2.3 V to 2.7 V 2.2 5.3 11.5 2.2 12.5 ns VCC = 2.7 V 2.1 4.9 9.3 2.1 10.2 ns VCC = 3 V to 3.6 V 1.8 4.0 7.6 1.8 9.0 ns 1.5 3.0 5.7 1.5 6.1 ns VCC = 1.65 V to 1.95 V 3.0 6.0 11.4 3.0 11.7 ns VCC = 2.3 V to 2.7 V 2.1 4.4 7.3 2.1 7.6 ns VCC = 2.7 V 2.1 4.2 6.3 2.1 6.6 ns VCC = 3 V to 3.6 V 1.7 3.6 5.3 1.7 5.9 ns VCC = 4.5 V to 5.5 V 1.3 2.9 3.8 1.3 4.3 ns Z to Yn or Yn to Z; see Fig. 14 S to Yn; see Fig. 15 [2][3] [4] VCC = 4.5 V to 5.5 V tdis -40 °C to +125 °C S to Yn; see Fig. 15 [5] All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 8 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer Symbol tb-m [1] [2] [3] [4] [5] [6] Parameter break-beforemake time Conditions -40 °C to +85 °C -40 °C to +125 °C Unit Min Typ[1] Max Min Max VCC = 1.65 V to 1.95 V 0.5 - - 0.5 - ns VCC = 2.3 V to 2.7 V 0.5 - - 0.5 - ns VCC = 2.7 V 0.5 - - 0.5 - ns VCC = 3 V to 3.6 V 0.5 - - 0.5 - ns VCC = 4.5 V to 5.5 V 0.5 - - 0.5 - ns see Fig. 16 [6] Typical values are measured at Tamb = 25 °C and nominal VCC. tpd is the same as tPLH and tPHL. Propagation delay is the calculated RC time constant of the typical ON resistance of the switch and the specified capacitance when driven by an ideal voltage source (zero output impedance). ten is the same as tPZH and tPZL. tdis is the same as tPLZ and tPHZ. Break-before-make specified by design. 11.1. Waveforms and test circuit VI Yn or Z input VM VM GND tPLH tPHL VOH Z or Yn output VM VM VOL 001aac361 Measurement points are given in Table 10. Logic levels: VOL and VOH are typical output voltage levels that occur with the output load. Fig. 14. Input (Yn or Z) to output (Z or Yn) propagation delays VI S input VM GND tPLZ Yn output LOW to OFF OFF to LOW tPZL VCC VM VX VOL tPZH tPHZ Yn output HIGH to OFF OFF to HIGH VOH VY VM GND switch enabled switch disabled switch enabled 001aac362 Measurement points are given in Table 10. Logic levels: VOL and VOH are typical output voltage levels that occur with the output load. Fig. 15. Enable and disable times 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 9 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer Table 10. Measurement points Supply voltage Input Output VCC VM VM VX VY 1.65 V to 5.5 V 0.5 × VCC 0.5 × VCC VOL + 0.3 V VOH - 0.3 V VCC VI G VO RL 0.5VCC S Y0 Z Y1 CL GND 001aac367 a. Test circuit VI 0.5VI 0.9VO 0.9VO VO tb-m 001aag572 b. Input and output measurement points Fig. 16. Test circuit for measuring break-before-make timing VEXT VCC G VI RL VO DUT RT CL RL mna616 Test data is given in Table 11. Definitions test circuit: RT = Termination resistance should be equal to output impedance Zo of the pulse generator. CL = Load capacitance including jig and probe capacitance. RL = Load resistance. VEXT = External voltage for measuring switching times. Fig. 17. Test circuit for measuring switching times Table 11. Test data Supply voltage Input VCC VI tr, tf CL RL tPLH, tPHL tPZH, tPHZ tPZL, tPLZ 1.65 V to 1.95 V VCC ≤ 2.0 ns 50 pF 500 Ω open GND 2 × VCC 2.3 V to 2.7 V VCC ≤ 2.0 ns 50 pF 500 Ω open GND 2 × VCC 2.7 V VCC ≤ 2.5 ns 50 pF 500 Ω open GND 2 × VCC 3 V to 3.6 V VCC ≤ 2.5 ns 50 pF 500 Ω open GND 2 × VCC 4.5 V to 5.5 V VCC ≤ 2.5 ns 50 pF 500 Ω open GND 2 × VCC 74LVC1G3157_Q100 Product data sheet Load VEXT All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 10 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 11.2. Additional dynamic characteristics Table 12. Additional dynamic characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V); Tamb = 25 °C. Symbol Parameter Conditions THD fi = 600 Hz to 20 kHz; RL = 600 Ω; CL = 50 pF; VI = 0.5 V (p-p); see Fig. 18 f(−3dB) αiso Qinj total harmonic distortion −3 dB frequency response Min Typ Max Unit VCC = 1.65 V - 0.260 - % VCC = 2.3 V - 0.078 - % VCC = 3.0 V - 0.078 - % VCC = 4.5 V - 0.078 - % VCC = 1.65 V - 200 - MHz VCC = 2.3 V - 300 - MHz VCC = 3.0 V - 300 - MHz VCC = 4.5 V - 300 - MHz VCC = 1.65 V - -42 - dB VCC = 2.3 V - -42 - dB VCC = 3.0 V - -40 - dB VCC = 4.5 V - -40 - dB VCC = 1.8 V - 3.3 - pC VCC = 2.5 V - 4.1 - pC VCC = 3.3 V - 5.0 - pC VCC = 4.5 V - 6.4 - pC VCC = 5.5 V - 7.5 - pC RL = 50 Ω; see Fig. 19 RL = 50 Ω; CL = 5 pF; fi = 10 MHz; see Fig. 20 isolation (OFF-state) CL = 0.1 nF; Vgen = 0 V; Rgen = 0 Ω; fi = 1 MHz; RL = 1 MΩ; see Fig. 21 charge injection 11.3. Test circuits VCC VIL or VIH fi 0.1 µF 0.5VCC S Y0 1 Z Y1 2 RL switch 10 µF CL 600 Ω switch S 1 VIL 2 VIH D GND 001aac363 Fig. 18. Test circuit for measuring total harmonic distortion 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 11 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer VCC VIL or VIH DC bias = 350 mV 0.1 µF fi S Y0 1 Z Y1 2 switch S 1 VIL 2 VIH switch dB RL 50 Ω GND aaa-022366 Adjust fi voltage to obtain 0 dBm level at output. Increase fi frequency until dB meter reads -3 dB. Fig. 19. Test circuit for measuring the frequency response when switch is in ON-state 0.5VCC VCC 0.5VCC RL VIL or VIH fi switch S 1 VIH 2 VIL RL 0.1 µF S Y0 1 Z Y1 2 switch dB CL 50 Ω GND 001aac365 Adjust fi voltage to obtain 0 dBm level at input. Fig. 20. Test circuit for measuring isolation (OFF-state) VCC G S Y0 1 Z Y1 2 switch Rgen VI RL CL VO Vgen GND aaa-022367 a. Test circuit logic (S) off input on VO off ΔVO 001aac478 b. Input and output pulse definitions Qinj = ΔVO × CL. ΔVO = output voltage variation. Rgen = generator resistance. Vgen = generator voltage. Fig. 21. Test circuit for measuring charge injection 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 12 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 12. Package outline Plastic surface-mounted package; 6 leads SOT363 D B E y A X HE 6 5 v M A 4 Q pin 1 index A 1 2 e1 A1 3 bp c Lp w M B e detail X 0 1 2 mm scale DIMENSIONS (mm are the original dimensions) UNIT A A1 max bp c D E e e1 HE Lp Q v w y mm 1.1 0.8 0.1 0.30 0.20 0.25 0.10 2.2 1.8 1.35 1.15 1.3 0.65 2.2 2.0 0.45 0.15 0.25 0.15 0.2 0.2 0.1 OUTLINE VERSION REFERENCES IEC JEDEC SOT363 JEITA EUROPEAN PROJECTION ISSUE DATE 04-11-08 06-03-16 SC-88 Fig. 22. Package outline SOT363 (SC-88) 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 13 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer Plastic, surface-mounted package (SC-74; TSOP6); 6 leads D SOT457 B E y A X HE 6 5 v M A 4 Q A pin 1 index A1 c 1 2 Lp 3 bp e detail X w M B 0 1 2 mm scale Dimensions (mm are the original dimensions) Unit mm max nom min A A1 1.1 0.1 0.9 bp c D E 0.40 0.26 3.1 1.7 0.013 0.25 0.10 2.7 1.3 e 0.95 HE Lp Q 3.0 0.6 0.33 2.5 0.2 0.23 v w y 0.2 0.2 0.1 sot457_po Outline version References IEC JEDEC SOT457 JEITA European projection Issue date 06-03-16 18-11-27 SC-74 Fig. 23. Package outline SOT457 (SC-74) 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 14 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer SOT886 XSON6: plastic extremely thin small outline package; no leads; 6 terminals; body 1 x 1.45 x 0.5 mm b 1 2 3 4x (2) L L1 e 6 5 e1 4 e1 6x A (2) A1 D E terminal 1 index area 0 1 2 mm scale Dimensions (mm are the original dimensions) Unit mm max nom min A(1) 0.5 A1 b D E 0.04 0.25 1.50 1.05 0.20 1.45 1.00 0.17 1.40 0.95 e e1 0.6 0.5 L L1 0.35 0.40 0.30 0.35 0.27 0.32 Notes 1. Including plating thickness. 2. Can be visible in some manufacturing processes. Outline version SOT886 sot886_po References IEC JEDEC JEITA European projection Issue date 04-07-22 12-01-05 MO-252 Fig. 24. Package outline SOT886 (XSON6) 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 15 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 13. Abbreviations Table 13. Abbreviations Acronym Description CMOS Complementary Metal-Oxide Semiconductor DUT Device Under Test ESD ElectroStatic Discharge HBM Human Body Model MIL Military MM Machine Model TTL Transistor-Transistor Logic 14. Revision history Table 14. Revision history Document ID Release date Data sheet status Change notice Supersedes 74LVC1G3157_Q100 v.5 20190128 Product data sheet - Modifications: • • • • The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. Type number 74LVC1G3157GM-Q100 (SOT886) added. Package outline drawing SOT457 (SC-74) updated 74LVC1G3157_Q100 v.4 20161207 Modifications: • 74LVC1G3157_Q100 v.3 20160531 Modifications: • • • 74LVC1G3157_Q100 v.2 20130410 Modifications: • 74LVC1G3157_Q100 v.1 20130219 74LVC1G3157_Q100 Product data sheet 74LVC1G3157_Q100 v.4 Product data sheet - 74LVC1G3157_Q100 v.3 Table 7: The maximum limits for leakage current and supply current have changed. Product data sheet - 74LVC1G3157_Q100 v.2 Table 9: Minimum and maximum values enable and disable times revised. Table 12 and Fig. 19: Condition and test circuit for f(-3dB) revised. Fig. 21: Test circuit for charge injection revised. Product data sheet - 74LVC1G3157_Q100 v.1 Type number 74LVC1G3157GM-Q100 has been removed. Product data sheet - All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 - © Nexperia B.V. 2019. All rights reserved 16 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer's own risk. 15. Legal information Data sheet status Document status [1][2] Product status [3] Definition Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use in automotive applications — This Nexperia product has been qualified for use in automotive applications. Unless otherwise agreed in writing, the product is not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 17 / 18 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer Contents 1. General description...................................................... 1 2. Features and benefits.................................................. 1 3. Ordering information....................................................1 4. Marking.......................................................................... 2 5. Functional diagram.......................................................2 6. Pinning information......................................................2 6.1. Pinning.........................................................................2 6.2. Pin description............................................................. 3 7. Functional description................................................. 3 8. Limiting values............................................................. 3 9. Recommended operating conditions..........................4 10. Static characteristics..................................................4 10.1. Test circuits................................................................5 10.2. ON resistance............................................................5 10.3. ON resistance test circuit and graphs........................6 11. Dynamic characteristics.............................................8 11.1. Waveforms and test circuit........................................ 9 11.2. Additional dynamic characteristics........................... 11 11.3. Test circuits.............................................................. 11 12. Package outline........................................................ 13 13. Abbreviations............................................................ 16 14. Revision history........................................................16 15. Legal information......................................................17 © Nexperia B.V. 2019. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 28 January 2019 74LVC1G3157_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 5 — 28 January 2019 © Nexperia B.V. 2019. All rights reserved 18 / 18
