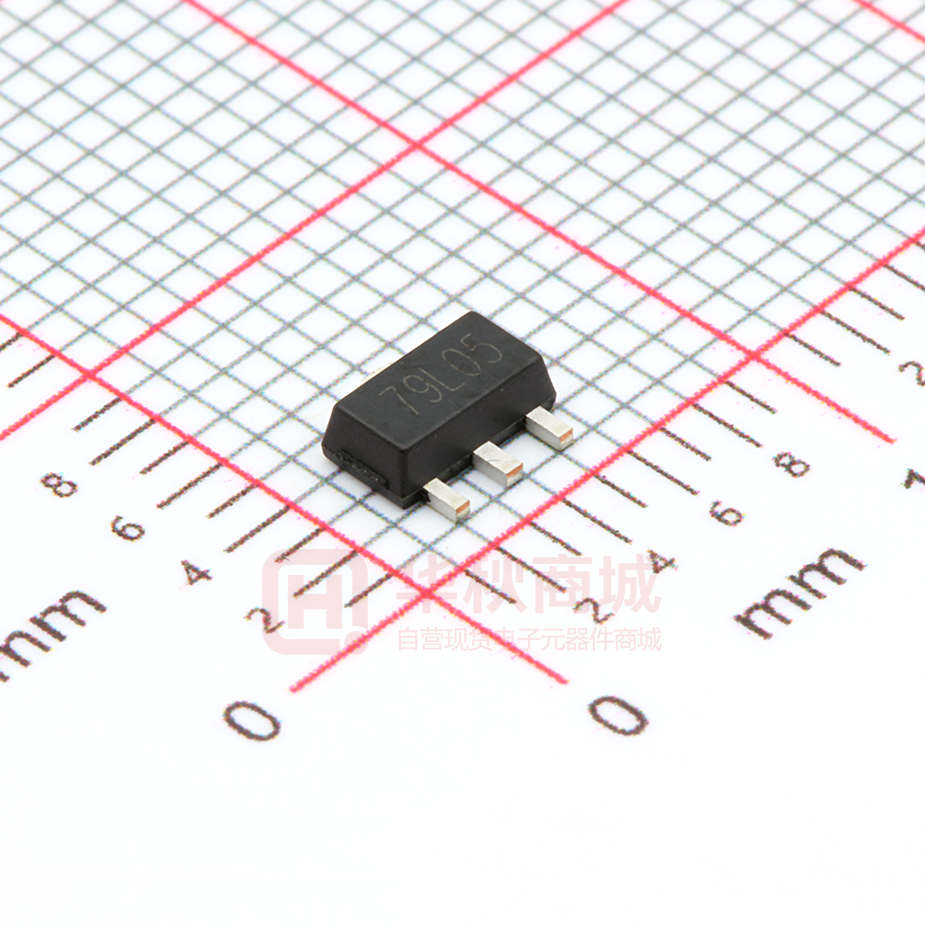

PJ79L05SQ

PJ79L05SQ 3-Terminal Negative Voltage Regulator SOT-89 Features ⚫ Maximum output current IOM: 0.1A ⚫ Output voltage VO: -5V ⚫ Continuous total dissipation PD:0.6W (Ta = 25°C) 1. Ground 2. Input 3. Output Absolute Maximum Ratings (operating temperature range applies unless otherwise specified) Parameter Symbol -VI Value 30 Units V Thermal Resistance from Junction-to-Ambient RθJA 208.3 °C/W TJ 150 °C Operating Temperature Range TOPR -40 ~ 125 °C Storage Temperature Range TSTG -65 ~ 150 °C Input Voltage Junction Temperature Range Electrical Characteristics (-VI=10 V,IO=40mA,Ci=0.33μF, Co=0.1μF,unless otherwise specified.) Parameter Symbol Conditions Min. 25°C Output Voltage -Vo -7V≤VI ≤-20V, IO=1mA~40mA IO=1mA~70mA Load Regulation △Vo Line Regulation △Vo Units 4.8 5 5.2 V 4.75 5 5.25 V 4.75 5 5.25 V 25°C -- 20 60 mV Io =1mA~40mA 25°C -- 10 30 mV -7V≤VI ≤-20V 25°C -- 15 150 mV -8V≤VI ≤-20V 25°C -- 12 100 mV 25°C -- -- 6 mA -8V≤VI ≤-20V 0~125°C -- -- 1.5 mA 1mA≤IO ≤40mA 0~125°C -- -- 0.1 mA 25°C -- 40 -- μV/VO 0~125°C 41 49 -- dB 25°C -- 1.7 -- V IQ Quiescent Current Change △IQ Output Noise Voltage VN 10Hz≤f≤100KHz Ripple Rejection RR -8V≤VI ≤-18V, f=120Hz Dropout Voltage Vd -Vi 2 Ci 0.33μF Revision：1.0 July-2018 Max. Io =1mA~100mA Quiescent Current www.pingjingsemi.com 0~125°C Typ. PJ79L05SQ 1 3 -Vo Co 0.1μF 1/4 PJ79L05SQ 3-Terminal Negative Voltage Regulator Electrical Characteristics Curves Output Characteristics Dropout Characteristics -7 -5.5 IO=0mA (V) -5.0 VO -5 -4 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE VO TJ=25℃ TJ=25℃ -6 -3 -2 -1 0 IO=0mA -4.5 -4.0 IO=-40mA,-70mA,-100mA -3.5 -3.0 -2.5 -2.0 0 -5 -10 -15 INPUT VOLTAGE -20 VIN -25 -1.5 -4.0 -30 -4.5 (V) -5.0 -5.5 -6.5 -6.0 INPUT VOLTAGE VIN Current Cut-off Grid Voltage Quiescent Current vs Input Voltage -3.0 -7 IO=0mA TJ=25℃ -6 (V) (mA) VIN=-10V TJ=25℃ -2.5 -2.0 Pulsed -5 OUTPUT VOLTAGE QUIESCENT CURRENT VO IQ -7.0 (V) -1.5 -1.0 -0.5 0.0 -4 -3 -2 -1 0 -5 -10 -15 INPUT VOLTAGE -20 VIN -25 0 -30 0 50 (V) 100 150 OUTPUT CURRENT Output Voltage vs Junction Temperature IO 200 250 (mA) Power Derating Curve 800 -8 Vin=-10V IO=5mA -6 (mW) 600 -5 PD 700 500 POWER DISSIPATION OUTPUT VOLTAGE VO (V) -7 -4 -3 -2 -1 -0 0 25 50 75 JUNCTION TEMPERATURE www.pingjingsemi.com Revision：1.0 July-2018 125 100 TJ (℃ ) 150 400 300 200 100 0 0 25 50 75 JUNCTION TEMPERATURE 100 TJ 125 150 (℃) 2/4 PJ79L05SQ 3-Terminal Negative Voltage Regulator Package Outline SOT-89 Ordering Information Device PJ79L05SQ www.pingjingsemi.com Revision：1.0 July-2018 Package SOT-89 Shipping 1,000PCS/T&R (7 inch) 3/4 PJ79L05SQ 3-Terminal Negative Voltage Regulator Package Specifications  unit: mm The method of packaging Cover Tape 1,000 pcs per reel SOT-89 Carrier Tape 10,000 pcs per box 10 reels per box 220 195 0 435 21 43 5 40,000 pcs per carton 4 boxes per carton 210  Embossed tape and reel data 179±1 +1 12.7-0.2 1.0±0.2 60.5±0.2 13.5±0.2 2.7±0.2 10.0±0.2 15.3±0.3 Reel (7'') Tape (12mm) www.pingjingsemi.com Revision：1.0 July-2018 4/4
