MMBT3904

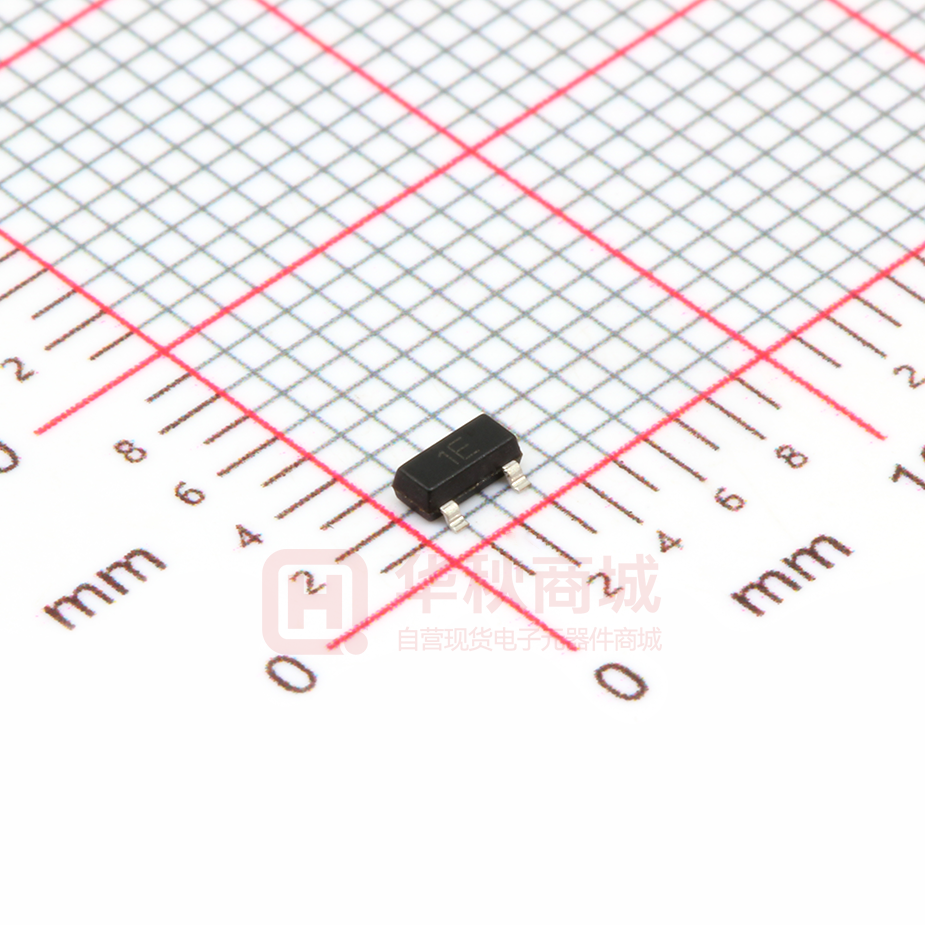

MMBT3904 NPN Transistor Features  For Switching and AF Amplifer Applications.  Silicon Epitaxial Chip. SOT-23 (TO-236) 1.Base 2.Emitter 3.Collector Marking：1E Absolute Maximum Ratings (TA = 25℃) Parameter Symbol Value Unit Collector Base Voltage VCBO 60 V Collector Emitter Voltage VCEO 40 V Emitter Base Voltage VEBO 6 V Collector Current IC 200 mA Power Dissipation PD 350 mW Junction Temperature TJ 150 O C TSTG - 55 to + 150 O C Storage Temperature Range www.pingjingsemi.com Revision：1.1 Jan-2019 1/4 MMBT3904 NPN Transistor Electrical Characteristics at TA = 25℃ Parameter Symbol Min. Max. Unit hFE hFE hFE hFE hFE 40 70 100 60 30 300 - - ICBO - 50 nA IEBO - 50 nA V(BR)CBO 60 - V V(BR)CEO 40 - V V(BR)EBO 6 - V VCE(sat) - 0.2 0.3 V V VBE(sat) 0.65 - 0.85 0.95 V V fT 300 - MHz Cob - 4 pF Delay Time at VCC = 3 V, VBE = 0.5 V, IC = 10 mA, IB1 = 1 mA td - 35 ns Rise Time at VCC = 3 V, VBE = 0.5 V, IC = 10 mA, IB1 = 1 mA tr - 35 ns Storage Time at VCC = 3 V, IC = 10 mA, IB1 = -IB2 = 1 mA ts - 200 ns Fall Time at VCC = 3 V, IC = 10 mA, IB1 = -IB2 = 1 mA tf - 50 ns DC Current Gain at VCE = 1 V, IC = 0.1 mA at VCE = 1 V, IC = 1 mA at VCE = 1 V, IC = 10 mA at VCE = 1 V, IC = 50 mA at VCE = 1 V, IC = 100 mA Collector Base Cutoff Current at VCB = 30 V Emitter Base Cutoff Current at VEB = 6 V Collector Base Breakdown Voltage at IC = 10 µA Collector Emitter Breakdown Voltage at IC = 1 mA Emitter Base Breakdown Voltage at IE = 10 µA Collector Emitter Saturation Voltage at IC = 10 mA, IB = 1 mA at IC = 50 mA, IB = 5 mA Base Emitter Saturation Voltage at IC = 10 mA, IB = 1 mA at IC = 50 mA, IB = 5 mA Current Gain Bandwidth Product at VCE = 20 V, IC = 10 mA, f = 100 MHz Collector Output Capacitance at VCB = 5 V, IE = 0, f = 1 MHz www.pingjingsemi.com Revision：1.1 Jan-2019 2/4 MMBT3904 NPN Transistor Electrical Characteristics Curves www.pingjingsemi.com Revision：1.1 Jan-2019 3/4 MMBT3904 NPN Transistor Package Outline (SOT-23) Symbol Dimensions in millimeter Min. Typ. Max. A 0.900 1.025 1.150 A1 0.000 0.050 0.100 b 0.300 0.400 0.500 c 0.080 0.115 0.150 D 2.800 2.900 3.000 E 1.200 1.300 1.400 HE 2.250 2.400 2.550 e 1.800 1.900 2.000 L1 0.550REF L 0.300 θ 0° 0.500 8° Ordering Information Device MMBT3904 www.pingjingsemi.com Revision：1.1 Jan-2019 Package SOT-23 Reel Dimension (inch) 7 Shipping Quantity 3,000 4/4
