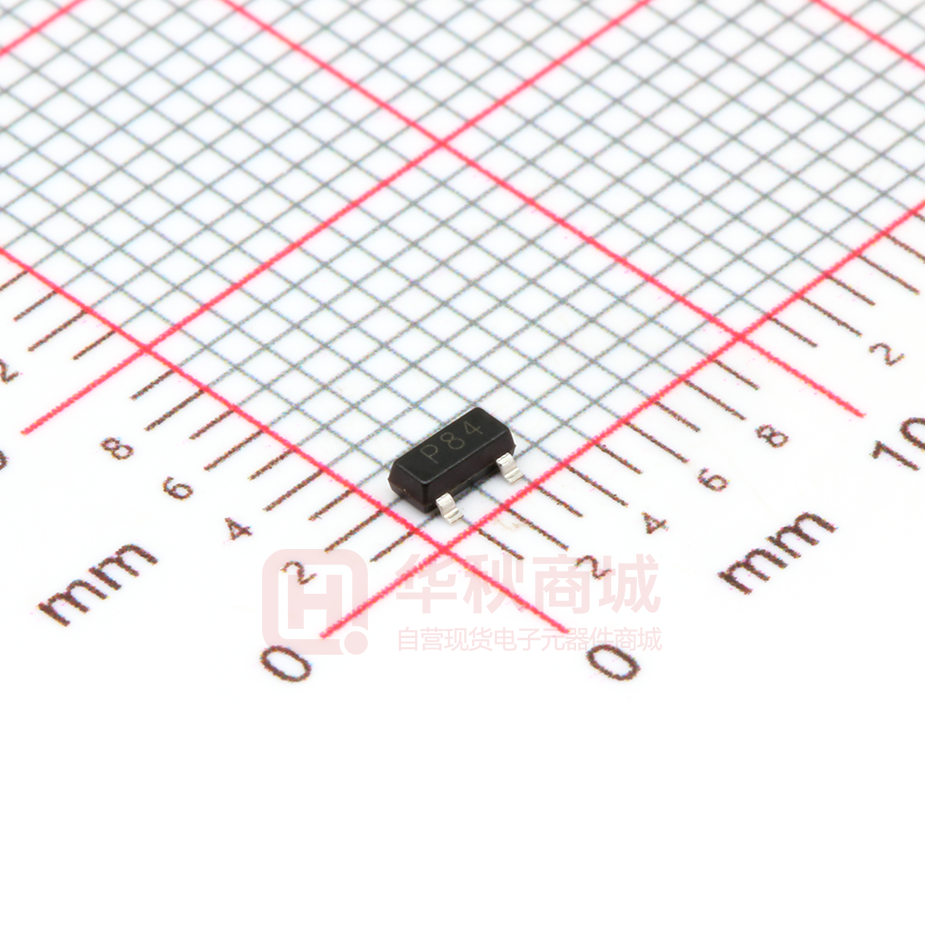

PJM84PSA
P-Channel MOSFET
SOT-23
Feature
⚫
Energy efficient
⚫
Low threshold voltage
⚫
High-speed switching
⚫
Miniature surface mount package saves board
space
⚫
1. Gate
2.Source
3.Drain
Marking: P84
ESD protected(HBM) up to 2KV
Schematic Diagram
D
G
S
Absolute Maximum Ratings
Ratings at TA =25℃ unless otherwise specified.
Parameter
Drain-Source Voltage
Symbol
-VDS
Maximum
50
Units
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain Current
-ID
0.13
-IDM
0.52
PD
225
mW
TJ, TSTG
150, -55 to 150
°C
Parameter
Symbol
Typ.
Units
Maximum Junction-to-Ambient Note2
RθJA
556
°C/W
Pulsed Drain Current Note1
@tp<10μs
Power Dissipation
Junction and Storage Temperature Range
A
Thermal Characteristics
www.pingjingsemi.com
Revision:1.1 Jan-2019
1/6
PJM84PSA
P-Channel MOSFET
Electrical Characteristics (TC = 25℃)
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
-ID=250µA, VGS=0V
50
--
--
V
-VDS=50V, VGS=0V
--
--
1
µA
-VDS=25V, VGS=0V
--
--
0.1
µA
Static Parameters
Drain-Source Breakdown Voltage
-BVDSS
Zero Gate Voltage Drain Current
-IDSS
Gate-Body Leakage Current
IGSS
VDS=0V, VGS=±20V
--
1
5
µA
Gate Threshold Voltage Note3
-VGS(th)
VDS=VGS, -ID=250µA
0.9
1.3
2
V
-VGS=10V, -ID=0.1A
--
1.7
8
Ω
-VGS=5V, -ID=0.1A
--
1.9
10
Ω
-VSD
-IS=0.13A, VGS=0V
--
--
1.2
V
Forward Transconductance Note3
gFS
-VDS=25V, -ID=0.1A
50
--
--
mS
Input Capacitance
Ciss
--
30
--
pF
Output Capacitance
Coss
--
10
--
pF
Reverse Transfer Capacitance
Crss
--
5
--
pF
--
2.5
--
ns
--
1
--
ns
Static Drain-Source On-Resistance
Note3
Body Diode Forward Voltage
RDS(ON)
Dynamic Parameters
VGS=0V, -VDS=5V, f=1MHz
Switching Parameters
Turn-On DelayTime
tD(on)
-VDD=15V, RL=50Ω,
-ID=2.5A
Turn-On Rise Time
tr
Turn-Off DelayTime
tD(off)
--
16
--
ns
tf
--
8
--
ns
Diode forward current
-IS
--
--
0.13
A
Diode pulsed forward current
-ISM
--
--
0.52
A
Turn-Off Fall Time
Source-Drain Diode characteristics
Notes: 1. Repetitive rating : Pulse width limited by junction temperature.
2. Surface mounted on FR4 board , t≤10s.
3. Pulse Test : Pulse Width≤300μs, Duty Cycle≤2%.
www.pingjingsemi.com
Revision:1.1 Jan-2019
2/6
PJM84PSA
P-Channel MOSFET
Transfer Characteristics
Output Characteristics
-1.6
Ta=25℃
VGS=-10V
Pulsed
-0.5
VDS=-10V
VGS=-5V
Pulsed
-0.4
VGS=-4.5V
DRAIN CURRENT ID (A)
DRAIN CURRENT ID (A)
-1.2
VGS=-3V
-0.8
-0.4
-0.3
-0.2
-0.1
VGS=-2V
Ta=125℃
Ta=25℃
0.0
0
-2
-4
-6
-8
0.0
0.0
-10
-0.5
-1.0
-2.0
-2.5
-3.0
RDS(ON) - VGS
RDS(ON) ID
12
5
Pulsed
Ta=25℃
Pulsed
ID=-0.1A
10
ON-RESISTANCE RDS(ON) ()
4
ON-RESISTANCE RDS(ON) ()
-1.5
GATE TO SOURCE VOLTAGE VGS (V)
DRAIN TO SOURCE VOLTAGE VDS(V)
3
VGS=-5V
2
VGS=-10V
1
8
6
4
Ta=125℃
2
Ta=25℃
0
0.0
-0.2
-0.4
-0.6
-0.8
0
-1.0
0
-2
-4
-6
-8
-10
GATE TO SOURCE VOLTAGE VGS (V)
DRAIN CURRENT ID (A)
Threshold Voltage
IS - VSD
-1.5
5
-1
THRESHOLD VOLTAGE VTH (V)
SOURCE CURRENT IS (A)
Pulsed
- 0.1
Ta=125℃
Ta=25℃
- 0.01
- 1E-3
0.0
-0.2
-0.4
-0.6
-0.8
SOURCE TO DRAIN VOLTAGE VSD (V)
www.pingjingsemi.com
Revision:1.1 Jan-2019
-1.0
-1.2
ID=-250uA
-1.0
-0.5
0.0
25
50
75
100
125
JUNCTION TEMPERATURE Tj (℃)
3/6
PJM84PSA
P-Channel MOSFET
Package Outline
SOT-23(TO-236)
0.8
Max.
1.025
1.150
A1
0.000
0.050
0.100
b
c
D
0.300
0.080
2.800
0.400
0.115
2.900
0.500
0.150
3.000
E
1.200
1.300
1.400
HE
2.250
2.400
2.550
e
1.800
1.900
2.000
0.550REF
L1
L
0.300
θ
0°
0.500
8°
2.2
Typ.
0.900
A
1.0
Dimensions in millimeter
Min.
0.8
1.0
Symbol
1.9
SOT-23 (TO-236)
Recommended soldering pad
Ordering Information
Device
PJM84PSA
www.pingjingsemi.com
Revision:1.1 Jan-2019
Package
SOT-23
Shipping
3000/Reel&Tape(7inch)
4/6
PJM84PSA
P-Channel MOSFET
Conditions of Soldering and Storage
Recommended condition of reflow soldering
Recommended peak temperature is over 245 ℃. If peak temperature is below 245 ℃, you may adjust
the following parameters:
Time length of peak temperature (longer)
Time length of soldering (longer)
Thickness of solder paste (thicker)
Conditions of hand soldering
Temperature: 370 ℃
Time: 3s max.
Times: one time
Storage conditions
Temperature
5 to 40 ℃
Humidity
30 to 80% RH
Recommended period
One year after manufacturing
www.pingjingsemi.com
Revision:1.1 Jan-2019
5/6
PJM84PSA
P-Channel MOSFET
Package Specifications
The method of packaging
Cover Tape
SOT-23 (TO-236)
3,000 pcs per reel
1
3
2
Carrier Tape
30,000 pcs per box
10 reels per box
220
195
0
435
21
43
5
120,000 pcs per carton
4 boxes per carton
210
Embossed tape and reel data
D
A
T2
T1
4.0
4.0
B
8.0
C
E
1Pin
G
N
Tape (8mm)
F
Reel (7'')
www.pingjingsemi.com
Revision:1.1 Jan-2019
Symbol
A
B
C
E
F
D
T1
T2
N
G
Value (unit: mm)
Ø 177.8±1
2.7±0.2
Ø 13.5±0.2
Ø 54.5±0.2
12.3±0.3
9.6+2/-0.3
1.0±0.2
1.2±0.2
3.15±0.1
1.25±0.1
6/6
