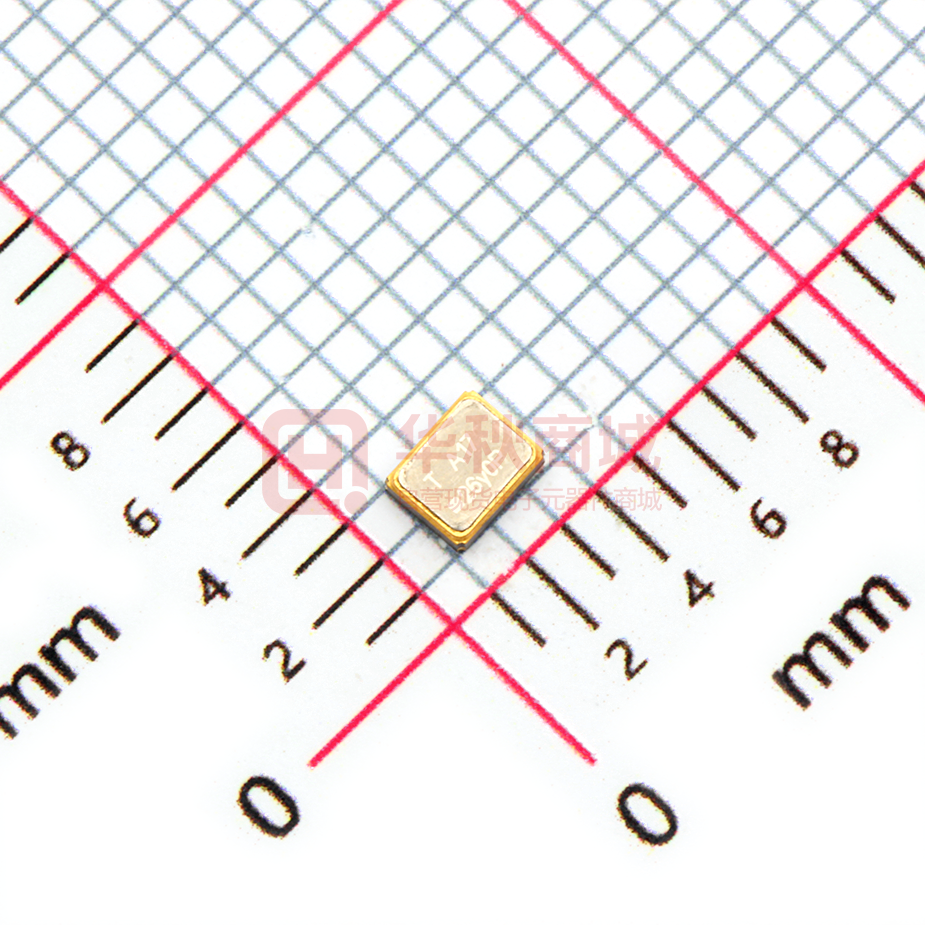

7L26002015

Think of Frequency Think of Oscillators Series SMD TCXO 2.5 x 2.0 x 0.8 mm 7L Series come visit our site http://www.txccorp.com Features ．Temperature Stability: ± 0.5 ppm ~ ± 2.0 ppm. * BC 9 T A 6A0 2 ．Operating Temperature Range: - 30 ℃ ~ 85 ℃. ．Supply Voltage: 1.8 V ~ 3.3 V . ．Voltage Control Function Available. ．Frequencies: 16.367667 MHz, 16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 33.6 MHz, 38.4 MHz, 40 MHz, 52 MHz. ．Applications: GPS, WiMAX, Cellular and Wireless Communications. ．RoHS Compliant / Pb Free. Electrical Specifications Item / Type 7L Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com Output Type Clipped Sinewave Output Load 10KΩ // 10 pF Oscillation Mode Fundamental Supply Voltage 1.8 ~ 3.3 V Frequency Range 13 ~ 52 MHz Clipped Sinewave Output Voltage 0.8 Vp-p Min. Vs. Temperature ( - 30 ~ + 85 ℃ ) Frequency Stability ± 0.2 ppm Max. Vs. Supply Voltage ( Vcc = Typical ± 0.1 V ) ± 0.2 ppm Max. Frequency Tolerance at 25 ℃ after 2 Reflows with Typical Applied to Auto Frequency Control Pin Slope of Frequency Drift Storage Temperature Range Auto Frequency Control ( AFC ) Range * Supply Current Start-up Time Harmonics Phase Noise at 1 kHz offset Aging ( at 25 ℃ ) ± 0.5 / ± 2.0 ppm Vs. Load ( Load varies ± 10 % ) ± 2.5 ppm Max. ± 0.1 ppm / ℃ Typical ; ± 0.5 ppm / ℃ Max. - 40 ~ + 85 ℃ ± 7 ~ ± 16 ppm (1.4V+/-1V) 2.0 mA Max. 5 ms Max. - 5 dBc Max. - 130 dBc / Hz ± 1 ppm / year Max. * AFC Range is selective and disable is acceptable. Dimensions Units: mm 90
