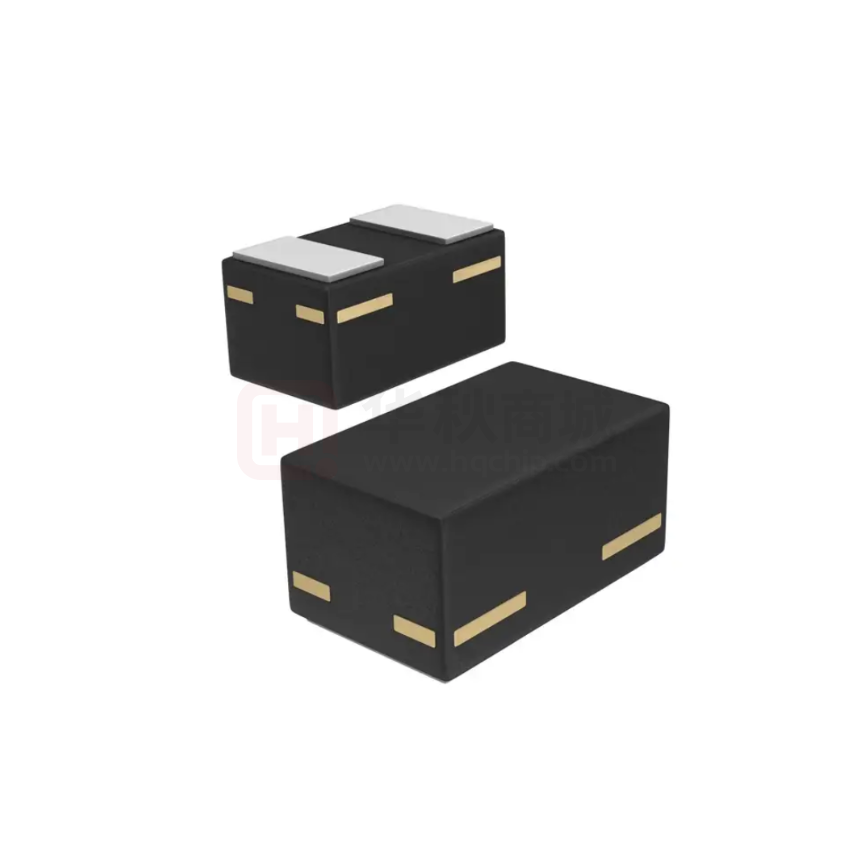

PESD1NFC-LYL

Important notice Dear Customer, On 7 February 2017 the former NXP Standard Product business became a new company with the tradename Nexperia. Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS semiconductors with its focus on the automotive, industrial, computing, consumer and wearable application markets In data sheets and application notes which still contain NXP or Philips Semiconductors references, use the references to Nexperia, as shown below. Instead of http://www.nxp.com, http://www.philips.com/ or http://www.semiconductors.philips.com/, use http://www.nexperia.com Instead of sales.addresses@www.nxp.com or sales.addresses@www.semiconductors.philips.com, use salesaddresses@nexperia.com (email) Replace the copyright notice at the bottom of each page or elsewhere in the document, depending on the version, as shown below: - © NXP N.V. (year). All rights reserved or © Koninklijke Philips Electronics N.V. (year). All rights reserved Should be replaced with: - © Nexperia B.V. (year). All rights reserved. If you have any questions related to the data sheet, please contact our nearest sales office via e-mail or telephone (details via salesaddresses@nexperia.com). Thank you for your cooperation and understanding, Kind regards, Team Nexperia PESD5V0U1UA; PESD5V0U1UB; PESD5V0U1UL Ultra low capacitance unidirectional ESD protection diodes Rev. 01 — 30 October 2008 Product data sheet 1. Product profile 1.1 General description Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients. Table 1. Product overview Type number Package Package configuration NXP JEITA PESD5V0U1UA SOD323 SC-76 very small PESD5V0U1UB SOD523 SC-79 ultra small and flat lead PESD5V0U1UL SOD882 - leadless ultra small 1.2 Features n Unidirectional ESD protection of one line n ESD protection up to 9 kV n Ultra low diode capacitance: Cd = 2 pF n IEC 61000-4-2; level 4 (ESD) n Very low leakage current: IRM = 1 nA n AEC-Q101 qualified 1.3 Applications n n n n n USB interfaces 10/100/1000 Mbit/s Ethernet FireWire High-speed data lines Subscriber Identity Module (SIM) card protection n n n n n Cellular handsets and accessories Portable electronics Communication systems Computers and peripherals Audio and video equipment 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VRWM reverse standoff voltage Conditions Min Typ Max Unit - - 5 V PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes Table 2. Quick reference data …continued Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit Cd diode capacitance f = 1 MHz VR = 0 V - 2 2.6 pF VR = 5 V - 1.7 2.3 pF 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol PESD5V0U1UA; PESD5V0U1UB 1 cathode 2 anode [1] 1 2 1 2 006aaa152 001aab540 PESD5V0U1UL 1 cathode 2 anode [1] 1 2 1 2 006aaa152 Transparent top view [1] The marking bar indicates the cathode. 3. Ordering information Table 4. Ordering information Type number Package Name Description Version PESD5V0U1UA SC-76 plastic surface-mounted package; 2 leads SOD323 PESD5V0U1UB SC-79 plastic surface-mounted package; 2 leads SOD523 PESD5V0U1UL - leadless ultra small plastic package; 2 terminals; body 1.0 × 0.6 × 0.5 mm SOD882 4. Marking Table 5. Marking codes Type number Marking code PESD5V0U1UA C7 PESD5V0U1UB LA PESD5V0U1UL L1 PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 2 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 5. Limiting values Table 6. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Tj Conditions Min Max Unit junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C Table 7. ESD maximum ratings Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VESD electrostatic discharge voltage IEC 61000-4-2 (contact discharge) [1] MIL-STD-883 (human body model) [1] Min Max Unit - 9 kV - 10 kV Device stressed with ten non-repetitive ESD pulses. Table 8. ESD standards compliance Standard Conditions IEC 61000-4-2; level 4 (ESD) > 8 kV (contact) MIL-STD-883; class 3 (human body model) > 4 kV 001aaa631 IPP 100 % 90 % 10 % tr = 0.7 ns to 1 ns t 30 ns 60 ns Fig 1. ESD pulse waveform according to IEC 61000-4-2 PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 3 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 6. Characteristics Table 9. Characteristics Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VRWM reverse standoff voltage IRM reverse leakage current VBR breakdown voltage Cd diode capacitance f = 1 MHz differential resistance rdif Min Typ Max Unit - - 5 V VRWM = 5 V - 1 100 nA IR = 5 mA 5.8 6.8 8.8 V VR = 0 V - 2 2.6 pF VR = 5 V - 1.7 2.3 pF - - 100 Ω IR = 1 mA I 006aab348 2.0 Cd (pF) 1.9 −VCL −VBR −VRWM V −IRM −IR 1.8 − 1.7 + P-N −IPP 1.6 0 1 2 3 4 5 VR (V) 006aaa407 f = 1 MHz; Tamb = 25 °C Fig 2. Diode capacitance as a function of reverse voltage; typical values Fig 3. V-I characteristics for a unidirectional ESD protection diode PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 4 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes ESD TESTER 450 Ω RZ RG 223/U 50 Ω coax 4 GHz DIGITAL OSCILLOSCOPE 10× ATTENUATOR 50 Ω CZ IEC 61000-4-2 network CZ = 150 pF; RZ = 330 Ω DUT (DEVICE UNDER TEST) vertical scale = 2 kV/div horizontal scale = 15 ns/div vertical scale = 20 V/div horizontal scale = 100 ns/div GND GND unclamped +8 kV ESD pulse waveform (IEC 61000-4-2 network) clamped +8 kV ESD pulse waveform (IEC 61000-4-2 network) pin 1 to 2 vertical scale = 2 kV/div horizontal scale = 15 ns/div GND GND unclamped −8 kV ESD pulse waveform (IEC 61000-4-2 network) Fig 4. vertical scale = 20 V/div horizontal scale = 100 ns/div clamped −8 kV ESD pulse waveform (IEC 61000-4-2 network) pin 1 to 2 006aab350 ESD clamping test setup and waveforms PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 5 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 7. Application information The PESD5V0U1Ux series is designed for the protection of one unidirectional data or signal line from the damage caused by ESD. The devices may be used on lines where the signal polarities are either positive or negative with respect to ground. line to be protected (positive signal polarity) line to be protected (negative signal polarity) DUT DUT GND GND unidirectional protection of one line 006aab251 Fig 5. Application diagram Circuit board layout and protection device placement Circuit board layout is critical for the suppression of ESD and Electrical Fast Transient (EFT). The following guidelines are recommended: 1. Place the device as close to the input terminal or connector as possible. 2. The path length between the device and the protected line should be minimized. 3. Keep parallel signal paths to a minimum. 4. Avoid running protected conductors in parallel with unprotected conductors. 5. Minimize all Printed-Circuit Board (PCB) conductive loops including power and ground loops. 6. Minimize the length of the transient return path to ground. 7. Avoid using shared transient return paths to a common ground point. 8. Ground planes should be used whenever possible. For multilayer PCBs, use ground vias. 8. Test information 8.1 Quality information This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications. PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 6 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 9. Package outline 1.35 1.15 0.45 0.15 1 2.7 2.3 0.85 0.75 1.1 0.8 1 1.65 1.25 1.55 1.15 1.8 1.6 2 2 0.40 0.25 0.25 0.10 0.34 0.26 Dimensions in mm Fig 6. 03-12-17 Package outline PESD5V0U1UA (SOD323/SC-76) 0.17 0.11 Dimensions in mm Fig 7. 02-12-13 Package outline PESD5V0U1UB (SOD523/SC-79) 0.50 0.46 0.62 0.55 2 0.30 0.22 0.65 0.30 0.22 1.02 0.95 1 0.55 0.47 cathode marking on top side Dimensions in mm Fig 8. 0.65 0.58 03-04-17 Package outline PESD5V0U1UL (SOD882) 10. Packing information Table 10. Packing methods The indicated -xxx are the last three digits of the 12NC ordering code.[1] Type number Package PESD5V0U1UA SOD323 PESD5V0U1UB SOD523 PESD5V0U1UL [1] SOD882 Description 4 mm pitch, 8 mm tape and reel 3000 8000 10000 -115 - -135 2 mm pitch, 8 mm tape and reel - -315 - 4 mm pitch, 8 mm tape and reel -115 - -135 2 mm pitch, 8 mm tape and reel - - -315 For further information and the availability of packing methods, see Section 14. PESD5V0U1UA_UB_UL_1 Product data sheet Packing quantity © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 7 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 11. Soldering 3.05 2.1 solder lands solder resist 0.5 (2×) 1.65 0.95 0.6 (2×) solder paste occupied area 2.2 Dimensions in mm 0.5 (2×) 0.6 (2×) Fig 9. sod323_fr Reflow soldering footprint PESD5V0U1UA (SOD323/SC-76) 5 2.9 1.5 (2×) solder lands solder resist occupied area 2.75 1.2 (2×) Dimensions in mm preferred transport direction during soldering sod323_fw Fig 10. Wave soldering footprint PESD5V0U1UA (SOD323/SC-76) PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 8 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 2.15 1.1 solder lands solder resist 0.5 0.6 (2×) (2×) 1.2 solder paste occupied area Dimensions in mm 0.7 (2×) 0.8 (2×) sod523_fr Reflow soldering is the only recommended soldering method. Fig 11. Reflow soldering footprint PESD5V0U1UB (SOD523/SC-79) 1.3 0.7 R0.05 (8×) solder lands 0.6 0.7 (2×) (2×) 0.9 solder resist solder paste occupied area 0.3 (2×) Dimensions in mm 0.4 (2×) sod882_fr Reflow soldering is the only recommended soldering method. Fig 12. Reflow soldering footprint PESD5V0U1UL (SOD882) PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 9 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 12. Revision history Table 11. Revision history Document ID Release date Data sheet status Change notice Supersedes PESD5V0U1UA_UB_UL_1 20081030 Product data sheet - - PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 10 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 13. Legal information 13.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nxp.com. 13.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local NXP Semiconductors sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. 13.3 Disclaimers General — Information in this document is believed to be accurate and reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors accepts no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) may cause permanent damage to the device. Limiting values are stress ratings only and operation of the device at these or any other conditions above those given in the Characteristics sections of this document is not implied. Exposure to limiting values for extended periods may affect device reliability. Terms and conditions of sale — NXP Semiconductors products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nxp.com/profile/terms, including those pertaining to warranty, intellectual property rights infringement and limitation of liability, unless explicitly otherwise agreed to in writing by NXP Semiconductors. In case of any inconsistency or conflict between information in this document and such terms and conditions, the latter will prevail. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. ESD protection devices — These products are only intended for protection against ElectroStatic Discharge (ESD) pulses and are not intended for any other usage including, without limitation, voltage regulation applications. NXP Semiconductors accepts no liability for use in such applications and therefore such use is at the customer’s own risk. 13.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 14. Contact information For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com PESD5V0U1UA_UB_UL_1 Product data sheet © NXP B.V. 2008. All rights reserved. Rev. 01 — 30 October 2008 11 of 12 PESD5V0U1UA/UB/UL NXP Semiconductors Ultra low capacitance unidirectional ESD protection diodes 15. Contents 1 1.1 1.2 1.3 1.4 2 3 4 5 6 7 8 8.1 9 10 11 12 13 13.1 13.2 13.3 13.4 14 15 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General description. . . . . . . . . . . . . . . . . . . . . . 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Application information. . . . . . . . . . . . . . . . . . . 6 Test information . . . . . . . . . . . . . . . . . . . . . . . . . 6 Quality information . . . . . . . . . . . . . . . . . . . . . . 6 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 7 Packing information. . . . . . . . . . . . . . . . . . . . . . 7 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . 10 Legal information. . . . . . . . . . . . . . . . . . . . . . . 11 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 11 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Contact information. . . . . . . . . . . . . . . . . . . . . 11 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’. © NXP B.V. 2008. All rights reserved. For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com Date of release: 30 October 2008 Document identifier: PESD5V0U1UA_UB_UL_1 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Nexperia: PESD5V0U1UA,115 PESD5V0U1UB,115 PESD5V0U1UL,315 PESD5V0U1BBYL PESD1NFC-SFYL PESD1NFCLYL
