PNE20020EP
200 V, 2 A hyperfast recovery rectifier
18 December 2019
Product data sheet
1. General description
High power density, hyperfast recovery rectifier with high-efficiency planar technology,

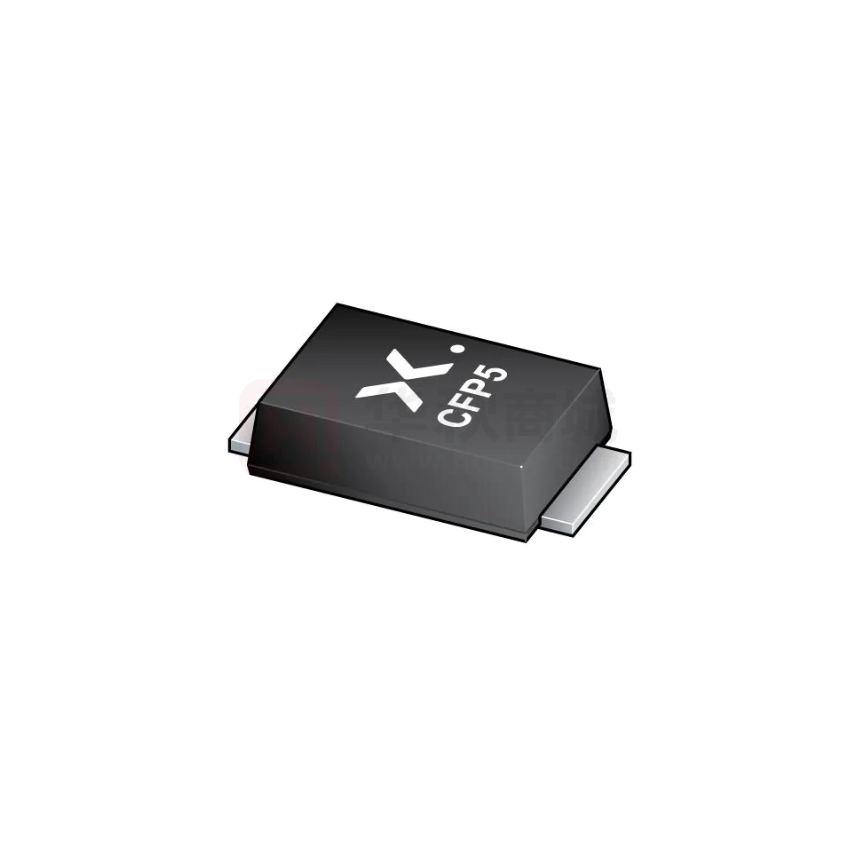

encapsulated in a small and flat lead CFP5 (SOD128) Surface-Mounted Device (SMD) plastic
package.
2. Features and benefits
•
•
•
•
•
•
•
•
•
•
•
Reverse voltage VR ≤ 200 V
Forward current IF ≤ 2 A
Switching time trr ≤ 25 ns
Pt doped life time control
Low inductance
Small and flat lead SMD plastic package
Package height typ. 1 mm
High power capability due to clip-bond technology
Planar die design
Capable for reflow and wave soldering
AEC-Q qualified
3. Applications
•
•
•
•
General-purpose rectification
Reverse polarity protection
Hyperfast switching
Freewheeling applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
δ = 0.5; f = 20 kHz; square wave; Tsp ≤
157 °C
-
-
2
A
IF(AV)
average forward
current
VRRM
repetitive peak reverse Tj = 25 °C
voltage
-
-
200
V
VR
reverse voltage
-
-
200
V
VF
forward voltage
IR
reverse current
[1]
IF = 2 A; pulsed; Tj = 25 °C
[1]
-
880
950
mV
IF = 2 A; pulsed; Tj = 125 °C
[1]
-
735
825
mV
VR = 200 V; pulsed; Tj = 25 °C
[1]
-
-
1
µA
VR = 200 V; pulsed; Tj = 125 °C
[1]
-
1
20
µA
Very short pulse, in order to maintain a stable junction temperature.
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
5. Pinning information
Table 2. Pinning information
Pin
Symbol
Description
1
K
cathode
2
A
anode
Simplified outline
1
Graphic symbol
A
K
2
006aab040
CFP5 (SOD128)
6. Ordering information
Table 3. Ordering information
Type number
Package
PNE20020EP
Name
Description
Version
CFP5
plastic, surface mounted package; 2 terminals; 4 mm pitch; 3.8
mm x 2.6 mm x 1 mm body
SOD128
7. Marking
Table 4. Marking codes
Type number
Marking code
PNE20020EP
DF
8. Limiting values
Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 601134).
Symbol
Parameter
Conditions
Min
Max
Unit
VRRM
repetitive peak reverse
voltage
Tj = 25 °C
-
200
V
VR
reverse voltage
-
200
V
VRMS
RMS voltage
-
140
V
IF
forward current
δ = 1; Tsp ≤ 151 °C
-
2.8
A
IF(AV)
average forward current
δ = 0.5; f = 20 kHz; square wave; Tsp ≤
157 °C
-
2
A
IFSM
non-repetitive peak
forward current
tp = 8.3 ms; single half sine wave (applied
at rated load condition); Tj(init) = 25 °C
-
50
A
Ptot
total power dissipation
Tamb ≤ 25 °C
[1]
-
1
W
[2]
-
1.575
W
Tj
junction temperature
-
175
°C
Tamb
ambient temperature
-55
175
°C
Tstg
storage temperature
-65
175
°C
[1]
[2]
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
2
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm .
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
2 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
9. Thermal characteristics
Table 6. Thermal characteristics
Symbol
Parameter
Rth(j-a)
Rth(j-sp)
[1]
[2]
[3]
Conditions
Min
Typ
Max
Unit
thermal resistance from in free air
junction to ambient
[1]
-
-
150
K/W
[2]
-
-
95
K/W
thermal resistance from
junction to solder point
[3]
-
-
10
K/W
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
2
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm .
Soldering point of cathode tab.
aaa-026735
103
Zth(j-a)
(K/W)
duty cycle = 1
102
0.50
0.25
10
0.10
0.02
1
0.75
0.33
0.20
0.05
0.01
0
10-1
10-3
10-2
10-1
1
10
102
tp (s)
103
FR4 PCB, standard footprint
Fig. 1.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-026736
103
Zth(j-a)
(K/W)
102 duty cycle = 1
0.75
0.50
0.33
0.25
0.20
10 0.10
0.05
0.02
0.01
1 0
10-1
10-3
10-2
10-1
FR4 PCB, mounting pad for cathode 1 cm
Fig. 2.
1
10
102
tp (s)
2
103
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
3 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
10. Characteristics
Table 7. Characteristics
Symbol
Parameter
Conditions
V(BR)R
reverse breakdown
voltage
IR = 100 µA; pulsed; Tj = 25 °C
VF
forward voltage
IR
reverse current
Min
Typ
Max
Unit
[1]
200
-
-
V
IF = 2 A; pulsed; Tj = 25 °C
[1]
-
880
950
mV
IF = 2 A; pulsed; Tj = 125 °C
[1]
-
735
825
mV
VR = 200 V; pulsed; Tj = 25 °C
[1]
-
-
1
µA
VR = 200 V; pulsed; Tj = 125 °C
[1]
-
1
20
µA
-
20
-
pF
Cd
diode capacitance
VR = 4 V; f = 1 MHz; Tj = 25 °C
trr
reverse recovery time ; IF = 0.5 A; IR = 1 A; IR(meas) = 0.25 A;
step recovery
Tj = 25 °C
-
10
25
ns
reverse recovery time ; IF = 1 A; dIF/dt = 50 A/µs; VR = 30 V;
Tj = 25 °C
ramp recovery
-
20
-
ns
-
16
-
ns
-
1
-
A
-
9
-
nC
-
900
-
mV
IRM
peak reverse recovery
current
Qrr
reverse recovery
charge
VFRM
peak forward recovery
voltage
[1]
IF = 1 A; dIF/dt = 100 A/µs; VR = 30 V;
Tj = 25 °C
IF = 1 A; dIF/dt = 50 A/µs; Tj = 25 °C
Very short pulse, in order to maintain a stable junction temperature.
aaa-026737
10
IF
(A)
(1)
(2)
1
aaa-026738
10-4
IR
(A)
10-5
(1)
(2)
(3)
(4)
10-1
10-6
(3)
10-7
(4)
(5)
(6)
10-2
10-8
10-3
10-4
10-9
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
VF (V)
pulsed condition
(1) Tj = 175 °C
(2) Tj = 150 °C
(3) Tj = 125 °C
(4) Tj = 85 °C
(5) Tj = 25 °C
(6) Tj = -40 °C
Fig. 3.
Product data sheet
0
40
80
120
160
VR (V)
200
pulsed condition
(1) Tj = 175 °C
(2) Tj = 150 °C
(3) Tj = 125 °C
(4) Tj = 85 °C
(5) Tj = 25 °C
Forward current as a function of forward
voltage; typical values
PNE20020EP
10-10
(5)
Fig. 4.
Reverse current as a function of reverse
voltage; typical values
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
4 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
aaa-026739
80
aaa-026740
2.5
PF(AV)
(W)
Cd
(pF)
(4)
2.0
60
(3)
1.5
40
(2)
1.0
20
0
0.5
0
40
80
120
160
VR (V)
0
200
f = 1 MHz; Tamb = 25 °C
Fig. 5.
(1)
Fig. 6.
aaa-026741
aaa-026742
2
(1)
(2)
0.002
(3)
(4)
1
(4)
0.001
50
100
150
VR (V)
0
200
Tj = 175 °C
(1) δ = 1; DC
(2) δ = 0.9
(3) δ = 0.8
(4) δ = 0.5
Fig. 7.
Average reverse power dissipation as a
function of reverse voltage; typical values
PNE20020EP
Product data sheet
3
Average forward power dissipation as a
function of average forward current; typical
values
(3)
0
IF(AV) (A)
IF(AV)
(A)
(1)
(2)
0
2
3
PR(AV)
(W)
0.003
1
Tj = 175 °C
(1) δ = 0.1
(2) δ = 0.2
(3) δ = 0.5
(4) δ = 1 (DC)
Diode capacitance as a function of reverse
voltage; typical values
0.004
0
0
50
100
150
200
Tamb (°C)
FR4 PCB, standard footprint
Tj = 175 °C
(1) δ = 1; DC
(2) δ = 0.5; f = 20 kHz
(3) δ = 0.2; f = 20 kHz
(4) δ = 0.1; f = 20 kHz
Fig. 8.
Average forward current as a function of
ambient temperature; typical values
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
5 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
aaa-026743
3
IF(AV)
(A)
(1)
IF(AV)
(A)
(1)
(2)
2
aaa-026744
3
(2)
2
(3)
1
0
(3)
0
50
100
0
150
200
Tamb (°C)
2
FR4 PCB, mounting pad for cathode 1 cm
Tj = 175 °C
(1) δ = 1; DC
(2) δ = 0.5; f = 20 kHz
(3) δ = 0.2; f = 20 kHz
(4) δ = 0.1; f = 20 kHz
Fig. 9.
(4)
1
(4)
0
50
100
150
Tsp (°C)
200
Tj = 175 °C
(1) δ = 1; DC
(2) δ = 0.5; f = 20 kHz
(3) δ = 0.2; f = 20 kHz
(4) δ = 0.1; f = 20 kHz
Fig. 10. Average forward current as a function of solder
point temperature; typical values
Average forward current as a function of
ambient temperature; typical values
11. Test information
IF
IR(meas)
time
IR
trr
006aad022
Fig. 11. Reverse recovery definition; step recovery
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
6 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
IF
dlF
dt
trr
time
25 %
100 %
Qrr
IR
IRM
003aac562
Fig. 12. Reverse recovery definition; ramp recovery
IF
time
VF
VFRM
VF
time
001aab912
Fig. 13. Forward recovery definition
P
t2
duty cycle δ =
t1
t2
t1
t
006aaa812
Fig. 14. Duty cycle definition
The current ratings for the typical waveforms are calculated according to the equations:
IF(AV)=IM×δ with IM defined as peak current
IRMS=IF(AV) at DC, and IRMS=IM×√δ
with IRMS defined as RMS current.
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC)
standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in
automotive applications.
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
7 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
12. Package outline
2.7
2.3
1.1
0.9
0.6
0.3
1
5.0
4.4
4.0
3.6
2
1.9
1.6
0.22
0.10
Dimensions in mm
07-09-12
Fig. 15. Package outline CFP5 (SOD128)
13. Soldering
6.2
4.4
4.2
solder lands
1.9 2.1
(2×) (2×)
3.4 2.5
solder resist
solder paste
occupied area
Dimensions in mm
1.2
(2×)
1.4
(2×)
sod128_fr
Fig. 16. Reflow soldering footprint for CFP5 (SOD128)
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
8 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
Wave soldering footprint information
SOD128
10.2
5.8
2.3
5.7
4.2
(2×)
4.35
(2×)
3.5 (2×)
3.65 (2×)
occupied area
solder resist
solder lands
dummy track (solder resist and Cu free)
Dimensions in mm
Issue date
17-06-06
17-06-07
sod128_fw
Fig. 17. Wave soldering footprint for CFP5 (SOD128)
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
9 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
14. Revision history
Table 8. Revision history
Data sheet ID
Release date
Data sheet status
Change notice
Supersedes
PNE20020EP v.5
20191218
Product data sheet
-
PNE20020EP v.4
Modifications:
•
PNE20020EP v.4
20191120
Product data sheet
-
PNE20020EP v.3
PNE20020EP v.3
20170830
Product data sheet
PNE20020EP v.2
20170519
Preliminary data sheet
-
PNE20020EP v.1
PNE20020EP v.1
20161102
Objective data sheet
-
-
PNE20020EP
Product data sheet
Product achieved AEC-Q101 qualification
PNE20020EP v.2
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
10 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
equipment, nor in applications where failure or malfunction of an Nexperia
product can reasonably be expected to result in personal injury, death or
severe property or environmental damage. Nexperia and its suppliers accept
no liability for inclusion and/or use of Nexperia products in such equipment or
applications and therefore such inclusion and/or use is at the customer's own
risk.
15. Legal information
Data sheet status
Document status
[1][2]
Product
status [3]
Definition
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Objective [short]
data sheet
Development
This document contains data from
the objective specification for
product development.
Preliminary [short]
data sheet
Qualification
This document contains data from
the preliminary specification.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes no representation
or warranty that such applications will be suitable for the specified use
without further testing or modification.
Product [short]
data sheet
Production
This document contains the product
specification.
[1]
[2]
[3]
Please consult the most recently issued document before initiating or
completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the internet at https://www.nexperia.com.
Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any representations or
warranties as to the accuracy or completeness of information included herein
and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the relevant
full data sheet, which is available on request via the local Nexperia sales
office. In case of any inconsistency or conflict with the short data sheet, the
full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and customer have explicitly
agreed otherwise in writing. In no event however, shall an agreement be
valid in which the Nexperia product is deemed to offer functions and qualities
beyond those described in the Product data sheet.
Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give any
representations or warranties, expressed or implied, as to the accuracy
or completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no responsibility
for the content in this document if provided by an information source outside
of Nexperia.
In no event shall Nexperia be liable for any indirect, incidental, punitive,
special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Customers are responsible for the design and operation of their applications
and products using Nexperia products, and Nexperia accepts no liability for
any assistance with applications or customer product design. It is customer’s
sole responsibility to determine whether the Nexperia product is suitable
and fit for the customer’s applications and products planned, as well as
for the planned application and use of customer’s third party customer(s).
Customers should provide appropriate design and operating safeguards to
minimize the risks associated with their applications and products.
Nexperia does not accept any liability related to any default, damage, costs
or problem which is based on any weakness or default in the customer’s
applications or products, or the application or use by customer’s third party
customer(s). Customer is responsible for doing all necessary testing for the
customer’s applications and products using Nexperia products in order to
avoid a default of the applications and the products or of the application or
use by customer’s third party customer(s). Nexperia does not accept any
liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Nexperia products are
sold subject to the general terms and conditions of commercial sale, as
published at http://www.nexperia.com/profile/terms, unless otherwise agreed
in a valid written individual agreement. In case an individual agreement is
concluded only the terms and conditions of the respective agreement shall
apply. Nexperia hereby expressly objects to applying the customer’s general
terms and conditions with regard to the purchase of Nexperia products by
customer.
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or the
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia’s aggregate and cumulative liability towards customer
for the products described herein shall be limited in accordance with the
Terms and conditions of commercial sale of Nexperia.
Right to make changes — Nexperia reserves the right to make changes
to information published in this document, including without limitation
specifications and product descriptions, at any time and without notice. This
document supersedes and replaces all information supplied prior to the
publication hereof.
Suitability for use in automotive applications — This Nexperia product
has been qualified for use in automotive applications. Unless otherwise
agreed in writing, the product is not designed, authorized or warranted to
be suitable for use in life support, life-critical or safety-critical systems or
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
11 / 12
PNE20020EP
Nexperia
200 V, 2 A hyperfast recovery rectifier
Contents
1. General description...................................................... 1
2. Features and benefits.................................................. 1
3. Applications.................................................................. 1
4. Quick reference data....................................................1
5. Pinning information......................................................2
6. Ordering information....................................................2
7. Marking.......................................................................... 2
8. Limiting values............................................................. 2
9. Thermal characteristics............................................... 3
10. Characteristics............................................................ 4
11. Test information.......................................................... 6
12. Package outline.......................................................... 8
13. Soldering..................................................................... 8
14. Revision history........................................................10
15. Legal information......................................................11
©
Nexperia B.V. 2019. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to: salesaddresses@nexperia.com
Date of release: 18 December 2019
PNE20020EP
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 December 2019
©
Nexperia B.V. 2019. All rights reserved
12 / 12
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Nexperia:
PNE20020EPX
