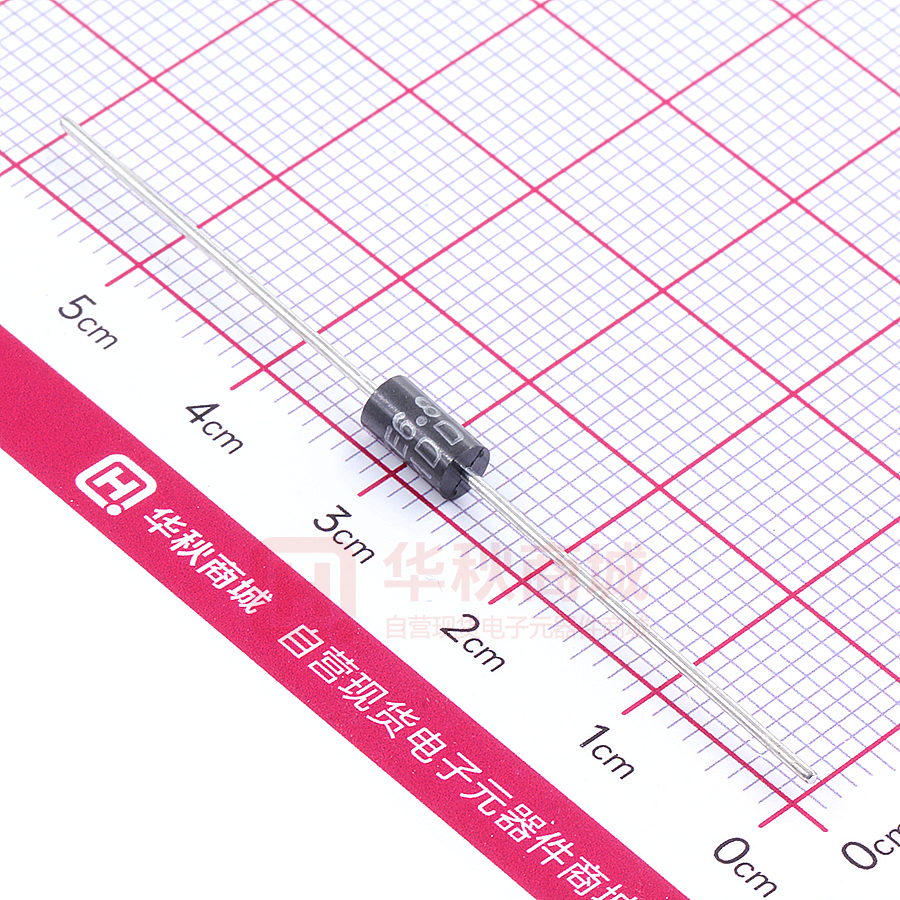

P6KE6.8CA

P6KE6.8(C)A THRU P6KE440(C)A Breakdown Voltage:6.8-440 Volts Peak Pulse P ower:600 Watts GLASS PASSIVAED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR Features DO-15  600w peak pulse power capability  Excellent clamping capability  Low incremental surge resistance  Fast response time:typically less than 1.0ps from 0v to 1.0(25.4) MIN. VBR for unidirectional and 5.0ns ror bidirectional types.  High temperature soldering guaranteed: 0.140 (3.6) 0.104(2.6) DIA. 265°C/10S/9.5mm lead length at 5 lbs tension 0.300(7.6) 0.230(5.8) Mechanical Data 0.034 (0.86) 0.028 (0.70) DIA. Case : JEDEC DO-15 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.014 ounce, 0.40 grams 1.0 (25.4) MIN. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS VALUE UNITS Peak power dissipation sipation Pppm Minimum 600 W peak power dissipation (Note 1) Ippm See Table 1 A Steady state power dissapation (Note 2) PM(AV) 5.0 W IFSM 100 A VF 3.5/5.0 V TSTG,TJ -55 to + 175 C Peak forward surPeak forward surge current(Note 3) Maximum instantaneous forward voltage at 50A for unidirectional only (Note 4) Operating junction and storage temperature range Notes: 1.10/1000µs waveform non-repetitive current pulse,per Fig.3 and derated above Ta=25 C per Fig.2 2.TL=75 C,lead lengths 9.5mm,Mounted on copper pad atea of (40x40mm)Fig.5 3.Measured on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum. 4.VF=3.5V max.for devices of V(BR)200V http://www.microdiode.com Rev:2024A2 Page :1 P6KE6.8(C)A THRU P6KE440(C)A Breakdown Voltage:6.8-440 Volts Peak Pulse P ower:600 Watts ELECTRICAL CHARACTERISTICS (at TA=25°C unless otherwise noted) Device Type P6KE6.8A P6KE6.8CA P6KE7.5A P6KE7.5CA P6KE8.2A P6KE8.2CA P6KE9.1A P6KE9.1CA P6KE10A P6KE10CA P6KE11A P6KE11CA P6KE12A P6KE12CA P6KE13A P6KE13CA P6KE15A P6KE15CA P6KE16A P6KE16CA P6KE18A P6KE18CA P6KE20A P6KE20CA P6KE22A P6KE22CA P6KE24A P6KE24CA P6KE27A P6KE27CA P6KE30A P6KE30CA P6KE33A P6KE33CA P6KE36A P6KE36CA P6KE39A P6KE39CA P6KE43A P6KE43CA P6KE47A P6KE47CA P6KE51A P6KE51CA P6KE56A P6KE56CA Maximum Breakdown Voltage Maximum Reverse V(BR) Test Stand-off Peak Pulse Leakage (Volts)(NOTES 1) Current Voltage Reverse Current VWM atVWM IT(mA) IPPM(NOTE2) (Volts) ID(NOTE3)(µA) MIN MAX (Amps) 6.45 6.45 7.13 7.13 7.79 7.79 8.65 8.65 9.50 9.50 10.5 10.5 11.4 11.4 12.4 12.4 14.3 14.3 15.2 15.2 17.1 17.1 19.0 19.0 20.9 20.9 22.8 22.8 25.7 25.7 28.5 28.5 31.4 31.4 34.2 34.2 37.1 37.1 40.9 40.9 44.7 44.7 48.5 48.5 53.2 53.2 7.14 7.14 7.88 7.88 8.61 8.61 9.55 9.55 10.5 10.5 11.6 11.6 12.6 12.6 13.7 13.7 15.8 15.8 16.8 16.8 18.9 18.9 21.0 21.0 23.1 23.1 25.2 25.2 28.4 28.4 31.5 31.5 34.7 34.7 37.8 37.8 41.0 41.0 45.2 45.2 49.4 49.4 53.6 53.6 58.8 58.8 10.0 10.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.80 5.80 6.40 6.40 7.02 7.02 7.78 7.78 8.55 8.55 9.40 9.40 10.2 10.2 11.1 11.1 12.8 12.8 13.6 13.6 15.3 15.3 17.1 17.1 18.8 18.8 20.5 20.5 23.1 23.1 25.6 25.6 28.2 28.2 30.8 30.8 33.3 33.3 36.8 36.8 40.2 40.2 43.6 43.6 47.8 47.8 1000.0 1000.0 500.0 500.0 200.0 200.0 50.0 50.0 10.0 10.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 50. 50. 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 57.1 57.1 53.1 53.1 49.6 49.6 44.8 44.8 41.4 41.4 38.5 38.5 35.9 35.9 33.0 33.0 28.3 28.3 26.7 26.7 23.8 23.8 21.7 21.7 19.6 19.6 18.1 18.1 16.0 16.0 14.5 14.5 13.1 13.1 12.0 12.0 11.1 11.1 10.1 10.1 9.3 9.3 8.6 8.6 7.8 7.8 Maximum Clamping Voltage at IPPM Vc(Volts) Maximum Temperature Coefficient of V(BR) (%/ C) 10.5 10.5 11.3 11.3 12.1 12.1 13.4 13.4 14.5 14.5 15.6 15.6 16.7 16.7 18.2 18.2 21.2 21.2 22.5 22.5 25.2 25.2 27.7 27.7 30.6 30.6 33.2 33.2 37.5 37.5 41.4 41.4 45.7 45.7 49.9 49.9 53.9 53.9 59.3 59.3 64.8 64.8 70.1 70.1 77.0 77.0 0.057 0.057 0.061 0.061 0.065 0.065 0.068 0.068 0.073 0.073 0.075 0.075 0.078 0.078 0.081 0.081 0.084 0.084 0.086 0.086 0.088 0.088 0.090 0.090 0.092 0.092 0.094 0.094 0.096 0.096 0.097 0.097 0.098 0.098 0.099 0.099 0.100 0.100 0.101 0.101 0.101 0.101 0.102 0.102 0.103 0.103 The electrical characteristics above is for reference only. http://www.microdiode.com Rev:20214A2 Page :2 P6KE6.8(C)A THRU P6KE440(C)A Breakdown Voltage:6.8-440 Volts Peak Pulse P ower:600 Watts ELECTRICAL CHARACTERISTICS (at TA=25°C unless otherwise noted) Device Type P6KE62A P6KE62CA P6KE68A P6KE68CA P6KE75A P6KE75CA P6KE82A P6KE82CA P6KE91A P6KE91CA P6KE100A P6KE100CA P6KE110A P6KE110CA P6KE120A P6KE120CA P6KE130A P6KE130CA P6KE150A P6KE150CA P6KE160A P6KE160CA P6KE170A P6KE170CA P6KE180A P6KE180CA P6KE200A P6KE200CA P6KE220A P6KE220CA P6KE250A P6KE250CA P6KE300A P6KE300CA P6KE350A P6KE350CA P6KE400A P6KE400CA P6KE440A P6KE440CA Breakdown Voltage V(BR) (Volts)(NOTES 1) Test Stand-off Current Voltage VWM IT(mA) (Volts) Maximum Reverse Leakage atVWM ID(NOTE3)(µA) Maximum Peak Pulse Reverse Current IPPM(NOTE2) (Amps) Maximum Clamping Voltage at IPPM Vc(Volts) Maximum Temperature Coefficient of V(BR) (%/ C) MIN MAX 58.9 58.9 65.1 65.1 1.0 1.0 53.0 53.0 5.0 5.0 7.1 7.1 85.0 85.0 0.104 0.104 64.6 64.6 71.4 71.4 1.0 1.0 58.1 58.1 5.0 5.0 6.5 6.5 92.0 92.0 0.104 0.104 71.3 71.3 78.8 78.8 1.0 1.0 64.1 64.1 5.0 5.0 5.8 5.8 103 103 0.105 0.105 77.9 77.9 86.1 86.1 1.0 1.0 70.1 70.1 5.0 5.0 5.3 5.3 113 113 0.105 0.105 86.5 86.5 95.5 95.5 1.0 1.0 77.8 77.8 5.0 5.0 4.8 4.8 125 125 0.106 0.106 95.0 95.0 105 105 1.0 1.0 85.5 85.5 5.0 5.0 4.4 4.4 137 137 0.106 0.106 105 105 116 116 1.0 1.0 94.0 94.0 5.0 5.0 3.9 3.9 152 152 0.107 0.107 114 114 126 126 1.0 1.0 102 102 5.0 5.0 3.6 3.6 165 165 0.107 0.107 124 124 137 137 1.0 1.0 111 111 5.0 5.0 3.4 3.4 179 179 0.107 0.107 143 143 158 158 1.0 1.0 128 128 5.0 5.0 2.9 2.9 207 207 0.108 0.108 152 152 168 168 1.0 1.0 136 136 5.0 5.0 2.7 2.7 219 219 0.108 0.108 162 162 179 179 1.0 1.0 145 145 5.0 5.0 2.6 2.6 234 234 0.108 0.108 171 171 189 189 1.0 1.0 154 154 5.0 5.0 2.4 2.4 246 246 0.108 0.108 190 190 210 210 1.0 1.0 171 171 5.0 5.0 2.2 2.2 274 274 0.108 0.108 209 209 231 231 1.0 1.0 185 185 5.0 5.0 1.8 1.8 328 328 0.108 0.108 237 237 263 263 1.0 1.0 214 214 5.0 5.0 1.7 1.7 344 344 0.110 0.110 285 285 315 315 1.0 1.0 256 256 5.0 5.0 1.4 1.4 414 414 0.110 0.110 332 332 368 368 1.0 1.0 300 300 5.0 5.0 1.2 1.2 482 482 0.110 0.110 380 380 420 420 1.0 1.0 342 342 5.0 5.0 1.1 1.1 548 548 0.110 0.110 418 418 462 462 1.0 1.0 376 376 5.0 5.0 1.0 1.0 602 602 0.110 0.110 NOTES: 1.V(BR)measured after IT applied for 300µs,IT=square wave pulse or equivalent 2. Surge current waveform per Fig.3 and derated per Fig.2 3.For bidirectional types having VWM of 10 volts and less,the ID limit is doubled 4.All items and symbols are consistent with ANSI/IEEE C62.35 The electrical characteristics above is for reference only. http://www.microdiode.com Rev:2024A2 Page :3 P6KE6.8(C)A THRU P6KE440(C)A Breakdown Voltage:6.8-440 Volts Peak Pulse P ower:600 Watts PppM,PEAK PULSE POWER,kw PEAK PULSE POWER(PppM)or CURRENT(IppM) DERATING IN PERCENTAGE,% FIG. 1-PEAK PULSE POWER RATING CURVE 100 NON-REPETITIVE PULSE WAVEFORM SHOWN in FIG.3 TA=25 C 10 1.0 0.1 0.1µs 1.0µs 10µs 100µs 1.0ms 10ms td,PULSE WIDTH,sec. FIG.3-PULSE WAVEFORM 150 IppM,PEAK PULSE CURRENT,% 75 50 25 0 0 50 75 100 125 150 175 200 TA AMBIENT TEMPERATURE,( C) FIG. 4-TYPICAL JUNCTIONAL CAPACITANCE UNIDIRECTIONAL PEAK VALUE IppM 10,000 100 HALF VALUE MEASURED at ZERO BIAS IPPM 2 CJ,JINCTION CAPACITANCE,pF 10/1000µsec WAVEFORM as DFINED by R.E.A 50 td 0 1.0 2.0 3.0 4.0 t,TIME,ms FIG.5-STEADY STATE POWER DERATING CURVE 5.00 L=0.375” (9.5mm) lLEAD LENGTHS 60Hz RESISTIVE OR INDUCTIVE LOAD TA=25 C f=1.0MHz Vsig=50mVp-p 1,000 MEASURED at STAND-OFF VOLTAGE,VwM 100 3.75 10 1.0 2.50 1.6 1.6 0.040” (40 40 1mm) COPPER HEAT SINKS 10 100 200 V(BR),BREAKDOWN VOLTAGE,VOLTS 1.25 IFSM,PEAK FORWARD SURAGE CURRENT AMPERES PM(AV),STEADY STATE POWER DISSIPATION,WATTS 25 PULSE WIDTH (td) is DEFINED as the POINT WHERE the PEAK CURRENT DECAYS to 50% of IppM tr=10µsec 0 0 0 25 50 75 100 125 150 175 200 TL,LEAD TEMPERATURE, C INSTANTANEOUS REVERSE LEAKAGE CURRENT,MICROAMPERES FIG. 2-PULSE DERATING CURVE 100 FIG.7-TYPICAL REVERSE LEAKAGE CHARCTERISTICS 1000 100 MEASURED AT DEVICES STAND-OFF VOLTAGE,Vwm 10 1 TA=25 C 0.1 200 100 TJ=TJmax. 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 10 1.0 10 100 NUMBER OF CYCLES AT 60Hz 0.01 0.001 FIG.6-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT UNIDIRECTIONAL ONLY 0 100 200 300 400 V(BR),BREAKDOWN VOLTAGE,VOLTS 500 The curve characteristics above is for reference only. https://www.microdiode.com Rev:2024A2 Page :4
