S9012

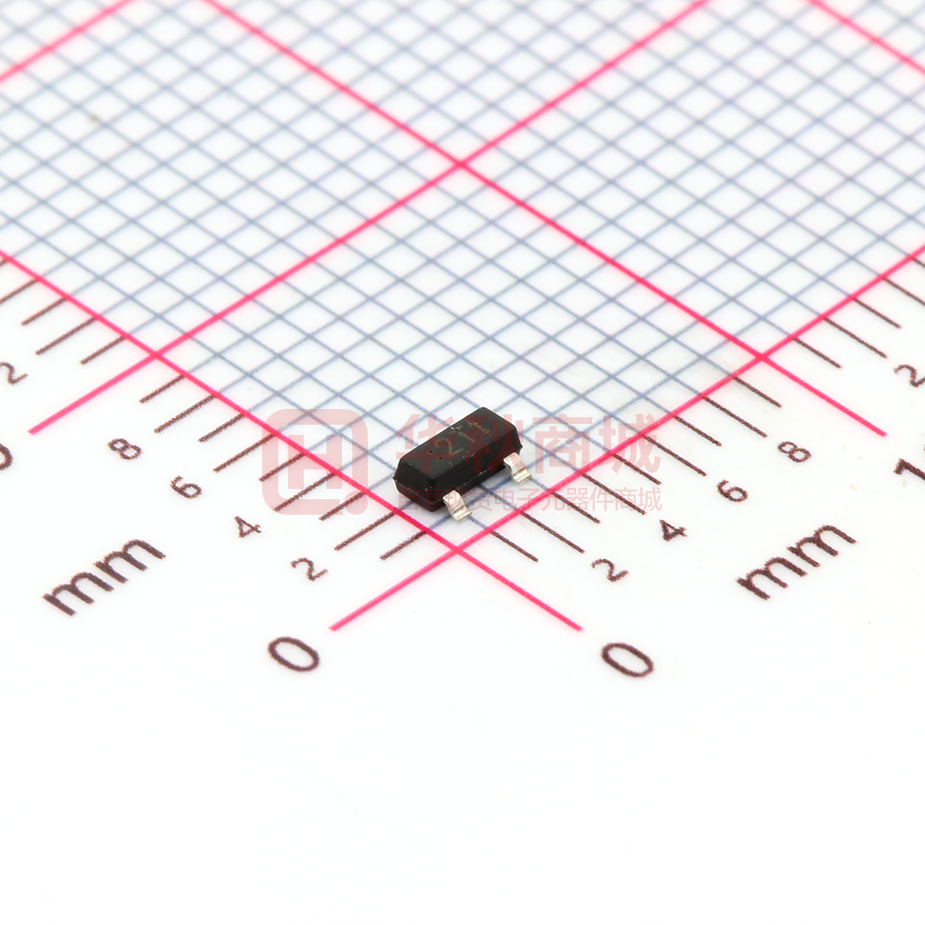

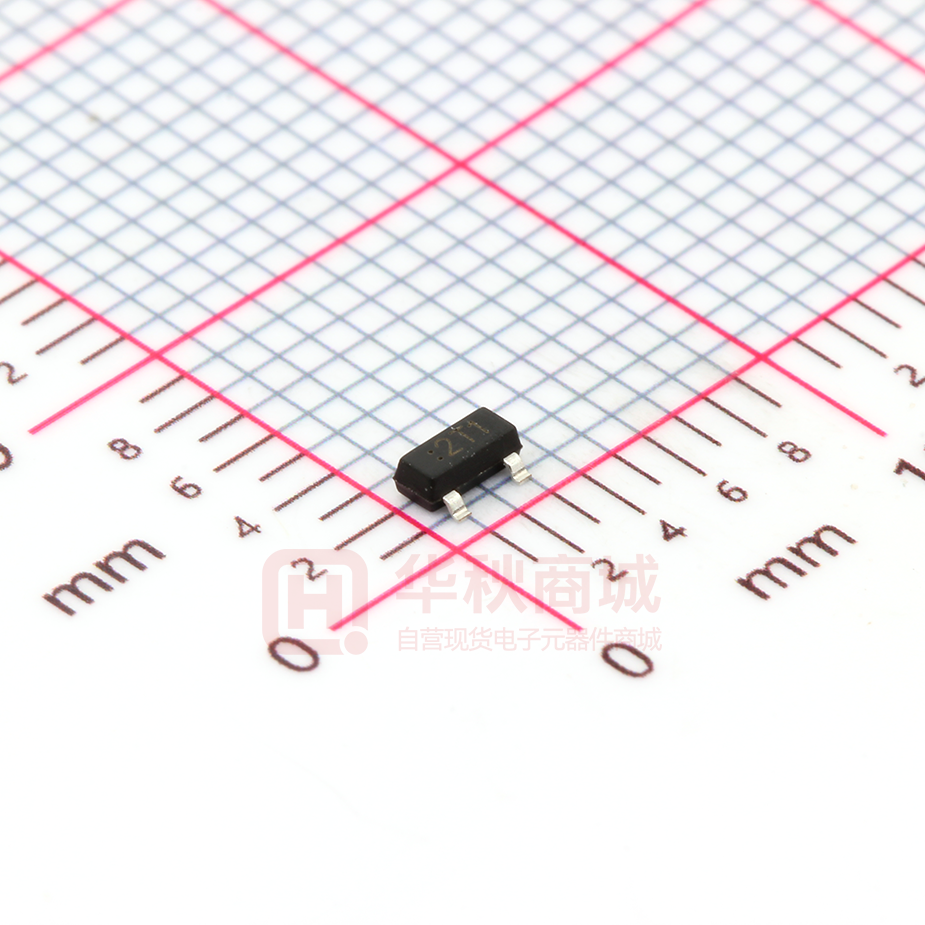

S9012 SOT-23 Plastic-Encapsulate Transistors S9012 TRANSISTOR (PNP) SOT-23 FEATURES z High Collector Current z Complementary To S9013 z Excellent hFE Linearity 1. BASE 2. EMITTER MARKING: 2T1 3. COLLECTOR MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -25 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -0.5 A PC Collector Power Dissipation 0.3 W Thermal Resistance From Junction To Ambient 416 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA ELECTRICAL CHARACTERISTICS (Ta= 25℃ unless otherwise specified) Parameter Symbol ol Test conditions Typ Min Max Unit Collector-base breakdown voltage V(BR)CBO IC=-100μA, IE=0 -40 V Collector-emitter breakdown voltage V(BR)CEO IC=-1mA,IB=0 -25 V Emitter-base breakdown voltage V(BR)EBO IE=-100μA,IC=0 -5 V Collector cut-off current ICBO VCB=-40V, IE=0 -0.1 μA Collector cut-off current ICEO VCB=-20V, IE=0 -0.1 μA Emitter cut-off current IEBO VEB=-5V, IC=0 -0.1 μA DC current gain hFE(1) VCE=-1V, IC=-50mA 400 120 Collector-emitter saturation voltage VCE(sat) IC=-500mA, IB=-50mA -0.6 V Base-emitter saturation voltage VBE(sat) IC=-500mA, IB=-50mA -1.2 V Transition frequency fT VCE=-6V, IC=-20mA f=30MHz Collector output capacitance Cob VCB=-10V, IE=0 f=1MHz 150 MHz 5 pF CLASSIFICATION OF hFE (1) Rank L H J Range 120-200 200-350 300-400 http://www.microdiode.com Rev:2024A1 Page :1 S9012 Typical Characteristics Static Characteristic -100 (mA) -350uA IC hFE DC CURRENT GAIN -250uA COLLECTOR CURRENT IC Ta=100℃ -300uA -60 —— COMMON EMITTER VCE=-1V COMMON EMITTER Ta=25℃ -400uA -80 hFE 400 -200uA -150uA -40 -100uA 300 Ta=25℃ 200 100 -20 IB=-50uA -0 0 -4 -8 -12 COLLECTOR-EMITTER VOLTAGE VCEsat COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) -1000 —— VCE -10 IC VBEsat -1.2 Ta=25℃ -10 -500 -100 COLLECTOR CURRENT (V) Ta=100℃ -100 -1 -20 -16 BASE-EMITTER SATURATION VOLTAGE VBEsat (V) -0 IC (mA) IC —— Ta=25℃ -0.8 Ta=100℃ -0.4 β=10 -1 -1 COLLECTOR CURRENT fT 500 IC -1 (mA) -100 -10 COLLECTOR CURRENT —— IC 100 Cob/ Cib —— IC (MHz) -500 (mA) VCB/ VEB f=1MHz IE=0/ IC=0 VCE=-6V o Ta=25 C Ta=25℃ Cob CAPACITANCE C TRANSITION FREQUENCY (pF) fT Cib 100 -5 -10 -100 COLLECTOR CURRENT Pc 400 COLLECTOR POWER DISSIPATION Pc (mW) β=10 -0.0 -500 -100 -10 —— IC (mA) 10 1 -0.1 -1 REVERSE VOLTAGE -10 V -20 (V) Ta 300 200 100 0 0 25 50 75 AMBIENT TEMPERATURE http://www.microdiode.com 100 Ta 125 150 (℃) Rev:2024A1 Page :2 S9012 Outlitne Drawing SOT-23 Package Outline Dimensions e Suggested Pad Layout 0.037 0.95 0.037 0.95 L L1 E E1 Symbol A A1 b c D E E1 e L L1 θ Dimensions In Millimeters Min Typ Max 0.90 1.40 0.10 0.00 0.30 0.50 0.20 0.08 2.80 2.90 3.10 1.20 1.60 2.80 2.25 1.80 1.90 2.00 0.10 0.50 0.4 0° 0.55 10° Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. 0.079 2.0 0.035 0.9 0.031 0.8 http://www.microdiode.com inches mm Rev:2024A1 Page :3 S9012 SOT-23 Tape and Reel Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A1 Page :4
