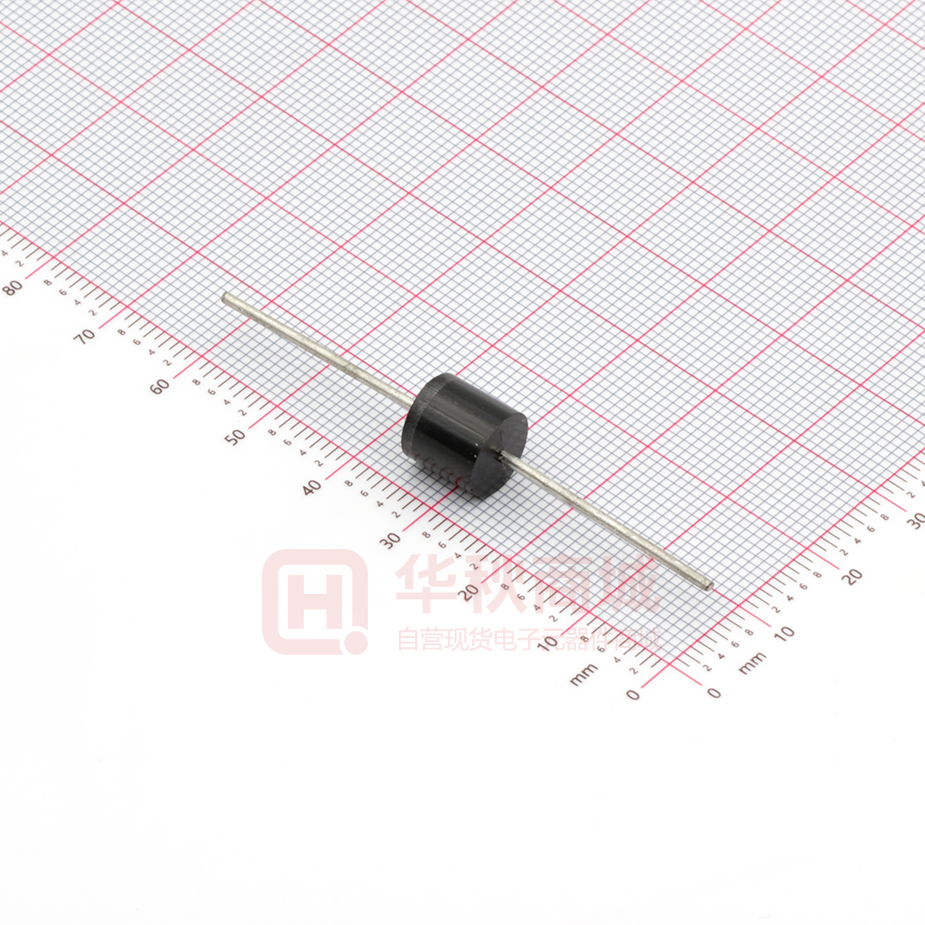

6A10

6A05 THRU 6A10 Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere GENERAL PURPOSE SILICON RECTIFIER Features R-6  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Construction utilizes void-free molded plastic technique 1.0 (25.4) MIN.  Low reverse leakage  High forward surge current capability 0.360 (9.1) 0.340(8.6)  High temperature soldering guaranteed: DIA. 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.360(9.1) 0.340(8.6) Mechanical Data 1.0 (25.4) MIN. Case : JEDEC R-6 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.07ounce, 2.1grams 0.052 (1.3) 0.048 (1.2) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=60°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 6.0A Maximum DC reverse current TA=25°C at rated DC blocking voltage TA=100°C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range SYMBOLS VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD 6A05 6A1 6A2 6A4 6A6 6A8 6A10 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 6.0 A IFSM 200 A VF 1.0 V IR 10.0 100 μA 150 10.0 -55 to +150 pF °C/W °C CJ RθJA TJ,TSTG Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A2 Page :1 6A05 THRU 6A10 Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 6.0 4.8 3.6 Single Phase Half Wave 60Hz Resistive or inductive Load 2.4 1.2 0 0 75 50 25 125 100 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 300 240 180 120 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 60 0 150 1 NUMBER OF CYCLES AT 60 Hz 200 100 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.1 0.5 0.7 0.9 1.1 1.3 1.4 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1 1,000 TJ=150 C 100 10 0.1 TJ=25 C 0.01 0 40 20 60 80 100 2000 TJ=25 C 100 TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=100 C 1 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 1000 100 10 AMBIENT TEMPERATURE, C FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0..1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS http://www.microdiode.com 100 t,PULSE DURATION,sec. Rev:2024A2 Page :2
