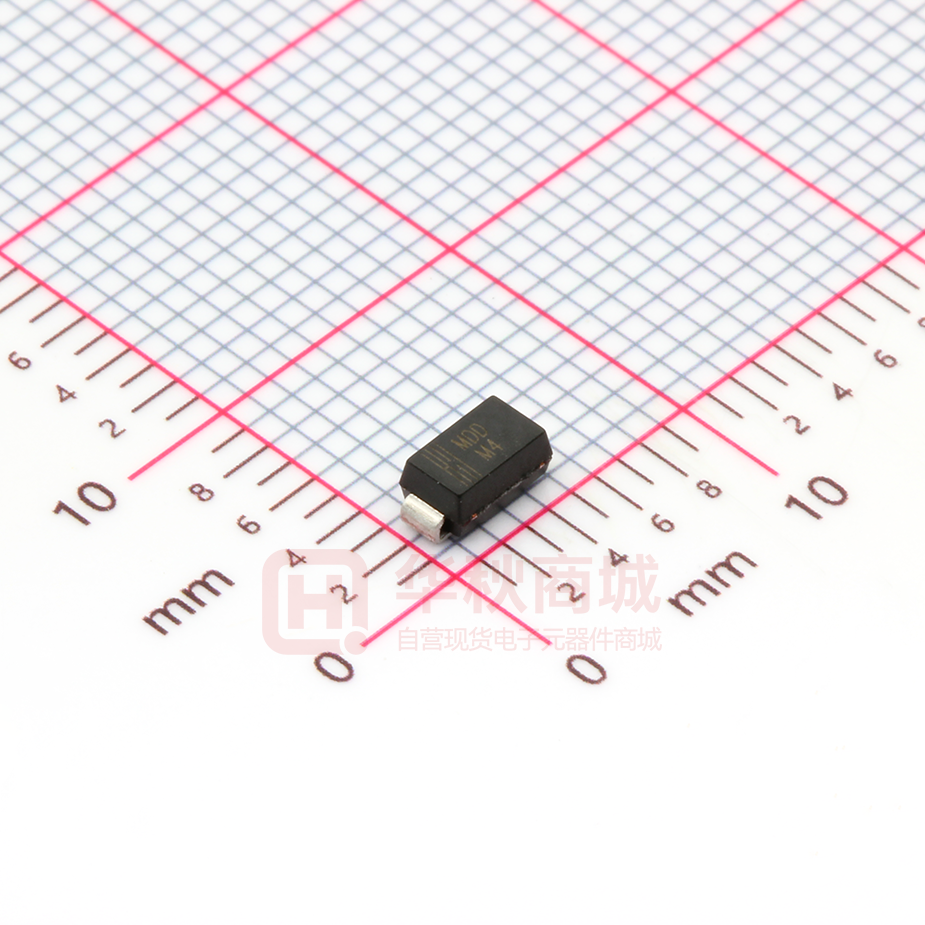

M4

M1 THRU M7 SURFACE MOUNT GENERAL RECTIFIER Reverse Voltage - 50 to 1000 Volts FEATURES DO-214AC/SMAJ The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals 0.110(2.80) 0.100(2.54) 0.067 (1.70) 0.051 (1.30) Forward Current - 1.0 Ampere 0.177(4.50) 0.157(3.99) 0.012(0.305) 0.006(0.152) 0.096(2.42) 0.078(1.98) MECHANICAL DATA 0.060(1.52) 0.030(0.76) Case: JEDEC DO-214AC molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.002 ounce, 0.07 grams 0.008(0.203)MAX. 0.222(5.66) 0.194(4.93) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number SYMBOLS Marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110 C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range VRRM VRMS VDC M1 M2 M3 M4 M5 M6 M7 MDD M1 MDD M2 MDD M3 MDD M4 MDD M5 MDD M6 MDD M7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 30.0 Amps VF 1.1 Volts IR 5.0 50.0 µA CJ RθJA TJ,TSTG 15.0 75.0 -50 to +150 pF C/W C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES M1 THRU M7 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 25 20 15 10 175 5.0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 0.1 1,000 100 TJ=100 C 1 0.1 TJ=25 C 0.01 0 20 40 60 80 TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W 200 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=150 C 10 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 100 100 NUMBER OF CYCLES AT 60 Hz 100 t,PULSE DURATION,sec. The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
