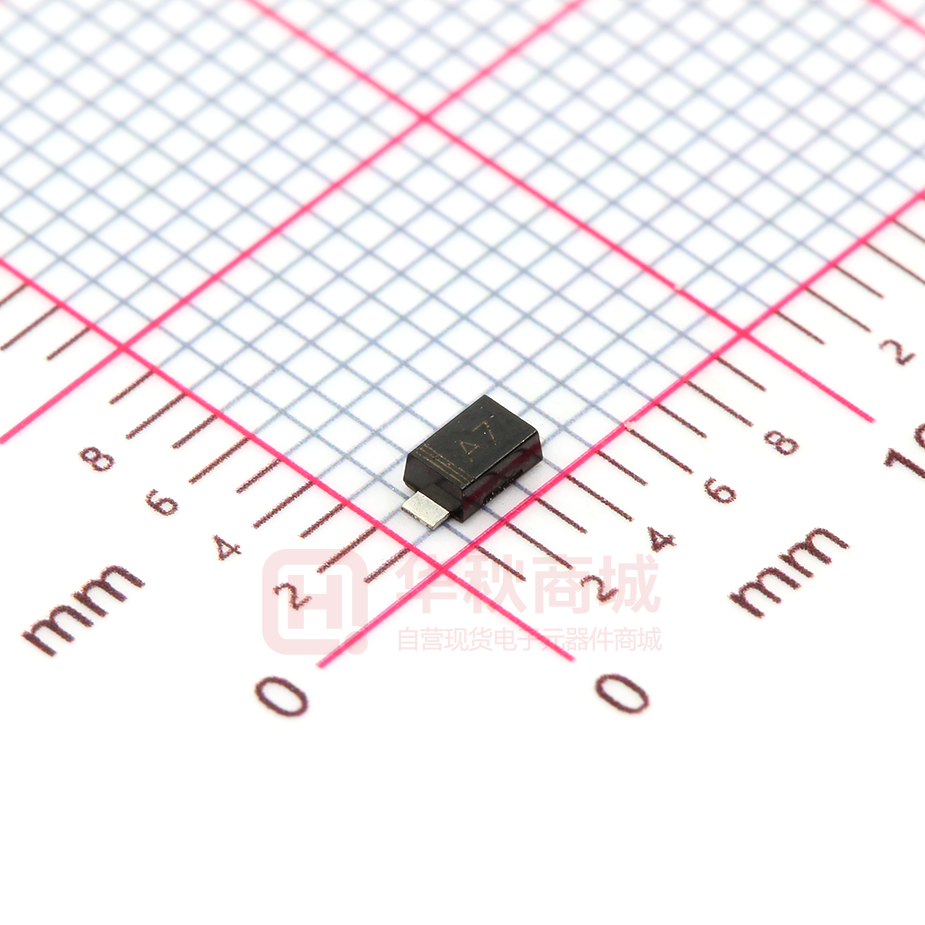

SM4007PL

SM4001PL THRU SM4007PL Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Features SOD-123FL  Glass passivated device  Ideal for surface mouted applications  Low reverse leakage  Metallurgically bonded construction 0.075(1.90) 0.067(1.70) 0.031 (0.80) 0.043 (1.10) 0.114(2.90) 0.102(2.60)  High temperature soldering guaranteed:  250°C/10 seconds,0.375”(9.5mm) lead length, 5 0.051(1.30) 0.039(1.00) lbs. (2.3kg) tension 0.010(0.25) 0.004(0.10) 0.035(0.90) 0.028(0.70) 0.154(3.90) 0.141(3.60) Mechanical Data Case: JEDEC 6OD-123FL molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Weight : 0.0053ounce, 0.015grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC SM4001PL SM4002PL SM4003PL SM4004PL SM4005PL SM4006PL SM4007PL A1 A2 A3 A4 A5 A6 A7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V Maximum average forward rectified current at TL(NOTE 1) I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25 A Maximum instantaneous forward voltage at 1.0A VF V Maximum DC reverse current at rated DCblocking voltage IR 1.1 10 50 uA TA=25℃ TA=125℃ Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction temperature range Storage temperature range CJ RJA 4 pF 180 ℃/W TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Note: 1.Averaged over any 20ms period. 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A2 Page :1 SM4001PL THRU SM4007PL Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Typical Characterisitics Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve 1.2 100 TJ= 150°C 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 Instaneous Reverse Current (uA) Average Forward Current (A) 1.0 TJ=125°C 10 1.0 TJ=75°C 0.1 TJ=25°C 1N4007W 0.01 0 400 200 600 800 Instaneous Reverse Voltage (V) Case Temperature (°C) Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 100 1.0 Junction Capacitance (pF) C TJ= 25° 0° TJ= 10 15 0° C C 0.5 TJ= Instaneous Forward Current (A) TJ=25°C 0.8 0.9 0.2 10 1 0.1 0.5 0.6 0.7 1.0 1.1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 35 30 25 20 15 10 05 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SM4001PL THRU SM4007PL Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SOD-123FL A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 2.1 4.0 1.60 1.55 178.00 50.0 13.00 1.75 3.50 4.00 4.00 2.00 E F B A Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width W P D2 T D1 C W1 D 0.25 8.15 10.5 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-123FL 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 1.2 0.047 B 1.2 3.2 0.126 D 2 0.079 E 4.4 0.173 C http://www.microdiode.com 0.047 Rev:2024A2 Page :3
