SD103AWS

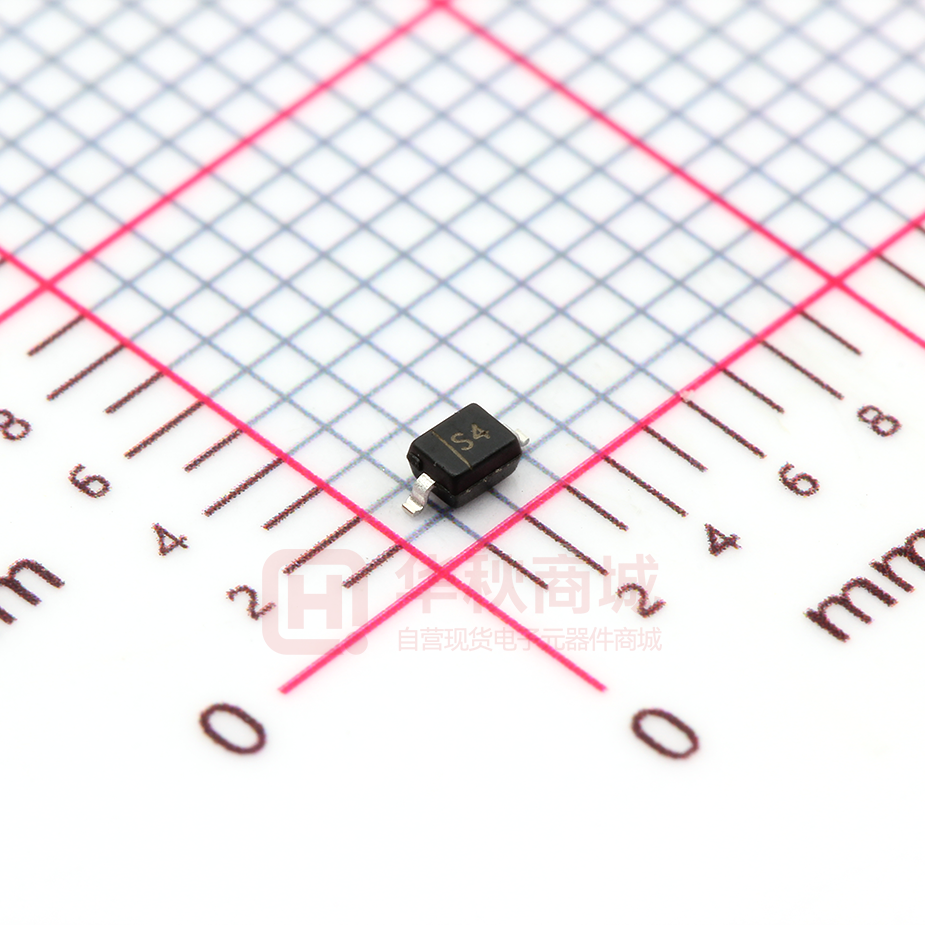

SD103AWS THRU SD103CWS Reverse Voltage 20-40 Volts Forward Current - 0.35 Ampere SCHOTTKY DIODES Features SOD-323  Low forward voltage drop  Guard ring construction for transient protection Negligible reverse recovery time 0.008(0.20)max. Cathode bar 0.055(1.40) 0.014(0.35) 0.010(0.25) 0.047(1.20) 0.071(1.80) 0.063(1.60) 0.108 (2.75) PARAMETER 0.019 (0.475) ref. 0.080 (0.0031) 8° 0.010 (0.25) Absolute Maximum Ratings at 25 °C 0.150 (0.0059) 0.018 (0.45) 0.008 (0.2 ) Case: JEDEC SOD-323 molded plastic body Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Weight : 0.0007 ounce, 0.02 grams Marking: SD103AWS:S4, SD103BWS:S5, SD103CWS:S6 0° to 0.039 (1.00) Mechanical Data 0.032 (0.80) 0.100 (2.55) Dimensions in inches and (millimeters) SYMBOLS SD103AWS SD103BWS SD103CWS UNITS VRRM VRMS VDC 40 30 20 VOLTS VR(RMS) 28 21 14 Peak repetitive peak reverse voltage Working peak reverse voltage DC Blocking voltage RMS Reverse voltage Forward continuous current IFM Repetitive peak forward current at 1.0s Power dissipation Thermal resistance junction to ambient Storage temperature V 350 mA IFRM 1.5 A Pd 200 mW RΘJA 300 TSTG -55 to +150 /W Characteristics at Ta= 25 °C PARAMETER Reverse break down voltage Reverse SYMBOLS SD103AWS SD103BWS SD103CWS Fowrard voltage Reverse current Capacitance between terminals Reverse recovery time http://www.microdiode.com SD103AWS SD103BWS SD103CWS V(BR)R Min. Typ. Max. 40 30 20 VF 0.37 0.60 IRM 5.0 Unit Conditions V IR=100uA V uA CT 50 pF trr 10 ns IF=20mA IF=200mA VR=30V VR=20V VR=10V VR=0V,f=1.0MHz IF=IR=200mA Irr=0.1XIR,RL=100 Rev:2024A2 Page :1 SD103AWS THRU SD103CWS Reverse Voltage 20-40 Volts Forward Current - 0.35 Ampere Typical Characterisitics Forward 350 Characteristics Reverse 1000 Characteristics REVERSE CURRENT IR FORWARD CURRENT IF (mA) (uA) 100 Ta=100℃ 10 Ta=25℃ 1 0.1 0 100 200 300 FORWARD VOLTAGE 400 VF 500 Ta=100℃ 10 1 0.1 600 Ta=25℃ 0 20 10 30 REVERSE VOLTAGE (mV) Capacitance Characteristics 50 100 VR 40 (V) Power Derating Curve 250 Ta=25℃ (mW) 200 PD 40 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 30 20 150 100 50 10 0 5 10 15 REVERSE VOLTAGE 20 VR 25 (V) 30 0 0 25 50 75 AMBIENT TEMPERATURE 100 Ta (℃ ) The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 125 SD103AWS THRU SD103CWS Reverse Voltage 20-40 Volts Forward Current - 0.35 Ampere Packing information P0 unit:mm P1 d Item E F B A W Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width P D2 T D1 C W1 D Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SOD-323 2.1 4.0 1.60 1.55 178.00 50.0 13.00 1.75 3.50 4.00 4.00 2.00 0.25 8.15 10.5 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-323 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) Unit (inch) A 0.028 B 0.7 0.7 C 2.15 0.085 D 1.8 0.071 E 2.85 0.112 0.028 Rev:2024A2 Page :3
