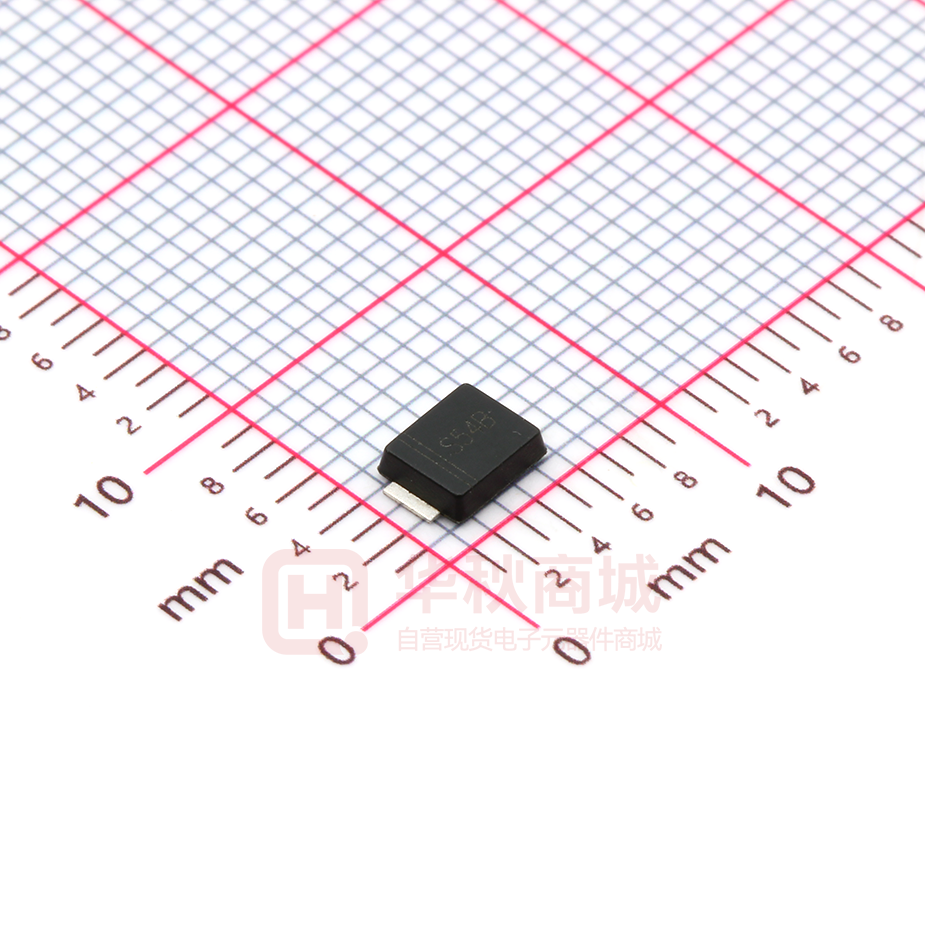

SS54BF

SS52BF THRU SS520BF Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features SMBF  Metal silicon junction, majority carrier conduction For surface  mounted applications 0.146(3.70) 0.138(3.50) 0.086 (2.20) 0.075 (1.90)  Low power loss,high efficiency  High forward surge current capability  For use in low voltage,high frequency inverters, free 0.173(4.40) 0.165(4.20) wheeling,and polarity protection applicatlons 0.051(1.30) 0.043(1.10) Mechanical Data 0.010(0.26) 0.007(0.18) 0.048(1.20) 0.031(0.80) 0.216(5.50) 0.200(5.10) Case: JEDEC 60B) molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Weight : 0.002 ounce, 0.057 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SS52BF SS53BF SS54BF SS55BF SS56BF SS58BF Parameter Marking Code SYMBOLS Maximum repetitive peak reverse voltage VRRM Maximum RMS voltage Maximum DC blocking voltage VRMS VDC Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current at rated DC blocking voltage MDD S52B 20 14 20 MDD S53B 30 21 30 MDD S54B 40 28 40 MDD S55B 50 35 50 MDD S56B 60 42 60 SS510BF MDD S58B MDD S510B 80 56 80 100 70 100 SS515BF SS520BF MDD S515B 150 105 150 MDD S520B 200 140 200 UNITS V V V I(AV) 5.0 A IFSM 120 A VF 0.55 0.70 V 0.85 1.0 50 TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) CJ Typical thermal resistance (NOTE 2) RJA 45 ℃/W Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Storage temperature range IR 800 mA 500 pF Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 SS52BF THRU SS520BF Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Average Forward Current (A) 5.0 4.0 3.0 2.0 1.0 0.0 25 75 50 100 125 150 Instaneous Reverse Current ( μA) 6.0 10 4 10 3 10 2 TJ=100°C TJ=75°C 101 TJ=25°C 0 10 0 Case Temperature (°C) 20 40 60 100 80 Percent of Rated Peak Reverse Voltage（%） Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 20 TJ=25°C 1000 Junction Capacitance (pF) Instaneous Forward Current (A) 10 1 SS52BF/SS54BF SS56BF SS58BF/SS520BF 0.1 0 1.0 0.5 1.5 100 10 SS52BF/SS54BF SS56BF-SS520BF 1 2.0 0.1 W） °C / 120 100 80 60 40 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 Number of Cycles at 60Hz 100 Transient Thermal Impedance（ Peak Forward Surage Current (A) 140 00 10 100 Fig.6- Typical Transient Thermal Impedance Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 20 1 Reverse Voltage (V) Instaneous Forward Voltage (V) 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SS52BF THRU SS520BF Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMBF Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.61 1.60 1 50 . 330.00 50.00 13.00 1.75 5.50 4.00 4.00 2.00 0.30 12.00 12.30 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) BOX (pcs) INNER BOX (mm) REEL DIA, (mm) SMBF 13" 5,000 4.0 10,000 190*190*41 330 CARTON SIZE (mm) 365*365*360 CARTON (pcs) 80,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 2.54 0.100 B 1.8 0.071 C 4.8 0.189 D 3.0 0.118 E 6.6 0.260 Unit (inch) Rev:2024A2 Page :3
