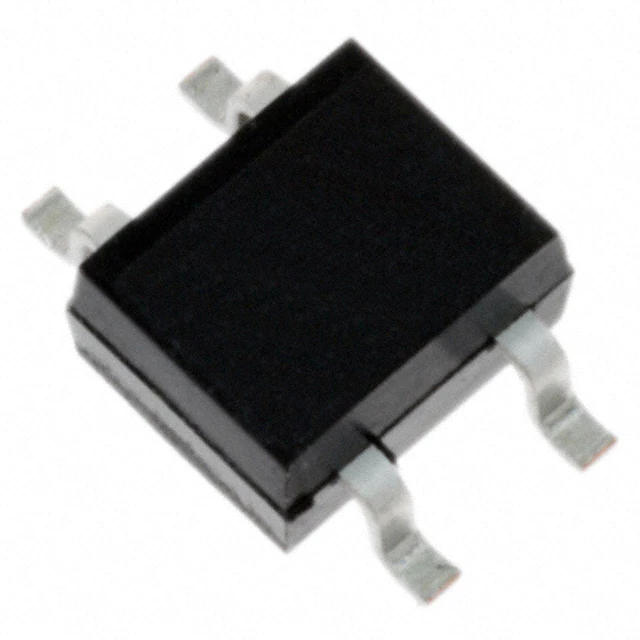

MB1S THRU MB10S SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Voltage Range - 100 to 1000 Volts Current - 1.0 Ampere FEATURES MBS Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 260 /10 seconds at 5 lbs., (2.3kg) tension Small size, simple installation High surge current capability 0.028 0.7 0.010 0.25 ) + MECHANICAL DATA 0.067(1.7) Case: Molded plastic body Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Mounting Position: Any Weight:0.008 ounce, 0.22 grams Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC=30 On glass-epoxy P.C.B. On aluminum substrate Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per leg at 0.4A Maximum DC reverse current TA=25 at rated DC blocking voltage TA=125 Typical junction capactiance per leg(Note3) Typical thermal resistance per leg Operating temperature range storage temperature range SYMBOLS VRRM VRMS VDC MDD MB1S MDD MB2S MDD MB4S MDD MB6S MDD MB8S MDD MB10S UNITS 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 VOLTS VOLTS VOLTS IF(AV) 1.0 Amps IFSM 35 Amps VF 1.1 Volts 5.0 500 13 70 -55 to +150 -55 to +150 uA uA IR CJ R JA TJ TSTG pF /W NOTES:1.On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads 2.On aluminum substrate P.C.B. with on area of 0.8''x0.8''(20x20mm) mounted on 0.05X0.05''(1.3X1.3mm) solder pad 3.Measured at 1.0MHz and applied reverse voltage of 4.0 volts. Fig. 1 Output Current Derating Curve 1.0 IF, INSTANTANEOUS FORWARD CURRENT (A) I(AV), AVERAGE FORWARD RECTIFIED CURRENT (A) RATINGS AND CHARACTERISTIC CURVES MB1S THRU MB10S 0.6 0.4 0.2 0 0 40 80 120 160 1.0 0.1 TA= 25°C Pulse Width = 300µs 0.01 0.2 TA, AMBIENT TEMPERATURE (°C) 0.4 0.6 0.8 Fig. 3 Maximum Peak Forward Surge Current (per leg) 35 1.2 20 10 TA = 25°C Single Half Sine-Wave Pulse Width = 8.3ms (JEDEC Method) 0 1.4 1.6 Fig. 4 Typical Junction Capacitance 100 TJ = 25°C f = 1.0MHz 30 10 1 1.0 10 1 NUMBER OF CYCLES AT 60 Hz 10 VR, REVERSE VOLTAGE (V) FIG.5 TYPICAL REVERSE CHRACTERISTICS INVSTANTANEOUS REVERSE CURRENT (µA) 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Cj, JUNCTION CAPACITANCE (pF) I FSM, PEAK FORWARD SURGE CURRENT (A) Fig. 2 Typical Forward Characteristics (per leg) 10 10 00 O TJ= 125 C 100 10 1 .0 O TJ= 2 5 C 0 .1 20 40 60 80 100 120 PERCENT OF RATED PEAK INVERSE VOLTGE (V) The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
