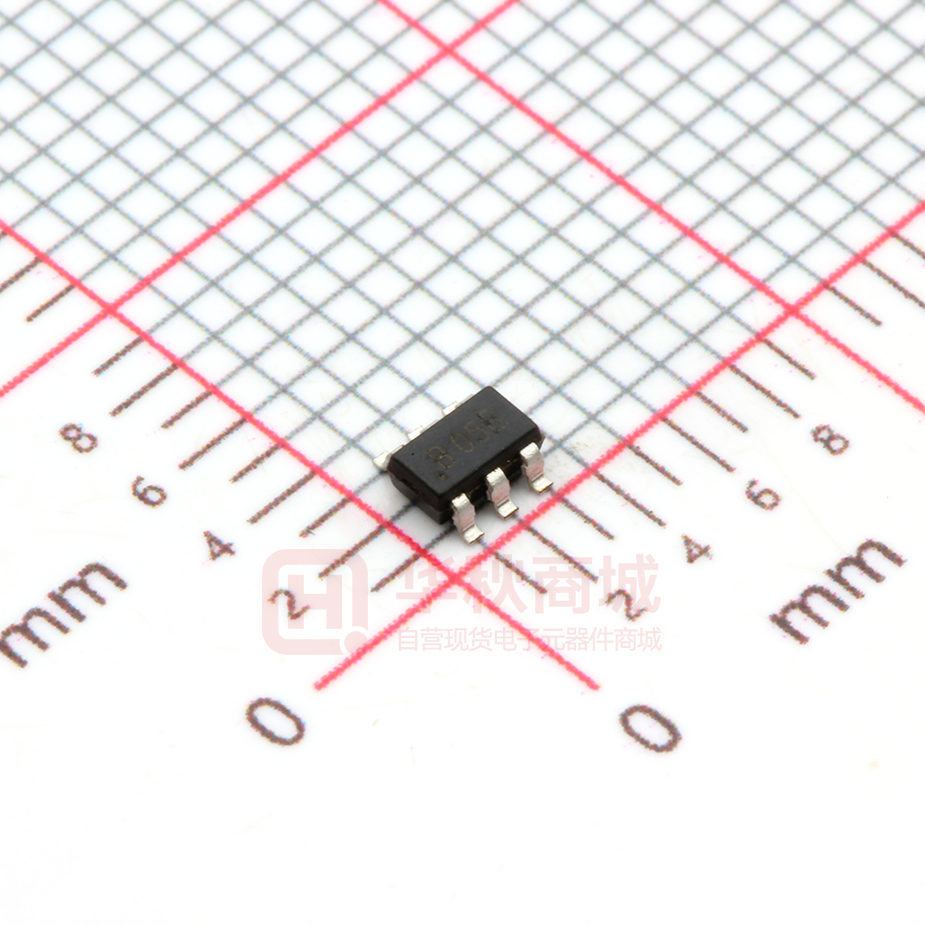

UDT26A05L05 Electrostatic Discharged Protection Devices (ESD) Data Sheet Description UDT26A05L05 is surge rated diode arrays designed to protect high speed data interfaces. It has been specifically designed to protect sensitive components which is connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The unique design of the device incorporates one surge rated, and four data lines. Low capacitance steering diodes and a TVS diode in a single package. The low capacitance array configuration allows the user to protect four high speed data or transmission lines. Features ● ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 15KV Air, 8KV contact compliance SOT23-6L surface mount package Protects four high-speed data lines and one power line Array of surge rated, low capacitance diodes Working voltage: 5V Low leakage current Low clamping voltage Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 Marking: B 05B or 054 Pin Configuration Applications ● ● ● ● USB power and data line protection 10/100/1000 Ethernet Video line protection I2C bus protection ● ● ● ● WAN/LAN equipment ISDN S/T interface Microcontroller input protection Portable electronics Maximum Ratings Rating ESD voltage (Contact discharge) ESD voltage (Air discharge) Storage & operating temperature range Revision：24-Mar-16 Symbol VESD TSTG ,TJ Value ±8 ±15 -55~+150 Unit kV ℃ www.brightking.com UDT26A05L05 Electrical Characteristics (TJ=25℃) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM Max. Unit 5 V VBR IBR=1mA 6 V Reverse leakage current IR VR=5V 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 9.8 V Clamping voltage (tp=8/20μs) VC IPP=2A 16 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND 2.5 pF Applications Information Revision：24-Mar-16 www.brightking.com UDT26A05L05 ESD Protection Standards IEC61000-4-2 Interfaces of consumer electronic equipment are widely specified according to the International Electrotechnical Commission standard IEC61000-4-2. This standard is not targeted towards particular devices but towards general equipment, systems and subsystems that may be involved in electrostatic discharge. consists of a 150pF capacitor and a 330Ω series resistor representing the counterpart to the Device Under Test (DUT). Human Body Model (HBM, MIL-883E method 3015.7) The HBM standard simulates an ESD surge generated by human contact to electronic components. Revision：24-Mar-16 www.brightking.com UDT26A05L05 Recommended Soldering Conditions Reflow Soldering Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision：24-Mar-16 20-40 seconds 6℃/second max. 8 minutes max. www.brightking.com UDT26A05L05 Dimensions (SOT23-6L) Dimension Symbol Millimeters Inches Min. Max. Min. Max. A 2.80 3.00 0.110 0.118 B 2.60 3.00 0.102 0.118 C 0.93 0.97 0.037 0.038 D 0.41 0.016 E 1.50 1.70 0.059 0.067 F 0.11 0.19 0.004 0.007 G - 0.10 - 0.004 H 0.40 - 0.016 - J 1.00 1.20 0.393 0.047 Packaging Tape Reel Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.05±0.05 E 1.75±0.10 F 3.50±0.10 A 3.40±0.10 B 3.20±0.10 K 1.30±0.10 t 0.25±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 Quantity: 3000PCS Revision：24-Mar-16 www.brightking.com
