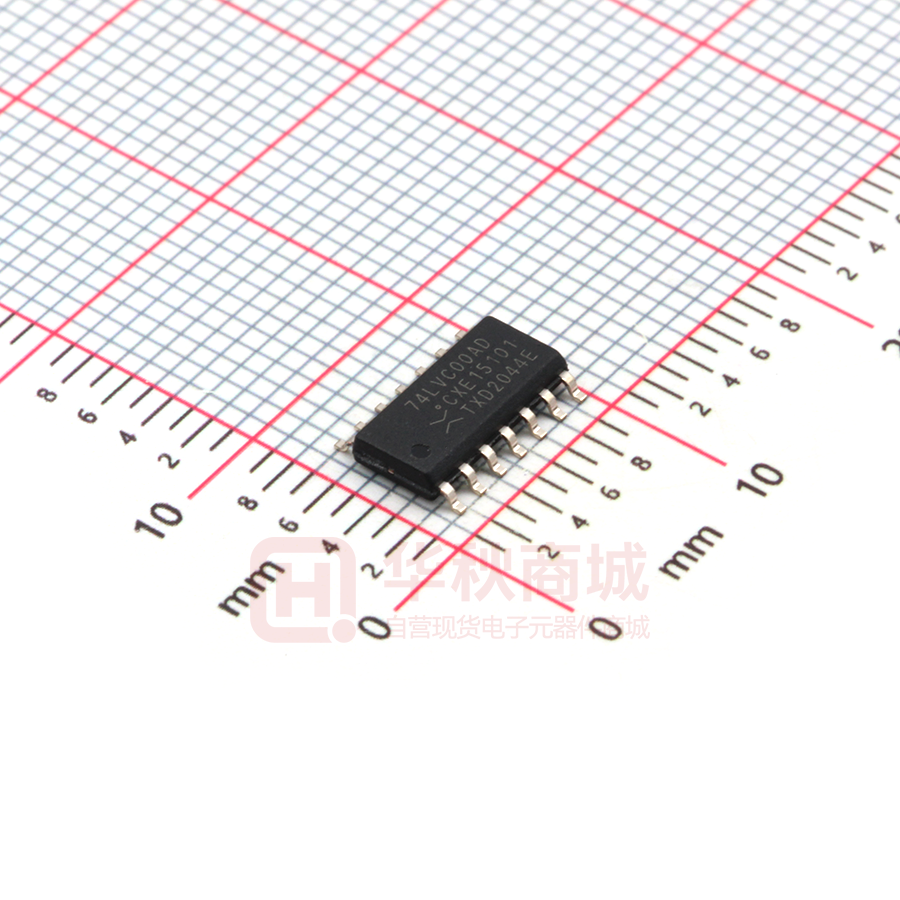

74LVC00AD,118

74LVC00A Quad 2-input NAND gate Rev. 7 — 25 April 2012 Product data sheet 1. General description The 74LVC00A provides four 2-input NAND gates. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. 2. Features and benefits      5 V tolerant inputs for interfacing with 5 V logic Wide supply voltage range from 1.2 V to 3.6 V CMOS low-power consumption Direct interface with TTL levels Complies with JEDEC standard:  JESD8-7A (1.65 V to 1.95 V)  JESD8-5A (2.3 V to 2.7 V)  JESD8-C/JESD36 (2.7 V to 3.6 V)  ESD protection:  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-B exceeds 200 V  CDM JESD22-C101E exceeds 1000 V  Specified from −40 °C to +85 °C and −40 °C to +125 °C 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version 74LVC00AD −40 °C to +125 °C SO14 plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 74LVC00ADB −40 °C to +125 °C SSOP14 plastic shrink small outline package; 14 leads; body width 5.3 mm SOT337-1 74LVC00APW −40 °C to +125 °C TSSOP14 plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 74LVC00ABQ −40 °C to +125 °C DHVQFN14 plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; 14 terminals; body 2.5 × 3 × 0.85 mm SOT762-1 74LVC00A Nexperia Quad 2-input NAND gate 4. Functional diagram 1 1 1A 2 1B 1Y 3 4 2A 5 2B 2Y 6 9 3A 10 3B 3Y 8 12 4A 13 4B 4Y 11 2 4 5 9 10 12 13 & 3 & 6 & 8 A Y 11 & B mna212 Fig 1. mna211 mna246 Logic symbol Fig 2. IEC logic symbol Fig 3. Logic diagram for one gate 5. Pinning information 1 1A terminal 1 index area 14 VCC 5.1 Pinning 1B 2 1Y 3 12 4A 2A 4 00 11 4Y 11 4Y 2B 5 GND (1) 10 3B 10 3B 2Y 6 2 13 4B 12 4A 1Y 3 2A 4 2B 5 2Y 6 9 3A 8 1B 13 4B GND 7 8 3Y 3Y 14 VCC 7 1 GND 1A 00 9 3A 001aac939 Transparent top view 001aac938 (1) This is not a supply pin. The substrate is attached to this pad using conductive die attach material. There is no electrical or mechanical requirement to solder this pad. However, if it is soldered, the solder land should remain floating or be connected to GND. Fig 4. Pin configuration SO14 and (T)SSOP14 Fig 5. Pin configuration DHVQFN14 5.2 Pin description Table 2. Pin description Symbol Pin Description 1A to 4A 1, 4, 9, 12 data input 1B to 4B 2, 5, 10, 13 data input 1Y to 4Y 3, 6, 8,11 data output GND 7 ground (0 V) VCC 14 supply voltage 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 2 of 14 74LVC00A Nexperia Quad 2-input NAND gate 6. Functional description Table 3. Function selection[1] Input Output nA nB nY L X H X L H H H L [1] H = HIGH voltage level; L = LOW voltage level; X = don’t care 7. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter VCC supply voltage IIK input clamping current VI input voltage IOK output clamping current Conditions VI < 0 V [1] VO > VCC or VO < 0 V VO output voltage output in HIGH or LOW-state IO output current VO = 0 V to VCC ICC supply current IGND ground current Ptot total power dissipation Tstg storage temperature Tamb = −40 °C to +125 °C [1] The minimum input voltage ratings may be exceeded if the input current ratings are observed. [2] The output voltage ratings may be exceeded if the output current ratings are observed. [3] For SO14 packages: above 70 °C derate linearly with 8 mW/K. [2] [3] Min Max Unit −0.5 +6.5 V −50 - mA −0.5 +6.5 V - ±50 mA −0.5 VCC + 0.5 V - ±50 mA - 100 mA −100 - mA - 500 mW −65 +150 °C For (T)SSOP14 packages: above 60 °C derate linearly with 5.5 mW/K. For DHVQFN14 packages: above 60 °C derate linearly with 4.5 mW/K. 8. Recommended operating conditions Table 5. Recommended operating conditions Symbol Parameter VCC supply voltage Conditions Min Typ Max Unit 1.65 - 3.6 V 1.2 - - V 0 - 5.5 V 0 - VCC V −40 - +125 °C VCC = 1.65 V to 2.7 V 0 - 20 ns/V VCC = 2.7 V to 3.6 V 0 - 10 ns/V functional VI input voltage VO output voltage Tamb ambient temperature Δt/ΔV input transition rise and fall rate 74LVC00A Product data sheet output HIGH or LOW state All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 3 of 14 74LVC00A Nexperia Quad 2-input NAND gate 9. Static characteristics Table 6. Static characteristics At recommended operating conditions. Voltages are referenced to GND (ground = 0 V). Symbol Parameter −40 °C to +85 °C Conditions Min HIGH-level input voltage VIH LOW-level input voltage VIL VOH HIGH-level output voltage LOW-level output voltage VOL Typ[1] −40 °C to +125 °C Max Min Unit Max VCC = 1.2 V 1.08 - - 1.08 - V VCC = 1.65 V to 1.95 V 0.65 × VCC - - 0.65 × VCC - V VCC = 2.3 V to 2.7 V 1.7 - - 1.7 - V VCC = 2.7 V to 3.6 V 2.0 - - 2.0 - V - 0.12 V VCC = 1.2 V - - 0.12 VCC = 1.65 V to 1.95 V - - 0.35 × VCC - 0.35 × VCC V VCC = 2.3 V to 2.7 V - - 0.7 - 0.7 V VCC = 2.7 V to 3.6 V - - 0.8 - 0.8 V IO = −100 μA; VCC = 1.65 V to 3.6 V VCC − 0.2 - - VCC − 0.3 - V IO = −4 mA; VCC = 1.65 V 1.2 - - 1.05 - V IO = −8 mA; VCC = 2.3 V 1.8 - - 1.65 - V IO = −12 mA; VCC = 2.7 V 2.2 - - 2.05 - V IO = −18 mA; VCC = 3.0 V 2.4 - - 2.25 - V IO = −24 mA; VCC = 3.0 V 2.2 - - 2.0 - V IO = 100 μA; VCC = 1.65 V to 3.6 V - - 0.2 - 0.3 V IO = 4 mA; VCC = 1.65 V - - 0.45 - 0.65 V VI = VIH or VIL VI = VIH or VIL IO = 8 mA; VCC = 2.3 V - - 0.6 - 0.8 V IO = 12 mA; VCC = 2.7 V - - 0.4 - 0.6 V IO = 24 mA; VCC = 3.0 V - - 0.55 - 0.8 V ±0.1 ±5 - ±20 μA II input leakage VCC = 3.6 V; VI = 5.5 V or GND current ICC supply current VCC = 3.6 V; VI = VCC or GND; IO = 0 A - 0.1 10 - 40 μA ΔICC additional supply current per input pin; VCC = 2.7 V to 3.6 V; VI = VCC − 0.6 V; IO = 0 A - 5 500 - 5000 μA CI input capacitance VCC = 0 V to 3.6 V; VI = GND to VCC - 4.0 - - - pF [1] All typical values are measured at VCC = 3.3 V (unless stated otherwise) and Tamb = 25 °C. 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 4 of 14 74LVC00A Nexperia Quad 2-input NAND gate 10. Dynamic characteristics Table 7. Dynamic characteristics Voltages are referenced to GND (ground = 0 V). For test circuit see Figure 7. Symbol Parameter propagation delay tpd −40 °C to +85 °C Conditions Min Max Min Max - 12 - - - ns VCC = 1.65 V to 1.95 V 0.3 3.8 8.4 0.3 9.7 ns VCC = 2.3 V to 2.7 V 1.0 2.2 4.8 1.0 5.7 ns [2] nA, nB to nY; see Figure 6 VCC = 1.2 V tsk(o) power dissipation capacitance CPD [1] output skew time −40 °C to +125 °C Unit Typ[1] VCC = 2.7 V 1.0 2.3 5.1 1.0 5.9 ns VCC = 3.0 V to 3.6 V 0.5 2.0 4.3 0.5 5.1 ns - - 1.0 - 1.5 ns VCC = 3.0 V to 3.6 V [3] per gate; VI = GND to VCC [4] VCC = 1.65 V to 1.95 V - 5.6 - - - pF VCC = 2.3 V to 2.7 V - 8.9 - - - pF VCC = 3.0 V to 3.6 V - 11.8 - - - pF Typical values are measured at Tamb = 25 °C and VCC = 1.2 V, 1.8 V, 2.5 V, 2.7 V, and 3.3 V respectively. [2] tpd is the same as tPLH and tPHL. [3] Skew between any two outputs of the same package switching in the same direction. This parameter is guaranteed by design. [4] CPD is used to determine the dynamic power dissipation (PD in μW). PD = CPD × VCC2 × fi × N + Σ(CL × VCC2 × fo) where: fi = input frequency in MHz; fo = output frequency in MHz CL = output load capacitance in pF VCC = supply voltage in Volts N = number of inputs switching Σ(CL × VCC2 × fo) = sum of the outputs 11. Waveforms VI nA, nB input VM GND tPHL tPLH VOH nY output VM mna213 VOL VM = 1.5 V at VCC ≥ 2.7 V. VM = 0.5 × VCC at VCC < 2.7 V. VOL and VOH are typical output voltage levels that occur with the output load. Fig 6. The input (nA, nB) to output (nY) propagation delays 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 5 of 14 74LVC00A Nexperia Quad 2-input NAND gate tW VI 90 % negative pulse VM VM 10 % 0V tf tr tr tf VI 90 % positive pulse VM VM 10 % 0V tW VCC PULSE GENERATOR VI VO DUT RT CL RL 001aaf615 Test data is given in Table 8. Definitions for test circuit: RL = Load resistance CL = Load capacitance including jig and probe capacitance RT = Termination resistance should be equal to output impedance Zo of the pulse generator Fig 7. Table 8. Load circuitry for measuring switching times Test data Supply voltage Input Load VI tr, tf CL RL 1.2 V VCC ≤ 2 ns 30 pF 1 kΩ 1.65 V to 1.95 V VCC ≤ 2 ns 30 pF 1 kΩ 2.3 V to 2.7 V VCC ≤ 2 ns 30 pF 500 Ω 2.7 V 2.7 V ≤ 2.5 ns 50 pF 500 Ω 3.0 V to 3.6 V 2.7 V ≤ 2.5 ns 50 pF 500 Ω 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 6 of 14 74LVC00A Nexperia Quad 2-input NAND gate 12. Package outline SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 D E A X c y HE v M A Z 8 14 Q A2 A (A 3) A1 pin 1 index θ Lp 1 L 7 e detail X w M bp 0 2.5 5 mm scale DIMENSIONS (inch dimensions are derived from the original mm dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (1) e HE L Lp Q v w y Z (1) mm 1.75 0.25 0.10 1.45 1.25 0.25 0.49 0.36 0.25 0.19 8.75 8.55 4.0 3.8 1.27 6.2 5.8 1.05 1.0 0.4 0.7 0.6 0.25 0.25 0.1 0.7 0.3 0.01 0.019 0.0100 0.35 0.014 0.0075 0.34 0.16 0.15 0.010 0.057 inches 0.069 0.004 0.049 0.05 0.244 0.039 0.041 0.228 0.016 0.028 0.024 0.01 0.01 0.028 0.004 0.012 θ 8o o 0 Note 1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included. Fig 8. REFERENCES OUTLINE VERSION IEC JEDEC SOT108-1 076E06 MS-012 JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-19 Package outline SOT108-1 (SO14) 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 7 of 14 74LVC00A Nexperia Quad 2-input NAND gate SSOP14: plastic shrink small outline package; 14 leads; body width 5.3 mm D SOT337-1 E A X c y HE v M A Z 8 14 Q A2 A (A 3) A1 pin 1 index θ Lp L 7 1 detail X w M bp e 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (1) e HE L Lp Q v w y Z (1) θ mm 2 0.21 0.05 1.80 1.65 0.25 0.38 0.25 0.20 0.09 6.4 6.0 5.4 5.2 0.65 7.9 7.6 1.25 1.03 0.63 0.9 0.7 0.2 0.13 0.1 1.4 0.9 8o o 0 Note 1. Plastic or metal protrusions of 0.25 mm maximum per side are not included. OUTLINE VERSION SOT337-1 Fig 9. REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-19 MO-150 Package outline SOT337-1 (SSOP14) 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 8 of 14 74LVC00A Nexperia Quad 2-input NAND gate TSSOP14: plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 E D A X c y HE v M A Z 8 14 Q (A 3) A2 A A1 pin 1 index θ Lp L 1 7 e detail X w M bp 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (2) e HE L Lp Q v w y Z (1) θ mm 1.1 0.15 0.05 0.95 0.80 0.25 0.30 0.19 0.2 0.1 5.1 4.9 4.5 4.3 0.65 6.6 6.2 1 0.75 0.50 0.4 0.3 0.2 0.13 0.1 0.72 0.38 8o o 0 Notes 1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. 2. Plastic interlead protrusions of 0.25 mm maximum per side are not included. OUTLINE VERSION SOT402-1 REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-18 MO-153 Fig 10. Package outline SOT402-1 (TSSOP14) 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 9 of 14 74LVC00A Nexperia Quad 2-input NAND gate DHVQFN14: plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; SOT762-1 14 terminals; body 2.5 x 3 x 0.85 mm A B D A A1 E c detail X terminal 1 index area terminal 1 index area C e1 e 2 6 y y1 C v M C A B w M C b L 1 7 Eh e 14 8 13 9 Dh X 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT mm A(1) max. A1 b 1 0.05 0.00 0.30 0.18 c D (1) Dh E (1) Eh 0.2 3.1 2.9 1.65 1.35 2.6 2.4 1.15 0.85 e 0.5 e1 L v w y y1 2 0.5 0.3 0.1 0.05 0.05 0.1 Note 1. Plastic or metal protrusions of 0.075 mm maximum per side are not included. REFERENCES OUTLINE VERSION IEC JEDEC JEITA SOT762-1 --- MO-241 --- EUROPEAN PROJECTION ISSUE DATE 02-10-17 03-01-27 Fig 11. Package outline SOT762-1 (DHVQFN14) 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 10 of 14 74LVC00A Nexperia Quad 2-input NAND gate 13. Abbreviations Table 9. Abbreviations Acronym Description CDM Charged Device Model DUT Device Under Test ESD ElectroStatic Discharge HBM Human Body Model MM Machine Model TTL Transistor-Transistor Logic 14. Revision history Table 10. Revision history Document ID Release date Data sheet status Change notice Supersedes 74LVC00A v.7 20120425 Product data sheet - 74LVC00A v.6 - 74LVC00A v.5 Modifications: 74LVC00A v.6 Modifications: • Table 2: Errata in pin description corrected. 20120106 Product data sheet • The format of this data sheet has been redesigned to comply with the new identity guidelines of NXP Semiconductors. • • Legal texts have been adapted to the new company name where appropriate. Table 4, Table 5, Table 6, Table 7 and Table 8: values added for lower voltage ranges. 74LVC00A v.5 20030904 Product specification - 74LVC00A v.4 74LVC00A v.4 20030507 Product specification - 74LVC00A v.3 74LVC00A v.3 20020305 Product specification - 74LVC00A v.2 74LVC00A v.2 19980428 Product specification - 74LVC00A v.1 74LVC00A v.1 19970811 Product specification - - 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 11 of 14 74LVC00A Nexperia Quad 2-input NAND gate 15. Legal information 15.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 15.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. 15.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. 74LVC00A Product data sheet Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of a Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 12 of 14 74LVC00A Nexperia Quad 2-input NAND gate Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 15.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 16. Contact information For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com 74LVC00A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 7 — 25 April 2012 © Nexperia B.V. 2017. All rights reserved 13 of 14 Nexperia 74LVC00A Quad 2-input NAND gate 17. Contents 1 2 3 4 5 5.1 5.2 6 7 8 9 10 11 12 13 14 15 15.1 15.2 15.3 15.4 16 17 © General description . . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 1 Ordering information . . . . . . . . . . . . . . . . . . . . . 1 Functional diagram . . . . . . . . . . . . . . . . . . . . . . 2 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 2 Functional description . . . . . . . . . . . . . . . . . . . 3 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Recommended operating conditions. . . . . . . . 3 Static characteristics. . . . . . . . . . . . . . . . . . . . . 4 Dynamic characteristics . . . . . . . . . . . . . . . . . . 5 Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 7 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . 11 Legal information. . . . . . . . . . . . . . . . . . . . . . . 12 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 12 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Contact information. . . . . . . . . . . . . . . . . . . . . 13 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Nexperia B.V. 2017. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 25 April 2012 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Nexperia: 74LVC00ABQ,115 74LVC00AD,112 74LVC00ADB,112 74LVC00ADB,118 74LVC00AD,118 74LVC00APW,112 74LVC00APW,118 74LVC00APW/AUJ 74LVC00AD/AUJ
