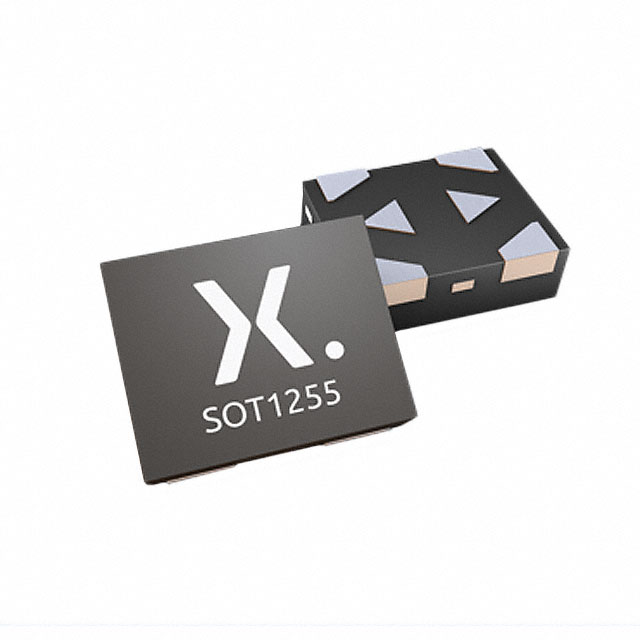

74AUP2G34GXZ

74AUP2G34 Low-power dual buffer Rev. 6 — 17 September 2015 Product data sheet 1. General description The 74AUP2G34 provides two low-power, low-voltage buffers. Schmitt trigger action at all inputs makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 0.8 V to 3.6 V. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. 2. Features and benefits  Wide supply voltage range from 0.8 V to 3.6 V  High noise immunity  Complies with JEDEC standards:  JESD8-12 (0.8 V to 1.3 V)  JESD8-11 (0.9 V to 1.65 V)  JESD8-7 (1.2 V to 1.95 V)  JESD8-5 (1.8 V to 2.7 V)  JESD8-B (2.7 V to 3.6 V)  ESD protection:  HBM JESD22-A114F Class 3A exceeds 5000 V  MM JESD22-A115-A exceeds 200 V  CDM JESD22-C101E exceeds 1000 V  Low static power consumption; ICC = 0.9 A (maximum)  Latch-up performance exceeds 100 mA per JESD 78 Class II  Inputs accept voltages up to 3.6 V  Low noise overshoot and undershoot < 10 % of VCC  IOFF circuitry provides partial Power-down mode operation  Multiple package options  Specified from 40 C to +85 C and 40 C to +125 C 74AUP2G34 Nexperia Low-power dual buffer 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version 74AUP2G34GW 40 C to +125 C SC-88 plastic surface-mounted package; 6 leads SOT363 74AUP2G34GM 40 C to +125 C XSON6 plastic extremely thin small outline package; no leads; SOT886 6 terminals; body 1  1.45  0.5 mm 74AUP2G34GF 40 C to +125 C XSON6 plastic extremely thin small outline package; no leads; SOT891 6 terminals; body 1  1  0.5 mm 74AUP2G34GN 40 C to +125 C XSON6 extremely thin small outline package; no leads; 6 terminals; body 0.9  1.0  0.35 mm SOT1115 74AUP2G34GS 40 C to +125 C XSON6 extremely thin small outline package; no leads; 6 terminals; body 1.0  1.0  0.35 mm SOT1202 74AUP2G34GX 40 C to +125 C X2SON6 plastic thermal extremely thin small outline package; no leads; 6 terminals; body 1  0.8  0.35 mm SOT1255 4. Marking Table 2. Marking Type number Marking code[1] 74AUP2G34GW aA 74AUP2G34GM aA 74AUP2G34GF aA 74AUP2G34GN aA 74AUP2G34GS aA 74AUP2G34GX aA [1] The pin 1 indicator is located on the lower left corner of the device, below the marking code. 5. Functional diagram  $ <   $ <    Logic symbol 74AUP2G34 Product data sheet    $ < PQE PQE Fig 1.  Fig 2. IEC logic symbol All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 DDF Fig 3. Logic diagram © Nexperia B.V. 2017. All rights reserved 2 of 20 74AUP2G34 Nexperia Low-power dual buffer 6. Pinning information 6.1 Pinning $83* $83* $   *1'   9&& $   < < $   < *1'   9&& $   < DDG 7UDQVSDUHQWWRSYLHZ DDG Fig 4. Pin configuration SOT363 Fig 5. Pin configuration SOT886 $83* $83* $  $   < *1'   9&& $   < *1' <    $ DDG  < DDD 7UDQVSDUHQWWRSYLHZ Fig 6. 9&&  7UDQVSDUHQWWRSYLHZ Pin configuration SOT891, SOT1115 and SOT1202 Fig 7. Pin configuration SOT1255 (X2SON6) 6.2 Pin description Table 3. Pin description Symbol Pin Description 1A 1 data input GND 2 ground (0 V) 2A 3 data input 2Y 4 data output VCC 5 supply voltage 1Y 6 data output 74AUP2G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 3 of 20 74AUP2G34 Nexperia Low-power dual buffer 7. Functional description Table 4. Function table[1] Input Output nA nY L L H H [1] H = HIGH voltage level; L = LOW voltage level. 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter VCC supply voltage IIK input clamping current VI input voltage IOK output clamping current Conditions VI < 0 V [1] VO < 0 V VO output voltage Active mode and Power-down mode IO output current VO = 0 V to VCC [1] Min Max Unit 0.5 +4.6 V 50 - 0.5 +4.6 50 - 0.5 +4.6 V - 20 mA mA V mA ICC supply current - 50 mA IGND ground current 50 - mA Tstg storage temperature 65 +150 C - 250 mW total power dissipation Ptot Tamb = 40 C to +125 C [2] [1] The minimum input and output voltage ratings may be exceeded if the input and output current ratings are observed. [2] For SC-88 packages: above 87.5 C the value of Ptot derates linearly with 4.0 mW/K. For X2SON6 and XSON6 packages: above 118 C the value of Ptot derates linearly with 7.8 mW/K. 9. Recommended operating conditions Table 6. Recommended operating conditions Symbol Parameter VCC supply voltage VI input voltage VO output voltage Conditions Tamb ambient temperature t/V input transition rise and fall rate 74AUP2G34 Product data sheet Min Max Unit 0.8 3.6 V 0 3.6 V Active mode 0 VCC V Power-down mode; VCC = 0 V 0 3.6 V 40 +125 C - 200 ns/V VCC = 0.8 V to 3.6 V All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 4 of 20 74AUP2G34 Nexperia Low-power dual buffer 10. Static characteristics Table 7. Static characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.70  VCC - - V VCC = 0.9 V to 1.95 V 0.65  VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.30  VCC V VCC = 0.9 V to 1.95 V - - 0.35  VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V IO = 20 A; VCC = 0.8 V to 3.6 V VCC  0.1 - - V IO = 1.1 mA; VCC = 1.1 V 0.75  VCC - - V IO = 1.7 mA; VCC = 1.4 V 1.11 - - V Tamb = 25 C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VI = VIH or VIL IO = 1.9 mA; VCC = 1.65 V 1.32 - - V IO = 2.3 mA; VCC = 2.3 V 2.05 - - V IO = 3.1 mA; VCC = 2.3 V 1.9 - - V IO = 2.7 mA; VCC = 3.0 V 2.72 - - V IO = 4.0 mA; VCC = 3.0 V 2.6 - - V IO = 20 A; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - VI = VIH or VIL 0.3  VCC V IO = 1.7 mA; VCC = 1.4 V - - 0.31 V IO = 1.9 mA; VCC = 1.65 V - - 0.31 V IO = 2.3 mA; VCC = 2.3 V - - 0.31 V IO = 3.1 mA; VCC = 2.3 V - - 0.44 V IO = 2.7 mA; VCC = 3.0 V - - 0.31 V IO = 4.0 mA; VCC = 3.0 V - - 0.44 V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - 0.1 A IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - 0.2 A IOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - 0.2 A ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 0.5 A ICC additional supply current VI = VCC  0.6 V; IO = 0 A; VCC = 3.3 V - - 40 A CI input capacitance VCC = 0 V to 3.6 V; VI = GND or VCC - 0.8 - pF CO output capacitance VO = GND; VCC = 0 V - 1.7 - pF 74AUP2G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 5 of 20 74AUP2G34 Nexperia Low-power dual buffer Table 7. Static characteristics …continued At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.70  VCC - - V VCC = 0.9 V to 1.95 V 0.65  VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V - - 0.30  VCC V 0.35  VCC V Tamb = 40 C to +85 C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VCC = 0.8 V VCC = 0.9 V to 1.95 V - - VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V VI = VIH or VIL IO = 20 A; VCC = 0.8 V to 3.6 V VCC  0.1 - - V IO = 1.1 mA; VCC = 1.1 V 0.7  VCC - - V IO = 1.7 mA; VCC = 1.4 V 1.03 - - V IO = 1.9 mA; VCC = 1.65 V 1.30 - - V IO = 2.3 mA; VCC = 2.3 V 1.97 - - V IO = 3.1 mA; VCC = 2.3 V 1.85 - - V IO = 2.7 mA; VCC = 3.0 V 2.67 - - V IO = 4.0 mA; VCC = 3.0 V 2.55 - - V IO = 20 A; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - IO = 1.7 mA; VCC = 1.4 V - - VI = VIH or VIL 0.3  VCC V 0.37 V IO = 1.9 mA; VCC = 1.65 V - - 0.35 V IO = 2.3 mA; VCC = 2.3 V - - 0.33 V IO = 3.1 mA; VCC = 2.3 V - - 0.45 V IO = 2.7 mA; VCC = 3.0 V - - 0.33 V IO = 4.0 mA; VCC = 3.0 V - - 0.45 V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - 0.5 A IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - 0.5 A IOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - 0.6 A ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 0.9 A ICC additional supply current VI = VCC  0.6 V; IO = 0 A; VCC = 3.3 V - - 50 A 74AUP2G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 6 of 20 74AUP2G34 Nexperia Low-power dual buffer Table 7. Static characteristics …continued At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.75  VCC - - V VCC = 0.9 V to 1.95 V 0.70  VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V - - 0.25  VCC V 0.30  VCC V Tamb = 40 C to +125 C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VCC = 0.8 V VCC = 0.9 V to 1.95 V - - VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V VI = VIH or VIL IO = 20 A; VCC = 0.8 V to 3.6 V VCC  0.11 - - V IO = 1.1 mA; VCC = 1.1 V 0.6  VCC - - V IO = 1.7 mA; VCC = 1.4 V 0.93 - - V IO = 1.9 mA; VCC = 1.65 V 1.17 - - V IO = 2.3 mA; VCC = 2.3 V 1.77 - - V IO = 3.1 mA; VCC = 2.3 V 1.67 - - V IO = 2.7 mA; VCC = 3.0 V 2.40 - - V IO = 4.0 mA; VCC = 3.0 V 2.30 - - V IO = 20 A; VCC = 0.8 V to 3.6 V - - 0.11 V IO = 1.1 mA; VCC = 1.1 V - - IO = 1.7 mA; VCC = 1.4 V - - VI = VIH or VIL 0.33  VCC V 0.41 V IO = 1.9 mA; VCC = 1.65 V - - 0.39 V IO = 2.3 mA; VCC = 2.3 V - - 0.36 V IO = 3.1 mA; VCC = 2.3 V - - 0.50 V IO = 2.7 mA; VCC = 3.0 V - - 0.36 V IO = 4.0 mA; VCC = 3.0 V - - 0.50 V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - 0.75 A IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - 0.75 A IOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - 0.75 A ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 1.4 A ICC additional supply current VI = VCC  0.6 V; IO = 0 A; VCC = 3.3 V - - 75 A 74AUP2G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 7 of 20 74AUP2G34 Nexperia Low-power dual buffer 11. Dynamic characteristics Table 8. Dynamic characteristics Voltages are referenced to GND (ground = 0 V); for test circuit see Figure 9. Symbol Parameter 25 C Conditions 40 C to +125 C Min Typ[1] Max Min Max (85 C) Max (125 C) - 14.9 - - - - Unit CL = 5 pF tpd propagation delay nA to nY; see Figure 8 [2] VCC = 0.8 V ns VCC = 1.1 V to 1.3 V 2.6 4.7 9.2 2.0 10.0 11.0 ns VCC = 1.4 V to 1.6 V 2.1 3.4 5.7 1.6 6.5 7.2 ns VCC = 1.65 V to 1.95 V 1.8 2.9 4.5 1.4 5.2 5.8 ns VCC = 2.3 V to 2.7 V 1.5 2.3 3.5 1.2 4.2 4.6 ns VCC = 3.0 V to 3.6 V 1.4 2.1 3.2 1.0 3.8 4.2 ns - 18.4 - - - - ns VCC = 1.1 V to 1.3 V 3.2 5.6 10.9 2.3 11.8 13.1 ns VCC = 1.4 V to 1.6 V 2.6 4.1 6.7 1.9 7.7 8.5 ns VCC = 1.65 V to 1.95 V 2.3 3.4 5.3 1.7 6.2 6.9 ns VCC = 2.3 V to 2.7 V 2.0 2.9 4.2 1.5 5.0 5.5 ns VCC = 3.0 V to 3.6 V 1.7 2.6 3.8 1.4 4.6 5.1 ns - 21.9 - - - - ns CL = 10 pF tpd propagation delay nA to nY; see Figure 8 [2] VCC = 0.8 V CL = 15 pF tpd propagation delay nA to nY; see Figure 8 [2] VCC = 0.8 V VCC = 1.1 V to 1.3 V 3.6 6.4 12.6 2.6 13.8 15.2 ns VCC = 1.4 V to 1.6 V 3.0 4.6 7.6 2.2 8.9 9.8 ns VCC = 1.65 V to 1.95 V 2.6 3.9 6.0 2.0 7.2 7.9 ns VCC = 2.3 V to 2.7 V 2.3 3.3 4.8 1.8 5.7 6.3 ns VCC = 3.0 V to 3.6 V 2.1 3.1 4.2 1.6 5.0 5.5 ns - 32.1 - - - - ns CL = 30 pF tpd propagation delay nA to nY; see Figure 8 VCC = 0.8 V 74AUP2G34 Product data sheet [2] VCC = 1.1 V to 1.3 V 4.8 8.7 16.3 3.6 18.9 20.8 ns VCC = 1.4 V to 1.6 V 4.0 6.2 10.3 3.4 12.2 13.4 ns VCC = 1.65 V to 1.95 V 3.6 5.2 8.1 3.2 9.8 10.8 ns VCC = 2.3 V to 2.7 V 3.0 4.4 6.4 2.7 7.7 8.5 ns VCC = 3.0 V to 3.6 V 2.9 4.2 5.6 2.5 6.5 7.2 ns All information provided in this document is subject to legal disclaimers. Rev. 6 — 17 September 2015 © Nexperia B.V. 2017. All rights reserved 8 of 20 74AUP2G34 Nexperia Low-power dual buffer Table 8. Dynamic characteristics …continued Voltages are referenced to GND (ground = 0 V); for test circuit see Figure 9. Symbol Parameter 25 C Conditions 40 C to +125 C Unit Min Typ[1] Max Min Max (85 C) Max (125 C) VCC = 0.8 V - 2.5 - - - - pF VCC = 1.1 V to 1.3 V - 2.6 - - - - pF VCC = 1.4 V to 1.6 V - 2.7 - - - - pF VCC = 1.65 V to 1.95 V - 2.9 - - - - pF VCC = 2.3 V to 2.7 V - 3.4 - - - - pF VCC = 3.0 V to 3.6 V - 4.0 - - - - pF CL = 5 pF, 10 pF, 15 pF and 30 pF power dissipation capacitance CPD fi = 1 MHz; VI = GND to VCC [3][4] [1] All typical values are measured at nominal VCC. [2] tpd is the same as tPLH and tPHL. [3] All specified values are the average typical values over all stated loads. [4] CPD is used to determine the dynamic power dissipation (PD in W). PD = CPD  VCC2  fi  N + (CL  VCC2  fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; (CL  VCC2  fo) = sum of the outputs. 12. Waveforms 9, Q$LQSXW 90 90 *1' W3/+ W3+/ 92+ 90 Q
