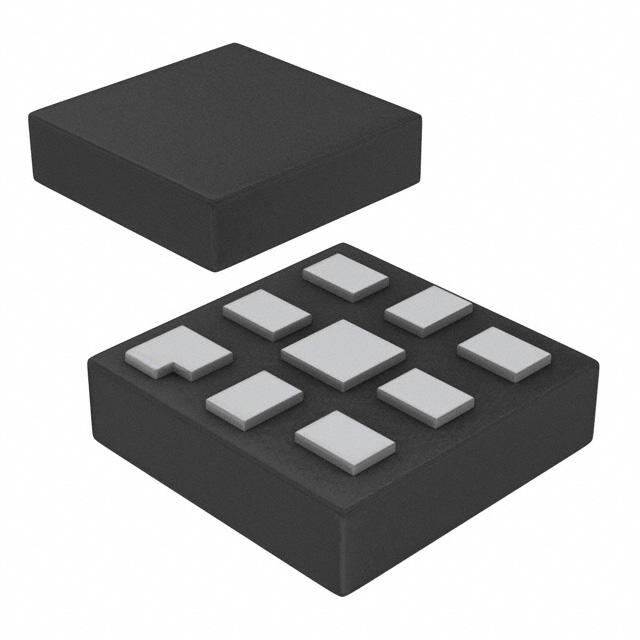

74AUP3G34GM,125

74AUP3G34 Low-power triple buffer Rev. 4 — 25 July 2019 Product data sheet 1. General description The 74AUP3G34 is a triple buffer. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial Power-down applications using IOFF. The IOFF circuitry disables the output, preventing a damaging backflow current through the device when it is powered down. 2. Features and benefits • • • • • • • • • • • Wide supply voltage range from 0.8 V to 3.6 V High noise immunity Complies with JEDEC standards: • JESD8-12 (0.8 V to 1.3 V) • JESD8-11 (0.9 V to 1.65 V) • JESD8-7 (1.2 V to 1.95 V) • JESD8-5 (1.8 V to 2.7 V) • JESD8-B (2.7 V to 3.6 V) ESD protection: • HBM JESD22-A114F Class 3A exceeds 5000 V • MM JESD22-A115-A exceeds 200 V • CDM JESD22-C101E exceeds 1000 V Low static power consumption; ICC = 0.9 μA (maximum) Latch-up performance exceeds 100 mA per JESD 78B Class II Inputs accept voltages up to 3.6 V Low noise overshoot and undershoot < 10 % of VCC IOFF circuitry provides partial Power-down mode operation Multiple package options Specified from -40 °C to +85 °C and -40 °C to +125 °C 74AUP3G34 Nexperia Low-power triple buffer 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version 74AUP3G34DC -40 °C to +125 °C VSSOP8 plastic very thin shrink small outline package; 8 leads; SOT765-1 body width 2.3 mm 74AUP3G34GT -40 °C to +125 °C XSON8 plastic extremely thin small outline package; no leads; SOT833-1 8 terminals; body 1 x 1.95 x 0.5 mm 74AUP3G34GF -40 °C to +125 °C XSON8 extremely thin small outline package; no leads; 8 terminals; body 1.35 x 1 x 0.5 mm SOT1089 74AUP3G34GN -40 °C to +125 °C XSON8 extremely thin small outline package; no leads; 8 terminals; body 1.2 x 1.0 x 0.35 mm SOT1116 74AUP3G34GS -40 °C to +125 °C XSON8 extremely thin small outline package; no leads; 8 terminals; body 1.35 x 1.0 x 0.35 mm SOT1203 74AUP3G34GX -40 °C to +125 °C X2SON8 plastic thermal enhanced extremely thin small outline package; no leads; 8 terminals; body 1.35 x 0.8 x 0.35 mm SOT1233 4. Marking Table 2. Marking codes Type number Marking code[1] 74AUP3G34DC a34 74AUP3G34GT a34 74AUP3G34GF aA 74AUP3G34GN aA 74AUP3G34GS aA 74AUP3G34GX aA [1] The pin 1 indicator is located on the lower left corner of the device, below the marking code. 5. Functional diagram 1 1A 1Y 3Y 3A 2A 2Y 1 1 001aah842 Fig. 1. Logic symbol 74AUP3G34 Product data sheet A Y 001aah843 Fig. 2. IEC logic symbol All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 001aac536 Fig. 3. Logic diagram (one gate) © Nexperia B.V. 2019. All rights reserved 2 / 18 74AUP3G34 Nexperia Low-power triple buffer 6. Pinning information 6.1. Pinning 74AUP3G34 1A 1 8 VCC 3Y 2 7 1Y 2A 3 6 3A GND 4 5 2Y 74AUP3G34 1A 1 8 VCC 3Y 2 7 1Y 2A 3 6 3A GND 4 5 2Y aaa-016028 Transparent top view aaa-016027 Fig. 4. Fig. 5. Pin configuration SOT765-1 (VSSOP8) Pin configuration SOT833-1, SOT1089, SOT1116 and SOT1203 (XSON8) 74AUP3G34 1A 1 7 1Y 6 3A 5 2Y 8 VCC 3Y 2 4 GND 2A 3 aaa-027035 Transparent top view Fig. 6. Pin configuration SOT1233 (X2SON8) 6.2. Pin description Table 3. Pin description Symbol Pin Description 1A, 2A, 3A 1, 3, 6 data input 1Y, 2Y, 3Y 7, 5, 2 data output GND 4 ground (0 V) VCC 8 supply voltage 7. Functional description Table 4. Function table H = HIGH voltage level; L = LOW voltage level. Input Output nA nY L L H H 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 3 / 18 74AUP3G34 Nexperia Low-power triple buffer 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Max Unit -0.5 +4.6 V -50 - -0.5 +4.6 -50 - -0.5 +4.6 V - ±20 mA +50 mA VCC supply voltage IIK input clamping current VI input voltage IOK output clamping current VO < 0 V VO output voltage Active mode and Power-down mode IO output current VO = 0 V to VCC ICC supply current - IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 250 mW Min Max Unit 0.8 3.6 V 0 3.6 V Active mode 0 VCC V Power-down mode; VCC = 0 V 0 3.6 V -40 +125 °C - 200 ns/V [1] [2] VI < 0 V [1] Tamb = -40 °C to +125 °C [1] [2] mA V mA The minimum input and output voltage ratings may be exceeded if the input and output current ratings are observed. For SOT765-1 (VSSOP8) packages: Ptot derates linearly with 4.9 mW/K above 99 °C. For SOT833-1 (XSON8) packages: Ptot derates linearly with 3.1 mW/K above 68 °C. For SOT1089 (XSON8) packages: Ptot derates linearly with 4.0 mW/K above 88 °C. For SOT1116 (XSON8) packages: Ptot derates linearly with 4.2 mW/K above 90 °C. For SOT1203 (XSON8) packages: Ptot derates linearly with 3.6 mW/K above 81 °C. For SOT1233 (X2SON8) packages: Ptot derates linearly with 7.7 mW/K above 118 °C. 9. Recommended operating conditions Table 6. Operating conditions Symbol Parameter VCC supply voltage VI input voltage VO output voltage Tamb ambient temperature Δt/ΔV input transition rise and fall rate 74AUP3G34 Product data sheet Conditions VCC = 0.8 V to 3.6 V All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 4 / 18 74AUP3G34 Nexperia Low-power triple buffer 10. Static characteristics Table 7. Static characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.70VCC - - V VCC = 0.9 V to 1.95 V 0.65VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.30VCC V VCC = 0.9 V to 1.95 V - - 0.35VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V IO = -20 μA; VCC = 0.8 V to 3.6 V VCC - 0.1 - - V IO = -1.1 mA; VCC = 1.1 V 0.75VCC - - V IO = -1.7 mA; VCC = 1.4 V 1.11 - - V IO = -1.9 mA; VCC = 1.65 V 1.32 - - V IO = -2.3 mA; VCC = 2.3 V 2.05 - - V IO = -3.1 mA; VCC = 2.3 V 1.9 - - V IO = -2.7 mA; VCC = 3.0 V 2.72 - - V IO = -4.0 mA; VCC = 3.0 V 2.6 - - V IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - 0.3VCC V IO = 1.7 mA; VCC = 1.4 V - - 0.31 V IO = 1.9 mA; VCC = 1.65 V - - 0.31 V IO = 2.3 mA; VCC = 2.3 V - - 0.31 V IO = 3.1 mA; VCC = 2.3 V - - 0.44 V IO = 2.7 mA; VCC = 3.0 V - - 0.31 V IO = 4.0 mA; VCC = 3.0 V - - 0.44 V Tamb = 25 °C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VI = VIH or VIL VI = VIH or VIL II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.1 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.2 μA ΔIOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.2 μA ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 0.5 μA ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V - - 40 μA CI input capacitance VCC = 0 V to 3.6 V; VI = GND or VCC - 1.0 - pF CO output capacitance VO = GND; VCC = 0 V - 1.8 - pF 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 5 / 18 74AUP3G34 Nexperia Low-power triple buffer Symbol Parameter Conditions Min Typ Max Unit VCC = 0.8 V 0.70VCC - - V VCC = 0.9 V to 1.95 V 0.65VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V 2.0 - - V VCC = 0.8 V - - 0.30VCC V VCC = 0.9 V to 1.95 V - - 0.35VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V VCC - 0.1 - - V IO = -1.1 mA; VCC = 1.1 V 0.7VCC - - V IO = -1.7 mA; VCC = 1.4 V 1.03 - - V IO = -1.9 mA; VCC = 1.65 V 1.30 - - V IO = -2.3 mA; VCC = 2.3 V 1.97 - - V IO = -3.1 mA; VCC = 2.3 V 1.85 - - V IO = -2.7 mA; VCC = 3.0 V 2.67 - - V IO = -4.0 mA; VCC = 3.0 V 2.55 - - V IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.1 V IO = 1.1 mA; VCC = 1.1 V - - 0.3VCC V IO = 1.7 mA; VCC = 1.4 V - - 0.37 V IO = 1.9 mA; VCC = 1.65 V - - 0.35 V IO = 2.3 mA; VCC = 2.3 V - - 0.33 V IO = 3.1 mA; VCC = 2.3 V - - 0.45 V IO = 2.7 mA; VCC = 3.0 V - - 0.33 V IO = 4.0 mA; VCC = 3.0 V - - 0.45 V Tamb = -40 °C to +85 °C VIH VIL VOH VOL HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage VI = VIH or VIL IO = -20 μA; VCC = 0.8 V to 3.6 V VI = VIH or VIL II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.5 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.5 μA ΔIOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.6 μA ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 0.9 μA ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V - - 50 μA VCC = 0.8 V 0.75VCC - - V VCC = 0.9 V to 1.95 V 0.70VCC - - V VCC = 2.3 V to 2.7 V 1.6 - - V VCC = 3.0 V to 3.6 V Tamb = -40 °C to +125 °C VIH VIL HIGH-level input voltage LOW-level input voltage 74AUP3G34 Product data sheet 2.0 - - V VCC = 0.8 V - - 0.25VCC V VCC = 0.9 V to 1.95 V - - 0.30VCC V VCC = 2.3 V to 2.7 V - - 0.7 V VCC = 3.0 V to 3.6 V - - 0.9 V All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 6 / 18 74AUP3G34 Nexperia Low-power triple buffer Symbol Parameter Conditions VOH HIGH-level output voltage VI = VIH or VIL VOL LOW-level output voltage Min Typ Max VCC - 0.11 - - V IO = -1.1 mA; VCC = 1.1 V 0.6VCC - - V IO = -1.7 mA; VCC = 1.4 V 0.93 - - V IO = -1.9 mA; VCC = 1.65 V 1.17 - - V IO = -2.3 mA; VCC = 2.3 V 1.77 - - V IO = -3.1 mA; VCC = 2.3 V 1.67 - - V IO = -2.7 mA; VCC = 3.0 V 2.40 - - V IO = -4.0 mA; VCC = 3.0 V 2.30 - - V IO = 20 μA; VCC = 0.8 V to 3.6 V - - 0.11 V IO = 1.1 mA; VCC = 1.1 V - - 0.33VCC V IO = 1.7 mA; VCC = 1.4 V - - 0.41 V IO = 1.9 mA; VCC = 1.65 V - - 0.39 V IO = 2.3 mA; VCC = 2.3 V - - 0.36 V IO = 3.1 mA; VCC = 2.3 V - - 0.50 V IO = 2.7 mA; VCC = 3.0 V - - 0.36 V IO = 4.0 mA; VCC = 3.0 V IO = -20 μA; VCC = 0.8 V to 3.6 V Unit VI = VIH or VIL - - 0.50 V II input leakage current VI = GND to 3.6 V; VCC = 0 V to 3.6 V - - ±0.75 μA IOFF power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V - - ±0.75 μA ΔIOFF additional power-off leakage current VI or VO = 0 V to 3.6 V; VCC = 0 V to 0.2 V - - ±0.75 μA ICC supply current VI = GND or VCC; IO = 0 A; VCC = 0.8 V to 3.6 V - - 1.4 μA ΔICC additional supply current VI = VCC - 0.6 V; IO = 0 A; VCC = 3.3 V - - 75 μA 11. Dynamic characteristics Table 8. Dynamic characteristics Voltages are referenced to GND (ground = 0 V); for test circuit, see Fig. 8. Symbol Parameter Conditions 25 °C Min Typ[1] -40 °C to +85 °C Max Min -40 °C to +125 °C Max Min Unit Max CL = 5 pF tpd propagation delay 74AUP3G34 Product data sheet nA to nY; see Fig. 7 VCC = 0.8 V [2] - 14.9 - - - - - ns VCC = 1.1 V to 1.3 V 2.6 4.7 9.2 2.0 10.0 2.0 11.0 ns VCC = 1.4 V to 1.6 V 2.1 3.4 5.7 1.6 6.5 1.6 7.2 ns VCC = 1.65 V to 1.95 V 1.8 2.9 4.5 1.4 5.2 1.4 5.8 ns VCC = 2.3 V to 2.7 V 1.5 2.3 3.5 1.2 4.2 1.2 4.6 ns VCC = 3.0 V to 3.6 V 1.4 2.1 3.2 1.0 3.8 1.0 4.2 ns All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 7 / 18 74AUP3G34 Nexperia Low-power triple buffer Symbol Parameter Conditions 25 °C -40 °C to +85 °C -40 °C to +125 °C Unit Min Typ[1] Max Min Max Min Max - 18.4 - - - - - ns VCC = 1.1 V to 1.3 V 3.2 5.6 10.9 2.3 11.8 2.3 13.1 ns VCC = 1.4 V to 1.6 V 2.6 4.1 6.7 1.9 7.7 1.9 8.5 ns VCC = 1.65 V to 1.95 V 2.3 3.4 5.3 1.7 6.2 1.7 6.9 ns VCC = 2.3 V to 2.7 V 2.0 2.9 4.2 1.5 5.0 1.5 5.5 ns VCC = 3.0 V to 3.6 V 1.7 2.6 3.8 1.4 4.6 1.4 5.1 ns CL = 10 pF tpd propagation delay nA to nY; see Fig. 7 [2] VCC = 0.8 V CL = 15 pF tpd propagation delay nA to nY; see Fig. 7 [2] VCC = 0.8 V - 21.9 - - - - - ns VCC = 1.1 V to 1.3 V 3.6 6.4 12.6 2.6 13.8 2.6 15.2 ns VCC = 1.4 V to 1.6 V 3.0 4.6 7.6 2.2 8.9 2.2 9.8 ns VCC = 1.65 V to 1.95 V 2.6 3.9 6.0 2.0 7.2 2.0 7.9 ns VCC = 2.3 V to 2.7 V 2.3 3.3 4.8 1.8 5.7 1.8 6.3 ns VCC = 3.0 V to 3.6 V 2.1 3.1 4.2 1.6 5.0 1.6 5.5 ns - 32.1 - - - - - ns VCC = 1.1 V to 1.3 V 4.8 8.7 16.3 3.6 18.9 3.6 20.8 ns VCC = 1.4 V to 1.6 V 4.0 6.2 10.3 3.4 12.2 3.4 13.4 ns VCC = 1.65 V to 1.95 V 3.6 5.2 8.1 3.2 9.8 3.2 10.8 ns VCC = 2.3 V to 2.7 V 3.0 4.4 6.4 2.7 7.7 2.7 8.5 ns VCC = 3.0 V to 3.6 V 2.9 4.2 5.6 2.5 6.5 2.5 7.2 ns VCC = 0.8 V - 2.5 - - - - - pF VCC = 1.1 V to 1.3 V - 2.6 - - - - - pF VCC = 1.4 V to 1.6 V - 2.7 - - - - - pF VCC = 1.65 V to 1.95 V - 2.9 - - - - - pF VCC = 2.3 V to 2.7 V - 3.4 - - - - - pF VCC = 3.0 V to 3.6 V - 4.0 - - - - - pF CL = 30 pF tpd propagation delay nA to nY; see Fig. 7 [2] VCC = 0.8 V CL = 5 pF, 10 pF, 15 pF and 30 pF CPD [1] [2] [3] [4] power dissipation capacitance fi = 1 MHz; VI = GND to VCC [3] [4] All typical values are measured at nominal VCC. tpd is the same as tPLH and tPHL. All specified values are the average typical values over all stated loads. CPD is used to determine the dynamic power dissipation (PD in μW). 2 2 PD = CPD × VCC × fi × N + Σ(CL × VCC × fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; 2 Σ(CL × VCC × fo) = sum of the outputs. 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 8 / 18 74AUP3G34 Nexperia Low-power triple buffer 11.1. Waveforms and test circuit VI nA input VM VM GND tPLH tPHL VOH VM nY output VM VOL mnb072 Measurement points are given in Table 9. Logic levels: VOL and VOH are typical output voltage levels that occur with the output load. Fig. 7. The data input (nA) to output (nY) propagation delays Table 9. Measurement points Supply voltage Output Input VCC VM VM VI tr = tf 0.8 V to 3.6 V 0.5VCC 0.5VCC VCC ≤ 3.0 ns VCC G VI DUT VEXT 5 kΩ VO RT CL RL 001aac521 Test data is given in Table 10. Definitions for test circuit: RL = Load resistance. CL = Load capacitance including jig and probe capacitance. RT = Termination resistance should be equal to the output impedance Zo of the pulse generator. VEXT = External voltage for measuring switching times. Fig. 8. Test circuit for measuring switching times Table 10. Test data Supply voltage Load VCC CL RL [1] tPLH, tPHL tPZH, tPHZ tPZL, tPLZ 0.8 V to 3.6 V 5 pF, 10 pF, 15 pF, and 30 pF 5 kΩ or 1 MΩ open GND 2VCC [1] VEXT For measuring enable and disable times RL = 5 kΩ., For measuring propagation delays, setup and hold times and pulse width RL = 1 MΩ. 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 9 / 18 74AUP3G34 Nexperia Low-power triple buffer 12. Package outline VSSOP8: plastic very thin shrink small outline package; 8 leads; body width 2.3 mm D SOT765-1 E A X c y HE v A Z 5 8 Q A A2 A1 pin 1 index (A3) θ Lp 1 detail X 4 e L w bp 0 5 mm scale Dimensions (mm are the original dimensions) Unit mm A max. max nom min 1 A1 A2 0.15 0.85 0.00 0.60 A3 0.12 D(1) E(2) 0.27 0.23 2.1 2.4 0.17 0.08 1.9 2.2 bp c e HE 0.5 3.2 3.0 L 0.4 Lp Q 0.40 0.21 0.15 0.19 v w y 0.2 0.08 0.1 Z(1) θ 0.4 8° 0.1 0° Note 1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. 2. Plastic or metal protrusions of 0.25 mm maximum per side are not included. Outline version SOT765-1 Fig. 9. References IEC JEDEC JEITA sot765-1_po European projection Issue date 07-06-02 16-05-31 MO-187 Package outline SOT765-1 (VSSOP8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 10 / 18 74AUP3G34 Nexperia Low-power triple buffer XSON8: plastic extremely thin small outline package; no leads; 8 terminals; body 1 x 1.95 x 0.5 mm 1 2 SOT833-1 b 4 3 4× (2) L L1 e 8 7 6 e1 5 e1 e1 8× A (2) A1 D E terminal 1 index area 0 1 2 mm scale DIMENSIONS (mm are the original dimensions) UNIT A(1) max A1 max b D E e e1 L L1 mm 0.5 0.04 0.25 0.17 2.0 1.9 1.05 0.95 0.6 0.5 0.35 0.27 0.40 0.32 Notes 1. Including plating thickness. 2. Can be visible in some manufacturing processes. REFERENCES OUTLINE VERSION IEC JEDEC JEITA SOT833-1 --- MO-252 --- EUROPEAN PROJECTION ISSUE DATE 07-11-14 07-12-07 Fig. 10. Package outline SOT833-1 (XSON8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 11 / 18 74AUP3G34 Nexperia Low-power triple buffer XSON8: extremely thin small outline package; no leads; 8 terminals; body 1.35 x 1 x 0.5 mm SOT1089 E terminal 1 index area D A A1 detail X (4×)(2) e L (8×)(2) b 4 5 e1 1 terminal 1 index area 8 L1 X 0 0.5 scale Dimensions Unit mm max nom min 1 mm A(1) 0.5 A1 b D E e e1 L L1 0.04 0.20 1.40 1.05 0.35 0.40 0.15 1.35 1.00 0.55 0.35 0.30 0.35 0.12 1.30 0.95 0.27 0.32 Note 1. Including plating thickness. 2. Visible depending upon used manufacturing technology. Outline version SOT1089 sot1089_po References IEC JEDEC JEITA European projection Issue date 10-04-09 10-04-12 MO-252 Fig. 11. Package outline SOT1089 (XSON8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 12 / 18 74AUP3G34 Nexperia Low-power triple buffer XSON8: extremely thin small outline package; no leads; 8 terminals; body 1.2 x 1.0 x 0.35 mm 1 2 SOT1116 b 4 3 (4×)(2) L L1 e 8 7 e1 6 e1 5 e1 (8×)(2) A1 A D E terminal 1 index area 0 0.5 Dimensions Unit mm 1 mm scale A(1) A1 b D E e e1 max 0.35 0.04 0.20 1.25 1.05 nom 0.15 1.20 1.00 0.55 min 0.12 1.15 0.95 0.3 L L1 0.35 0.40 0.30 0.35 0.27 0.32 Note 1. Including plating thickness. 2. Visible depending upon used manufacturing technology. Outline version sot1116_po References IEC JEDEC JEITA European projection Issue date 10-04-02 10-04-07 SOT1116 Fig. 12. Package outline SOT1116 (XSON8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 13 / 18 74AUP3G34 Nexperia Low-power triple buffer XSON8: extremely thin small outline package; no leads; 8 terminals; body 1.35 x 1.0 x 0.35 mm SOT1203 b 1 2 3 (4×)(2) 4 L L1 e 8 7 6 e1 e1 5 e1 (8×)(2) A1 A D E terminal 1 index area 0 0.5 Dimensions Unit mm 1 mm scale A(1) A1 b D E e e1 L L1 max 0.35 0.04 0.20 1.40 1.05 0.35 0.40 nom 0.15 1.35 1.00 0.55 0.35 0.30 0.35 min 0.12 1.30 0.95 0.27 0.32 Note 1. Including plating thickness. 2. Visible depending upon used manufacturing technology. Outline version sot1203_po References IEC JEDEC JEITA European projection Issue date 10-04-02 10-04-06 SOT1203 Fig. 13. Package outline SOT1203 (XSON8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 14 / 18 74AUP3G34 Nexperia Low-power triple buffer X2SON8: plastic thermal enhanced extremely thin small outline package; no leads; 8 terminals; body 1.35 x 0.8 x 0.35 mm SOT1233 X A B D A E A1 detail X pin 1 index area e e 1 b (6x) 2 pin 1 index area C 8 v w 3 C A B C y 4 Dh L (6x) 7 6 b1 (2x) 5 y1 C e1 0 1 mm scale Dimensions (mm are the original dimensions) Unit mm A A1 max 0.35 0.04 nom 0.32 min 0.30 0.00 b 0.25 0.20 0.15 b1 D Dh E 1.40 0.27 0.85 0.15 1.35 0.22 0.80 (ref) 1.30 0.17 0.75 e 0.5 e1 L 0.27 0.54 0.22 0.17 v 0.1 w y y1 0.05 0.05 0.05 sot1233_po Outline version SOT1233 References IEC JEDEC JEITA European projection Issue date 16-04-21 17-01-05 --- Fig. 14. Package outline SOT1233 (X2SON8) 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 15 / 18 74AUP3G34 Nexperia Low-power triple buffer 13. Abbreviations Table 11. Abbreviations Acronym Description CDM Charged Device Model DUT Device Under Test ESD ElectroStatic Discharge HBM Human Body Model MM Machine Model 14. Revision history Table 12. Revision history Document ID Release date Data sheet status Change notice Supersedes 74AUP3G34 v.4 20190725 Product data sheet - 74AUP3G34 v.3 Modifications: • • • 74AUP3G34 v.3 20170703 Modifications: • • • • Type number 74AUP3G34GM removed. Table 5: Derating values for Ptot total power dissipation updated. Layout of Table 8 Dynamic characteristics updated. 20161011 Modifications: • 74AUP3G34 v.1 20141218 Product data sheet - 74AUP3G34 v.2 The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. Type number 74AUP3G34GX (SOT1233 / X2SON8) added. Type number 74AUP3G34GD removed. 74AUP3G34 v.2 74AUP3G34 Product data sheet Product data sheet - 74AUP3G34 v.1 - - Type numbers 74AUP3G34DP removed. Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 16 / 18 74AUP3G34 Nexperia Low-power triple buffer 15. Legal information injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Data sheet status Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Document status [1][2] Product status [3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal 74AUP3G34 Product data sheet Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 17 / 18 74AUP3G34 Nexperia Low-power triple buffer Contents 1. General description...................................................... 1 2. Features and benefits.................................................. 1 3. Ordering information....................................................2 4. Marking.......................................................................... 2 5. Functional diagram.......................................................2 6. Pinning information......................................................3 6.1. Pinning.........................................................................3 6.2. Pin description............................................................. 3 7. Functional description................................................. 3 8. Limiting values............................................................. 4 9. Recommended operating conditions..........................4 10. Static characteristics..................................................5 11. Dynamic characteristics.............................................7 11.1. Waveforms and test circuit........................................ 9 12. Package outline........................................................ 10 13. Abbreviations............................................................ 16 14. Revision history........................................................16 15. Legal information......................................................17 © Nexperia B.V. 2019. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 25 July 2019 74AUP3G34 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 25 July 2019 © Nexperia B.V. 2019. All rights reserved 18 / 18 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Nexperia: 74AUP3G34GSX 74AUP3G34GM,125 74AUP3G34GFX 74AUP3G34GTX 74AUP3G34DCH 74AUP3G34GNX 74AUP3G34GDH 74AUP3G34GXX
